Mounting Dream MD2622-24K User manual

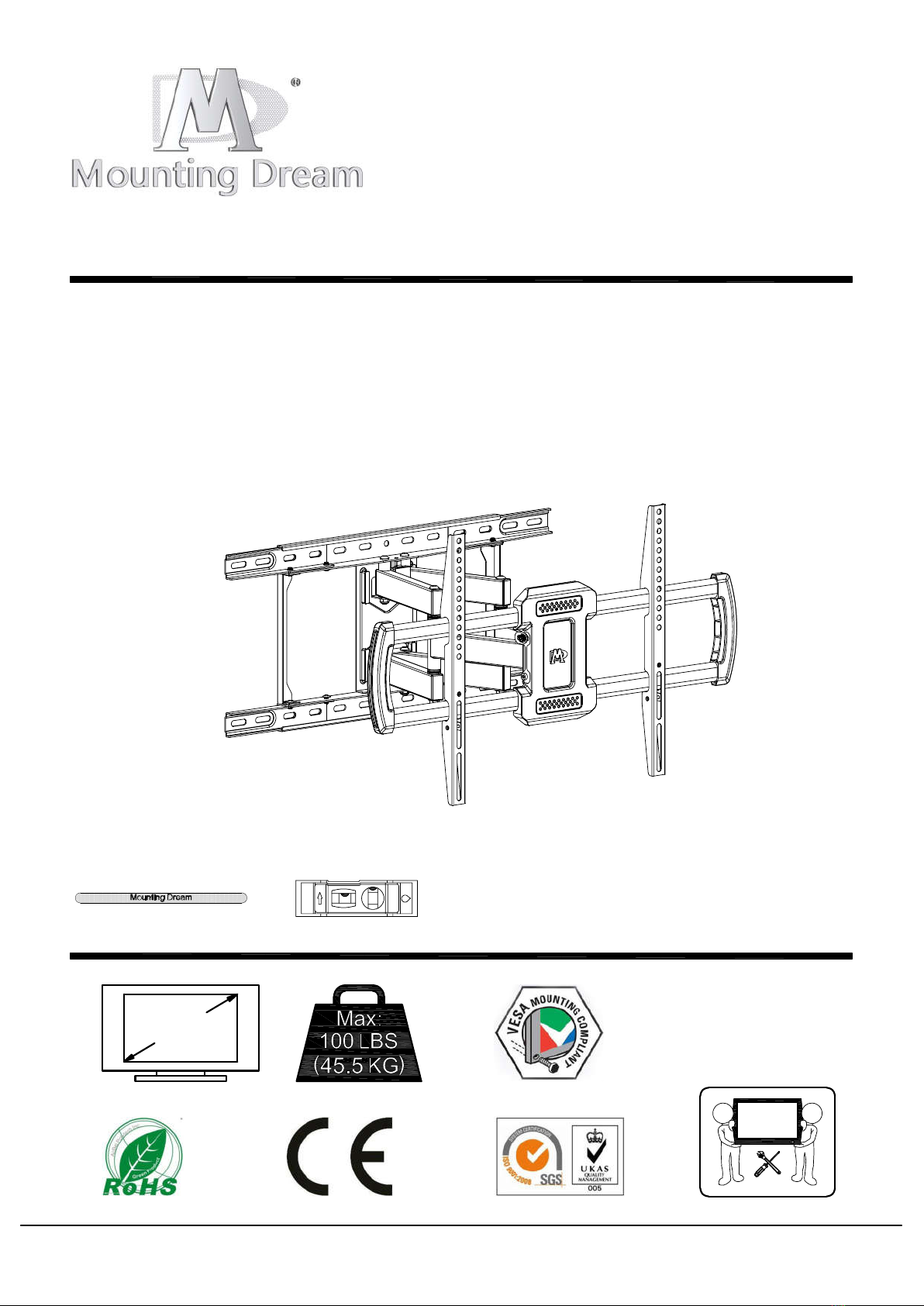

MD2622-24K INSTALLATION INSTRUCTION
(C1)
42"~75" Max:600x400mm/24x16"
Min:200x100mm/8x4"
Für die Installationsanweisungen auf Deutsch, siehe Seite 10~11.
Pour l'instruction en Français, veuillez vous reporter à la page 12~13.
Para las instrucciones de la instalación en Español, favor vea la página 14~15.
Per le Istruzioni in Italiano, vedi pagina 16~17.
TV
1 2
x1x3

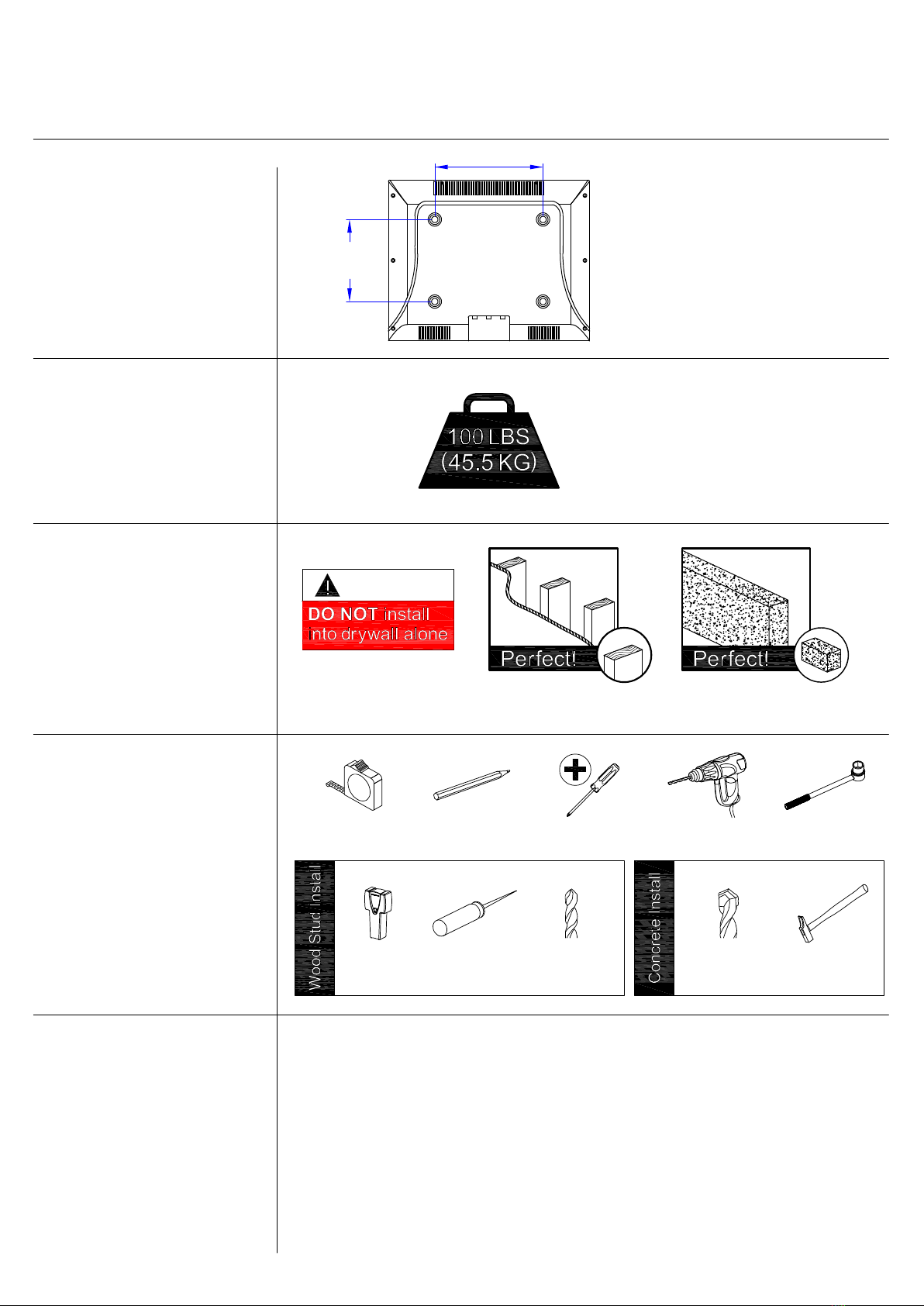

Before getting started, let’s make sure this mount is perfect for you!
1 Is your TV VESA
equal to/greater than
200x100mm/8x4"
and equal to/less than
600x400mm/24x16"?
2 Does your TV
(including accessories)
weigh less than
100 LBS (45.5 KG)?
4 Installation Tools
(Not Included)
Yes --- Perfect!
No --- This mount is NOT compatible.
MAX:600mm/24"
MAX:
400mm/16"
Yes --- Perfect!
No --- This mount is NOT compatible.
Band Tape
2M2M
5 Safety Caution
Please read this instruction carefully before installation.
● This product is designed for use in wood stud and solid concrete wall.
- DO NOT install into drywall alone.
● The wall must be capable of supporting five times the weight of the TV and mount
combined.
● Do not apply this product to any purpose not indicated by Mounting Dream.
● Incorrect installation may result in product damage or body injury. Mounting Dream shall
bear no responsibility for any damage or injury resulted from incorrect installation,
incorrect assembly or misuse.
Pencil Screwdriver Electrodrill Socket Wrench
1/2"(13mm)
1
3 What is your wall
made of?
Stud Finder Awl 7/32"(5.5mm)
Wood Drill Bit
3/8"(10mm)
Masonry Drill Bit Hammer
CAUTION:
Drywall with
wood studs?
Solid concrete
wall?
Extension Arm
x2x2
Extension Arm
x2
Wall mounting and TV bracket assembly hardware
Lag Bolt M8x60mm
Mounting
Template
x4
Wall Plate Unit
x1
Part List
Extension Bar
x2
Extension Bar
x2
M6x16mm Bolt
x4
Supporting Bar
x2
M5x12mm Bolt
x2
Allen Key
x1
M6x12mm Bolt
x4
M6x10mm Bolt
x8

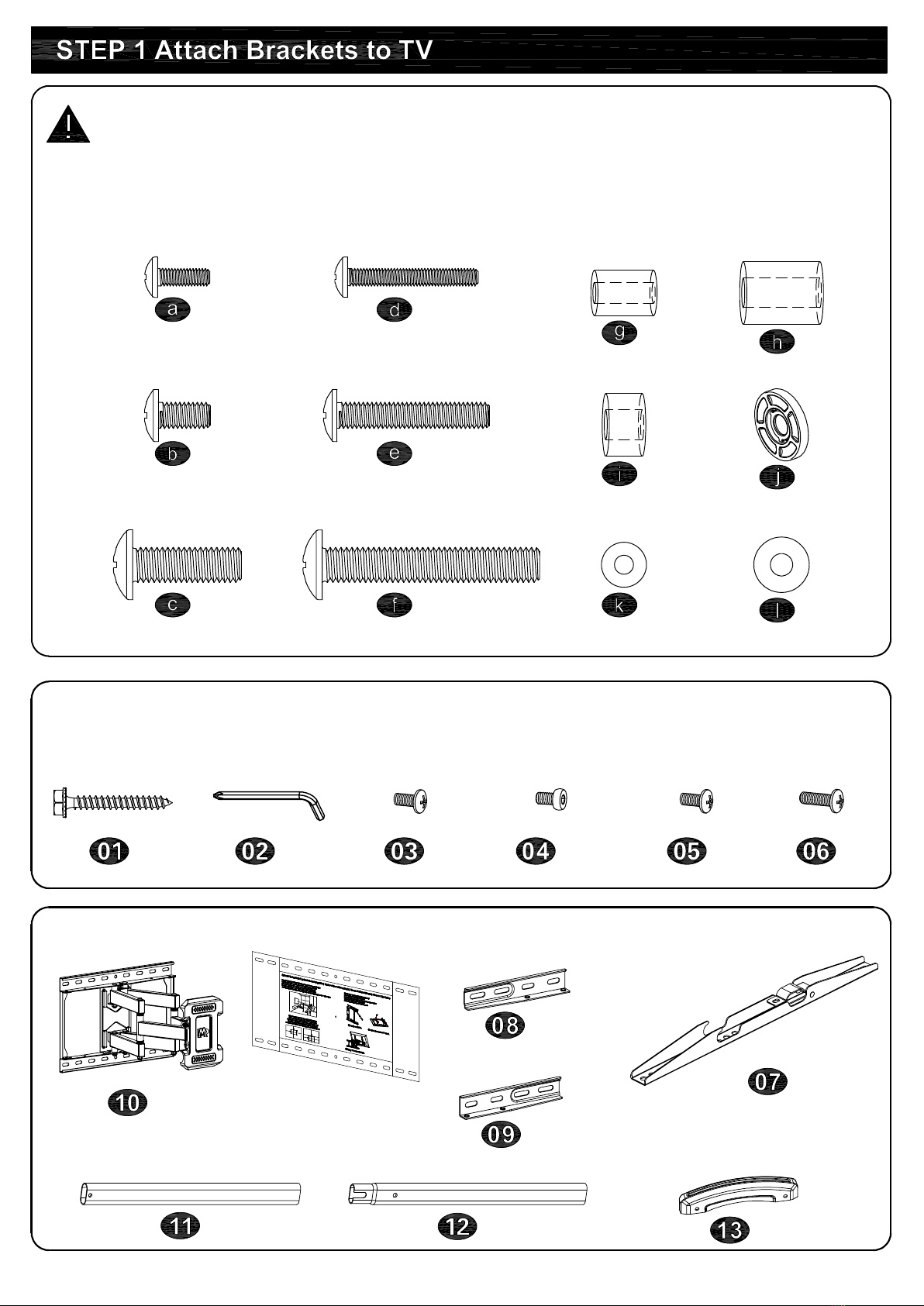

Parts and Hardware
WARNING:This product contains small items that could be a choking hazard if
swallowed. Before starting assembly, verify all parts are included and undamaged.
NOTE: Not all hardware included will be used.
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
M8x45mm
M6x17mm M8x22mm
M4 M6
10mm 2.5mm
Washers
Spacers
TV Screws
x4 x4
x4 x4
x4 x4
x4
x4 x4
x4 x8
x4
x2
2
TV bracket
M8
M6
M4

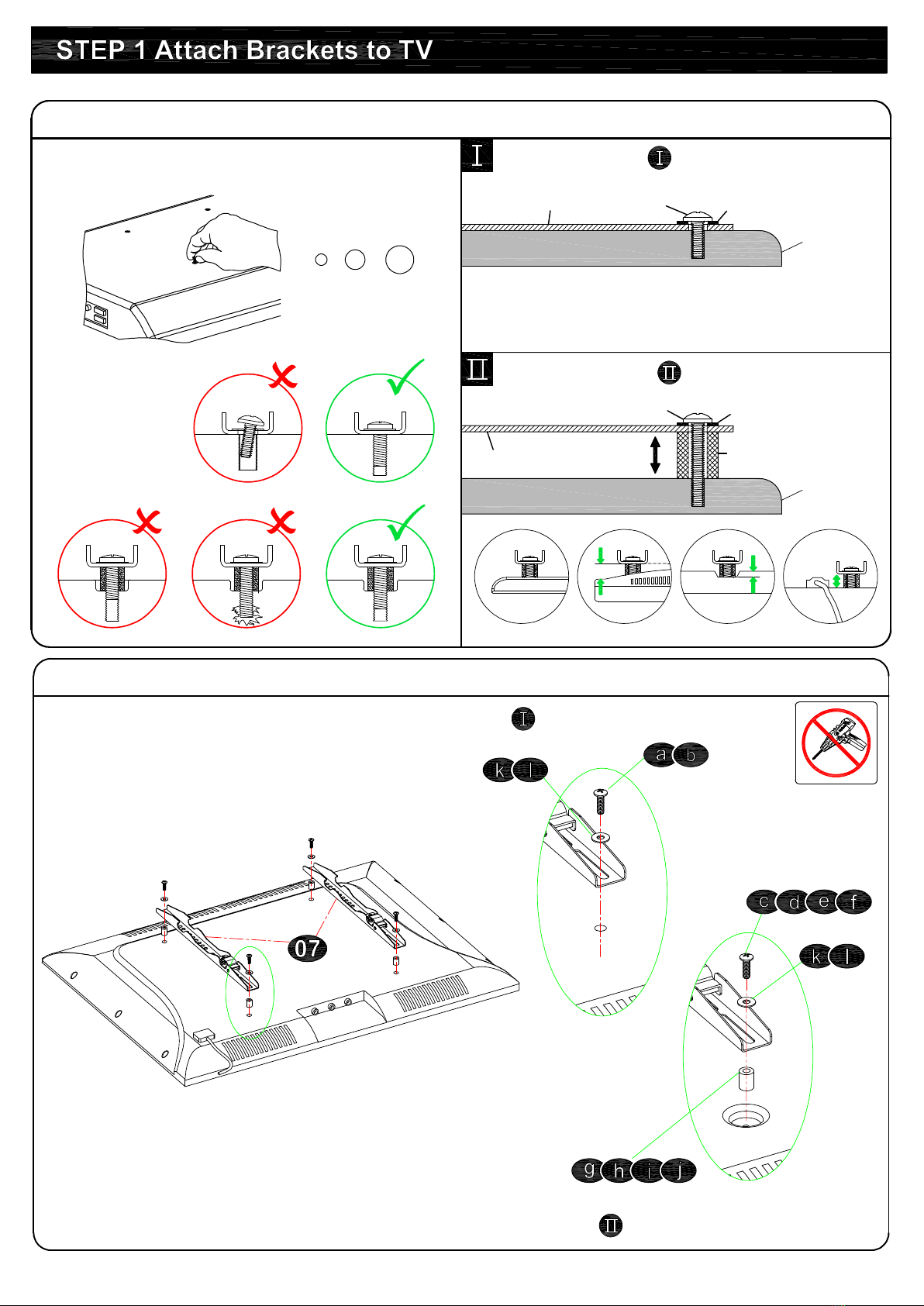

1-1 Select TV Screws
TV back
Bracket Washer
Bracket
Long Screw
Spacer
No, go to PAGE 3 for detailed combination.
Yes, go to PAGE 3 for detailed combination.
TV back
1-2 Need Spacer?
Short Screw
Washer
3
1-3 Attach the TV Brackets
No!
NOTE: Choose proper washer or spacer that
fits your particular TV mounting holes.
Screw and washer
Spacer(s)screw and washer
Tips: If you need to combine M6(e) or M8(c/f) screw
with 2.5mm spacer(j), you have to remove the inner circle.
24"(609.6mm)
/16"(406mm)
Min. Wood Stud Size:
nominal 2"(51mm)
actual 1 1/2"(38mm)
Min. Wood Stud Size:
nominal 4"(102mm)
actual 3 1/2"(89mm)

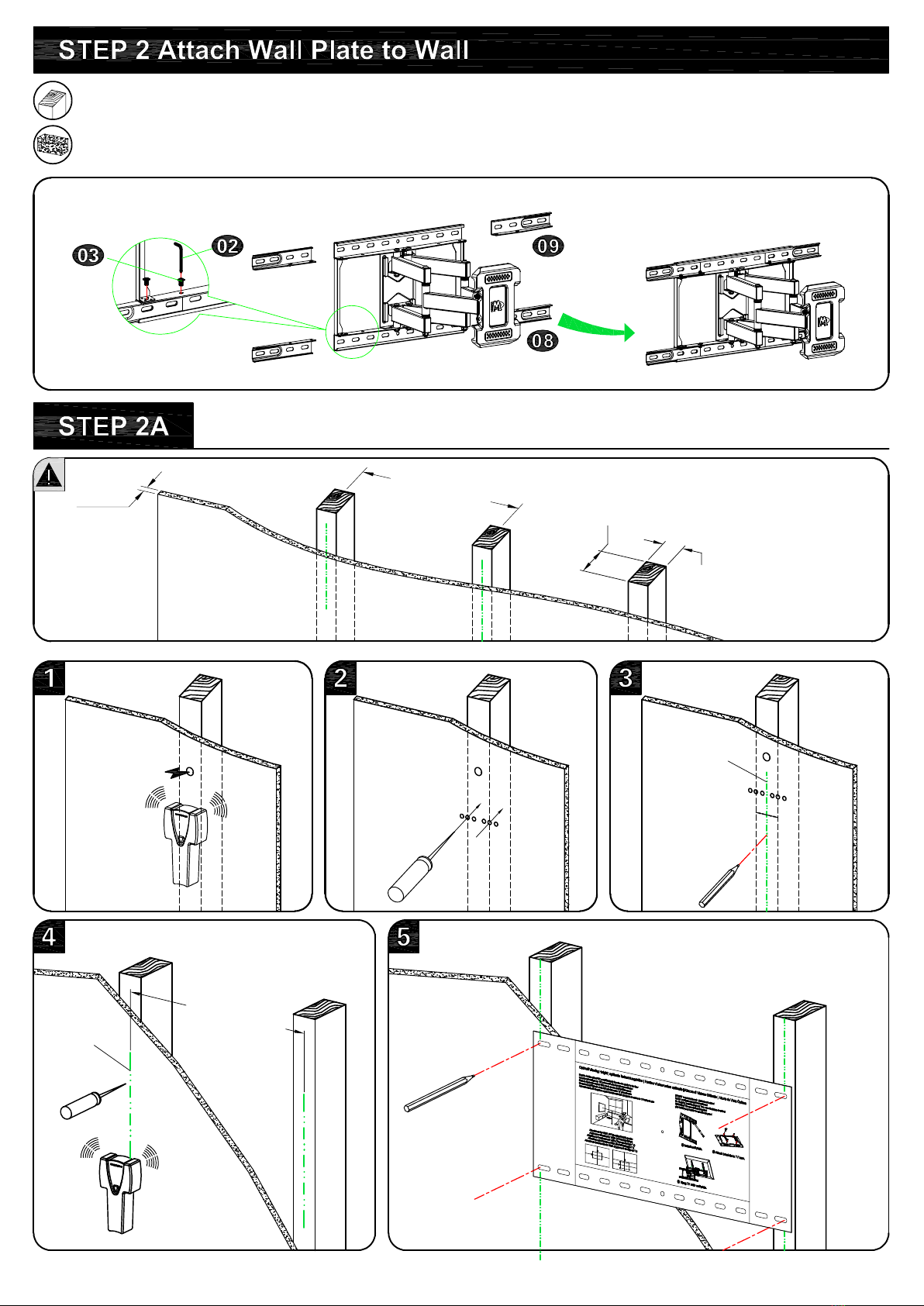

Wood Stud Installations
Assemble Wall plate
<16mm
(5/8")
16"(406.4mm)
24"(609.6mm)
Centre
line
Again, find another wood stud
O
Centre line
For wood stud installation, follow STEP 2A
For concrete installation, follow STEP 2B on PAGE 9
4
Wall Plate Unit

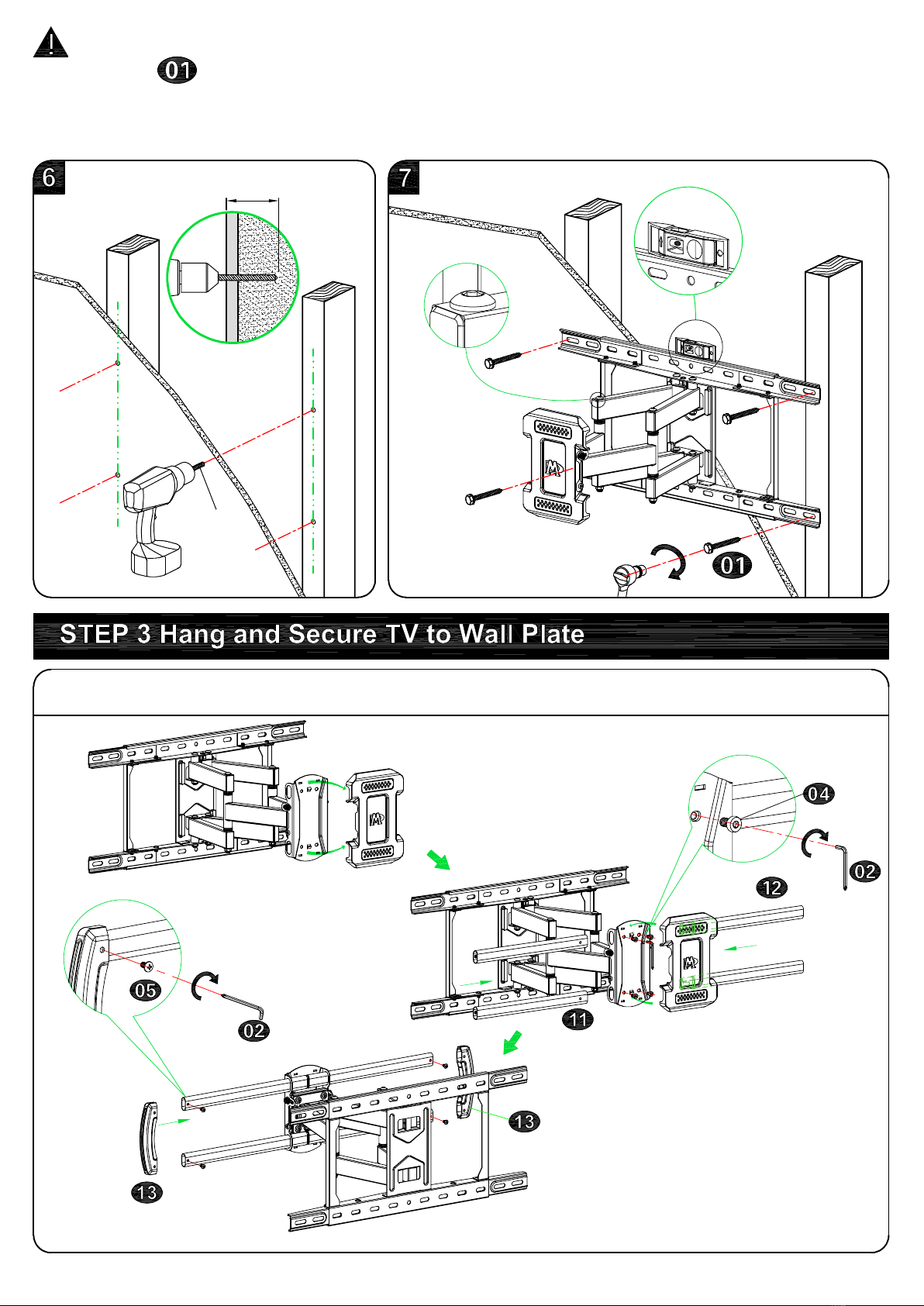

CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!
2.5"(65mm)
7/32"
(5.5mm)
Level
5
3-1 Extension Bars Assembly
Bolt Head UP!
Wall Plate
Unit
6

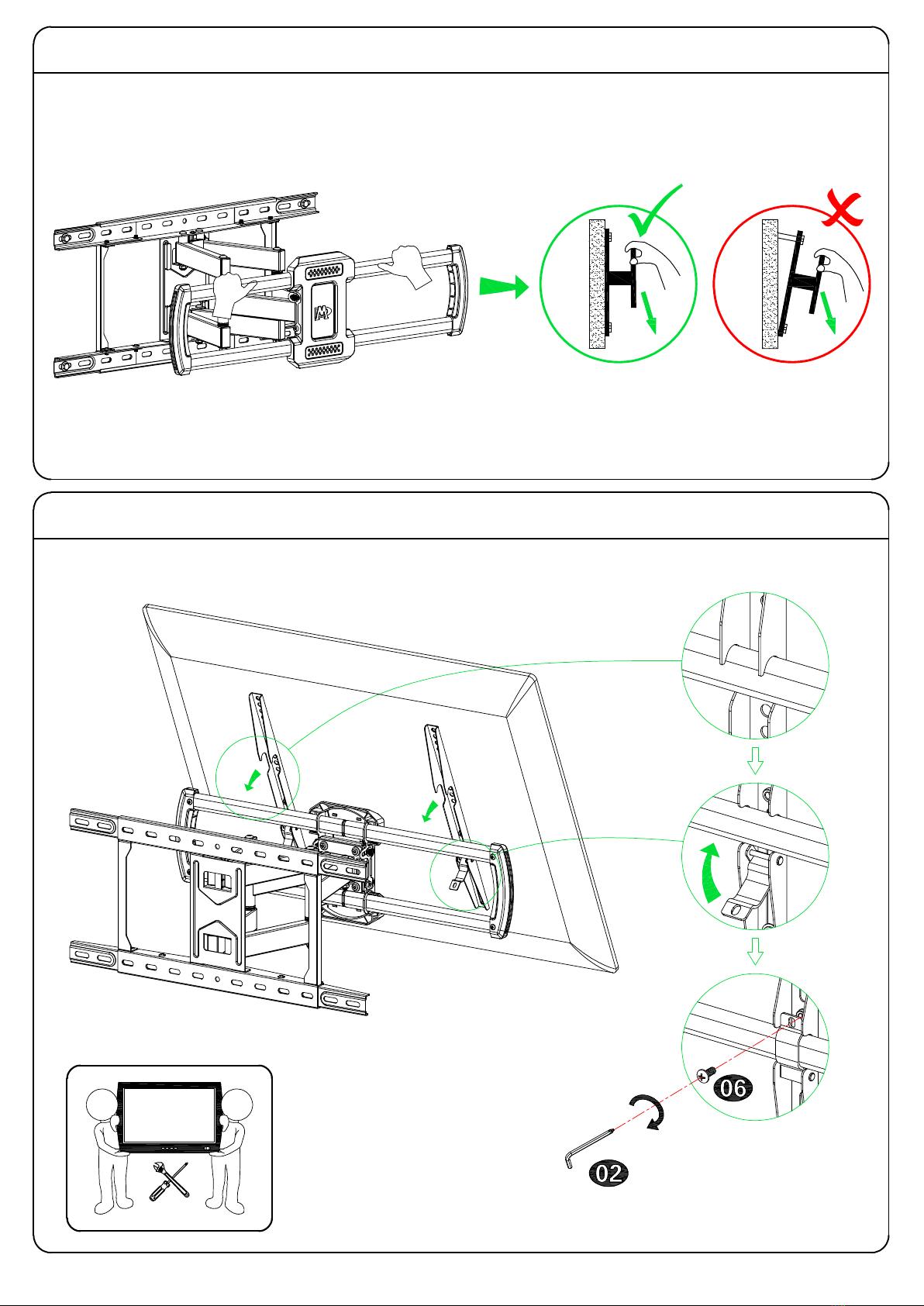

3-3 Hang and Secure TV to Wall Plate
TV
1 2
100 LBS (45.5 KG)
Before hanging TV, please conduct "wall plate installation integrity test" first.
3-2 Wall Plate Installation Integrity Test
7

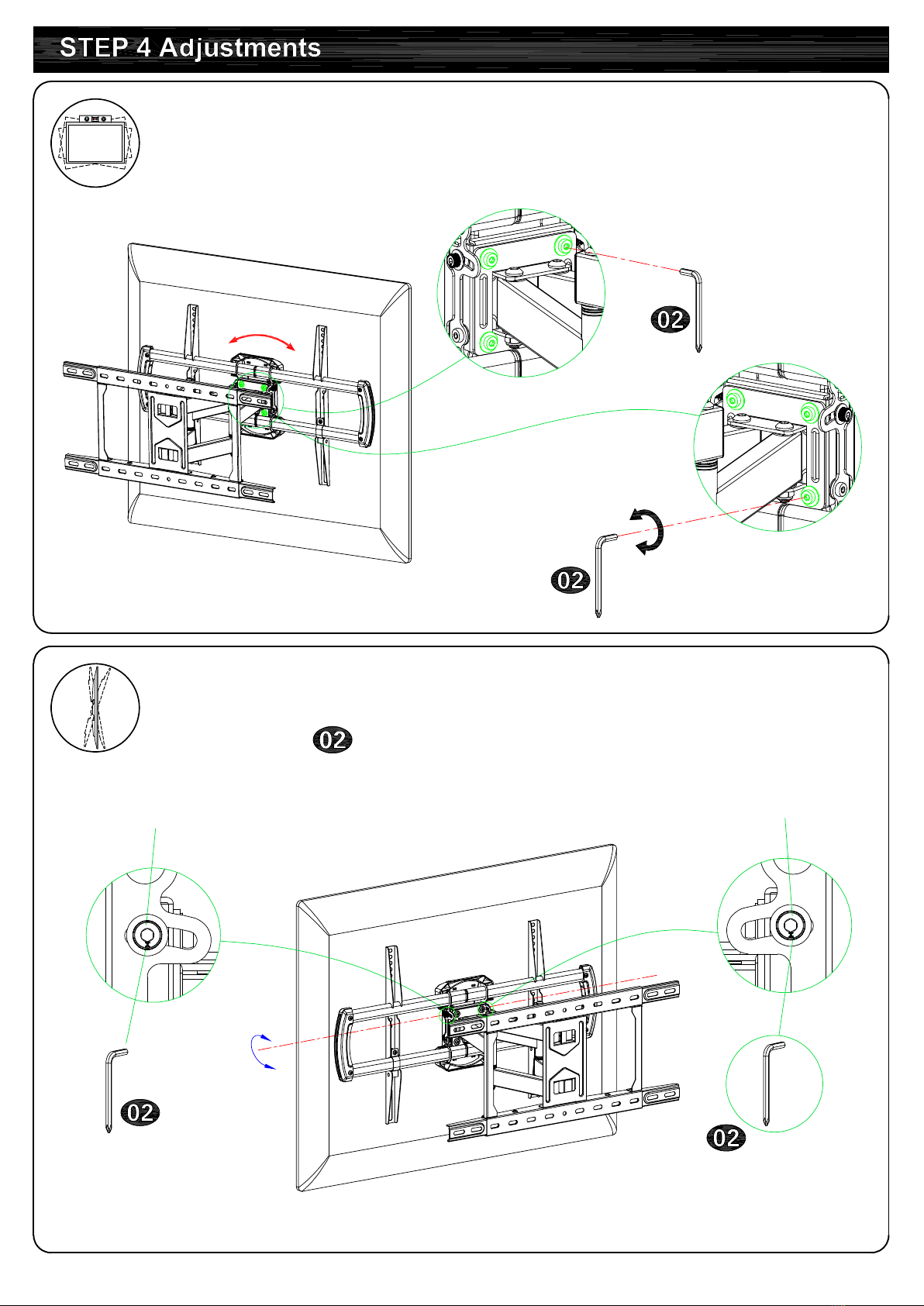

4-1 TV leveling adjustment (±4°):
Loosen 4 leveling bolts on the rear of TV plate by maximum 2
turns, adjust to level, and retighten to secure.
4-2 Tilting angle adjustment (+5°/-15°)：
Pull TV to your desired angle then fasten 2 tilting bolts
with Allen key
Tilting bolts Tilting bolts
-15°
+5°
Loosen
Tighten
±4°
8

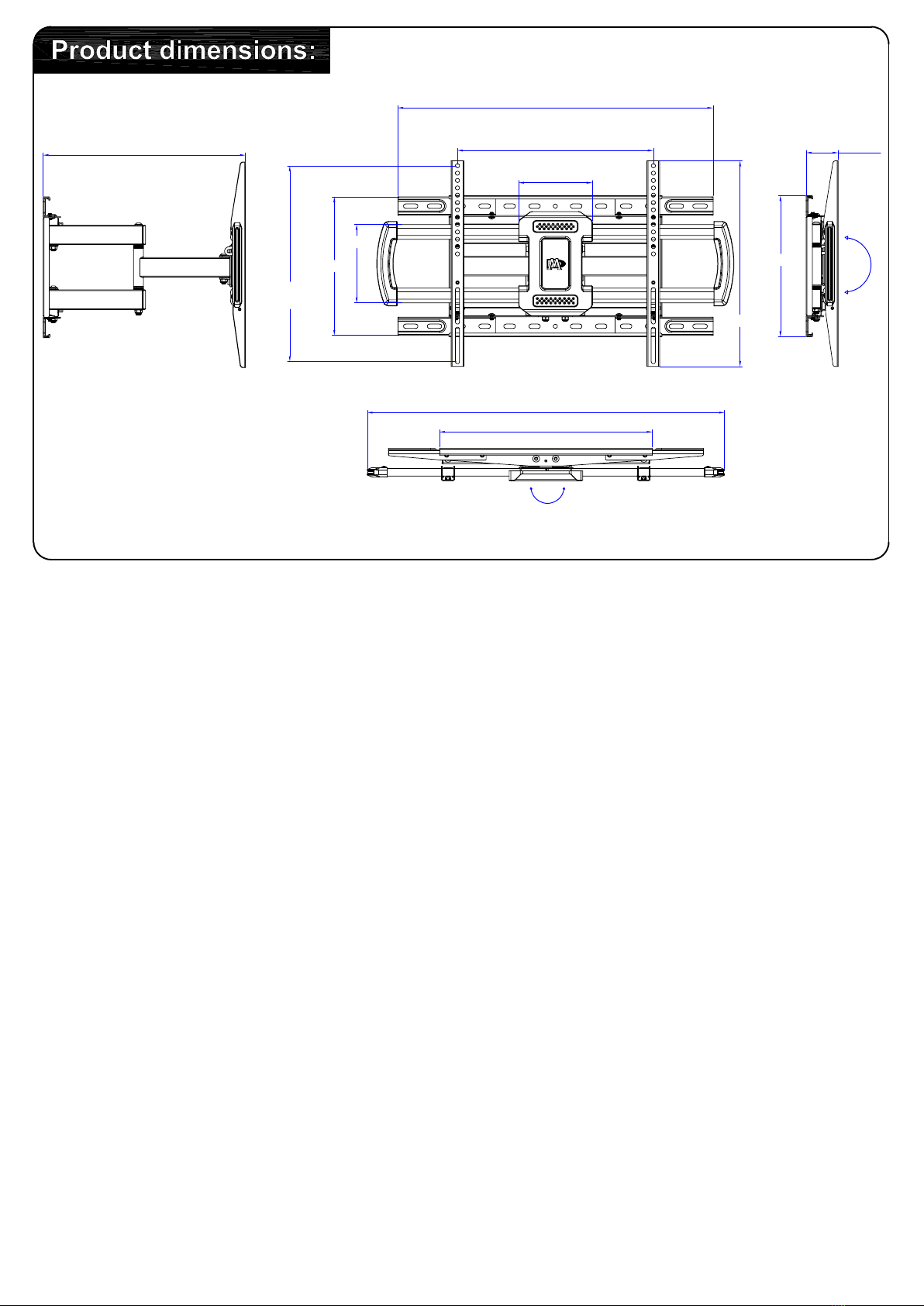

+45°/-45°
+5°
-15°
MAX:400mm
MIN:100mm
283mm
160mm
150mm
MAX:600mm
MIN:200mm
644mm
420mm
288mm
65mm
730mm
435mm
65mm-413mm

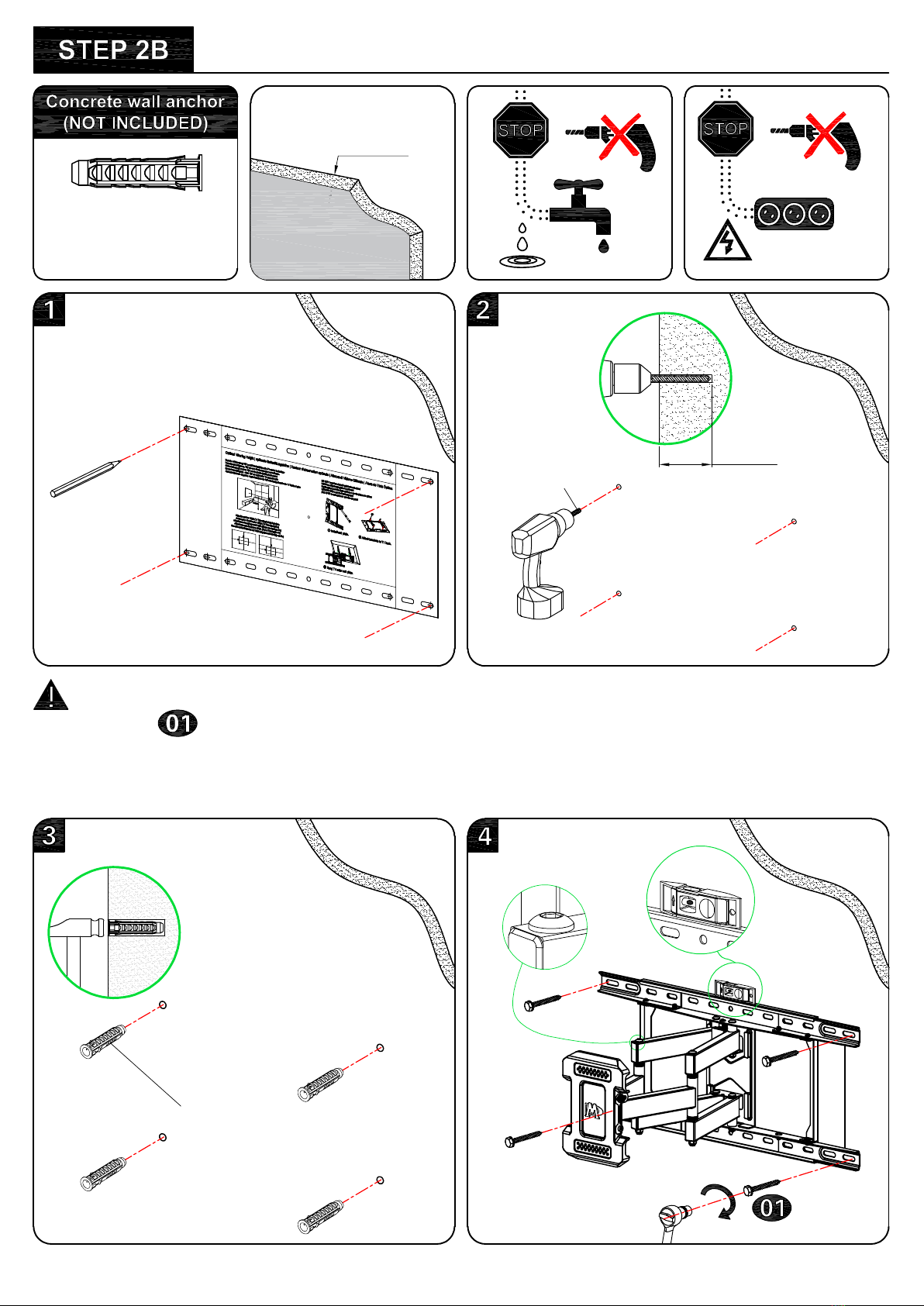

Solid Concrete Wall Installation
2.5"
(65mm)
3/8"
(10mm)
Concrete Wall
Anchor
DANGER
Min.
8"(203mm)
CAUTION: To avoid potential personal injury or property damage:
All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate
assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to
the next step.
To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!
Level
Bolt Head UP!
Wall Plate
Unit
Concrete Wall Anchor
4pcs
9
If you do need concrete anchor,
please contact us Via Amazon to
get it.
Go to Step 3 on PAGE 5
