Mounting Dream HM2296-1 User manual

HM2296-1 INSTALLATION INSTRUCTION

If you have any questions, please contact us via customerservice@hingear.com

or call us at telephone (626) 645-7128 (USA) Mon - Fri 10am - 6pm (Pacific time).

(A0)

42"~70" Max:600x400mm/24x16"

Min:200x100mm/8x4"

Für die Installationsanweisungen auf deutsch, Siehe Seite 11~12.

Pour l'instruction en français, veuillez vous reporter à la page 13~14.

Para las instrucciones de la instalación en español, favor vea la página 15~16.

Per le Istruzioni in italiano, vedi pagina 17~18.

1 2

x3 x1 x1x1

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

200x100mm/8x4"

and equal to/less than

600x400mm/24x16"?

2 Does your TV

(including accessories)

weigh less than

100 LBS (45.5 KG)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:600mm/24"

MAX:

400mm/16"

Yes --- Perfect!

No --- This mount is NOT compatible.

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, contact Customer Service via

customerservice@hingear.com or call us at telephone (626) 645-7128 (USA) Mon - Fri

10am - 6pm (Pacific time).

● This product is designed for use in wood stud and solid concrete wall.

- DO NOT install into drywall alone.

● The wall must be capable of supporting five times the weight of the TV and mount

combined.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

3 What is your wall

made of?

Stud Finder Awl 7/32"(5.5mm)

Wood Drill Bit

3/8"(10mm)

Masonry Drill Bit Hammer

CAUTION:

Drywall with

wood studs?

Solid concrete

wall?

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@hingear.com.

NOTE: Not all hardware included will be used.

TV Brackets

1-1 Select TV Screws

TV back

Bracket Washer

Bracket

Long Screw

Spacer

No, go to PAGE 3 for detailed combination.

Yes, go to PAGE 3 for detailed combination.

TV back

1-2 Need Spacer?

Short Screw

Washer

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x50mm

M6x17mm M8x22mm

M4 M6

10mm 2.5mm

Washers

Spacers

TV Screws

x4 x4

x4 x8

Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to

remove the inner circle.

1-3 Attach the TV Brackets

Screw and washer

Spacer(s), screw and washer

No!

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B on PAGE 6

<16mm

(5/8") Max.

16"(406mm)

Min. Wood Stud Size:

nominal 2"(51mm)

actual 1 1/2"(38mm)

Min. Wood Stud Size:

nominal 4"(102mm)

actual 3 1/2"(89mm)

Parts and Hardware

Lag Bolt M8x60mm

M8 Washer

Wood Stud Installation

Mounting Template

Centre line

Wall Plate

Unit x1

Mon - Fri 10am - 6pm (Pacific time) or email us by

customerservice@hingear.com to have these

additional pieces shipped directly to you.

Concrete Wall Anchor

4pcs

16"(406mm)

7/32"

(5.5mm)

2.5"(64mm)

Bubble level

Stick

Go to Step 3 on PAGE 7.

Centre line

Again, find another wood stud

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

Bolt Head UP!

No!

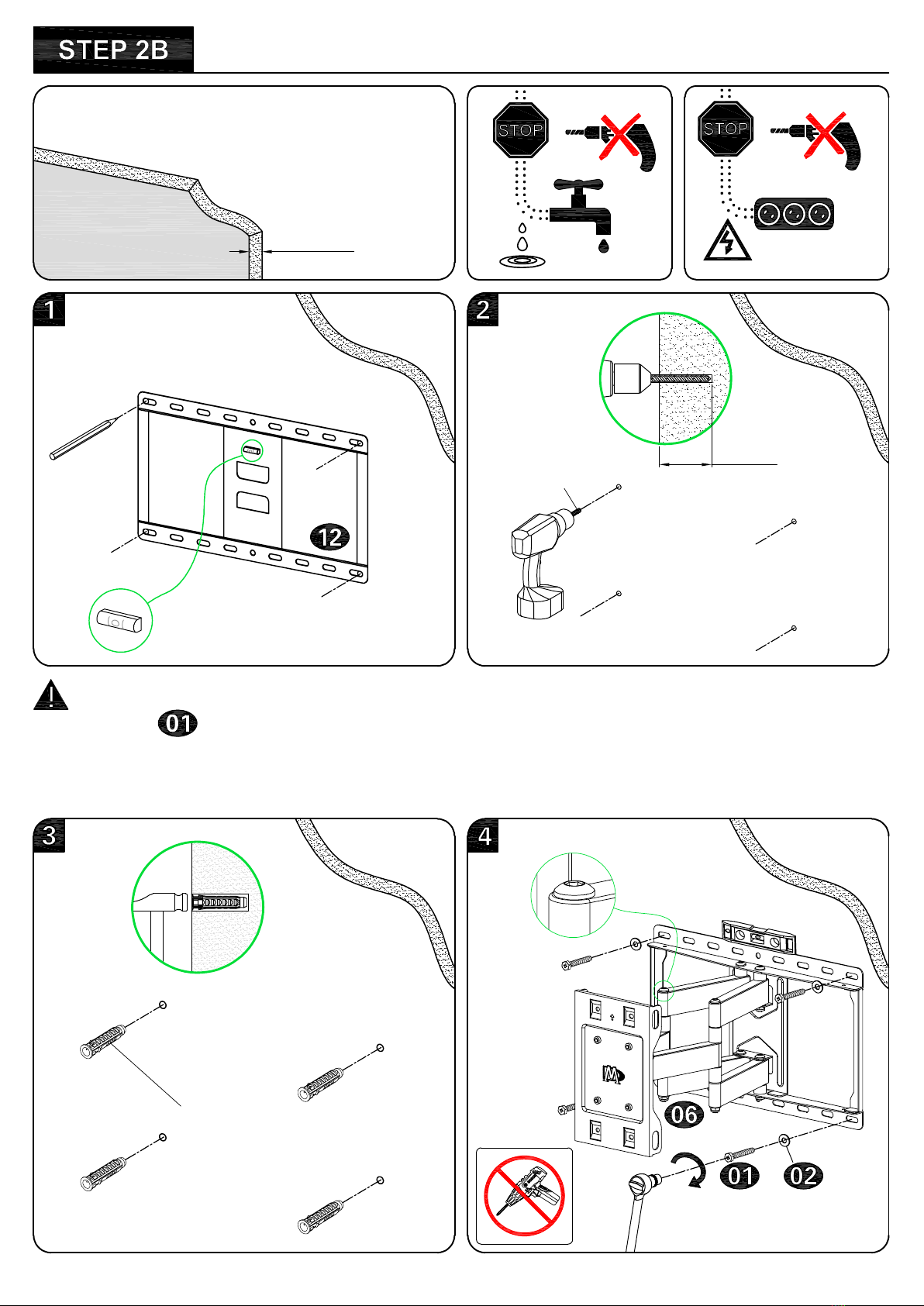

Solid Concrete Wall Installation

Bubble level

Stick

2.5"

(64mm)

3/8"

(10mm)

Concrete Wall

Anchor

No!

DANGER

Min.

8"(203mm)

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

Bolt Head UP!

Allen Key

Parts and Hardware

Extension Arm

M6x15mm Bolt

M6x10mm Bolt

3-1 Extension Arms Assembly

100 LBS (45.5 KG)

Before hanging TV, please conduct "wall plate installation integrity test" first.

3-2 Wall Plate Installation Integrity Test

Supporting bar

M5x12mm Bolt

3-3 Hang and Secure TV to Wall Plate

4-1 TV leveling adjustment (±3°):

Loosen 4 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

1 2

Loosen

Tighten

4-2 Tilting angle adjustment (+5°/-15°)：

Loosen handle and tilting bolt, adjust TV to your desired position,

then tighten handle and tilting bolt.

Handle

-15°

+5°

-15°

+5°

Tighten

Loosen

Tighten

180°

Allen key storage: For easy adjustment, you might put the Allen key on

the wall plate as illustration.
