Motortronics Msmart MVC4 User manual

MOTORTRONICS

Solid State AC Motor Control

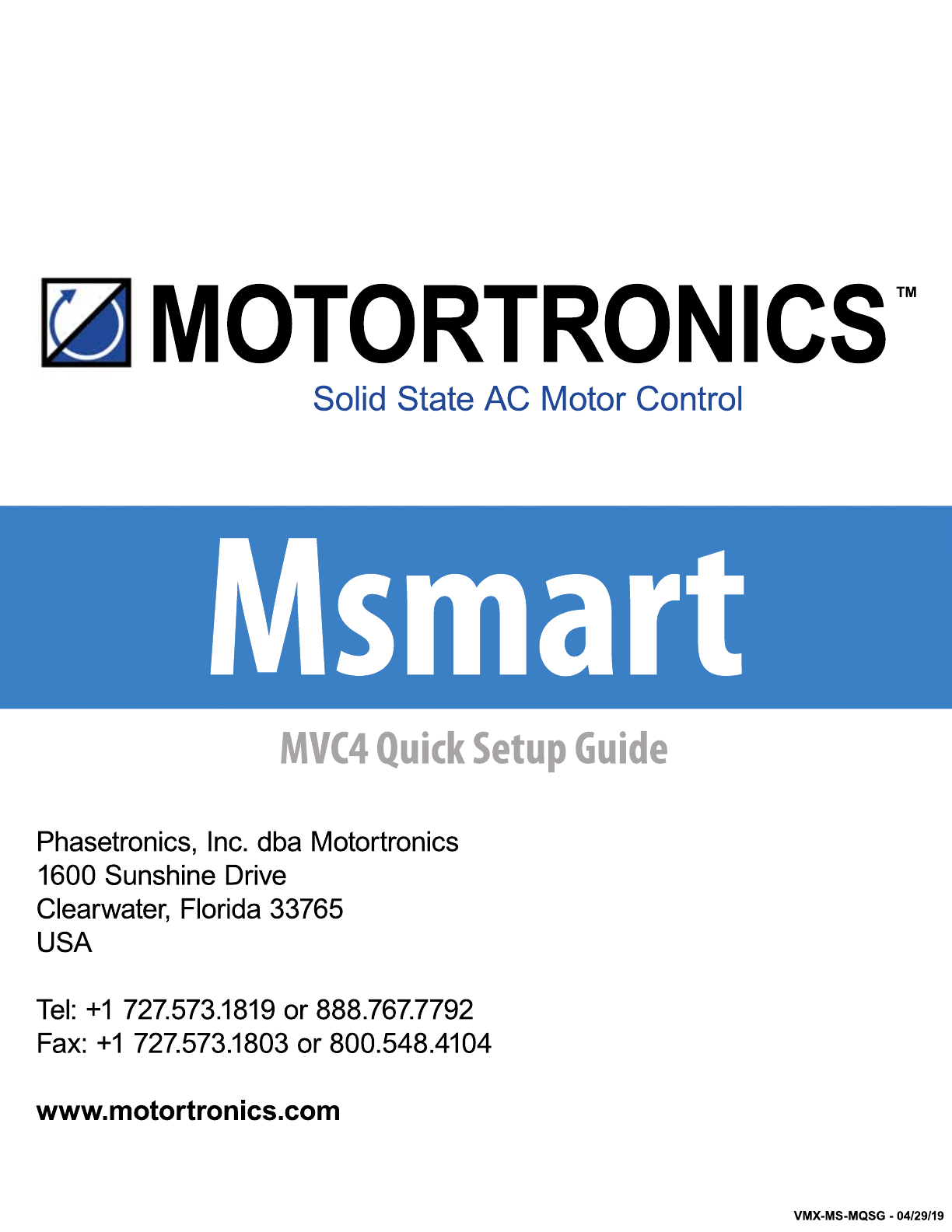

MVC4 Quick Setup Guide

Msmart

Msmart MVC4 Quick Navigation Guide Motortronics

www.motortronics.com Page 1

Startup

Status Menu

Main Menu

Setpoint Pages

The MVC setpoint pages can be

accessed by pressing the button.

Select MVC Setpoint Page

Select Parameter

Set Parameter Value

Click MVC4 Status

Startup “Splash” Screen

Select parameter

Set value press Done to Save

Msmart MVC4 Quick Navigation Guide Motortronics

www.motortronics.com Page 2

Msmart consist of a touchscreen and four membrane buttons for navigation that can be used when the

system is installed in a harsh environment.

Touch screen

Panel buttons

Navigation buttons

(Button mode)

Msmart Touch Screen

Hardware Push Button Description

Button

Resets the device on the screen only. Also resets the Msmart display by holding

button for 6 –10 sec.

Switch between touchscreen and panel buttons (button mode). Menu icon will flash

when panel buttons are active.

Button used to move between selectable items on the touchscreen (forward Tab).

The item will flash when selected.

Select flashing item.

Msmart MVC4 Quick Navigation Guide Motortronics

www.motortronics.com Page 3

MVC4 Start-up Parameters

Verify Setpoint Page 1

•Set Maximum Current

•Set Motor Full Load Amps

•Set Service Factor

•Set Overload Class

Note: Consult factory for assistance if parameters don’t match your motor.

Rev 0.02

MOTORTRONICS

Solid State AC Motor Control

VMX-MS-MQSG - 04/29/19

MVC4 Quick Setup Guide

Phasetronics, Inc. dba Motortronics

1600 Sunshine Drive

Clearwater, Florida 33765

USA

Tel: +1 727.573.1819 or 888.767.7792

Fax: +1 727.573.1803 or 800.548.4104

wwwww.motortronics.com
