Motorola T325 User manual

Quick Start Guide

motorola T325

congratulations

The Motorola T325 Portable Bluetooth® Handsfree Car

Kit Speakerphone gives you the freedom to make and

receive phone calls in your vehicle while safely keeping

your hands on the steering wheel using:

•

caller name identification

•

automatic power on and off when you enter or leave

your vehicle

•

direct access to the favorite contacts you use most

frequently while in your vehicle.

Caution:

Please read the important

Legal & Safety

information at the back of this guide.

Note:

Using a mobile device while driving may cause

distraction. End a call if you can’t concentrate on driving.

Also, using a mobile device or accessory may be

prohibited or restricted in certain areas. Always obey the

laws and regulations on the use of these products.

your speakerphone

Take a moment to familiarize yourself with your new

T325 speakerphone.

Call

Button Indicator

Light Power

Switch

Mute/

Favorite Contacts

Button

Volume Down

Button

Volume Up

Button

Speaker

Charging

Port

Microphone

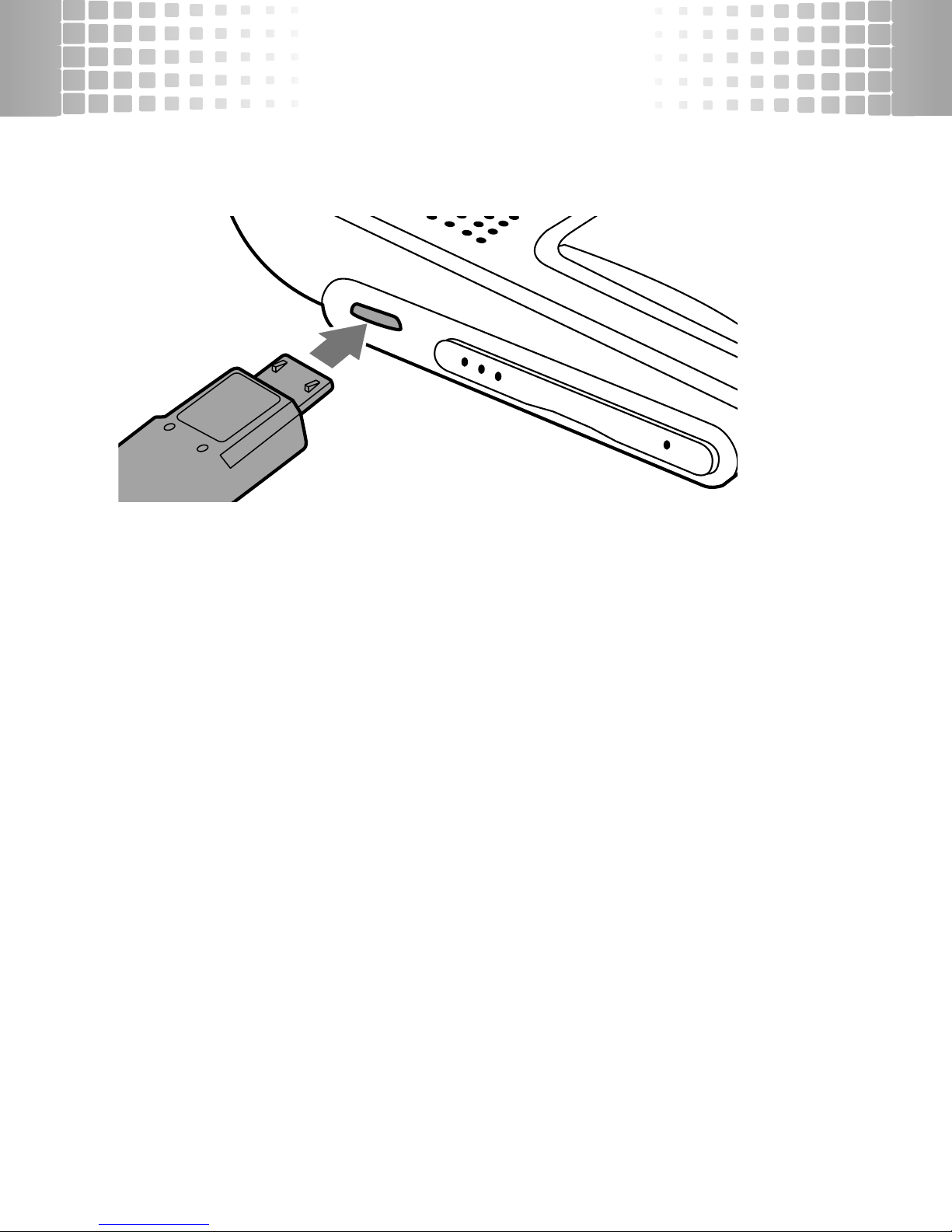

charge it

You’ll need to charge your speakerphone before using it.

The indicator light is red while the battery is charging.

When the battery is fully charged, the indicator light turns

blue.

Note:

Speakerphone is functional while charging.

Note:

Your battery is designed to last the life of your

product. It should only be removed by a recycling facility.

Any attempt to remove or replace your battery will

damage your speakerphone.

connect wirelessly

pair & connect

Let’s get your speakerphone paired and connected to

your Bluetoothenabled phone.

Turn off any Bluetooth devices previously paired

(linked) with your speakerphone.

Turn off any Bluetooth devices previously paired

(linked) with your phone.

Turn on the Bluetooth feature on your phone.

Turn on your speakerphone (see page 8).

The indicator light becomes steadily lit in blue.

Set your phone to search for Bluetooth devices.

Select

Motorola T325

from the search results on

your phone.

Select

Ye s

to pair your speakerphone with

your phone.

Note:

When prompted for the passkey, enter

0000

When your speakerphone successfully pairs and

connects with your phone, you hear “connected to

<phone name>” and you see the indicator light rapidly

flash in blue and purple.

connect wirelessly

download phone contacts

Once paired, your speakerphone automatically

downloads contact names and numbers from your phone

so that it can announce the name of your incoming caller.

Your phone may first request permission to accept

information access. Go ahead and accept so

downloading can begin. Once downloading begins,

you hear “downloading caller ID information”.

The indicator light flashes in purple while downloading.

When your downloading is complete (210 minutes,

depending on number of contacts), you hear “download

complete”.

If the download is interrupted, for example by an

incoming call, it resumes after the call. See page 14 for

steps on manually updating your phonebook (it will not

be updated automatically).

Note:

Your phone must support Bluetooth Phone Book

Access Profile (PBAP) for this feature to work.

connect wirelessly

reconnect

After initially pairing and connecting your phone and

speakerphone, you don’t need to do it again.

For daily use, make sure your speakerphone is turned on,

and your phone’s Bluetooth feature is on. Your

speakerphone and phone will connect automatically!

test your connection

Slide the speakerphone onto your visor (see page 7).

On the phone, dial the number and press the

Call/Send

key.

If your phone and speakerphone are successfully

connected, you hear ringing on the speakerphone.

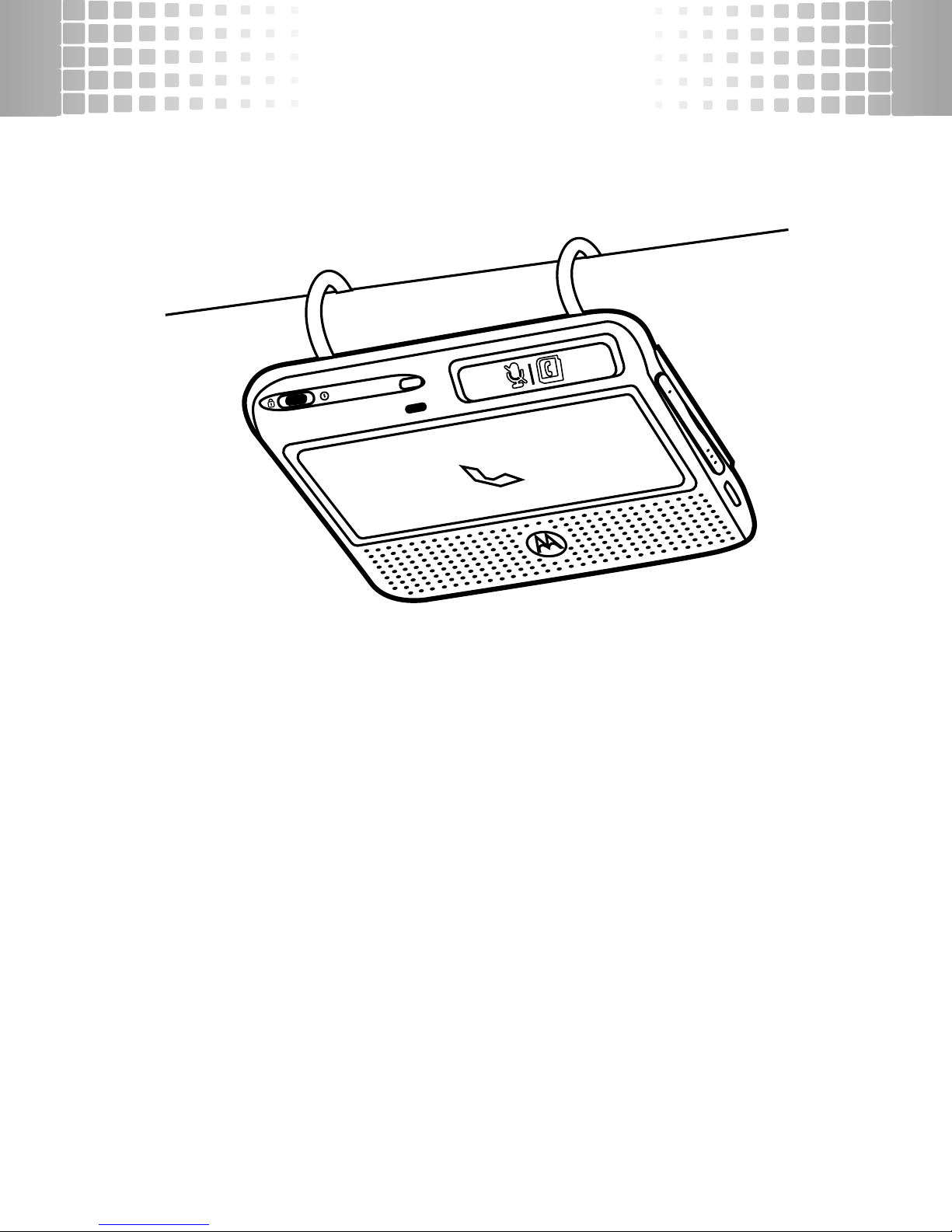

install in car

Slide the visor clip onto your sun visor as shown

turn it on & off

You can manually turn your speakerphone on and off or

use the automatic on/off option. The speakerphone may

take up to 4 seconds to power on.

manual on/off

Slide and hold the Power switch to

until your hear a

tone, then release.

To turn off your speakerphone, slide the Power switch

. You hear an audio tone when turned off.

Power Off

Position

Power On

Position
