Monitor Audio Platinum In-Wall 3G User manual
Product Manual
2 3
Thank you for purchasing this Platinum Series 3G speaker,
you’re now ready to start your journey to breathtaking sound.
In this product manual, you’ll nd information about setting up
your system and how to maintain your speakers for a lifetime
of enjoyment.
If you need any further assistance, please contact our
technical team at monitoraudio.com/support
Welcome to Platinum Series 3G
Register your speakers using the QR code
or visit monitoraudio.com/registration
Register your Platinum In-Wall 3G speaker
Contents
Unboxing 4
Tweeter and Mid-range assembly rotation 6
Setting up your system 8
Using your speakers 16
Warranty 18
Specifications 19
4 5

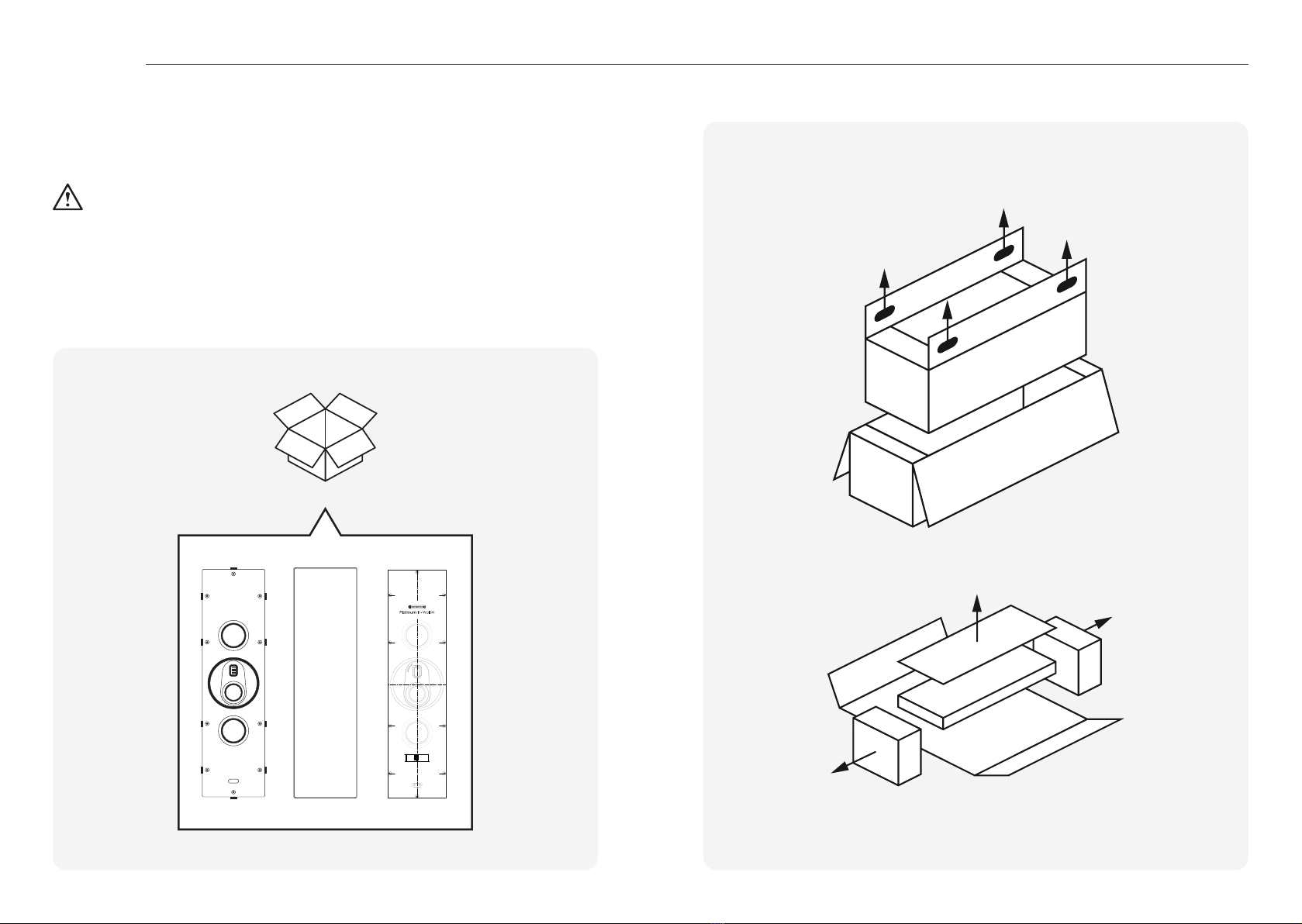

Before you unpack your speakers, please make sure that there is plenty
of available oor space.
WARNING: DO NOT attempt to lift the speaker alone.
The recommended number of people is printed on the outer carton.
Lay the box down on the oor so the opening is facing up. Open the outer carton and
then use the handles of the inner cardboard sleeve to lift the speaker and packaging out
of the box. Once clear, remove the polystyrene end caps and then the cloth bag.
Unboxing
98mm
(37/8”)
Tri-Gripx 10
=5Kgf/cm; 4.34 lbf/inch;
0.5NM
300mm(11
13/16”)
1175mm(46
1/4
”)
6 7
Transducer and mid-range assembly rotation
The Platinum In-Wall 3G has the ability to be positioned in a left/right vertical
or horizontal centre channel conguration.
To position the Platinum In-wall 3G in a horizontal centre channel position,
rotate the ‘mid-pod’ that houses the MPD transducer and mid-range assembly.
Follow the instructions below to rotate the transducer and mid-range assembly.
8 9
Setting up your system

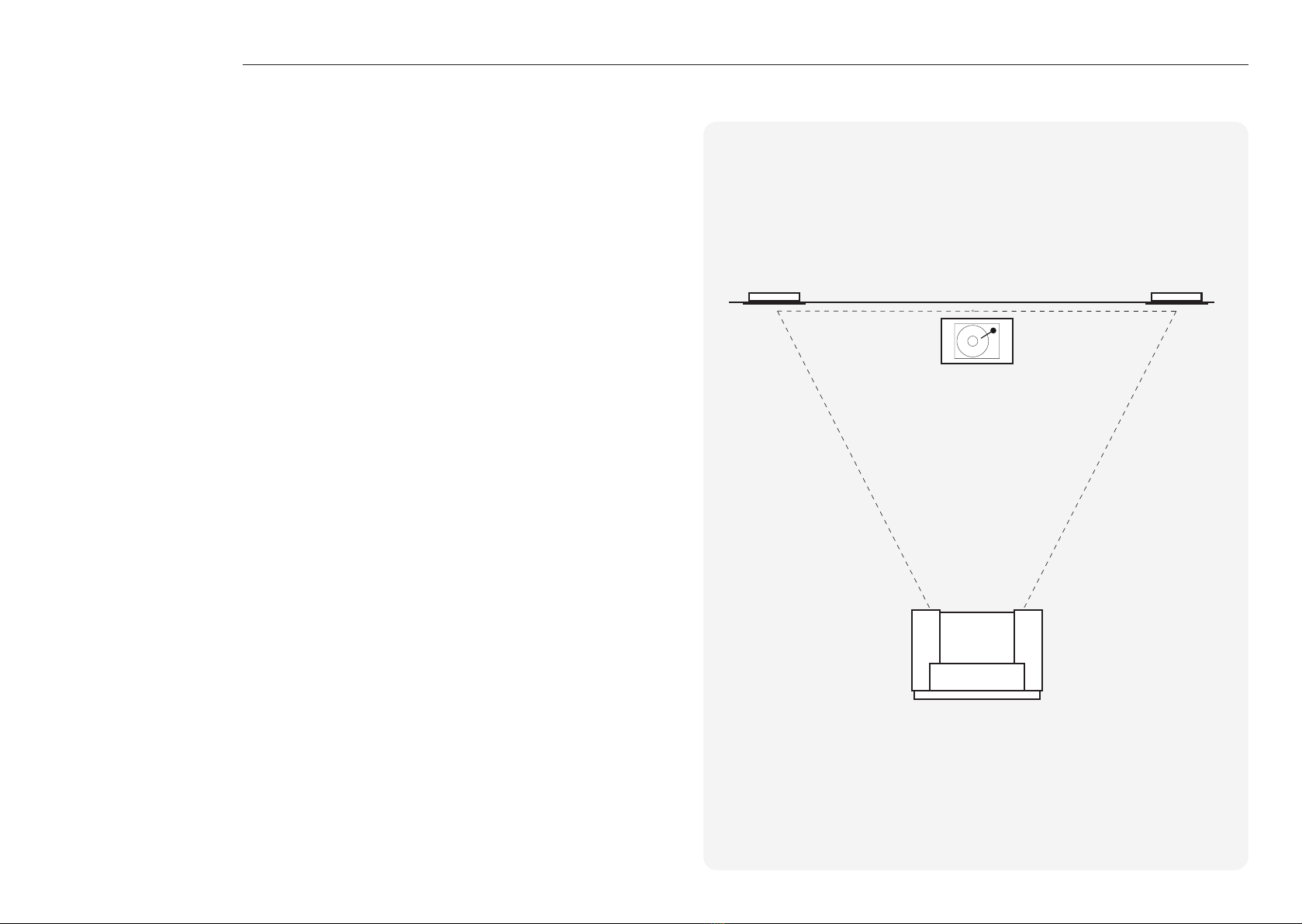

2-channel system
When arranging a 2-channel system, the listening position and the speakers should form
an equilateral triangle. The speakers should be positioned approximately 1.8 - 3m (6 - 10’)
apart. They should be positioned so that the transducer is at approximate ear height when
you are in your listening position.
x mx m
x m
10 11
Setting up your system

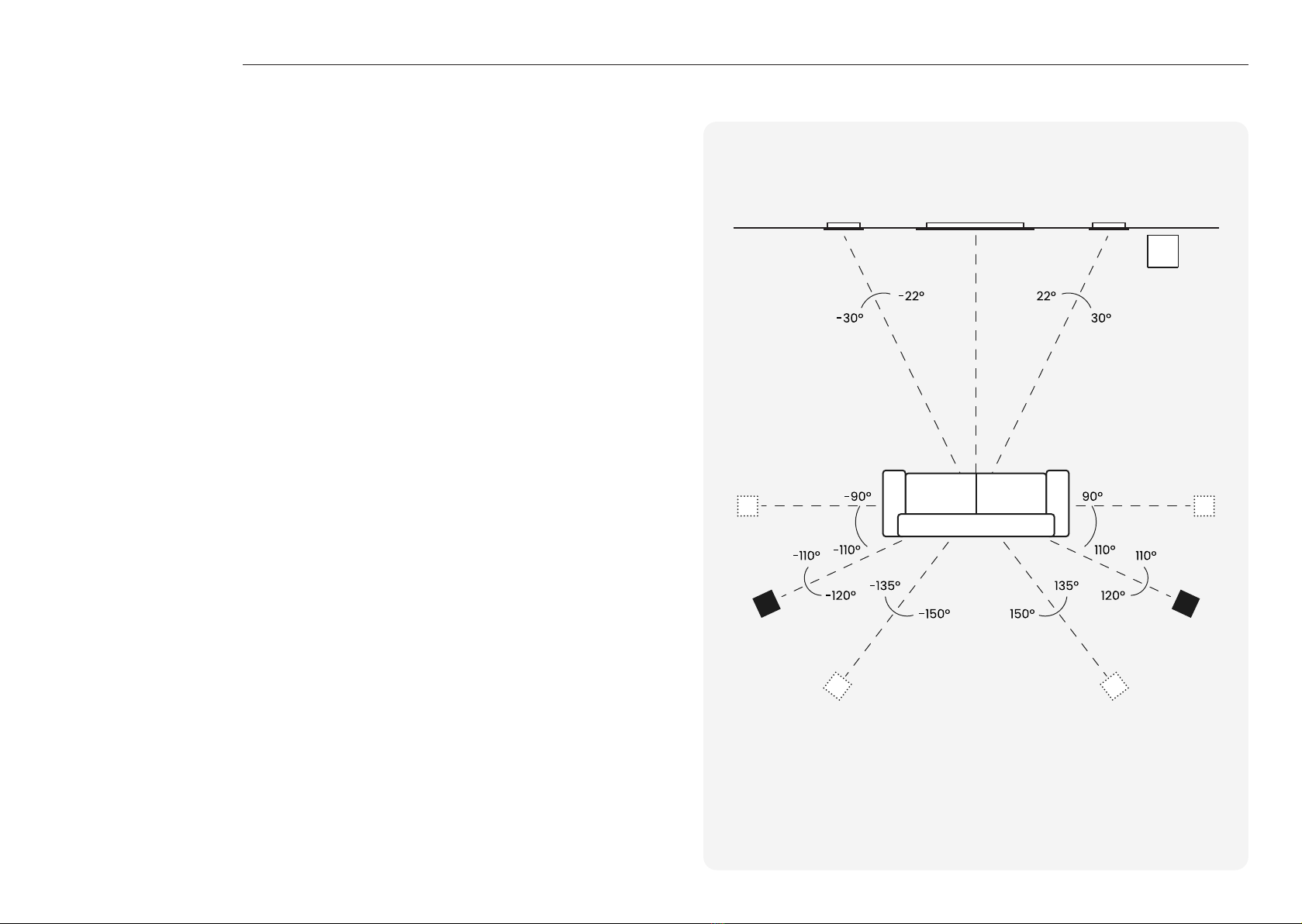

AV positioning
Please refer to the illustration on the right for the ideal angles and positions of each
speaker in your surround system.
If setting up a 5.1 system you should place your surrounds in position (A).
If setting up a 7.1 surround system you should place your side speakers in position (B)
and rear speakers in position (C) to create a full 360° soundstage.
The centre channel should be positioned so that it is pointing at the viewing position
and at approximate ear height.
5.1 = A
7.1 = B + C
A A
BB
C C
12 13
Setting up your system

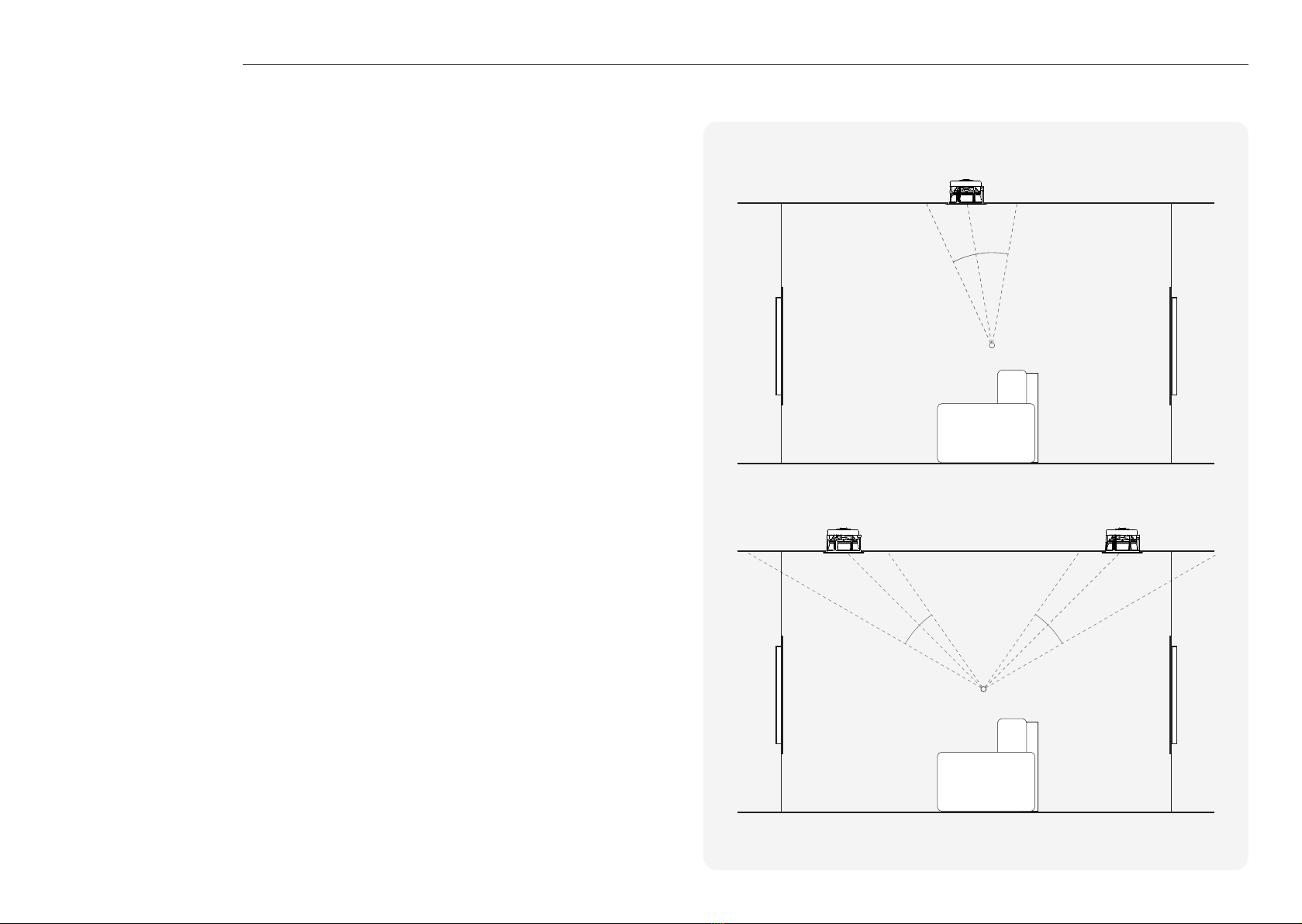

Dolby Atmos®
When arranging the overhead channels in a Dolby Atmos®system, we would
recommend using our three-way in-ceiling speakers such as our Platinum
PLIC II speakers. These employ a unique midrange / tweeter module, which
offers a wider dispersion characteristic, and are ideal for Dolby Atmos®duties.
Please see the diagram on the right for ideal positioning of 2 or 4 Dolby Atmos®speaker
setups. Typically these would be in line with the front left and right speakers.
65°
100°
Ear Level
80°
30°
125°
150°
45° 55°
Ear Level
135°
Dolby, Dolby Atmos, and the double-D symbol are trademarks of Dolby Laboratories.
Front
Front
14 15
Setting up your system

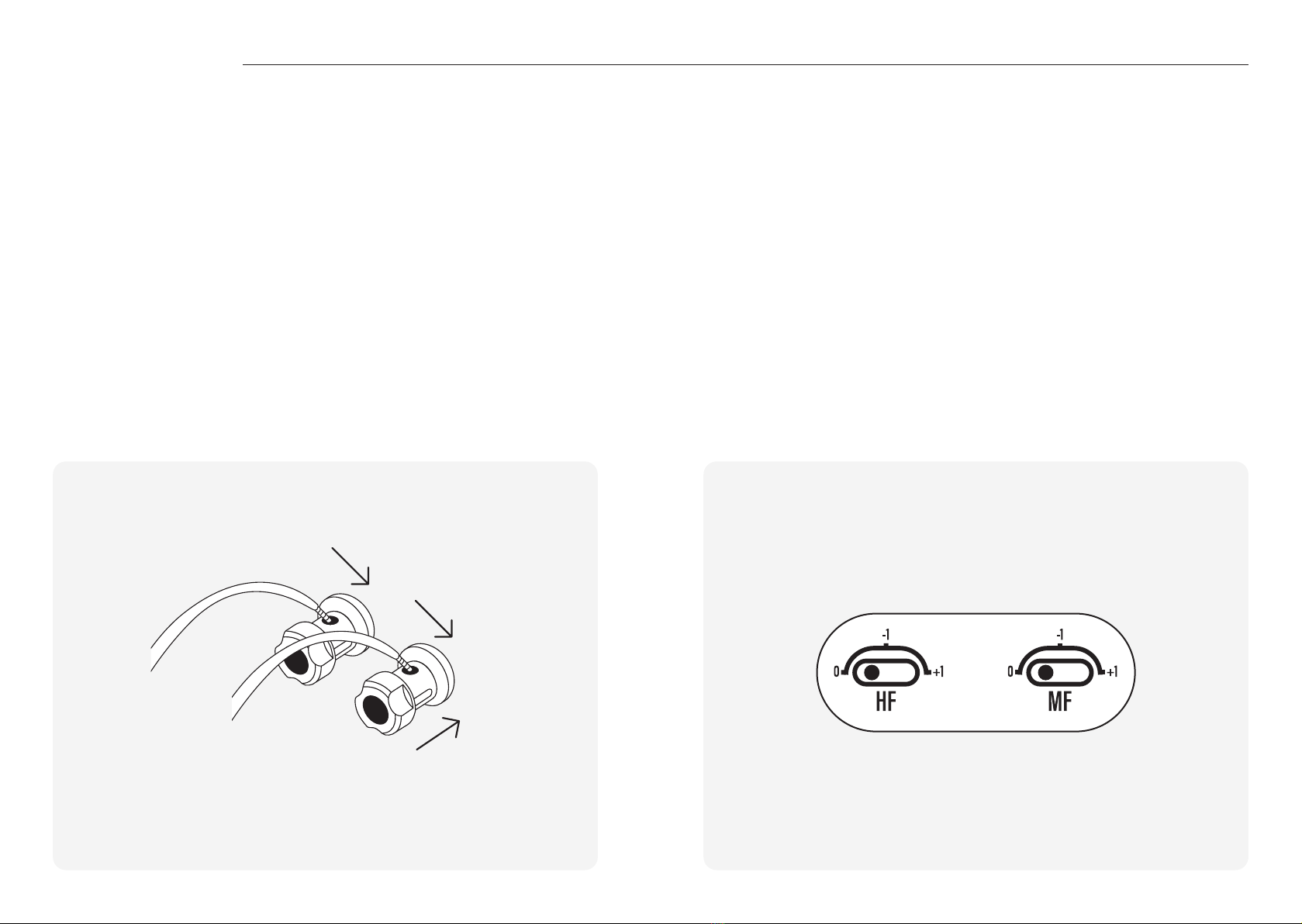

Connecting speaker cables
The Platinum In-Wall 3G has one set of terminals for single wiring. Single wiring is
achieved by using a single set of cables to the binding posts on the side of the speaker.
Internally the speaker crossover guides the frequencies to the appropriate driver/tweeter
- low frequencies to the bass drivers, mid frequencies to the mid/bass driver and high
frequencies to the transducer.
The binding posts are sprung for ease of use and will accept bare wire only.
Press down on each binding post to reveal the through hole and pass the bare wire
through the hole. Release the binding post and it will automatically clamp the cable in
place. Ensure there are no loose strands of cables to cause a short circuit.
Level adjustment switches
The Platinum In-Wall 3G comes with a pair of switches to adjust the mid and high
frequency levels. These are located on the front of the cabinet at the bottom (when
positioned vertically) and adjustment will either boost or attenuate the mid-range and
tweeter levels by +/-1dB. There are separate switches for each unit, and experimentation
is recommended to achieve the perfect combination for your environment.
16 17
Using your speakers
Running-in your speakers
Run your speakers in by playing normal music at low-mid listening levels for
approximately 50-70 hours play time. You may nd the sound will continue to improve
even after the 70 hour mark.
This can be done naturally over time: like a ne wine the performance will improve
with age.
18 19
Warranty
In the unlikely event that there is a defect with this product, it is covered by
the Monitor Audio manufacturer’s warranty, provided that the product was
supplied by an authorised Monitor Audio retailer.
For the period of cover please refer to the product page on our website
at monitoraudio.com
Specications
Register your speakers using the QR code
or visit monitoraudio.com/registration
Register your Platinum In-Wall 3G speaker
Model Platinum In-Wall 3G
System Format 3-way
Frequency response (-6dB)
Free-Field 41 Hz – >60 kHz
Frequency response (-6dB)
In room 27 Hz – >60 kHz
Sensitivity (2.83v @ 1m) 88 dB
Nominal impedance 4 Ohms
Minimum Impedance 4.1 Ohms @ 1.6 kHz
Continuous Power Handling
(RMS into 4 Ohms, Pink
Noise with 6dB Crest Factor) 300 W
Recommended Amplier
Power(RMS into 4 Ohm,
Music Signal) 150-600 W
Bass Alignment Sealed
Crossover Frequency LF/MF: 825 HzMF/HF: 3 kHz
Drive Unit Complement
2 x 6” RDT III bass driver,
1 x 4” RDT III mid-range driver,
1 x MPD III tweeter
External Dimensions
including Grille and
Terminals
(H x W x D)
1207 x 332 x 105.5 mm
479/16 x 131/16 x 44/16”
Cut Out Dimensions 1175 x 300 x 97.5mm
461/4 x 1113/16 x 313/16“
Weight (Each) 27.7 kg
61 lb
