Monarch Pathfinder

6032 Quick Start

More information available at POSMicro.com

Monarch®, Pathfinder®, Ultra®, 6032, 9462, and 9465 are trademarks of Paxar Americas, Inc.

Paxar® is a trademark of Paxar Corporation.

Avery Dennison® is a trademark of Avery Dennison Corporation.

QUICK REFERENCE

This Quick Reference contains supply loading information and care and

maintenance procedures for the Monarch® Pathfinder® Ultra® Silver 6032™

printer. For more detailed information, refer to the Equipment Manual available

on our Web site (www.monarch.com).

Information in this document supercedes information in previous versions.

Check our Web site for the latest documentation and release information.

Getting Started

1. Review the printer safety information in the Regulatory Compliance

document provided with your printer.

2. Charge the battery. Use the Monarch® 9462™ or 9465™ battery charger.

Refer to the documentation with those chargers for more information.

Important: You must charge the battery as soon as you receive the printer,

even if you do not use it right away. Refer to the Equipment

Manual for important battery safety information.

3. Insert the charged battery in the printer.

4. Attach the safety strap.

5. Load supplies in the printer.

6. Turn on the printer.

Attaching the Safety Strap

1. Turn the printer upside down so the top rests on a table or other flat

surface.

2. Take the thin end of the safety strap and push it through the loop at the

bottom of the printer handle (near the battery compartment).

3. Push the thick end of the safety strap through the thin end’s loop.

4. Pull the strap and guide the thin end’s loop over the plastic piece in the

middle of the strap.

5. Pull the strap tight.

Changing the Battery

Remove the battery when you are not using the printer for a month or more.

Recharge it immediately upon discharge.

1. Turn the printer over and press the button on the battery compartment door

(at the bottom of the printer’s handle) and slide it open.

Note: The battery door stays attached.

2. Turn the printer upright, with your hand beneath the open battery

compartment. Hit the printer on your hand and catch the battery as it slides

out.

3. Insert a new battery, non-ribbed end first.

4. Press the battery in slightly and slide the compartment door shut until it

clicks into place.

Battery Compartment Door

Button

Battery

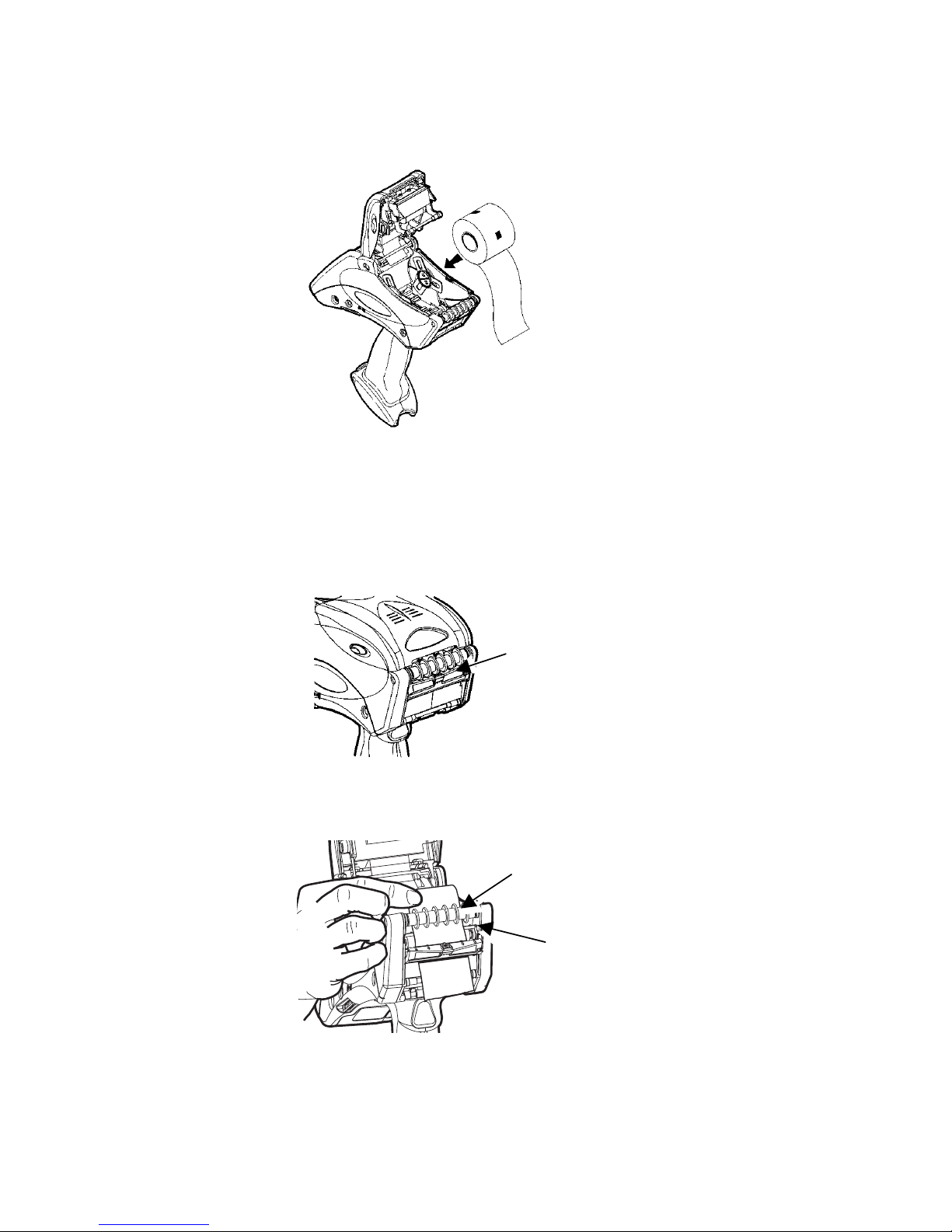

Loading Supplies

1. Turn on the printer.

2. If a date prompt appears, press LOAD. Otherwise, choose a format, and

then press LOAD.

Load supplies

3. Press the latch buttons and open the supply cover.

4. Pull back the supply lock tab.

5. Open the spring-loaded supply holder. Spread the supply holder tabs apart

with one hand so it adjusts to the size of your supply roll. You can set it at

1.2”, 1.5”, and 2.0”.

Supply

Cover

Latch Buttons

Supply Holder

6. Press the supply lock tab down to lock the supply holder in place.

7. Place a roll of supply in the supply holder so it unrolls from the bottom.

8. Load the supplies for the printing mode you want: Peel or Non-Peel.

Loading for Peel Mode

1. Peel and discard the first four inches of labels from the backing paper.

2. Hold the printer upright and gently press down on the label deflector.

It may be stiff.

3. Feed all four inches of the backing paper over the peel bar and under the

applicator roller and the label deflector.

4. Push the label deflector up until it snaps into place.

5. Partially close the cover to the first position.

Label Deflector

Peel Bar

Applicator Roller

6. Pull the backing paper over the guide roller, down to the pinch and feed

rollers.

7. Hold the backing paper edge between the feed and pinch rollers and press

the trigger.

8. Close the cover completely and press ESC to exit supply-loading mode.

Loading for Non-Peel Mode

1. Feed the supply under the applicator roller and over the label deflector.

2. Close the supply cover.

3. Press ESC to exit supply-loading mode.

Removing Supplies in Peel Mode

♦ Tear the backing paper just above the pinch roller.

♦ Open the supply cover completely.

♦ Spread the supply holder tabs apart and remove the supply roll.

♦ Carefully pull out the supply backing paper still in place between the pinch

and feed rollers.

Feed Roller

(behind Pinch Roller)

Pinch Roller

Guide Roller

(behind supply)

App

licator

Label

Deflector

Printhead

Entering Letters

To enter uppercase letters, press one of the numeric keys in Shift mode (S

appears in the status line in this mode). For example, the letters “ABC” appear

on the face of the 7 key. Press Shift to enter Shift mode. Then, to enter the

letter A, press 7 once. To enter B, press 7 twice. To enter C, press 7 three

times.

Press the keys quickly. If you pause too long between key presses, the printer

assumes you have entered the letter you need and the cursor moves one space

to the right.

Cleaning the Printer

Do not use sharp objects to clean the printer. Do not use household cleaners

to clean the printer. Use isopropyl alcohol on the interior areas only (except

where specified) never on the exterior.

Ground yourself by touching a metal surface before cleaning the printer.

Grounding prevents electrostatic discharge, which may damage the printer.

Cleaning the Printhead

1. Turn off the printer and open the supply

cover.

2. Remove the supplies.

3. Clean any adhesive buildup from the supply

holder.

4. Clean the printhead area of all adhesive and

label particles using a Monarch® Cleaning

Pen (#114226) or a soft cloth moistened with

isopropyl alcohol.

5. Reload the supplies and close the supply

cover.

Cleaning the Pinch and Feed Rollers

1. Turn off the printer and open the supply cover.

2. Remove the supplies.

3. Use a dry, lint-free cloth to clean the pinch and feed rollers. If that does not

work, use a cloth dampened slightly with distilled water.

4. Turn the rollers with your finger to clean all the way around.

5. Reload the supplies after the printer dries and close the supply cover.

Black Mark

Sensor

Scanner

Flex Cable

Adhesive

Buildup

Cleaning the Black Mark Sensor

1. Turn off the printer and open the supply

cover.

2. Remove the supplies.

3. Use a dry cotton swab to clean the black

mark sensor.

4. Reload the supplies and close the supply

cover.

Cleaning the Scanner Window

Use a soft cloth moistened with distilled water to wipe the scanner window

clean.

Cleaning the Scanner Flex Cable

1. Turn off the printer and open the supply

cover.

2. Inspect the scanner flex cable for any

adhesive buildup. Clean the cable with

99% isopropyl alcohol, if necessary.

3. Close the supply cover.

Platen Roller

Cleaning the Platen Roller

Clean the platen roller when you see significant adhesive buildup or a label is

wrapped around the platen roller.

1. Turn off the printer and open the supply cover.

2. Remove the supplies.

3. Hold the printer upright and gently press down

on the label deflector. It may be stiff.

4. Use a dry, soft-bristled brush, such as a

toothbrush, to clean both the standard

(black) or linerless (red/orange textured)

platen roller.

5. Turn the platen roller with your finger to

clean all the way around.

6. Reload supplies and close the label

deflector and supply cover.

If the brush does not remove all the

adhesive:

♦ Use isopropyl alcohol ONLY on the standard (black) platen roller. Moisten a

cotton swab with isopropyl alcohol and run the cotton swab across the

platen roller. Turn the platen roller with your finger to clean all the way

around. After cleaning, feed several inches of supply through without

printing to remove any remaining isopropyl alcohol.

Note: Do not use alcohol or solvents on the linerless (red/orange textured)

platen roller.

7. Call Service to clean the linerless (red/orange textured) platen roller.

Clearing Supply Jams

1. Turn off the printer.

2. Open the supply cover completely.

3. Open the label deflector.

4. Remove the supplies.

5. Carefully remove any jammed supply and close the deflector.

Do not pull the jammed supply out through the front of the label deflector.

Do not use sharp objects to remove jammed supplies.

6. Remove the extra supply between the pinch and feed rollers.

7. Reload the supplies and close the supply cover.
