MODSTER HeliX 150 User manual

USER MANUAL / BETRIEBSANLEITUNG

www.modster.at

HeliX 150User Manual

Contents

3Important note

additional safety precautions and warnings

Batteries charging method

rst ight Preparation caution

Helicopter parameters

packaging list

Flight operation steps

Parts replacement instrucitons

Warning and the guide of using battery

Installation method of remote controller battery

direction of operation

Introduction of transmitter function

PARTS

Flight yaw correction method

Abnormal problem solving method

6 axis gyro mode, Barometer setting,

ying ultra-stabil, especially for beginners ight

10-11

www.modster.at

HeliX 150User Manual

Please read the manual to learn the function of the this product before operation.

Damage to the product and potential personal injury may occur if you make an

operational error.

This is a RC helicopter, not a toy. You should not only have a prudent operation, but

also to have an operational basis. All children using it should be under adult

supervision.

The manual includes safety, operation and maintenance. In order to avoid causing

damage or serious injury, please obey the instructions and warnings before you

using this product.

1.Recommended age of users: Not suitable for children under 14 years old.

2.Operate it in an open space, away from the trafc and people.

3.Obey the instructions and warnings, includes the use of optional equipment.

4.It has to stay away from chemicals. Small parts and electric equipment must be

out of the reach of children.

5.Keep away from water because this product has no waterproof function.

6.Do not put any parts in the mouth, it will cause injury or death.

7.Don’t operate the model if the transmitter’s battery is in low voltage.

8.Don’t view the beam of the light emitting diodes, it would effect the eyesight.

9.The motor and electric equipment will be heat after ight. Please do not touch

them to avoid scald.

10.In order to avoid causing damage, please do not touch the high-speed.

Important Note

Additional Safety Precautions And Warnings

www.modster.at

HeliX 150

Warning And The Guide Of Using Battery

User Manual

Note: Using the original factory USB charger can ensure charging safety. Suggest you

use the original factory USB charger part, other chargers may cause battery damage

and property damage.

Note:The battery can not be placed for a long time under full power and low power.

Otherwise, the battery will not be charged or the battery will be wrapped. For

long-term storage, please charge the battery to 3.7V and store it in a dry and safe place.

Warnings! The battery will re, explode or leak if not strictly observing this item

described below. :

1. Do not immerse the battery in water or seawater, and keep the battery in a cool dry

environment during stands by period.

2. Keep all batteries out of the reach of little children. Consult a doctor immediately if a

battery is swallowed.

3. Do not use or leave the battery near a heat source such as re or heater.

4. Use the battery charger specically for that purpose when recharging.

5. Do not reverse the positive (+) and negative (-) terminals.

6. Do not connect the battery to an electrical outlet.

7. Do not dispose the battery in re or heat.

8.Do not short-circuit the battery by directly connecting the positive (+) and negative

(-) terminals with metal objects such as wire.

9.Do not transport or store the battery together with metal objects such as necklaces,

hairpins etc.

10.Do not strike or throw the battery against hard surface.

11.Do not directly solder the battery.

12.Do not unpack the battery with a nail or other sharp object.

13.Never disassembling the battery in any way.

www.modster.at

HeliX 150

 



 

Remote Control USB chargerLipo battery

Phillips screwdriver+hex wrench Instruction manual

Helicopter

Upper connecting rod /

Propeller / tail rotor

FIREFOX

About�75�min

Charge time

User Manual

Helicopter Parameters

Packaging List

Helicopter Lipo battery USB charger

Instruction manual

Upper connecting rod /

Propeller / tail rotor

Remote Control

Phillips screwdriver+hex wrench

Length

Tail Rotor blade Diameter 37 mm

Weight 52G

Flight time About 15 min

Tail Motor 0615

Height 80 mm

Battery Specication 300 mAh

Propeller length 249 mm

Main Motor 8520

Charge Time About 75 min

268 mm

www.modster.at

HeliX 150User Manual

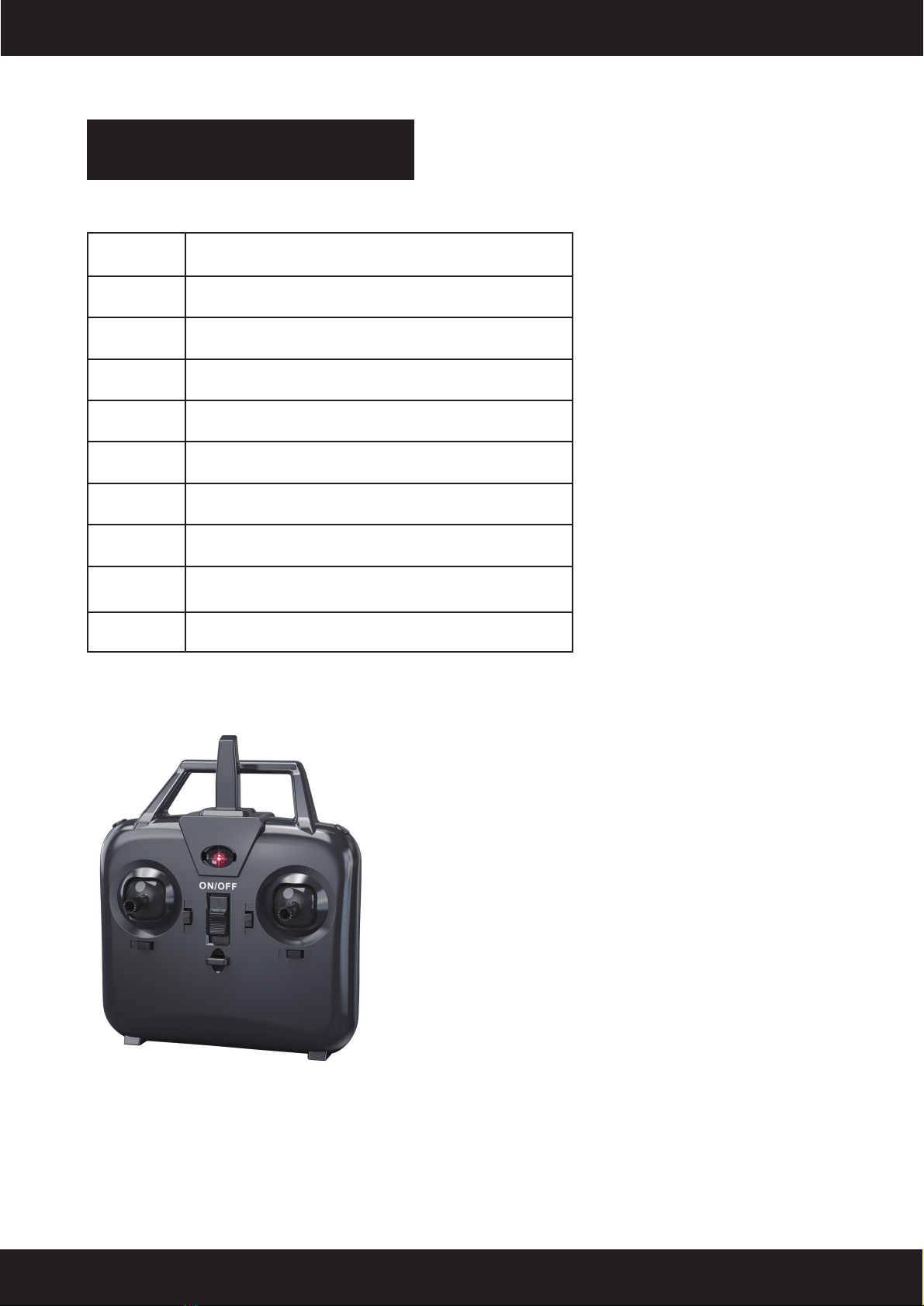

Introduction of transmitter function

Parts

(Long press 3 seconds for

emergency stop) One key take off

One key landing

Press this button, meanwhile

turn on the TX power, to change

Mode 1 / Mode 2

Power Indicator

Power Switch

Forward, backward,

left, right side y

Without function

Up, Down, Left,

Right, Rotation

First gear, second

gear switch

Without function

Propeller Rotor Clip Swashplate

Cross plate

Center Shaft

Main motor

LED

Canopy

Battery House Landing gear

Tail Rod

Tail Rotor

www.modster.at

HeliX 150User Manual

Battery Charging Method

First Flight Preparation CAUTION

Charging method 1:Charging battery by the USB port on a computer.

Description:

1. Connect the USB charger with USB port.

2. Connect the battery with USB charger:

red light means it is charging, red light out

means charging complete.

Charging method 2:Charging battery by power supply adapter.

1. Connect the USB charger with power supply adapter.

2. Connect the battery with USB charger: red light means it is charging, red light out

means charging complete.

Charging method 3:Charging battery by power bank

1. Connect the USB charger with power bank .

2. Connect the battery with USB charger: red light means it is charging, red light out

means charging complete.

1.ensure suffcient power supply of the transmitter and helicopter.

2.Keep a ight in a suitable space which away from the trafc,

people, electricity pylons and pool.

3.Do not lock the main rotor screws too tightly to keep folding

smoothly. If the main rotor screws are too tight, the helicopter

will shake when ying.

4.Under emergency situation, you can press „sharp stop“ button

for 3“ to land the helicopter without rotating.

(Note: this acticon may cause helicopter crash.)

The Red Light is always on

when the battery is charged.

www.modster.at

HeliX 150User Manual

Installation method of remote controller battery

Direction of operation

Transmitter

Slide the battery lid to

open by following the

arrow.

Please use 4 AA sized batteries, installed

based on polarity indicated case. Do not

mix batteries of different chemistry/spec.

If you are unfamiliar with the control of the helicopter, take time to familiarize it before your

rst ight.

Throttle

Throttle up Throttle down

Rudder

Rudder left Nose Yaws Left Nose Yaws Right

Rudder right

Climb Decend

battery lid

Push

www.modster.at

HeliX 150User Manual

Flight Operation Steps

1.Turn on the transmitter and let helicopter stay near to transmitter.

2.Connect the battery with helicopter.

3.The lights of the helicopter and the remote control ash at the same time. Then push the

throttle stick from top to bottom quickly. The remote control makes a ‚DI‘ sound, and the

indicator lights of the helicopter and remote control are always on, which means binding

successful.

4.Pull the two joysticks to outer eight angles to start the helicopter. (You can also press the

one-key takeoff button to take off the helicopter directly.)

5.Keep the helicopter head forward, and keep safe distance with the helicopter.

6.When manually operating the aircraft to land, please keep the throttle stick at the bottom

for 2-3 seconds, and then release it after the propeller has completely stopped rotating.

(This operation is not required when using the one-key landing function)

Note:

1.In order to avoid hitting, do not look at the helicopter at hip level when it y.

2.In order to avoid distractions, please conrm without other transmitters at work around.

Elevator

Elevator up Forward Elevator down Backward

Aileron

Aileron left Left

Corresponding to Step 1 Corresponding to Step 2 Corresponding to Step 3

Aileron right Right

www.modster.at

HeliX 150

Take off with the throttle joystick. According the direction of yaw, press the fine-tuning button

in the opposite direction until the plane hovering.

Forward/

backward Yaw

Left/right Yaw

Side fly Yaw

Fine-tune according to

the direction of the arrow

Fine-tune according to

the direction of the arrow

Fine-tune according to

the direction of the arrow

User Manual

Other Operations

Flight Yaw correction mehtod

Press the triming button when helicopter has yaw problems.

The helicopter has set up hovering. If you are dissatised with hovering or the helicopter

have a yaw, please follow there steps to adjust.

Take off with the throttle joystick. According the direction of yaw, press the ne-tuning

button in the opposite direction until the plane hovering.

Note: Beginner should pay attention to the direction of ight. Keep the head forward to avoid causing injury .

Corresponding to Step 2

Forward ight Keep a safe distance of more than 2 meters

Forward/

backward Yaw

Side y Yaw

Left/right Yaw
