Mocka Nyla Bedside Table User manual
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Thank you for yourpurchase. Please follow the instructions for correct
assembly.While we took great eort to ensure these assembly instructions
were correct at the time of printing, sometimes updates are required post
production. For the most up to date versions please refer to the product
page on our website.mocka.com.au/mocka.co.nz
Nyla
Bedside Table
This furniture item has not been tested, or has failed stability testing, as specified in AS/NZS
4935. Attachment of the furniture item to an appropriate structural component to the building
using suitable means, as advised by a qualified tradesperson is highly recommended.
Freestanding chests of drawers/wardrobes and freestanding bookshelves/bookcases can
become unstable and may topple if climbed upon and can be especially dangerous to children.
Serious injury or death may result. The degree of instability depends on many variables and the
purchaser needs to be aware of potential instability problems and seek to minimise them.
It is undesirable to place object of interest to children in view on this type of furniture item.
Children may be tempted to climb on the furniture item to retrieve the object of interest with
the result being that the furniture item may tip and cause injury or death to the child.
Furniture items can tip under certain circumstances, especially when placed on carpet, uneven
or sloping flooring, or when subject to extreme use. Therefore care must be taken especially
where small children can access any chest of drawers or bookcases or similar furniture items.
WARNING
Partlist
x1
x1 x2
x2
x2
x2
x2
x2
x1
x1
x1
x1
x1
x2
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Panel Layout
18
6
9
7
32
33
34
30
31

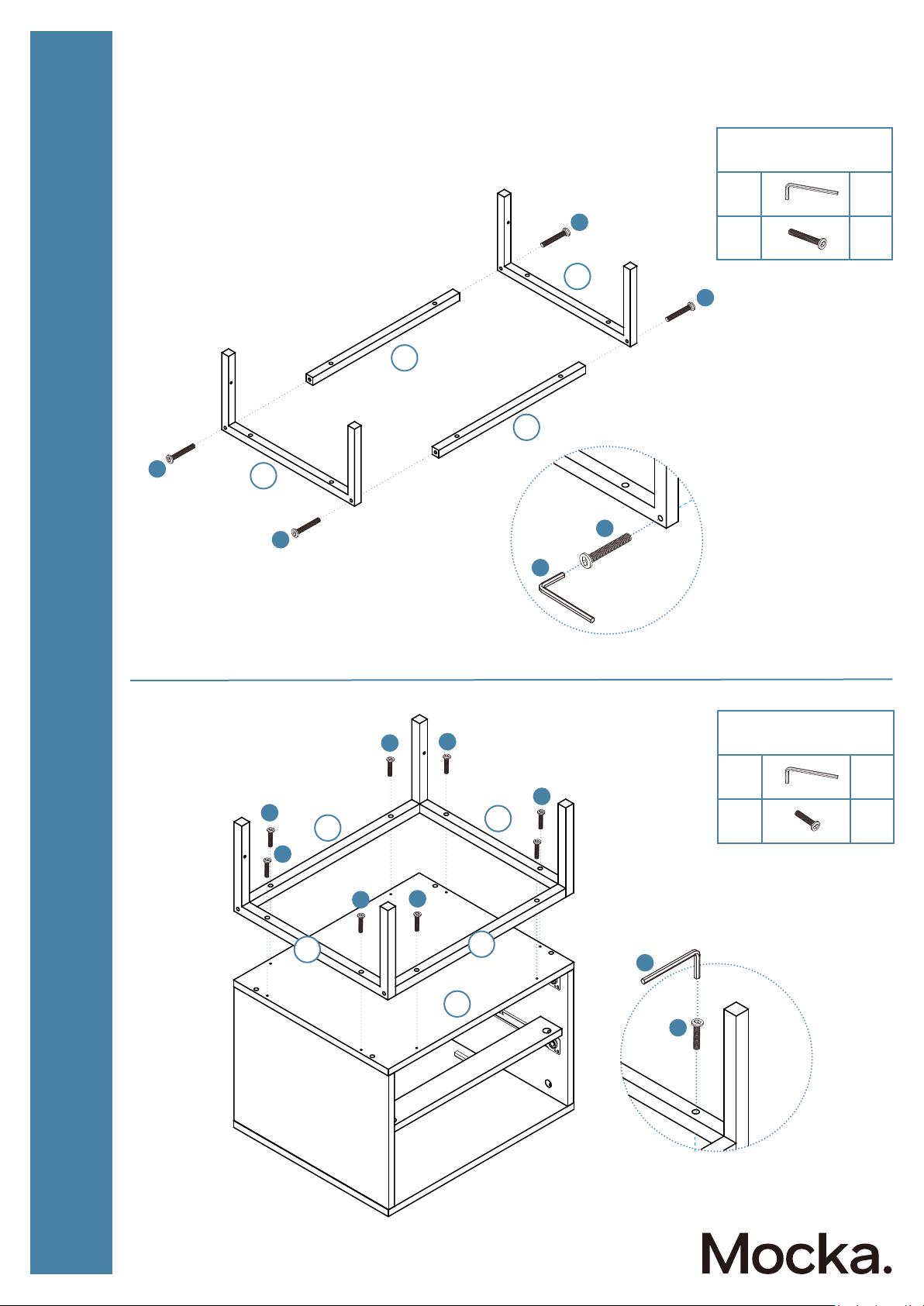

2
3
4
5
Nyla
Bedside Table
Top Panel
Back Panel
Left Side Panel
Right Side Panel
Bottom Panel
Drawer Front
Left Drawer Side
Right Drawer Side
Drawer Back
Drawer Base
Leg
Rail
Cross Wire
Rail
1
2
3
4
5
6
7
8
8
9
9
30
31
32
33
34
x2
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
HARDWARE SUPPLIED
WALL STRAP
bolt
x14
dowel
x10
Nyla
Bedside Table
A B C D E FG
H
screw
x4
slide
rail x2
bracket
x2
slide
rail x2
slide
rail x2
slide
rail x2
screw
x4
screw
x8
screw
x26
wedge
x4
I
allen
Key
x1
J
short
bolt
x4
KL
CL
MN
OCR
bolt
x8
long
bolt
x4
DL DR
cover
x2
seal
x2
locking
nut x14
Z
Y
wall
anchor x 1
screw
x 1
safety
strap x1
wall
screw x 1
washer
x 2
XWV
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
Phillips & Flathead screwdrivers
WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall
anchor with all furniture sold and we recommend these are used to prevent your product tipping.
The fixing device provided should fit most wall types, but please note that dierent wall materials
may require dierent fixing devices from those supplied.
and hammer required

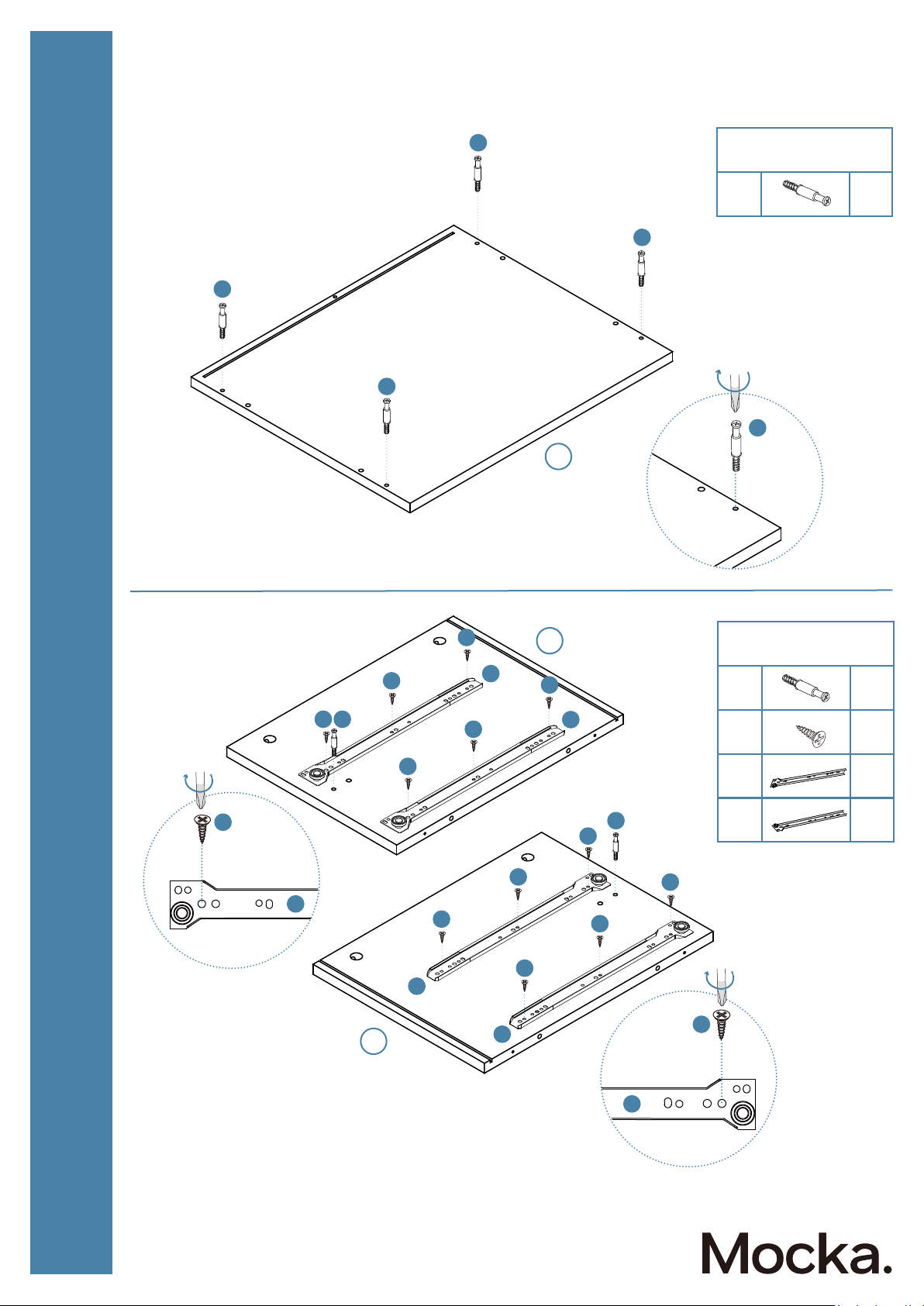

1
Cx4
Hardware Needed
Hardware Needed
2
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Nyla
Bedside Table
C
C
C
C
C
1
C
E
E
E
E
CR
CR
CR
E
EE
E
E
E
E
E
E
E
C
CL
CL
CL
3
4
x12
E
CL
CR
x2
x2
Cx2
3
Ex2
Kx1
Nx1
Hardware Needed
Hardware Needed
4
x2
A
Dx2
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
6
4
3
6
The round head
is aligned with the
direction of the arrow.
Nyla
Bedside Table
Hole in the front
N
NN
K
EE
E
E
A
A
A
D
D
D
5
Ax4
Dx4
Hardware Needed
6
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Nyla
Bedside Table
4
1
3
A
A
A
D
D
D
4
5
3
7Hardware Needed
Hardware Needed
8
x4
A
Bx4
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Nyla
Bedside Table
The round head
is aligned with the
direction of the arrow.
NN
N
K
E
E
EE
Ex2
Kx1
Nx1
B
B
A
A
A
B
B
B
2
3
4
2
9
Ix1
Mx4
Hardware Needed
Hardware Needed
10
x1
I
Ox8
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Nyla
Bedside Table
M
M
M
I
M
M
8
8
9
9
OO
O
O
O
O
O
I
O
9
8
8
2
9
Turn Over
11 Hardware Needed
Hardware Needed
12 Drawer x2
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Nyla
Bedside Table
9
9
7
J
J
J
J
J
I
x1
I
Jx4
Cx8
Lx2
Ex2
*Please assemble it on a rug or
other soft surface to avoid marking.
E
L
C
C
C
C
E
L
34
13 Drawer x2
F x8
Hardware Needed
14 Drawer x2
mocka.co.nz I mocka.com.au
ASSEMBLY INSTRUCTIONS
Nyla
Bedside Table
F
F
F
F
F
F
32
30
30
31
33
31
