Mocka Eclipse Buffet User manual

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Eclipse

Buet

Thank you for your purchase.

Please follow the instructions below for correct assembly

WARNING: Any furniture that is not anchored to a wall has the potential to tip over in certain

circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earth-

quake. Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety

wall anchor with all furniture sold and we recommend these are used to prevent your product

tipping. The ﬁxing device provided should ﬁt most wall types, but please note that dierent wall

materials may require dierent ﬁxing devices from those supplied.

For quicker assembly, we recommend the

use of a power drill on a low-speed setting.

Phillips & Flathead screwdrivers

Wall Strap

washer

wall

anchor

safety

strap x2 x2

screw wall

screw

x16

Hardware Supplied

A B C D EFGH

J K L M N

I O P

dowel

x20

screw

bolt

x14 x18

screw

x48

screw

nut x 14

locking

wedge

x16

bolt

x10

buffer

plate

screw

Allen

Key

hinge

screw

height

adjuster

handle

x4 screw

handle

Eclipse

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Buet

Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. Attach 2x

panels [8] to panel [1] and secure with 8x screws (E).

Tighten with a screwdriver.

Insert 4x bolts (C) into panels [3] and [4]. Tighten with a screwdriver.

Eclipse

Buet

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Insert 4x bolts (C) into panel [5]. Tighten with a screwdriver.

3 4

Attach 2x panels [6] to panel [5] with 4x dowels (A) and secure with

4x locking nuts (D). Tighten with a screwdriver.

FLIP

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Eclipse

Buet

5 6

Attach panel [3] to panel [6] with 2x dowels (A) and secure with 2x locking nuts (D).

Tighten with a screwdriver.

Attach panel [4] to panel [6] with 2x dowels (A) and secure with 2x

locking nuts (D). Tighten with a screwdriver.

Eclipse

Buet

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

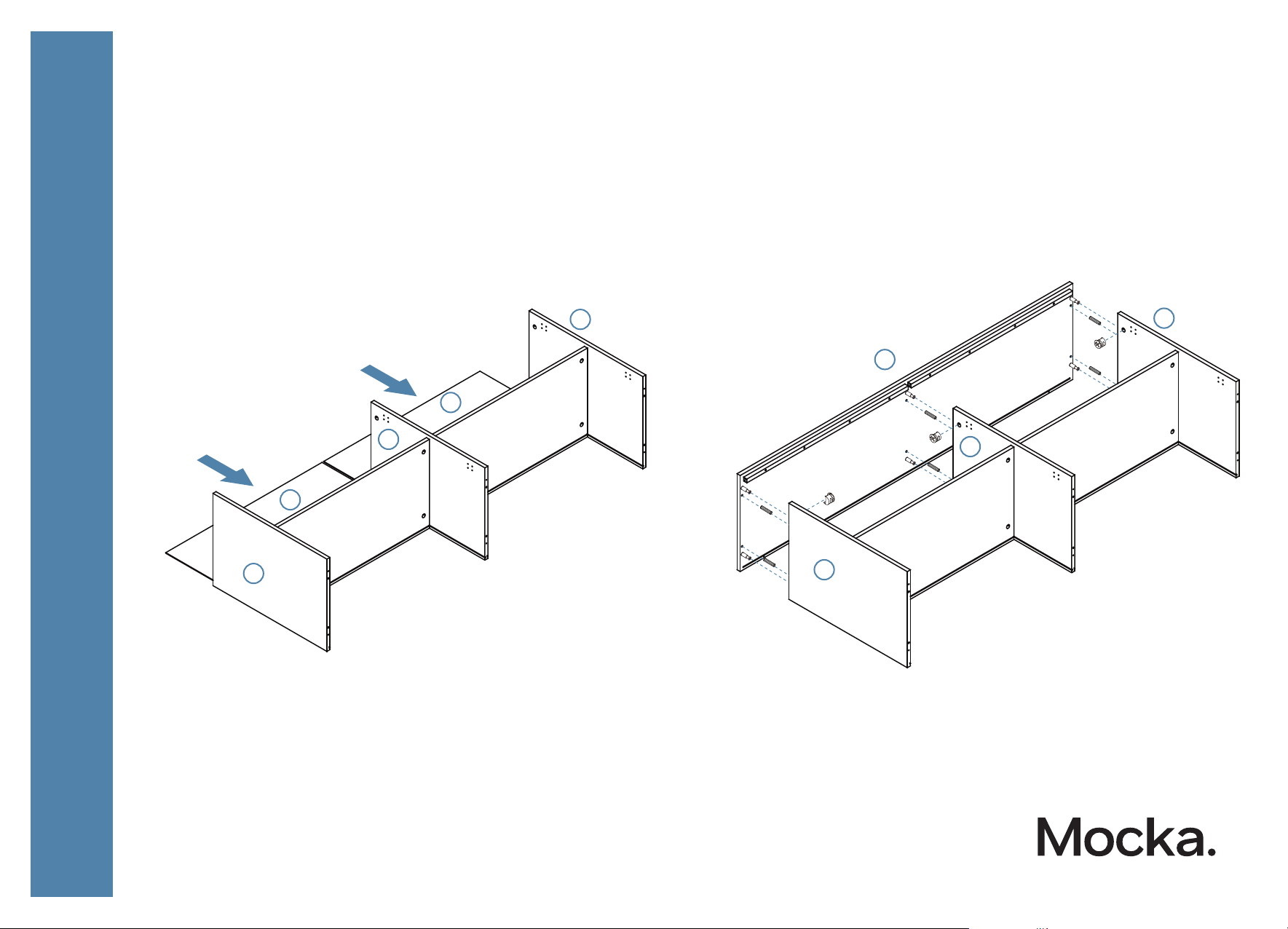

Slide 2x panels [7] down along the grooves between panels [3], [4] and

[5] to form the back of the unit as shown.

Attach panel [1] to panels [3] ,[4] and [5] with 6x dowels (A) and secure

with 6x locking nuts (D). Tighten with a screwdriver.

7 8

Eclipse

Buet

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Slide 2x panels [7] down along the grooves between panels [3], [4] and

[5] to form the back of the unit as shown.

Attach panel [2] to the unit with 6x dowels (A) and secure with 6x screws (B).

Tighten with a screwdriver.

109

Eclipse

Buet

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Attach panel [10] to panel [9]. Attach panel [11] to panels [9] and [10] and secure with 2x bolts (L).

Tighten with an Allen Key (P).

Eclipse

Buet

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

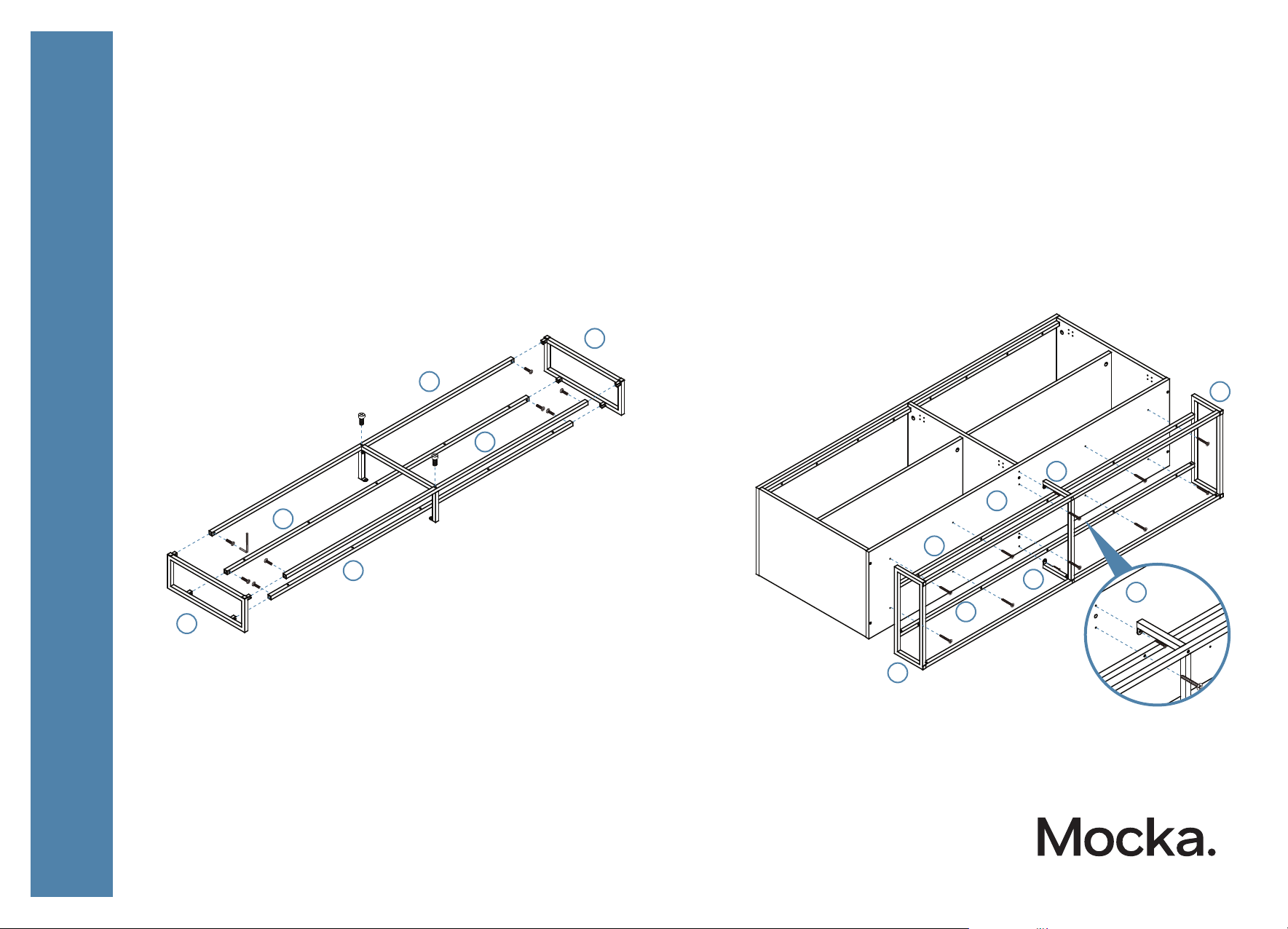

Attach panels [12] to panels [9] and [13] and secure with 8x bolts (L).

Tighten with an Allen Key (P). Attach 2x height adjuster (I)

to panels [9] as shown.

Attach panels [13] to panel [2] and secure with 10x screws (E). Attach

panels [10] to panel [2] and secure with 2x screws (H).

Tighten with a screwdriver.

Eclipse

Buet

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Attach 2x hinges (G) to panel [14] using 4x screws (F), and attach 1x

handle (M) to panel [14] and secure with 2x screw (N).

Tighten with a screwdriver.

Attach hinges on panels [14] to panels [3], [4] and [5] and secure with 3

2x screws (F). Tighten with a screwdriver. Attach 4x buer plates (O)

to panels [6] as shown. Ensure the doors open and close easily.

Door x 4

NOTE: If the doors are

uneven or there is a gap

in the middle, loosen or

tighten the screw on the

door hinge until they are

sitting ﬂush.

4141

Tighten the

screws 90%..

Eclipse

Buet

mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008

ASSEMBLY I N S TRUCTION S

Attach 16x wedges (J) into the corners of the back of the unit and

secure with 16x screws (K). Tighten with a screwdriver. Attach 2x

safety straps (V) to the top of the back side of the unit as shown

using 2x washers (Z) and 2x screws (W). Tighten with a screwdriver.

Once assembled lift furniture into place, do not drag. Use a drill to create

a small hole lining up with the top of the safety strap (V). Fasten to the wall

using 2x washers (Z), 2x wall anchors (X) and 2x wall screws (Y). Ensure unit

is balanced and steady before use. You’re done, enjoy!

anchor

wall

screw

strap

washe
