TECHNICAL & SERVICE MANUAL

SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS

CONTENTS

1. SAFETY PRECAUTION ······································ 2

2. OVERVIEW OF UNITS········································ 5

3. SPECIFICATIONS ············································· 12

4. DATA·································································· 13

5. OUTLINES AND DIMENSIONS ························ 17

6. WIRING DIAGRAM············································ 18

NECESSARY CONDITIONS FOR SYSTEM CONSTRUCTION

··· 20

8. TROUBLESHOOTING······································· 22

9. ELECTRICAL WIRING ······································ 56

10. WIRING SPECIFICATIONS.······························ 58

11. SYSTEM CONTROL ·········································· 59

12. REFRIGERANT PIPING TASK·························· 61

13. DISASSEMBLY PROCEDURE·························· 64

INDOOR UNITS COMBINATION SHEETS

No. OCH480

REVISED EDITION-D

[Service Ref.]

MXZ-8B140VA

MXZ-8B160VA

MXZ-8B140YA

MXZ-8B160YA

HFC

utilized

R410A

March 2014

NOTE:

• Thisservicemanual

describestechnicaldata

ofoutdoorunit.Asfor

indoorunitsandbranch

box(OCH508),refertoits

servicemanual.

•RoHScompliantproducts

have<G>markonthespec

nameplate.

OUTDOOR UNIT

Modelname

indication

PARTS CATALOG (OCB480)

Revision:

•

Addedconnectableindoorunit

 MFZ-KJ25VE,

 MFZ-KJ35VE,and

 MFZ-KJ50VEinREVISED

EDITION-D.

•Somedescriptionshave

beenmodified.

•PleasevoidOCH480

REVISEDEDITION-C.

[Model Name]

MXZ-8B140VA

MXZ-8B160VA

MXZ-8B140YA

MXZ-8B160YA

1SAFETY PRECAUTION

Cautions for units utilizing refrigerant R410A

1-1. ALWAYS OBSERVE FOR SAFETY

Use new refrigerant pipes.

Charge refrigerant from liquid phase of gas

cylinder.

If the refrigerant is charged from gas phase, composition

change may occur in refrigerant and the efficiency will be

lowered.

Do not use refrigerant other than R410A.

If other refrigerant (R22 etc.) is used, chlorine in refrige-

rant can cause deterioration of refrigerant oil etc.

Use a vacuum pump with a reverse flow check

valve.

Vacuum pump oil may flow back into refrigerant cycle and

that can cause deterioration of refrigerant oil etc.

Use the following tools specifically designed for

use with R410A refrigerant.

The following tools are necessary to use R410A refrigerant.

Handle tools with care.

If dirt, dust or moisture enters into refrigerant cycle, that can

cause deterioration of refrigerant oil or malfunction of com-

pressor.

Do not use a charging cylinder.

If a charging cylinder is used, the composition of refrigera-

nt will change and the efficiency will be lowered.

Flare tool

Electronic refrigerant

charging scale

Vacuum pump adaptor

Size adjustment gauge

Gauge manifold

Torque wrench

Gas leak detector

Charge hose

Tools for R410A

Contamination inside refrigerant piping can cause deterio-

ration of refrigerant oil etc.

If dirt, dust or moisture enters into refrigerant cycle, that can

cause deterioration of refrigerant oil or malfunction of com-

pressor.

If large amount of mineral oil enters, that can cause deterio-

ration of refrigerant oil etc.

Store the piping indoors, and both ends of the

piping sealed until just before brazing.

(Leave elbow joints, etc. in their packaging.)

Make sure that the inside and outside of refrige-

rant piping is clean and it has no contaminants

such as sulfur, oxides, dirt, shaving particles, etc,

which are hazard to refrigerant cycle.

In addition, use pipes with specified thickness.

The refrigerant oil applied to flare and flange

connections must be ester oil, ether oil or

alkylbenzene oil in a smalll amount.

Never use any refrigerant other than that specified.

Doing so may cause a burst, an explosion, or fire when the

unit is being used, serviced, or disposed of.

Correct refrigerant is specified in the manuals and on the

spec labels provided with our products.

We will not be held responsible for mechanical failure,

system malfunction, unit breakdown or accidents caused

by failure to follow the instructions.

Use the specified refrigerant only.

Ventilate the room if refrigerant leaks during

operation. If refrigerant comes into contact with

a flame, poisonous gases will be released.

1-2. CAUTIONS RELATED TO NEW REFRIGERANT

Before obtaining access to terminal, all supply

circuit must be disconnected.

OCH480D

Gravimeter

Unit

[3] Service tools

(1) Use the below service tools as exclusive tools for R410A refrigerant.

[2] Additional refrigerant charge

When charging directly from cylinder

·CheckthatcylinderforR410Aonthemarketissyphontype.

·Chargingshouldbeperformedwiththecylinderofsyphonstoodvertically.(Refrigerantischargedfromliquidphase.)

[1] Cautions for service

(1) Perform service after recovering the refrigerant left in unit completely.

(2) Do not release refrigerant in the air.

(3) After completing service, charge the cycle with specified amount of refrigerant.

(4) When performing service, install a filter drier simultaneously.

Be sure to use a filter drier for new refrigerant.

No. Toolname Specifications

1Gaugemanifold

·OnlyforR410A

·Usetheexistingfittingspecifications.(UNF1/2)

·Usehigh-tensionsidepressureof5.3MPa·Gorover.

2Chargehose ·OnlyforR410A

·Usepressureperformanceof5.09MPa·Gorover.

3Electronicscale

4Gasleakdetector ·UsethedetectorforR134a,R407CorR410A.

5Adaptorforreverseflowcheck ·Attachonvacuumpump.

6Refrigerantchargebase

7Refrigerantcylinder ·OnlyforR410A·Topofcylinder(Pink)

·Cylinderwithsyphon

8Refrigerantrecoveryequipment

OCH480D

(2) Cautions for refrigerant piping work

NewrefrigerantR410Aisadoptedforreplacementinverterseries.AlthoughtherefrigerantpipingworkforR410Aissame

asforR22,exclusivetoolsarenecessarysoasnottomixwithdifferentkindofrefrigerant.Furthermoreastheworking

pressureofR410Ais1.6timeshigherthanthatofR22,theirsizesofflaredsectionsandflarenutsaredifferent.

1Thicknessofpipes

BecausetheworkingpressureofR410AishighercomparedtoR22,besuretouserefrigerantpipingwiththickness

shownbelow.(Neverusepipesof0.7mmorbelow.)

2Dimensionsofflarecuttingandflarenut

ThecomponentmoleculesinHFCrefrigerantaresmallercomparedtoconventionalrefrigerants.Inadditiontothat,

R410Aisarefrigerant,whichhashigherriskofleakagebecauseofitsworkingpressurehigherthanthatofotherrefriger-

ants.Therefore,toenhanceairtightnessandintensity,flarecuttingdimensionofcopperpipeforR410Ahasbeenspeci-

fiedseparatelyfromthedimensionsforotherrefrigerantsasshownbelow.ThedimensionBofflarenutforR410Aalso

haspartlybeenchangedtoincreaseintensityasshownbelow.Setcopperpipecorrectlyreferringtocopperpipeflaring

dimensionsforR410Abelow.For1/2”and5/8”,thedimensionBchanges.

Usetorquewrenchcorrespondingtoeachdimension.

3ToolsforR410A(Thefollowingtableshowswhetherconventionaltoolscanbeusedornot.)

1/4

3/8

1/2

5/8

3/4

6.35

9.52

12.70

15.88

19.05

0.8

1.0

—

0.8

1.0

Nominal

dimensions(inch)

Diagram below: Piping diameter and thickness

Outside

diameter (mm)

Thickness (mm)

R410A R22

1/4

3/8

1/2

5/8

3/4

6.35

9.52

12.70

15.88

19.05

9.1

13.2

16.6

19.7

—

9.0

13.0

16.2

19.4

23.3

Nominal

dimensions (inch)

Flare cutting dimensions

Outside

diameter

Dimension A ( )

-0.4

(mm)

R410A R22

(mm)

1/4

3/8

1/2

5/8

3/4

6.35

9.52

12.70

15.88

19.05

17.0

22.0

26.0

29.0

—

17.0

22.0

24.0

27.0

36.0

Nominal

dimensions (inch)

Flare nut dimensions

Outside

diameter

Dimension B (mm)

R410A R22

(mm)

Gauge manifold

Charge hose

Gas leak detector

Refrigerant recovery equipment

Refrigerant cylinder

Applied oil

Safety charger

Charge valve

Vacuum pump

Flare tool

Bender

Pipe cutter

Welder and nitrogen gas cylinder

Refrigerant charging scale

Vacuum gauge or thermis-

tor vacuum gauge and

vacuum valve

Charging cylinder

Air purge, refrigerant charge

and operation check

Gas leak check

Refrigerant recovery

Refrigerant charge

Apply to flared section

Prevent compressor malfunction

when charging refrigerant by

spraying liquid refrigerant

Prevent gas from blowing out

when detaching charge hose

Vacuum drying and air

purge

Flaring work of piping

Bend the pipes

Cut the pipes

Weld the pipes

Refrigerant charge

Check the degree of vacuum. (Vacuum

valve prevents back flow of oil and refri-

gerant to thermistor vacuum gauge)

Refrigerant charge

Tool exclusive for R410A

Tool for HFC refrigerant

Tool exclusive for R410A

Ester oil and alkylbenzene

oil (minimum amount)

Tool exclusive for R410A

Tools for other refrigerants can

be used if equipped with adap-

ter for reverse flow check

Tools for other refrigerants

can be used by adjusting

flaring dimension

Tools for other refrigerants can be used

Tools for other refrigerants

can be used

Tool exclusive for R410A

Tools and materials Use R410A tools Can R22 tools be used?

(Usable if equipped

with adapter for rever-

se flow)

(Usable by adjusting

flaring dimension)

Can R407C tools be used?

Ester oil:

Alkylbenzene oil: minimum amount

(Usable if equipped

with adapter for rever-

se flow)

(Usable by adjusting

flaring dimension)

: Prepare a new tool. (Use the new tool as the tool exclusive for R410A.)

: Tools for other refrigerants can be used under certain conditions.

: Tools for other refrigerants can be used.

DimensionA

DimensionB

OCH480D

2OVERVIEW OF UNITS

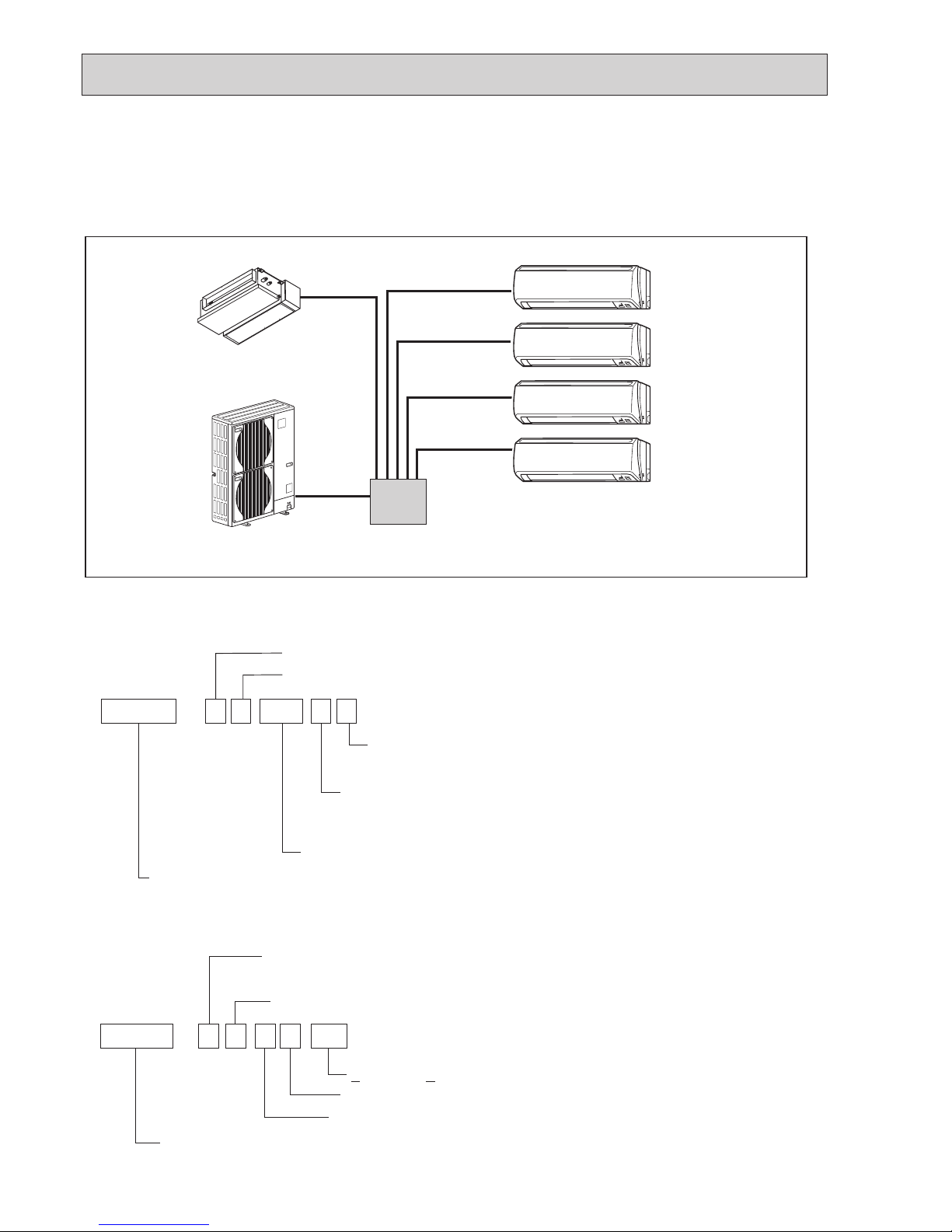

2-1. CONSTRUCTION OF SYSTEM

MXZ-8B140YA/160YA

6HP

MXZ-8B140VA/160VA

5HP

14.0

16.0

15.5

18.0

R410A

Indoor unit

that can be

connected

Branch box

that can be

connected

Capacity

Refrigerant

Rated

capacity (kW)

Cooling

Heating

Number of units

Total system wide capacity

Type 15 ~ Type 100

2 ~ 8 units

1 ~ 2 units

21 ~ 132 % of outdoor unit capacity (3.0 kW ~ 18.5 kW) 19 ~ 130 % of outdoor unit capacity (3.0 kW ~ 20.2 kW)

Number of units

Outdoor unit

Ceiling

concealed

4-way

ceiling cassette

Wall

mounted

Model type Model name

Deluxe

Standard

Compact

Low static pressure

Middle static pressure

High static pressure

2 by 2 type

Standard

MSZ-FA25/35VA

MSZ-FB25/35/50VA(H)

MSZ-FD25/35/50VA

MSZ-FH25/35/50VE

MSZ-GA22/25/35/50/60/71/80VA

MSZ-GB50VA

MSZ-GC22/25/35VA

MSZ-GC22/25/35/50/60/71NA

MSZ-GE22/25/35/42/50/60/71/80VA

MSZ-SF25/35/42/50VE

MSZ-GE22/25/35/42/50/60/71NA

MSZ-GF60/71VE

MSZ-EF18/22/25/35/42/50VE

MSZ-SF15/20VA

SEZ-KA/KC25/35/50/60/71VA

SEZ-KD25/35/50/60/71VA(L)

PEAD-RP50/60/71/100JA(L)Q.UK

PEA-RP71EA/RP100EA2

MCFZ-GA35/50/60VA

SLZ-KA25/35/50VA(L)

PLA-RP35/50/60/71AA(.UK)/BA(.UK)

PLA-RP71BA2.UK

PLA-RP100BA/BA3

MFZ-KA25/35/50VA

MFZ-KJ25/35/50VE

MLZ-KA25/35/50VA

Floor standing

Capacity class (kW)

2.2 2.5 3.5 5.0 6.0 7.1 8.0

10.0*

Connectable indoor unit lineup (Heat pump inverter type)

<NOTE> The lineup of a connectable indoor unit depends on a district/areas/country.

* When connectiing the indoor unit with the number 100, use the PAC-AK52YP-E Y-shape connection pipe (Optional part).

Branch box PAC-AK53BC

5 branches

(MAX. 5 units)

PAC-AK32BC

3 branches

(MAX. 3 units)

Number of branches

Indoor unit that

can be connected

( )

Max. 2 branch boxes can be connected to 1 outdoor unit.

According to the connection method, you can choose the favorite one.

2- branch pipe (joint) : Optional parts

In case of using 1- branch box

In case of using 2- branch boxes

No need

Model name Connection method

flare

brazing

MSDD-50AR-E

MSDD-50BR-E

Option Optional accessories of indoor units and outdoor units are available.

CAUTION : The indoor unit which rated capability exceeds

10.0kW (100 type) can NOT be connected.

2.01.5 1.8 4.2

1-way ceiling cassette

OCH480D

Indoor unit (Ceiling concealed type)

Indoor unit

(Wall mounted type)

Outdoor unit Branch Box

2-2. SYSTEM OUTLINE

TheadditionalconnectionoftheBranchBoxtogetherwithemploymentofthecompacttrunk-lookingoutdoorunitcan

successfullyrealizesalongdistancepipingforbighouses.Equippedwithamicroprocessor,theBranchBoxcantrans-

latethetransmissionsignalofindoorunitstoachievetheoptimumcontrol.

2-2-1. System example

2-2-2. Method for identifying

■ Outdoor unit

Model type

Power supply

V: Single phase 220/230/240V 50Hz

Y: 3-Phase 380/400/415V 50Hz

Multi type heat pump

inverter outdoor unit

Indicates equivalent to rated cooling capacity.

(O0.1kW)

Number of connectable indoor units (MAX.)

Control and refrigerant

A : New A control and R410A

Branch box (Controller)

Number of branches

5 : 5 branches

3 : 3 branches

Model type

Symbol of factory

Applicable refrigerant

A : R410A

(Indispensable)

Optional parts

M X Z – 8B140 V A

P A C – AK 5 3 BC

■ Branch box

OCH480D

2-3. TYPICAL COMBINATION EXAMPLE

Branch box is located INSIDE of condominium

Branch box

(Inside)

Installing branch box indoors

Only1pipingisrequiredbetweentheoutdoorand

indoorofferingafineexternalview.

Branch box (5 branch type)

Outdoor unit

SEZ-60 MSZ-35 MSZ-35 MSZ-25 MSZ-25

Living Dining Bedroom (1) Bedroom (2)

Master

bedroom

■ System example of 5 indoor units

■ Verification

Theratedcapacityshouldbedeterminedbyobservingthetablebelow.Theunit’squantitiesarelimitedin2to8units.

Forthenextstep,makesurethattheselectedtotalratedcapacityisinarangeasshownbelow.

Thetotalindoorunitcapacityshouldbewithintheoutdoorunits.

Combinationofexcessiveindoorunitsandanoutdoorunitmayreducethecapacityofeachindoorunit.

Theratedindoorcapacityisasthetablebelow.

• MXZ-8B140 3.0 ~ 18.5 kW

• MXZ-8B160 3.0 ~ 20.2 kW

Example: MXZ-8B140

Total rated capacity

18.0 18.5kW

MSZ-25 =2.5

SEZ-60 =6.0

MSZ-35 =3.5

MSZ-25 =2.5

Indoorunittype(capacityclass)

15 18 20 22 25 35 42 50 60 71 80 100

Ratedcapacity(cooling)(kW) 1.5 1.8 2.0 2.2 2.5 3.5 4.2 5.0 6.0 7.1 8.0 10.0

OCH480D

2-4. INSTALLATION

2-4-1. Outdoor unit installation location

 Forbestperformance,selectproperposition.

 ●Avoidplaceswherecombustiblegasmaybegeneratedorleak.

 ●Avoiddirectsunlightorothersourcesofheat.

 ●Installsunshadetoprotecttheoutdoorunitifdirectsunlighthitstheunit.

 ●Installtheoutdoorunitwithenoughdistancebetweenneighboursasoperationnoisemaydisturbtheneighbours.

 ●Avoidthepositionthattheunitiscoveredbysnoworsnowblowsdirectlyagainsttheairoutlet.Thesnowblockorblowwill

reducetheairflowoftheoutdoorunit.

Intheareasofheavysnow,specialcountermeasuresmustbetakenatinstallationtoprotecttheoutdoorunitfrommalfunc-

tioncausedbysnow.

 ●Selectalocationpermittingeasywiringandpipeaccesstothepowersourceandindoorunit.

 ●Drainwatermustbedrainedfreelyduringoperation.Checkfordraining.

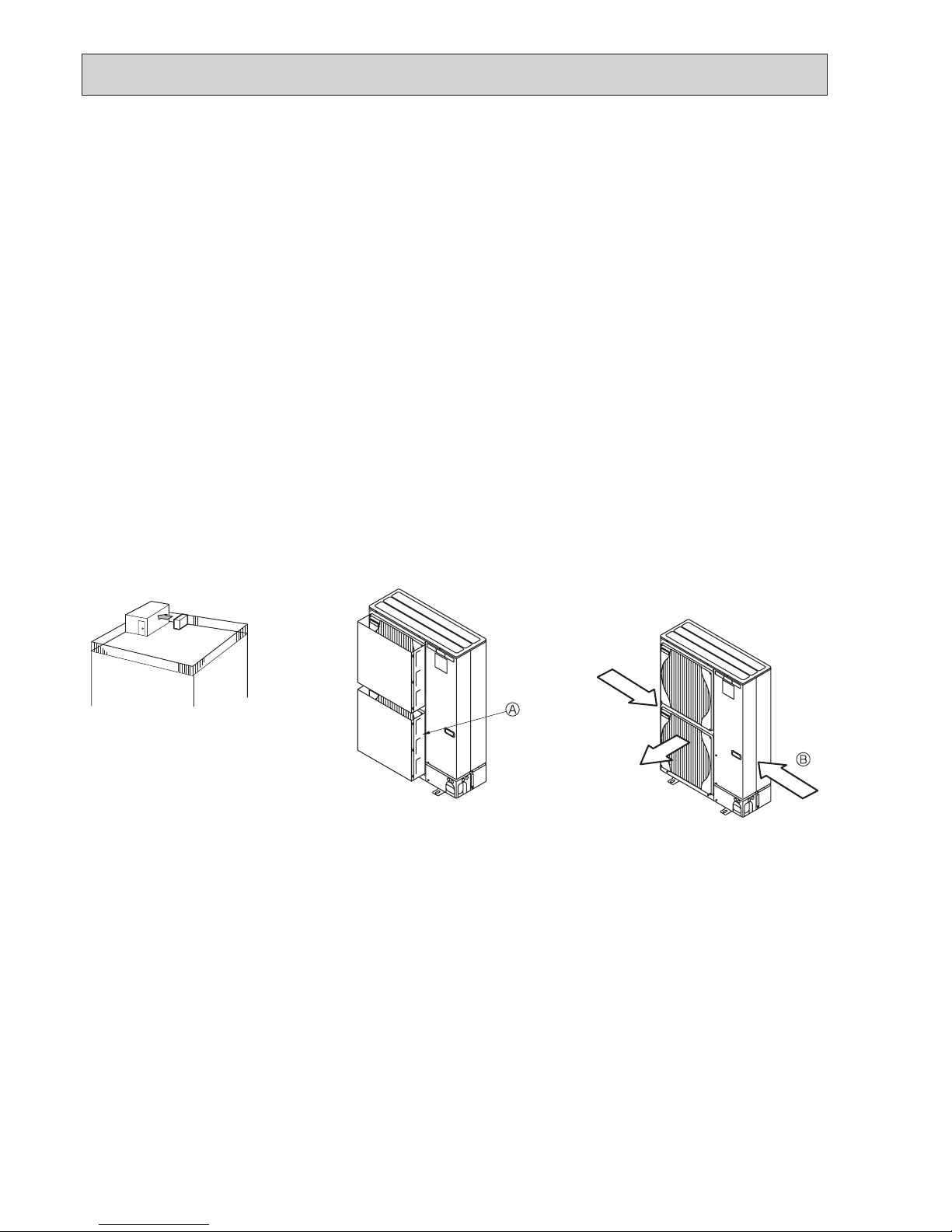

2-4-2. Ventilation and service space

(1) Windy location installation

Wheninstallingtheoutdoorunitonarooftoporotherlocationunprotectedfromthewind,situatetheairoutletoftheunitso

thatitisnotdirectlyexposedtostrongwinds.Strongwindenteringtheairoutletmayimpedethenormalairflowandamal-

functionmayresult.

Thefollowingshows3examplesofprecautionsagainststrongwinds.

 ●Facetheairoutlettowardsthenearestavailablewallabout50cmawayfromthewall.(Fig.2-1)

 ●Installanoptionalairguideiftheunitisinstalledinalocationwherestrongwindsfromatyphoon,etc.maydirectlyenter

theairoutlet.(Fig.2-2)

AAirguide

 ●Positiontheunitsothattheairoutletblowsperpendicularlytotheseasonalwinddirection,ifpossible.(Fig.2-3)

BWinddirection

Fig. 2-1

Fig. 2-2 Fig. 2-3

OCH480D

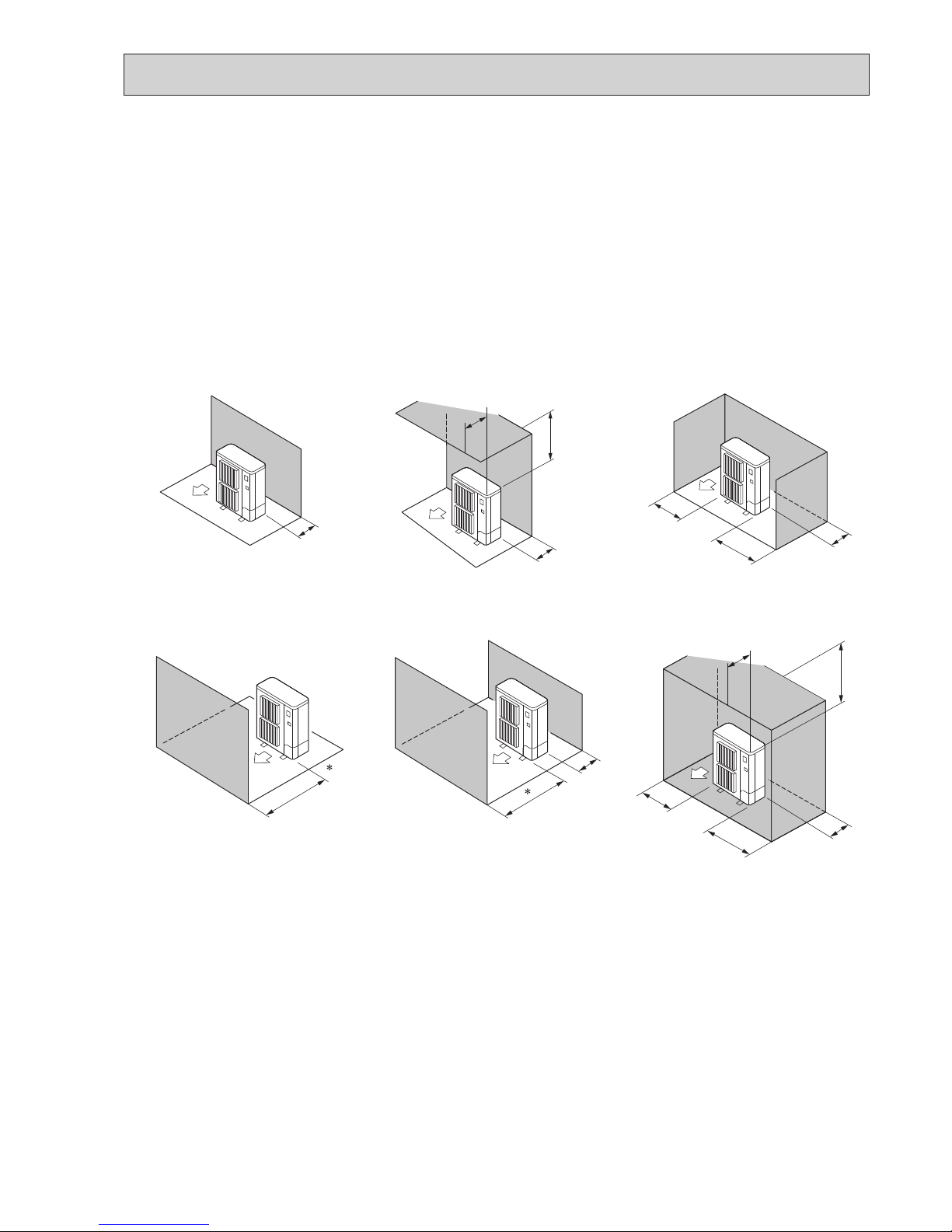

(2) When installing a single outdoor unit

 Minimumdimensionsareasfollows,exceptforMax.,meaningMaximumdimensions,indicated.

 Refertothefiguresforeachcase.

 ●Obstaclesatrearonly(Fig.2-4)

 ●Obstaclesatrearandaboveonly(Fig.2-5)

  ·Donotinstalltheoptionalairoutletguidesforupwardairflow.

 ●Obstaclesatrearandsidesonly(Fig.2-6)

 ●Obstaclesatfrontonly(Fig.2-7)

  *Whenusinganoptionalairoutletguide,theclearanceis500mmormore.

 ●Obstaclesatfrontandrearonly(Fig.2-8)

  *Whenusinganoptionalairoutletguide,theclearanceis500mmormore.

 ●Obstaclesatrear,sides,andaboveonly(Fig.2-9)

  ·Donotinstalltheoptionalairoutletguidesforupwardairflow.

150

250

1500

500

Max. 500

1000

200

300

200

Fig. 2-4

Fig. 2-8Fig. 2-7

Fig. 2-5 Fig. 2-6

Fig. 2-9

unit : mm

300

1000

Max. 500

150

1000

OCH480D

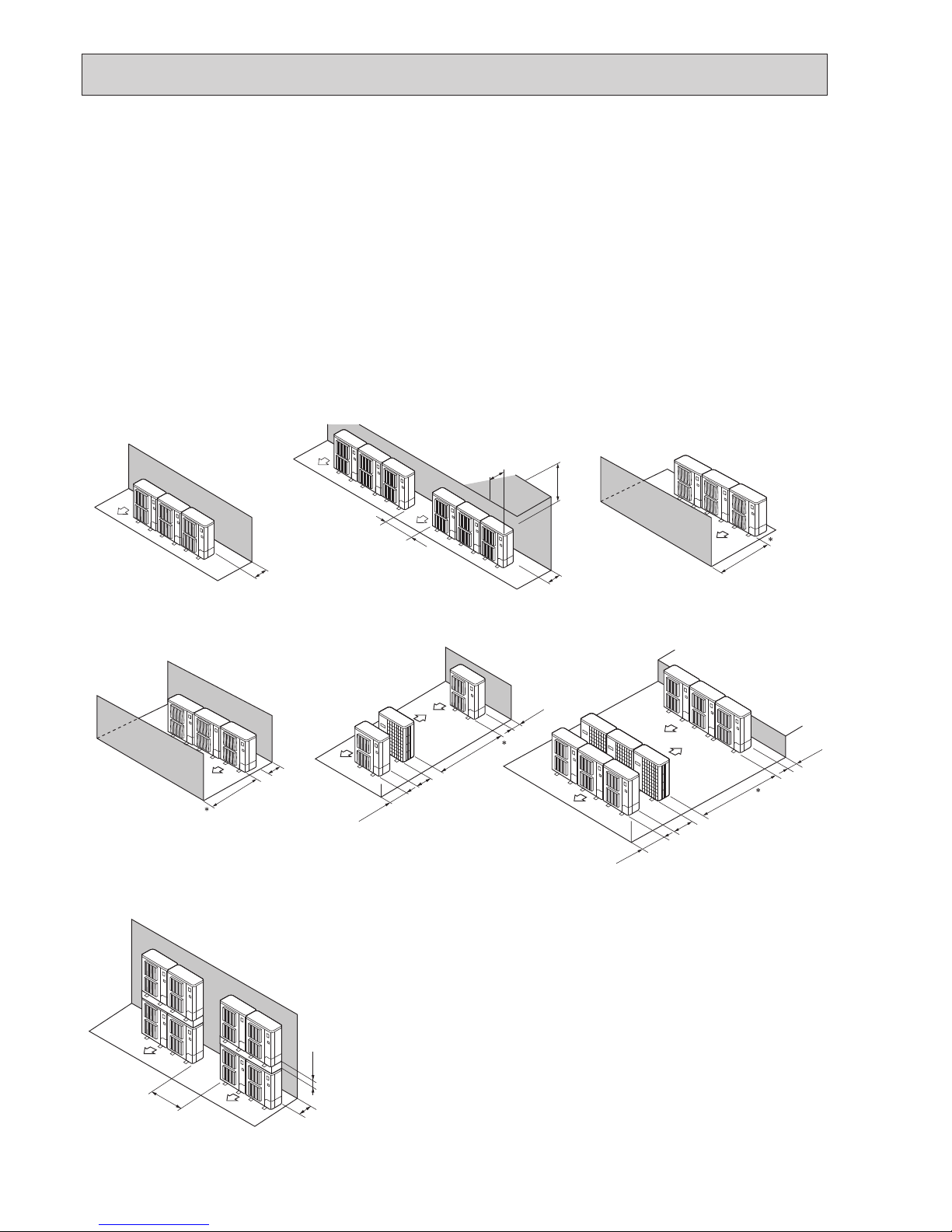

(3) When installing multiple outdoor units

 Leave10mmspaceormorebetweentheunits.

 ●Obstaclesatrearonly(Fig.2-10)

 ●Obstaclesatrearandaboveonly(Fig.2-11)

  •Nomorethan3unitsmustbeinstalledsidebyside.Inaddition,leavespaceasshown.

  •Donotinstalltheoptionalairoutletguidesforupwardairflow.

 ●Obstaclesatfrontonly(Fig.2-12)

  *Whenusinganoptionalairoutletguide,theclearanceis1000mmormore.

 ●Obstaclesatfrontandrearonly(Fig.2-13)

  *Whenusinganoptionalairoutletguide,theclearanceis500mmormore.

 ●Singleparallelunitarrangement(Fig.2-14)

  *Whenusinganoptionalairoutletguideinstalledforupwardairflow,theclearanceis1000mmormore.

 ●Multipleparallelunitarrangement(Fig.2-15)

  *Whenusinganoptionalairoutletguideinstalledforupwardairflow,theclearanceis1500mmormore.

 ●Stackedunitarrangement(Fig.2-16)

  •Theunitscanbestackedupto2unitshigh.

  •Nomorethan2stackedunitsmustbeinstalledsidebyside.Inaddition,leavespaceasshown.

300

1500

500

1500

Max. 300

1000

600

2000

150

1500

500

1500

800

150

1500

600

3000

500

Fig. 2-14Fig. 2-13

Fig. 2-12Fig. 2-11Fig. 2-10

Fig. 2-15

Fig. 2-16

unit : mm

OCH480D

This manual suits for next models

Table of contents

Other Mitsubishi Air Conditioner manuals

Mitsubishi

Mitsubishi PKA-RP2.5FAL Operating manual

Mitsubishi

Mitsubishi City Multi PKFY-P VKM-E User manual

Mitsubishi

Mitsubishi Mr. Slim SLZ-KA09 User manual

Mitsubishi

Mitsubishi Mr.Slim MUY-GE09NA User manual

Mitsubishi

Mitsubishi Mr.Slim MSZ-A09NA User manual

Mitsubishi

Mitsubishi SRK Series User manual

Mitsubishi

Mitsubishi MSH-GA60VB User manual

Mitsubishi

Mitsubishi SRK50HE-S1 User manual

Mitsubishi

Mitsubishi MXZ-4E80VAD User manual

Mitsubishi

Mitsubishi MUZ-EF25VE User manual

Mitsubishi

Mitsubishi MS-07RV User manual

Mitsubishi

Mitsubishi SRK63ZEA-S1 User manual

Mitsubishi

Mitsubishi SLZ-A09AR Operating manual

Mitsubishi

Mitsubishi PFD-P250500VM-A User manual

Mitsubishi

Mitsubishi PUHZ-RP1.6VHA Operating manual

Mitsubishi

Mitsubishi EHST20 series User manual

Mitsubishi

Mitsubishi CITY MULTI PUD-P250YMF-C How to use

Mitsubishi

Mitsubishi PUHY-EP250 How to use

Mitsubishi

Mitsubishi MSZ-A18 YV Series User manual

Mitsubishi

Mitsubishi MS-30SV User manual

Mitsubishi

Mitsubishi MR. SLIM MS-SD24VC User manual

Mitsubishi

Mitsubishi Mr.Slim MSZ-FE09NA User manual

Mitsubishi

Mitsubishi SRK90CL-BN User manual

Mitsubishi

Mitsubishi Mr.Slim MSZ-GE12NA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
