Miracle-Ear ME STREAM User manual
ME STREAM
TV Streamer User Manual
www.miracle-ear.com
32
Content
Before you start 4
Included in delivery 6
Components 8
Getting started 10
Positioning 10
Connecting to power supply 11
Connecting to your electronic device 13
Pairing hearing aids 20
Daily use 23
Using the transmitter 23
Power and TV indicator 26
Important safety information 30
Personal safety 30
Product safety 33
Important information 36
Explanation of symbols 36
Maintenance and care 39
Troubleshooting 41
Technical information 46
Disposal information 48
Conformance information 48
54
Before you start
This device is intended as a wireless transmitter of
sound from a TV or from other electronic devices
to hearing aids. It is intended to be used by
children (> 36 months) and adults together with their
hearing aids.
CAUTION
Read this user manual thoroughly and completely
and follow the safety information in this document to
avoid damage or injury.
Compatible hearing aids
The TV Streamer works with specific Miracle-Ear®wireless
hearing aids. Your Hearing Care Specialist will advise you
on the compatible models.
76
Included in delivery
➊TV Streamer
➋USB power cable and power plug with
country-specific adapter
➌TOSLINK cable
➍RCA (cinch) cable
➎Mini jack adapter
➏
98
Components
➊TV indicator
➋Power indicator
➌Setup button
➍Power connection
➎RCA connections (left and right)
➏TOSLINK connections (in and out)
➐Mode button (only for Hearing Care Specialists)
MODE
OUT
IN
R
L
POWER
SETUP
➊
➌ ➍ ➎➏ ➐
➋
1110
Getting started
Positioning

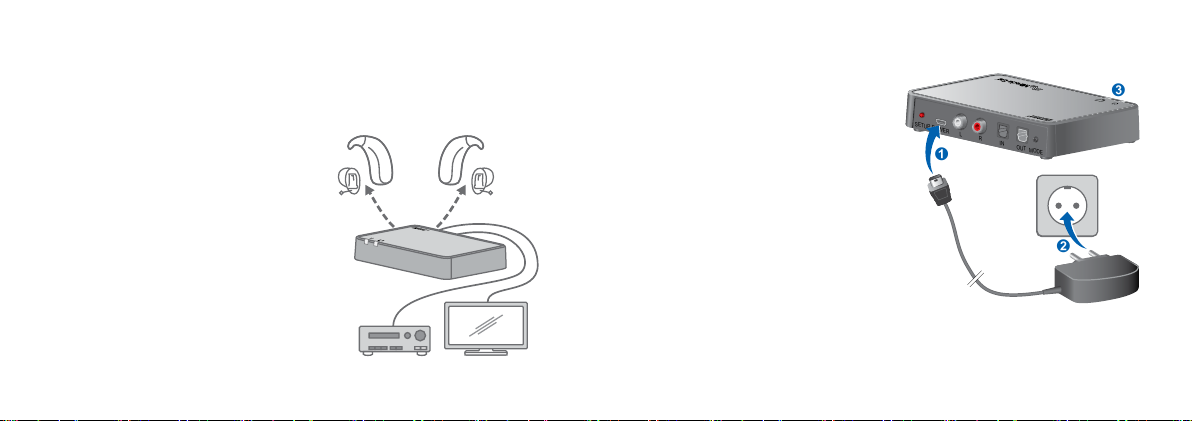

Position the transmitter close to
your TV electronic device, so that
it can be easily connected
with cables. For best connection
to your hearing aids, position the
transmitter horizontally and in
direct line of sight with
your hearing aids.
Connecting to power supply
Only use the USB power
cable and power plug that
came with the transmitter.
XConnect the micro USB
side of the power cable to
the power connection of
the transmitter ➊.
XConnect the power plug
to the power supply ➋.
MODE
OUT
IN
R
L
POWER
SETUP
➌
➊
➋
1312
XObserve the indicators ➌:
Description
- The transmitter is starting up.
If after a few seconds, both indicators flash
blue, the transmitter is on but not paired
to any hearing aid. Refer to the section
“Pairing hearing aids.”
other Refer to the section “Power and TV indicator.”
Connecting to your electronic device
You can connect the transmitter to your TV or electronic
device with the TOSLINK cable or with the RCA cable.
We recommend using the TOSLINK connection. Use the
supplied cables and adapters.
TV
MODE
OUT
IN
R
L
POWER
SETUP
1514
We recommend connecting to either the TOSLINK input or
the RCA input of the transmitter.
If both inputs of the transmitter are used, the electronic
device that is connected via TOSLINK cable has the higher
priority and only the audio signal of this device will be
streamed to your hearing aids.
TOSLINK connection
TV
MODE
OUT
IN
R
L
POWER
SETUP
XBefore connecting the cable, remove the protection
caps from the TOSLINK cable plugs.
XPlug the cable into the TOSLINK input of your transmitter
and into the TOSLINK (optical audio) output of your
electronic device.
To prevent the TOSLINK cable from breaking, do not
forcefully bend it.
1716
Further information:
●Refer to the electronic device's manual: Set the
output format of the electronic device to either PCM
(pulse-code modulation) or Dolby®Digital.*
●The TOSLINK output of your transmitter may be used to
connect further TOSLINK devices such as external Dolby
decoders or surround sound systems.
* Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.
RCA connection
TV
MODE
OUT
IN
R
L
POWER
SETUP
XPlug the cable into the RCA connections of your
transmitter.
XPlug the other side of the cable into the RCA output of
the electronic device, or via adapter into the SCART or
mini jack output of the electronic device.
1918
Further information:
●Without adapter: The RCA output of the electronic
device is typically marked “L-R AUDIO OUT” and found
on the back or control panel.
●With SCART adapter: The audio signal can depend
on the source selected on the electronic device. For
example some TVs will only make TV sound available on
the SCART output, but not the sound from a connected
DVD player.
●With mini jack adapter: The mini jack output on the
electronic device is typically the headphone output.
The speakers of the electronic device may be muted
if the headphone output is used so sound is only heard
through the hearing aids.
●Refer to the electronic device's manual: Set the output
format of the electronic device to analog audio or
uncompressed audio.
