Miele W 1930 WASHING MACHINE User manual

Operating instructions

Washer

W1930

To prevent accidents

and machine damage, U

read these Operating Instructions

before installation or use. M.-Nr. 05 047 720

Guide to the machine...............................................3

Important safety instructions ........................................5

Preparation for use

Operating Instructions

USER MANTENANCE Instructions

INSTALLATION INSTRUCTIONS

Technical data ...................................................46

Contents

aSupply cable

bHigh pressure intake hoses

cFlexible drain hose, with detachable

swivel elbow

dDetergent dispenser drawer

eControl panel

fDrum door

gAccess panel for drain pump and fil-

ter

hFour height adjustable feet

iPanel for emergency door release

(door hinged right) and for drainage

(door hinged left or right)

jPanel for emergency door release

(door hinged left)

Guide to the machine

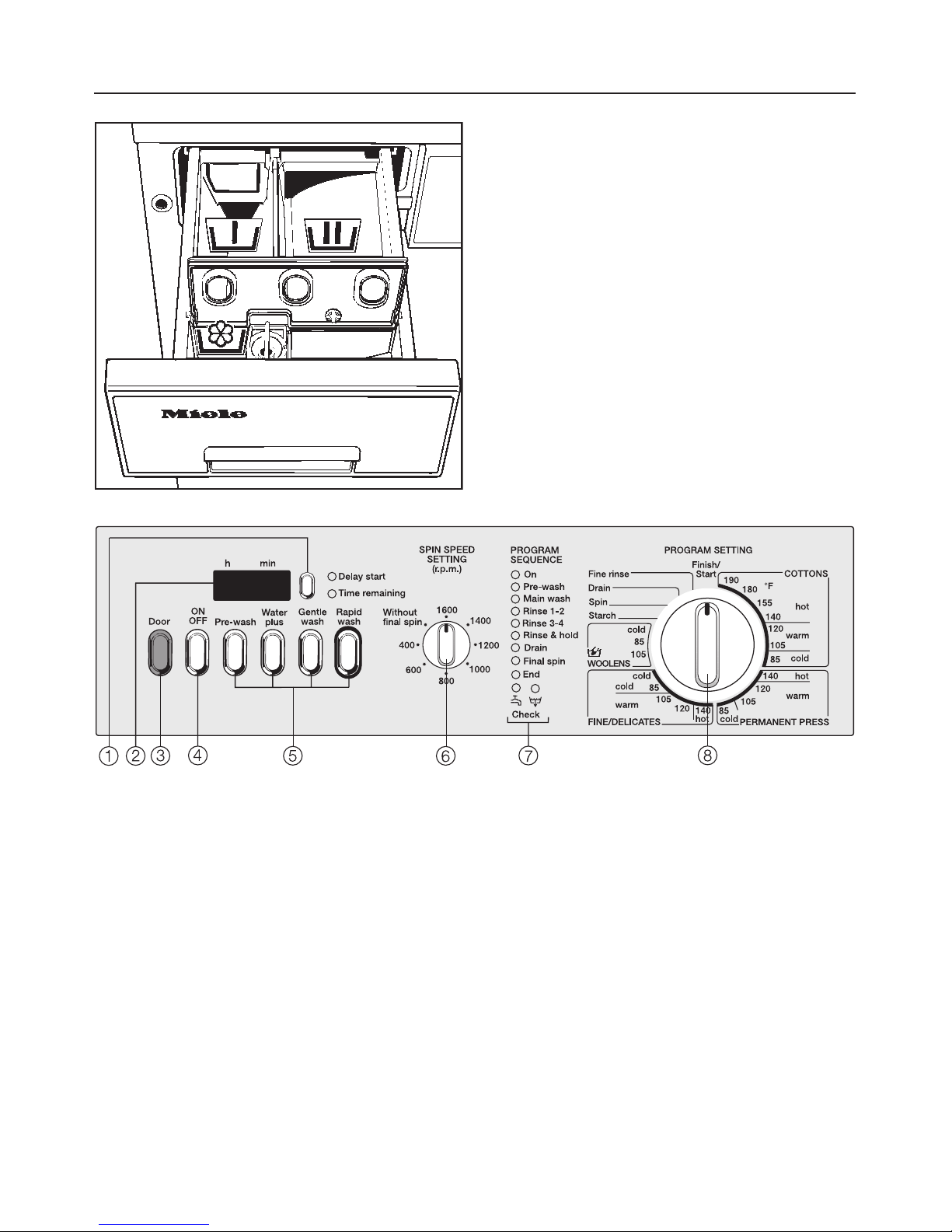

a"Delay start" button.

bTime display "hours, mins".

c"Door" button; opens the drum door.

d"ON/OFF" button;

Turns the machine on and off or inter-

rupts a program. The "On" lamp illu-

minates.

Detergent dispenser drawer

Compartment i- for the pre-wash.

Compartment j- for the main wash.

Compartment p(with lid) - for fabric

softener or starch.

ePushbuttons for additional functions.

fSPIN SPEED SELECTOR switch.

gPROGRAM SEQUENCE indicators

(LED indicator lamps).

hPROGRAM SELECTOR switch.

Guide to the machine

WARNING - To reduce the risk of fire,

electric shock, or injury to persons

while using your appliance, follow basic

safety precautions, including the follow-

ing:

1. Read the instructions before using

the appliance.

2. Do not wash materials that have

been previously cleaned or soaked

in gasoline, dry cleaning solvents, or

other flammable or explosive sub-

stances. Do not add gasoline, dry

cleaning solvents, or other flamma-

ble or explosive substances to the

wash water. These substances give

off vapors that could ignite or ex-

plode.

3. Do not allow children to play on or in

the appliance. Close supervision is

necessary when the appliance is

used near children.

4. Before discarding an old appliance

unplug the unit and remove the

power cord. Also, remove the door to

the wash compartment to prevent if

from becoming a hazard.

5. Do not reach into the appliance if the

drum is moving.

6. This appliance should never be in-

stalled or stored outdoors.

7. Do not tamper with the controls.

8. Do not repair or replace any part of

the appliance, or attempt any servic-

ing unless specifically recommended

in these Operating instructions.

9. Do not add gasoline, dry-cleaning

solvents, or other flammable or ex-

plosive substances to the wash

water. These subtances give off va-

pors that could ignite or explode.

10. Under certain conditions, hydro-

gen gas may be produced in a hot

water system that has not been used

for 2 weeks or more. HYDROGEN

GAS IS EXPLOSIVE. If the hot water

system has not been used for such a

period, before using the washing ma-

chine, turn on all hot water faucets

and let the water flow from each for

several minutes. This will release any

built up hydrogen gas. As the gas is

flammable, do not smoke or use an

open flame during this time.

SAVE THESE INSTRUCTIONS

For installation and grounding

instructions, refer to the Elec-

trical Connection Section of

this manual.

Important safety instructions

Warning - To reduce the risk of fire,

electric shock, or injury to persons,

read the IMPORTANT SAFETY IN-

STRUCTIONS before operating this

appliance.

Disposal of the packing

material

The transport and protective packing is

mostly manufactured from the following

recycled or recyclable materials:

–corrugated paper/cardboard

–CFC free polystyrene

– polystyrene foil (transparent)

– Untreated wood

– Polypropylene (PP) strapping

Rather than throwing these materials

away, please take them to your commu-

nity recycling center.

Disposal of an old appliance

Old appliances contain materials that

can be recycled. Please contact your

local recycling center about the possi-

bility of recycling these materials.

Before discarding an old appliance,

unplug it from the outlet and cut off

its power cord and remove any

doors to prevent it from becoming a

hazard.

Before using the first time

Since all Miele washing machines are

tested for proper operation before leav-

ing the factory, some residual water

may be left inside.

As this water is not visible, we recom-

mend you perform the following steps

before you use your new machine for

the first time, or if it has been in storage

for more than a few weeks between

uses.

^Do not put any laundry in the ma-

chine.

^Add a small amount of detergent to

compartment j.

^Turn "On" the machine.

^Press the "Rapid wash" button.

^Turn the dial to "COTTONS 140°F".

The machine will start to run and will

flush out any residual water that may be

inside.

Help protect our environment

The key to good wash results is finding

the correct combination of detergent

and temperature, and then allowing the

washing machine to optimize their us-

age through its programming. Program

lengths can vary for this reason.

The fully electronic controls offer a com-

bination of simple operation with many

optional features. For instance, since a

main wash generally gives good results

for a normal load, the pre-wash cycle

has been made a user selectable op-

tion, saving time,water and energy over

older full cycle machines.

With the "Hydromatic" system, the drum

can revolve at various speeds. Faster

and slower agitation speeds along with

pauses for soaking, combine to ensure

excellent wash results.

The automatic load control feature en-

sures the correct water level for the

type of fabric and load being washed

(even though it may appear as if there

is too little water in the drum!).

Operational noise, no matter what pro-

gram is selected, is minimized through

the use of an accurately balanced drum

and special sound insulation.

Economy

To conserve energy, remember the fol-

lowing tips:

–The automatic load control feature

will adjust the water level for loads up

to 11 lbs (5kg). Washing with the

maximum load specified for each

program saves water and energy.

–Use the correct amount of detergent

required for the water hardness in

your area.

–Miele recommends the use of pow-

der detergents, as their characteris-

tics allow them to perform better in

this machine than liquid detergents.

If the wash is not heavily stained, select

a lower temperature than indicated on

the wash care label.

Optimal usage

The headings numbered (1,2,3,...)

show the operating sequence and can

be used as a brief guide.

Before washing

APrepare the wash load

^Empty all pockets.

Foreign objects accidentally left in

pockets (e.g. nails, coins, paper

clips, etc.) can damage clothes and

the machine.

^Sort the laundry

Only wash items that are labeled ma-

chine washable by the manufacturer.

Some garments will have a Fabric care

label in the collar or side seam. If so,

sort the laundry by care label and color.

Dark fabrics often contain "excess dye"

and should be washed separately sev-

eral times before being included in a

mixed load.

Delicate fabrics should be washed sep-

arately using the FINE/DELICATES pro-

gram.

Only wash wool or wool mixtures if they

are labeled machine washable on the

textile care label.

^Pre-treat the laundry

Badly soiled areas (e.g. collars and

cuffs) and water soluble stains can be

pre-treated with bar soap, stain re-

mover, or detergent mixed into a solu-

tion or paste.

Do not use detergents containing sol-

vents in the machine.

For curtains:

^Remove any lead weights or strips.

Woolens and knitted garments should

be turned inside out if recommended

by the manufacturer.

Preparing the Laundry

BPress the "Door" button to open

the door

CLoad the machine

Unfold the laundry and place it in the

drum. For best results we recommend

washing mixed loads consisting of both

large and small items. This improves

washing effectiveness and helps dis-

tribute the load evenly to keep the ma-

chine stable and reduce noise during

spinning.

Recommended load sizes are noted

below:

COTTONS. . . . . . . . . . . . 11 lbs (5.0 kg)

PERMANENT PRESS. . . 4.5 lbs (2.0 kg)

FINE/DELICATES. . . . . . 2.0 lbs (1.0 kg)

WOOLENS. . . . . . . . . . . 2.0 lbs (1.0 kg)

FINE RINSE . . . . . . . . . . 4.5 lbs (5.0 kg)

DClose the machine door

Make sure there are no clothes caught

between the drum door and seal.

EAdd detergent

See the "Adding detergent" section for

details.

To start a program

FTurn the program selector

to Finish / Start

GPress the "ON/OFF" button

HPress any desired "Additional

function" pushbuttons

(See the "Delay start" section if this fea-

ture is desired.)

ISelect the final spin speed

JTurn the program selector to the

desired program

The program selector can be turned to

the left or the right.

Preparing the Laundry

After washing

KTurn the program selector switch

to "Finish/Start"

LPress the "ON/OFF" button.

MPress the "Door" button.

Do not attempt to remove laundry

from the machine if the drum is

turning. You may seriously injure

yourself. If the drum turns with the

door open, contact the Miele Ser-

vice Department.

NRemove the wash.

OCheck the folds in the door seal for

any small articles such as buttons

or nails which may be lodged

there.

Make sure the drum is empty by

manually turning it completely

around. Items inadvertently left in

the machine may be damaged (e.g.

shrink) or cause discoloration of

other laundry during the next wash

cycle.

PClose the drum door.

End of Program

Other manuals for W 1930 WASHING MACHINE

This manual suits for next models

Table of contents

Other Miele Washer manuals

Miele

Miele W 1913 User manual

Miele

Miele W 5965 WPS User manual

Miele

Miele WKB 130 User manual

Miele

Miele PW 6241 EL User manual

Miele

Miele PWM 909 SOM User manual

Miele

Miele WT 2780 WPM User manual

Miele

Miele WED 665 Excellence User manual

Miele

Miele WMV 960 WPS User manual

Miele

Miele WCE 660 User manual

Miele

Miele WWR860 User manual

Miele

Miele WWH 860 User manual

Miele

Miele PWM 506 Mop Star 60 User manual

Miele

Miele G 7827 User manual

Miele

Miele WKG 120 WCS User manual

Miele

Miele WDA 210 WPM User manual

Miele

Miele WWH 860 User manual

Miele

Miele PW 5064 MopStar 60 User manual

Miele

Miele WEG 365 Excellence User manual

Miele

Miele PW 5105 Vario Quick start guide

Miele

Miele PW 6065 Plus User manual

Miele

Miele PW 6065 Plus User manual

Miele

Miele W 1966 WASHING MACHINE - OPERATING User manual

Miele

Miele W 340 User manual

Miele

Miele WDB 030 ECO User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
