,WARNING - To reduce the risk

of fire, electric shock or injury to

persons while using your appliance,

follow basic safety precautions,

including the following:

Read all instructions before using

the appliance.

GROUNDING INSTRUCTIONS

This appliance must be grounded.

In the event of malfunction or

breakdown, grounding will reduce the

risk of electric shock by providing a

path of least resistance for electric

current. This appliance is equipped

with a cord having an

equipment-grounding conductor and a

grounding plug. The plug must be

plugged into an appropriate outlet that

is properly installed and grounded in

accordance with all local codes and

ordinances.

WARNING - Improper connection

of the equipment-grounding

conductor can result in a risk of electric

shock. Check with a qualified

electrician or serviceman if you are in

doubt as to whether the appliance is

properly grounded.

Do not modify the plug provided

with the appliance - if it will not fit

the outlet, have a proper outlet installed

by a qualified electrician.

Do not wash articles that have

been previously cleaned in,

washed in, soaked in or spotted with

gasoline, dry-cleaning solvents or other

flammable or explosive substances.

These articles give off vapors that could

ignite or explode. Do not add these

items to the washload.

Under certain conditions, hydrogen

gas may be produced in a hot

water system that has not been used

for 2 weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system

has not been used for such a period,

turn on all hot water faucets and let the

water flow from each for several

minutes before using the washing

machine. This will release any built up

hydrogen gas. Do not smoke or use an

open flame during this time, as the gas

is flammable .

Do not allow children to play on or

in the appliance. Close supervision

is necessary when the appliance is

used near children.

Before the appliance is removed

from service or discarded, remove

the door.

Do not reach into the appliance if

the drum is moving.

Do not install or store this

appliance where it will be exposed

to the weather.

Do not tamper with

the controls.

Do not repair or replace any part of

the appliance or attempt any

servicing unless specifically

recommended in these operating

instructions.

SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

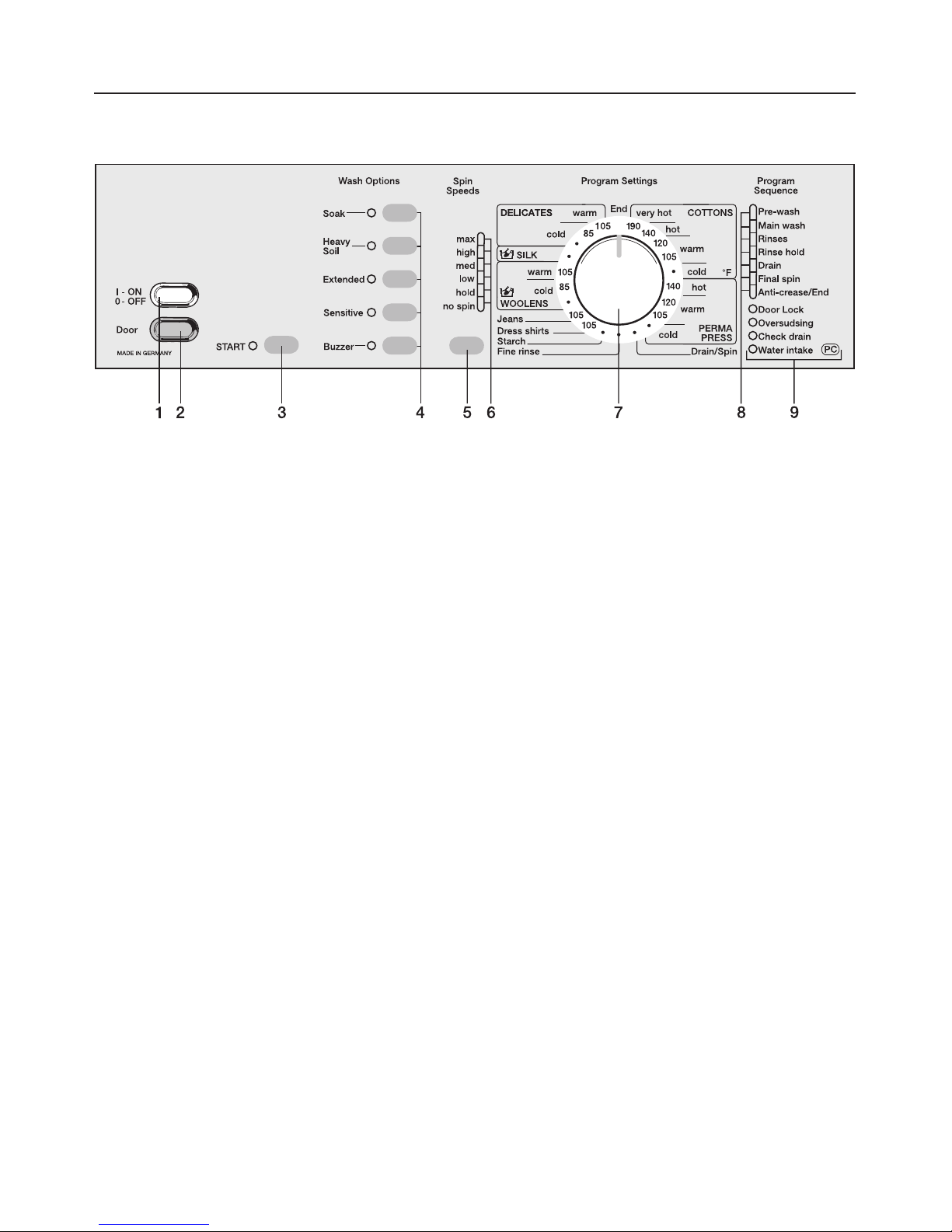

Control panel

1 "On/Off" button

turns the machine on and off or

interrupts a program.

2 "Door" button

opens the drum door.

3 "START" button

begins the wash program.

4 Wash options

are special wash features available to

enhance a wash program.

5 Spin speed selector button

allows you to select the final spin speed

of a program.

6 Spin speed indicator li ht

7 Pro ram selector

for selecting a program and wash

temperature.

The light ring will go out a few minutes

after the end of the program to save

energy.

8 Pro ram sequence display

shows the currect cycle of the wash

program.

9 Fault indicators

Guide to the washer

The appliance must be correctly

installed and connected before the

first use. Please see the "Installation

instructions."

Before using the washer, a program

must be run without laundry and without

detergent to flush out any residual

water from the factory testing process.

^Close the washer door.

^Press the "On/Off" button.

^Turn the program selector to

"COTTONS/very hot".

^Press the "Spin" button until the "high"

mark of the indicator lights.

^Press the "START" button.

Once the program ends, the washer

can be used for laundry.

Before usin the washer

1. Prepare and sort laundry

^Empty all pockets.

,Foreign objects left in pockets

(e.g. nails, coins, paper clips, etc.)

can cause damage to clothes and

the machine.

^Sort the laundry.

Only wash items that are labeled

machine washable by the manufacturer.

Most garments have a fabric care label

in the collar or side seam. Sort the

laundry by care label and color.

^Pretreat stains.

Tough stains (blood, egg, coffee, tea,

etc.) or badly soiled areas (collars and

cuffs) should be pretreated with a stain

remover or a paste made from

powdered detergent and warm water.

–Dark fabrics often bleed the first few

times they are washed. They should

be washed separately several times

before being included in a mixed

load.

–Remove any lead weights or strips

from curtains before washing.

–Loose undergarment underwires

should be removed or sewn in place

before washing.

–Woolens and knitted garments

should be turned inside out.

–Close zippers, hooks and eyelets

before washing.

Usin the washer

2. Load the laundry

^Turn on the washer using the "On/Off"

button.

^Open the drum door using the "Door"

button.

^Load the laundry into the drum.

For best results, wash mixed loads of

small and large items. This will

improve washing effectiveness and

help distribute the load evenly.

Note: Overloading the washer will

cause poor wash results and wrinkling.

^Close the drum door.

To prevent damage to the door seal

and clothing, make sure that there

are no clothes caught between the

drum door and the seal.

Usin the washer

3. Select a pro ram

^Turn the program selector in either

direction to the program you wish to

use.

Special pro rams

SILK /

Gentle program for hand and machine

washable silk fabrics. Cool water and

slower wash, rinse and spin cycles

reduce wrinkling and fading.

WOOLENS /

Specialty care program for hand and

machine washable wool and wool

blends. A mild range of wash temp-

eratures, low water level and minimum

drum movement gently clean and

maintain the shape of garments.

Jeans

Specially designed program that

washes denim materials at the correct

temperature and spin speed to release

stains and prevent wrinkles.

Dress shirts

Program for cleaning dress shirts with

reduced wrinkling.

Fine rinse

Laundry is rinsed and spun only.

Starch

This program is for starching without

washing. See "Detergent/ Using the

"Starch" program" for details.

Usin the washer

Pro ram uide

Temperature Care symbols Fabric

Cottons Available wash options: Soak, Heavy soil, Extended, Sensitive

190 °F /

very hot F–white household linens 100 % cotton sheets, cloth diapers, towels,

etc. to be sanitized. Not for use with

clothing with elastic.

140 °F / hot 8–sturdy white cottons Underwear, cotton t-shirts, socks.

120 °F / warm EClight colors Colorfast items.

105 °F / warm 7Bbright colors

ß/ cold 6Adark colors Black items, mixed loads.

PERMA PRESS Available wash options: Soak, Heavy soil, Extended, Sensitive

140 °F / hot 8–whites For cotton blends, polyester blends and

synthetics (e.g. acrylic, nylon, ramie).

Fabric softener can be dispensed in the final

rinse of these programs to reduce static cling.

120 °F / warm EClight colors

105 °F / warm 7Bbright colors

ß/ cold 6Adark colors & temp-

erature sensitive

fabrics

Spandex, microfibers, etc.

Drain / Spin No available wash options

DELICATES Available wash options: Soak, Heavy soil, Extended

105 °F / warm 7Blight colors For synthetics, machine washable silks,

satin, hosiery, lingerie, lace or crocheted

(non-wool) items; curtains and knits.

85 °F / cold 6Adark colors

ß/ cold 6–lace or sheer fabrics,

embroidered items.

SILK No available wash options

ß/ cold 6Asilk and silk blends,

lingerie and hosiery

Ideal for machine and hand washable silks

and other non-wool handwashable

garments.

WOOLENS No available wash options

105 °F / warm 7Blight colors For hand washable and machine washable

wool and wool blends (e.g. lamb’s wool,

cashmere, mohair, angora, etc.)

85 °F / cold 6Adark colors

ß/ cold ––delicate woolens

Jeans No available wash options

105 °F 7Bdenim

Dress shirts Available wash options: Soak, Heavy soil, Extended

105 °F 7B

Starch No available wash options

Fine rinse No available wash options

Usin the washer

This manual suits for next models

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
