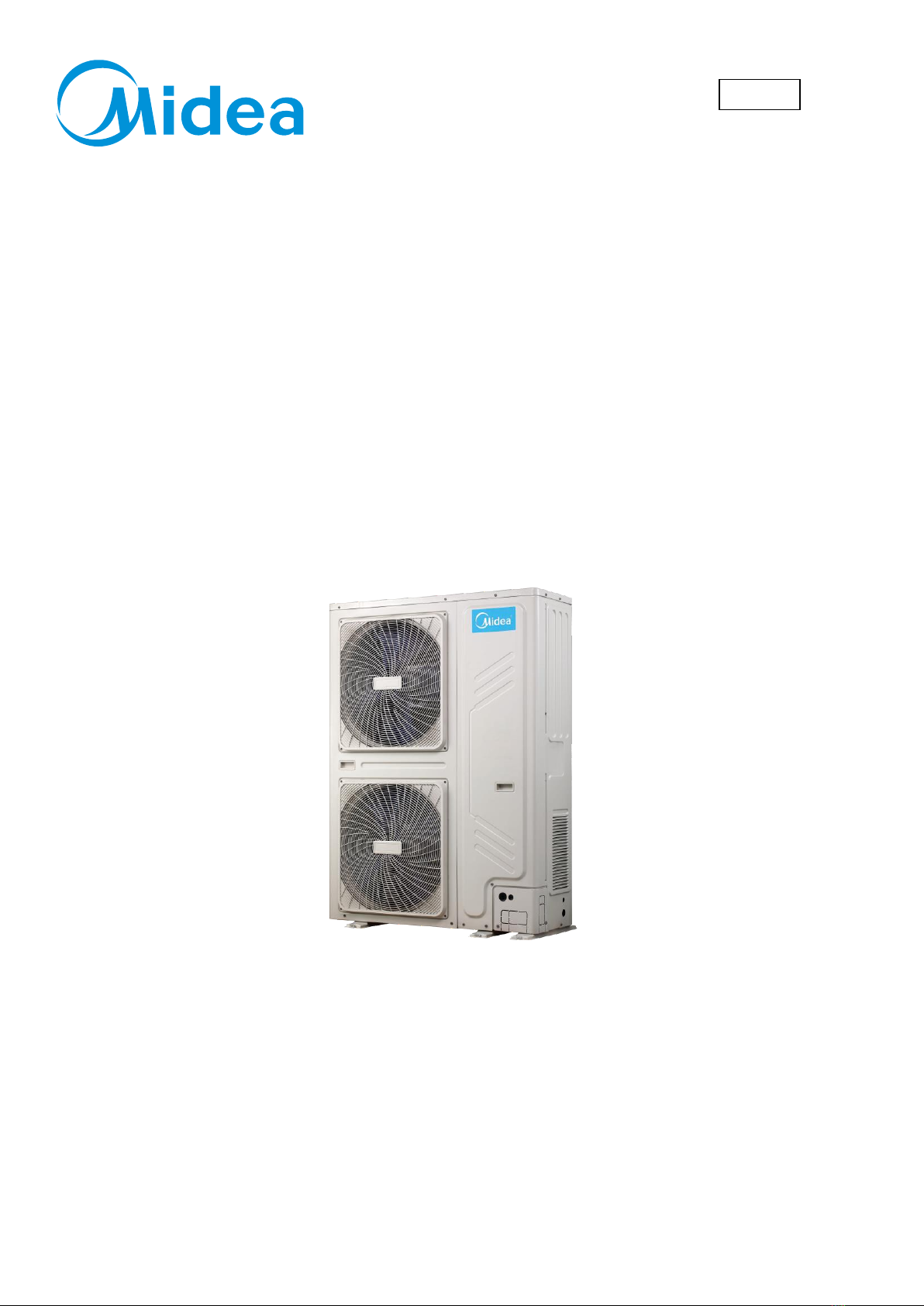

Midea V6-i Series User manual

Commercial Air Conditioners

R410A

Engineering Data

MVi-200WV2RN1(A) MVi-280WV2RN1(A)

MVi-224WV2RN1(A) MVi-335WV2RN1(A)

MVi-260WV2RN1(A)

V6-i Series VRF

V6-i VRF 50Hz

CONTENTS

Part 1 General Information............................................................................ 3

Part 2 Outdoor Unit Engineering Data ....................................................... 19

Part 3 System Design and Installation........................................................ 77

V6-i VRF 50Hz

Midea V6-i Series Engineering Data Book

V6-i VRF 50Hz

Part 1 - General Information

Part 1

General Information

1 Indoor and Outdoor Unit Capacities...................................................... 4

2 External Appearance ................................................................................ 6

3 Nomenclature ........................................................................................... 8

4 Combination Ratio ................................................................................. 12

5 Selection Procedure ............................................................................... 13

V6-i VRF 50Hz

Midea V6-i Series Engineering Data Book

1Indoor and Outdoor Unit Capacities

1.1 Indoor Units

1.1.1 VRF indoor units

Table 1-1.1: Indoor unit abbreviation codes

Abbreviation

code

Type

Abbreviation

code

Type

One-way Cassette

High Static Pressure Duct

Two-way Cassette

Wall-mounted

Q4C

Compact Four-way Cassette

Ceiling & Floor

Four-way Cassette

Floor Standing

Medium Static Pressure Duct

Console

Table 1-1.2: Indoor unit capacity range

Capacity

index

Q4C

kBtu/h

1.8

0.6

—

2.2

0.8

—

2.8

—

3.6

1.25

—

4.5

1.6

—

5.6

—

7.1

2.5

—

8.0

—

9.0

3.2

—

10.0

3.6

100

—

100

—

11.2

112

—

112

—

112

—

14.0

140

—

140

—

140

—

16.0

160

—

160

—

160

—

20.0

200

—

200

—

25.0

250

—

250

—

28.0

280

—

280

—

40.0

136

400

—

400

—

45.0

154

450

—

450

—

56.0

191

560

—

560

—

1.1.2 Fresh air processing unit

Table 1-1.3: Fresh air processing unit capacity range

Capacity

12.5kW

14kW

20kW

25kW

28kW

Capacity index

125

140

200

250

280

1.2 Heat recovery ventilator

Table 1-1.4: Heat recovery ventilator capacity range

Capacity

m3/h

200

300

400

500

800

1000

1500

2000

CFM

120

180

240

300

470

590

880

1180

V6-i VRF 50Hz

Part 1 - General Information

1.3 Outdoor Units

Table 1-1.5: Outdoor unit capacity range

Capacity

Model Name

7HP

MVi-200WV2RN1(A)

8HP

MVi-224WV2RN1(A)

9HP

MVi-260WV2RN1(A)

10HP

MVi-280WV2RN1(A)

12HP

MVi-335WV2RN1(A)

Notes:

1. V6-i series outdoor units could not be combined.

V6-i VRF 50Hz

Midea V6-i Series Engineering Data Book

2External Appearance

2.1 Indoor Units

2.1.1 VRF indoor units

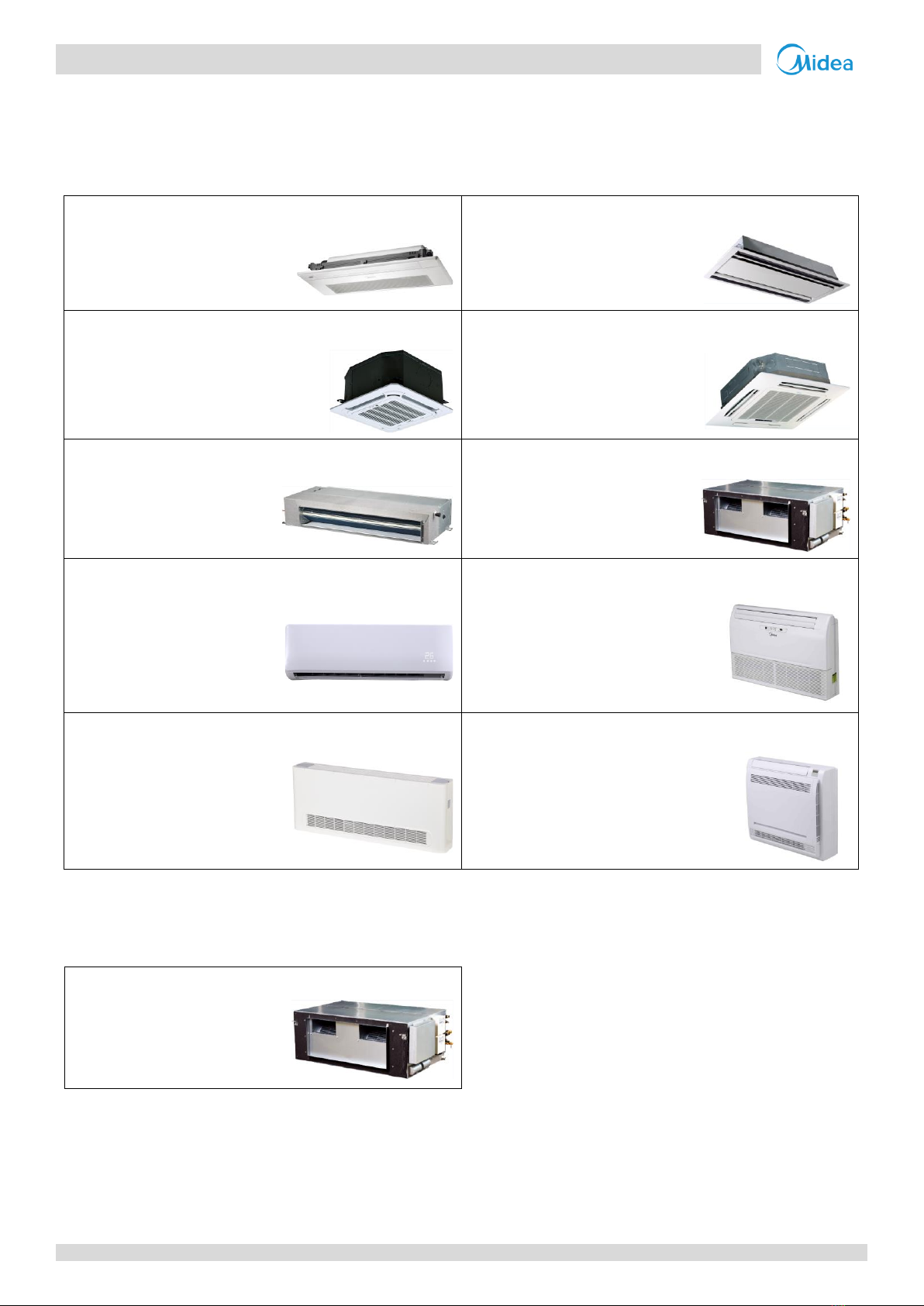

Table 1-2.1: Indoor unit appearance

One-way Cassette

Two-way Cassette

Compact Four-way Cassette

Four-way Cassette

Q4C

Medium Static Pressure Duct

High Static Pressure Duct

Wall-mounted

Ceiling & Floor

Floor Standing

Console

2.1.2 Fresh air processing unit

Table 1-2.2: Fresh air processing unit appearance

Fresh Air Processing Unit

V6-i VRF 50Hz

Part 1 - General Information

2.2 Heat Recovery Ventilator

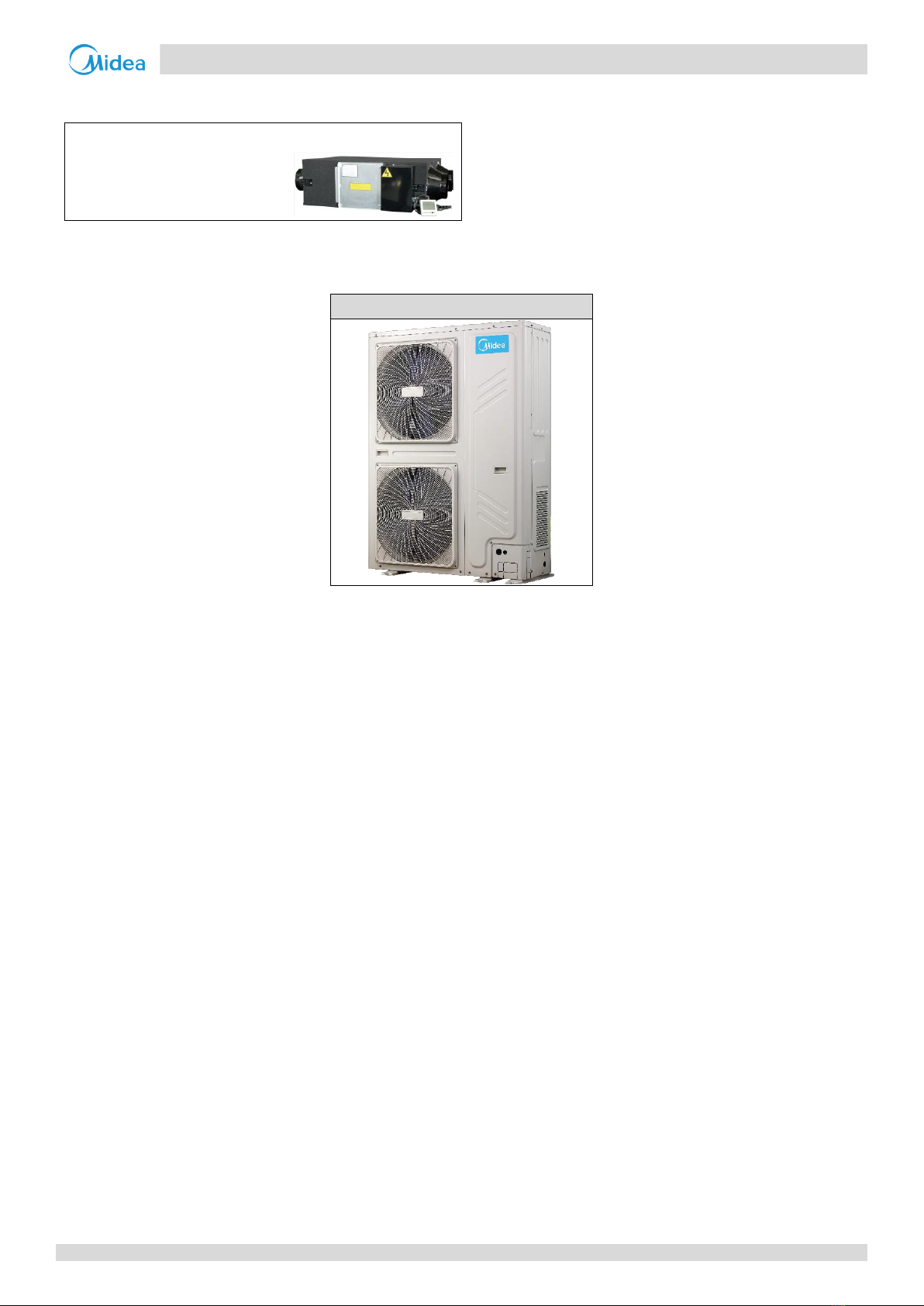

Table 1-2.3: Heat recovery ventilator appearance

Heat Recovery Ventilator

2.3 Outdoor Units

Table 1-2.4: Outdoor unit appearance

7-12HP

V6-i VRF 50Hz

Midea V6-i Series Engineering Data Book

3Nomenclature

3.1 Indoor Units

3.1.1 Standard indoor units

AC Series

MDV

○

Legend

No.

Code

Remarks

MDV

Midea VRF

VRF indoor unit

Capacity index (the capacity in kW multiplied by 10)

Indoor unit type

Q1: One-way Cassette

Q2: Two-way Cassette

Q4C: Compact Four-way Cassette

Q4: Four-way Cassette

T2: Medium Static Pressure Duct

T1: High Static Pressure Duct

G: Wall-mounted

DL: Ceiling & Floor

F: Floor Standing

Z: Console

Refrigerant type (N1: R410A)

Design code

V6-i VRF 50Hz

Part 1 - General Information

DC series

○

Legend

No.

Code

Remarks

Midea

VRF indoor unit

The 2nd generation VRF DC indoor unit

Capacity index (the capacity in kW multiplied by 10)

Indoor unit type

Q1: One-way Cassette

Q2: Two-way Cassette

Q4C: Compact Four-way Cassette

Q4: Four-way Cassette

T2: Medium Static Pressure Duct

T1: High Static Pressure Duct

G: Wall-mounted

DL: Ceiling & Floor

F: Floor Standing

Z: Console

Series category (D: DC series)

Power supply

Omit: 1 phase, 220-240V, 50Hz

H: 1 phase, 220-240V, 50/60Hz

Refrigerant type (N1: R410A)

3.1.2 Fresh air processing unit

AC Series

MDV

280

○

Legend

No.

Code

Remarks

MDV

Midea VRF

AC series VRF indoor unit

280

Capacity index (the capacity in kW multiplied by 10)

High static pressure duct

Refrigerant type (N1: R410A)

Indoor unit type

FA: Fresh Air Processing Unit
