Midea MSV1-18HRN1 User manual

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Before using your air conditioner, please read

this manual carefully and keep it for future reference.

SPLIT TYPE

ROOM AIR CONDITIONER

Prior to installation this air-conditioning unit

must be submitted for approval by the utility

service which provides electricity.

1. Safety precautions..........................................................................................2

2. Parts identification..........................................................................................5

3. Special function............................................................................................. 6

4. Manual operation......................................... ................................................ .7

5. Adjusting air flow direction..............................................................................7

6. Optimal operation .........................................................................................8

7. How the air conditioner works........................................................................9

8. Operating tips.................................................................................................9

9. Cleaning and maintenance ...........................................................................11

10. Troubleshooting tips.....................................................................................13

CONTENTS

Inside you will find many helpful hints on how to use and maintain your air conditioner

properly. Just a little preventative care on your part can save you a great deal of time

and money over the life of your air conditioner. You'll find many answers to common

problems in the chart of troubleshooting tips. If you review the chart of Troubleshooting

Tips first, you may not need to call for service.

Contact an authorised service technician for repair or maintenance of this unit.

Contact the installer for installation of this unit.

The air conditioner is not intended for use by young children or invalids without

supervision.

Young children should be supervised to ensure that they do not play with the air

conditioner.

If the power cord is to be replaced, replacement work shall be performed by

authorised personnel only.

Installation work must be performed in accordance with the national wiring standards

by authorised personnel only.

!CAUTION

Read This Manual

IMPORTANT NOTES:

1. Do not operate unit with horizontal louvre in closed position.

2. Do not operate unit without the air filter.

To prevent injury to the user or other people and property damage, the following instructions

must be followed.

Incorrect operation due to ignoring of instructions may cause harm or damage. The

seriousness is classified by the following indications.

Safety Precautions

This symbol indicates the possibility of death or serious injury.

Meanings of symbols used in this manual are as shown below.

WARNING

Always do this.

Never do this.

CAUTION

This symbol indicates the possibility of injury or damage to property.

Plug in power plug

properly.

Do not modify power cord

length or share the outlet

with other appliances.

Always ensure effective

earthing.

Unplug the unit if strange

sounds, smell or smoke

comes from it.

Keep firearms away.

Ventilate room before operating air

conditioner if there is a gas leakage from

another appliance.

Otherwise, it may cause electric

shock or fire due to excess heat

generation.

It may cause electric shock or

fire due to heat generation.

No earthing may cause electric

shock.

It may cause fire and electric

shock.

It may cause fire.

It may cause explosion, fire and, burns.

It may cause electric shock or fire

due to heat generation.

It may cause electric shock.

It may cause failure of machine

or electric shock.

It may cause fire and electric

shock.

It may cause fire and electric

shock.

It may cause electric shock or fire.

If the power cord is damaged, it

must be replaced by the manufac-

turer or an authorised service

center or a similarly qualified per-

son in order to avoid a hazard.

This could damage your health.

No installation may cause fire

and electric shock.

It may cause electric shock.

It may cause an explosion or fire.

It may cause failure and electric shock.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

Do not operate with wet

hands or in damp

environment.

Do not allow water to run

into electric parts.

Do not use the socket if it is

loose or damaged.

Do not use the power cord

close to heating appliances.

Do not damage or use an

unspecified power cord.

Do not direct airflow at

room occupants only.

Always install circuit

breaker and a dedicated

power circuit.

Do not open the unit

during operation.

Do not use the power cord near

flammable gas or combustibles, such

as gasoline, benzene, thinner, etc.

Do not disassemble or modify unit.

WARNING

CAUTION

When the air filter is to be

removed, do not touch the

metal parts of the unit.

It may cause an injury.

Do not clean unit when power

is on as it may cause fire and

electric shock, it may cause an

injury.

Operation with windows

opened may cause wetting of

indoor and soaking of house-

hold furniture.

When the unit is to be cleaned,

switch off, and turn off the

circuit breaker.

Stop operation and close the

window in storm or hurricane.

Use caution when unpacking and

installing. Sharp edges could cause injury.

Do not clean the air

conditioner with water.

Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

This could injure the pet or plant.

Failue to do so may cause

electric shock and damage.

Do not put a pet or house

plant where it will be exposed

to direct air flow.

Hold the plug by the head of

the power plug when taking it

out.

Ventilate the room well when

used together with a stove,

etc.

An oxygen shortage may occur.

Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

It may cause failure of product or

fire.

Do not use for special purposes.

Turn off the main power switch

when not using the unit for a

long time.

If water enters the unit, turn the unit off at the power

outlet and switch off the circuit breaker. Isolate

supply by taking the power-plug out and contact a

qualified service technician.

It may cause failure of

appliance or accident.

Appearance may be

deteriorated due to change of

product color or scratching of

its surface.

Do not place obstacles

around air-inlets or inside of

air-outlet.

Do not use strong detergent

such as wax or thinner. Use

a soft cloth for cleaning.

If bracket is damaged, there is

concern of damage due to

falling of unit.

There is danger of fire or

electric shock.

Ensure that the installation bracket of

the outdoor appliance is not damaged

due to prolonged exposure.

Do not place heavy object on the

power cord and take care so that

the cord is not compressed.

Operation without filters may

cause failure.

It contains contaminants and

could make you sick.

Always insert the filters

securely. Clean filter once

every two weeks.

Do not drink water drained

from air conditioner.

Safety

Precautions Prior to Operation

Preparing for operation

Usage

Cleaning and maintenance

ServiceService

Operating Temperature

COOLING MODE

INDOOR OUTDOOR

HEATING MODE

1. Contact an installation specialist for installation.

2. Plug in the power plug properly.

3. Do not use a damaged or non-standard power cord.

4. Do not share the same outlet with other appliances.

5. Do not use an extension cord.

6. Do not start/stop operation by plugging/unplugging the power cord.

1. Exposure to direct airflow for an extended period of time could be hazardous to your

health. Do not expose occupants, pets, or plants to direct airflow for extended

periods of time.

2. Due to the possibility of oxygen deficiency, ventilate the room when used together

with stoves or other heating devices.

3. Do not use this air conditioner for non-specified special purposes (e.g. Preserving

precision devices, food, pets, plants, and art objects). Usage in such a manner could

harm such property.

1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur

when handling sharp metal edges.

2. Do not use water to clean inside the air conditioner. Exposure to water can destroy

the insulation, leading to possible electric shock.

3. When cleaning the unit, first make sure that the power and circuit breaker are turned

off.

For repair and maintenance, contact your authorised service dealer.

MAX. MIN. MAX. MIN.

32 C 17 C OO

30 C 17 C

43 C 18 C

24 C -7 C

MAX. MIN. MAX. MIN.

Note: Optimum performance will be achieved within these operating temperatures.

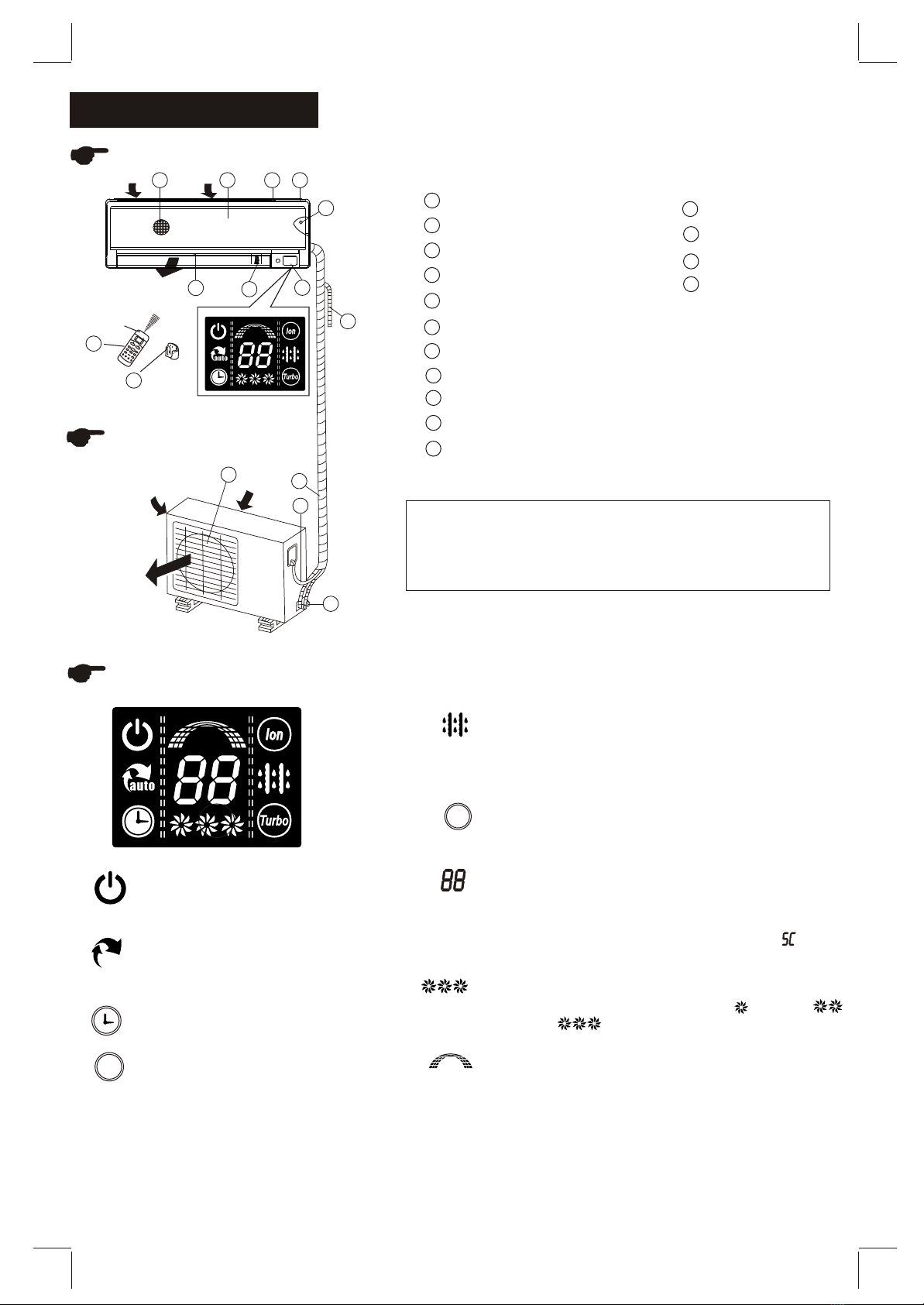

PARTS IDENTIFICATION

INDOOR UNIT

OUTDOOR UNIT

LCD DISPLAY WINDOW

INDOOR UNIT

Front panel frame

Rear air intake grille

Front panel

Air Purifying filter & Air filter

Horizontal airflow grille

LCD display window

Manual control switch

Drain pipe

Remote controller holder

Remote controller

TURBO indication lamp

Lights up when select TURBO function on cooling

operation or on heating operation.

Note:

All the pictures in this manual are for explanation purpose only.

They may be slightly different from the air conditioner you

purchased. The actual shape shall prevail.

Vertical airflow grille

OUTDOOR UNIT

Connecting pipe

Connective cable

Stop valve

Fan hood

Air intake

15 12

Air outlet

Air intake

Air outlet

Signal transmitter

AUTO CLEAN indication lamp

(optional)

Lights up during the Auto operation.

DIGITAL DISPLAY indication lamp

Displays the current setting temperature when

the air conditioner is in operation. When AUTO

CLEAN feature is activated, it displays .

OPERATION indication lamp

This lamp illuminates when the air

conditioner is in operation.

auto

TIMER indication lamp

Lights up during Timer operation.

CLEAN AIR indication lamp

Lights up when CLEAN AIR feature

is activated and Ionizer can generate

abundant anions to fill the room with

refreshing and natural air.

Ion

DEFROST indication lamp

(For reverse cycle model only):

Lights up when the air conditioner starts defrosting

automatically or when the warm air control feature is

activated in heating operation.

Turbo

FAN SPEED indication lamp

Displays the selected fan speed: AUTO(nothing)

and three fan speed levels: LOW( ), MED( )

and HIGH( ).

This display is separated into three zones. Once

the indoor fan is on, the zones illuminate gradually.

ADJUST

AUTO

COOL

DRY

HEAT

HEALTH

HIGH

MED

LOW

MODE

FANSPEED

SWING

TIMERON

SLEEP

ON/OFF

TIMEROFF

AUTO

CLEAN

RESETLOCK

SETTEMPERATURE( C)

ME LED

DISPLAY

CLEAR

AIR

TURBO

Special function

Air quality is the key to comfort, this air conditioner is equipped with Ionizer device.

Ionizer can generate abundant anions to fill the room with refreshing and nature air.

Your whole family will enjoy a natural, pure and healthy air everyday.

CLEAN AIR function

When turns off the unit on COOL, DRY, AUTO (Cool) mode, the air conditioner

will continue operating for 10 minutes at LOW fan speed. This will help to dry up the

water (sweating) inside the evaporator, and prevent bacterial from multiplying,

supply clean and fresh air.

This function is a factory default setting. If you want to cancel it, use the remote

controller to select the FAN mode, press the ON/OFF button to turn on the unit,

press the ON/OFF button again to turn off the unit after 5 seconds.

Under DRY & Antibacterial mode, do not restart the air conditioner until the unit is

completely off.

Function used after the Shut Down of cooling operation to clean the Evaporator

and keep it as fresh for the next operation. This function is easy to be operated

as it is accessed through the Remote Controller.

For cooling only models, the air conditioner will operate under FAN ONLY mode

at LOW fan speed for 30 minutes, and then stop the operation and the unit turn off.

For cooling & heating models, the air conditioner will operate : FAN ONLY

mode at Low fan speed(13 minutes)--Heating operation with LOW fan speed

(1 minute)---FAN ONLY operation(2 minutes)--Stop Operation---Turn off the unit.

Note:

This function is only available under COOL(AUTO COOL, FORCED COOL) and

DRY mode.

Before select the function, it is recommended to run the air conditioner under

Cooling operation for about half an hour.

Once the Auto Clean function is activated, all TIMER setting will be cancelled.

During Auto Cleaning operation, Press the AUTO CLEAN button again will stop

the operation and turn off the unit.

Auto Clean function(optional)

Follow Me function

Dry & Antibacterial function

To activate the Follow Me feature, point the remote control towards the unit and

press the Follow Me button. T

If the unit does not receive the

Follow Me signal during any 7 minute interval, the unit will beep to indicate the

Follow Me mode has ended.

he remote display is actual temperature at its location.

The remote control will send this signal to the air conditioner every 3 minutes

interval until press the Follow Me button again.

The remote control serves as a remote thermostat allowing for the precise

temperature control at its location.

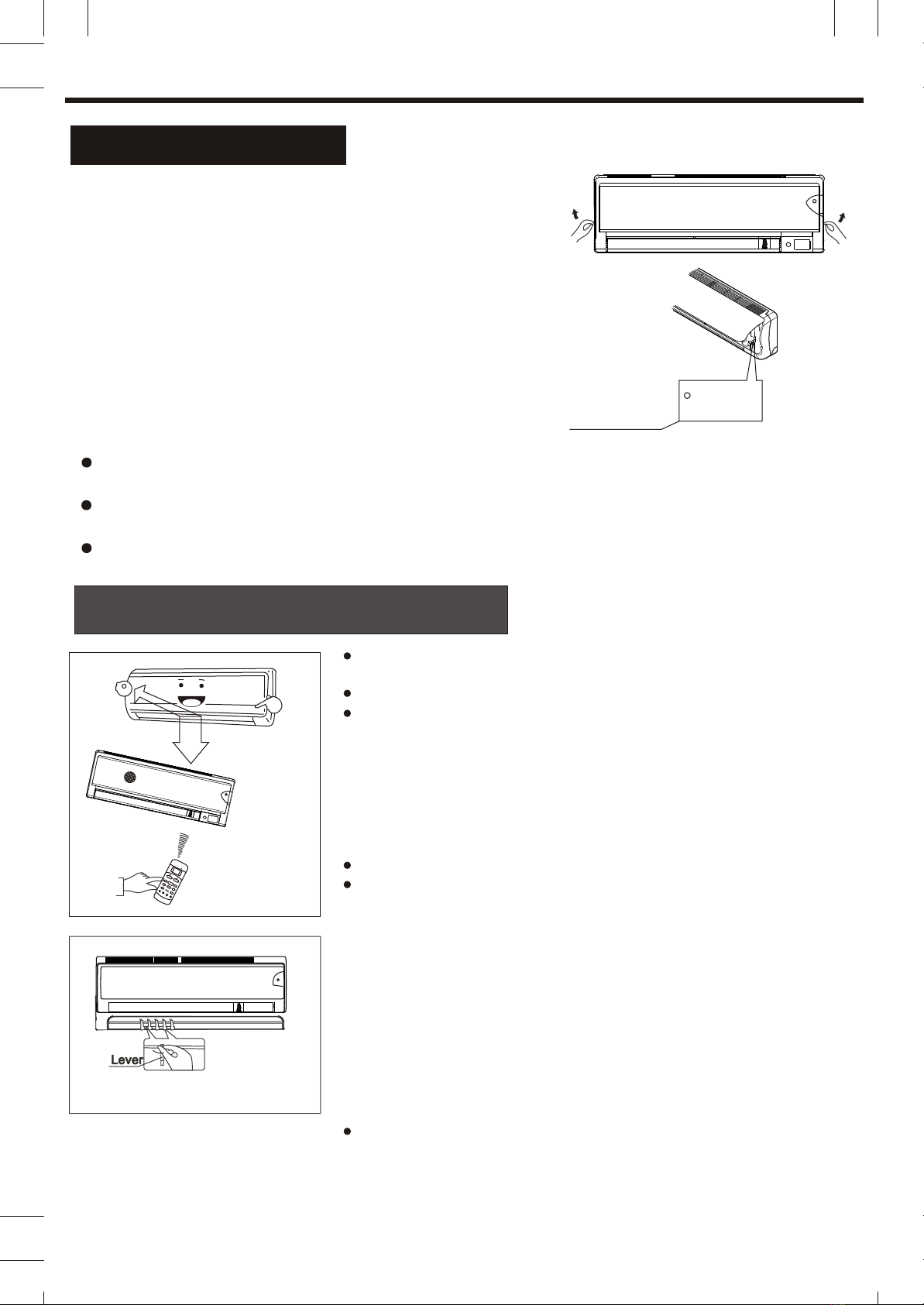

Manual operation can be used temporarily in case

you can't find the remote controller or its batteries are

exhausted.

1. Open and lift the front panel up to an angle until it

remains fixed with a clicking sound.

2. Press the button and the Operation lamp lights up,

the unit will operate in "AUTO" mode (the setting

temperature is locked on 24 C).

3. Press the button twice to turn off the air conditioner.

Manual operation

Auto/Cool

Manual control

button

Once you push the manual control button, the operation mode is shifted in an order as:

AUTO--COOL--OFF.

Push the manual control button to operate in forced COOL mode, this is used for testing

purposes only. You had better not choose it.

To restore the remote controller operation, use the remote controller directly.

CAUTION:

Adjusting air flow direction

Adjust the air flow direction properly otherwise, it might cause discomfort or

cause uneven room temperatures.

Adjust the horizontal louvre using the remote control.

Adjust the vertical louvre manually.

Adjusting the Vertical Air Flow Direction (up - down)

The air conditioner automatically adjusts the vertical air flow direction in

accordance with the operating mode.

To set the vertical air flow direction

Perform this function while the unit is in operation.

Press the SWING button on the remote control to move the louvre,

and press it again when the louvre gets to the desired direction.

Adjust the vertical air flow direction to the desired direction.

When starting operations, the vertical air flow is automatically set in the

direction written in micro-processor.

To set the horizontal air flow direction (left - right)

Adjust the vertical louvre manually using the lever on the left or right side of

the vertical louvre arm (Depending on model). Take care not to catch fingers

on the fan, horizontal louvre or to damage vertical louvres.

When the air conditioner is in operation and the horizontal louvre is in a

specific position, move the lever at left (or right, depending on model) end of

the air outlet to the desired position.

To automatically swing the air flow direction (up - down)

Perform this function while the air conditioner is in operation.

Keep pressing the SWING button on the remote control for

more than 2 seconds, the horizontal louvres swing automatically.

To stop the function, press the SWING button once again.

ADJUST

AUTO

COOL

DRY

HEAT

HEALTH

HIGH

MED

LOW

MODE

FANSPEED

SWING

TIMERON

SLEEP

ON/OFF

TIMEROFF

AUTO

CLEAN

RESETLOCK

SETTEMPERATURE( C)

ME LED

DISPLAY

CLEAR

AIR

TURBO

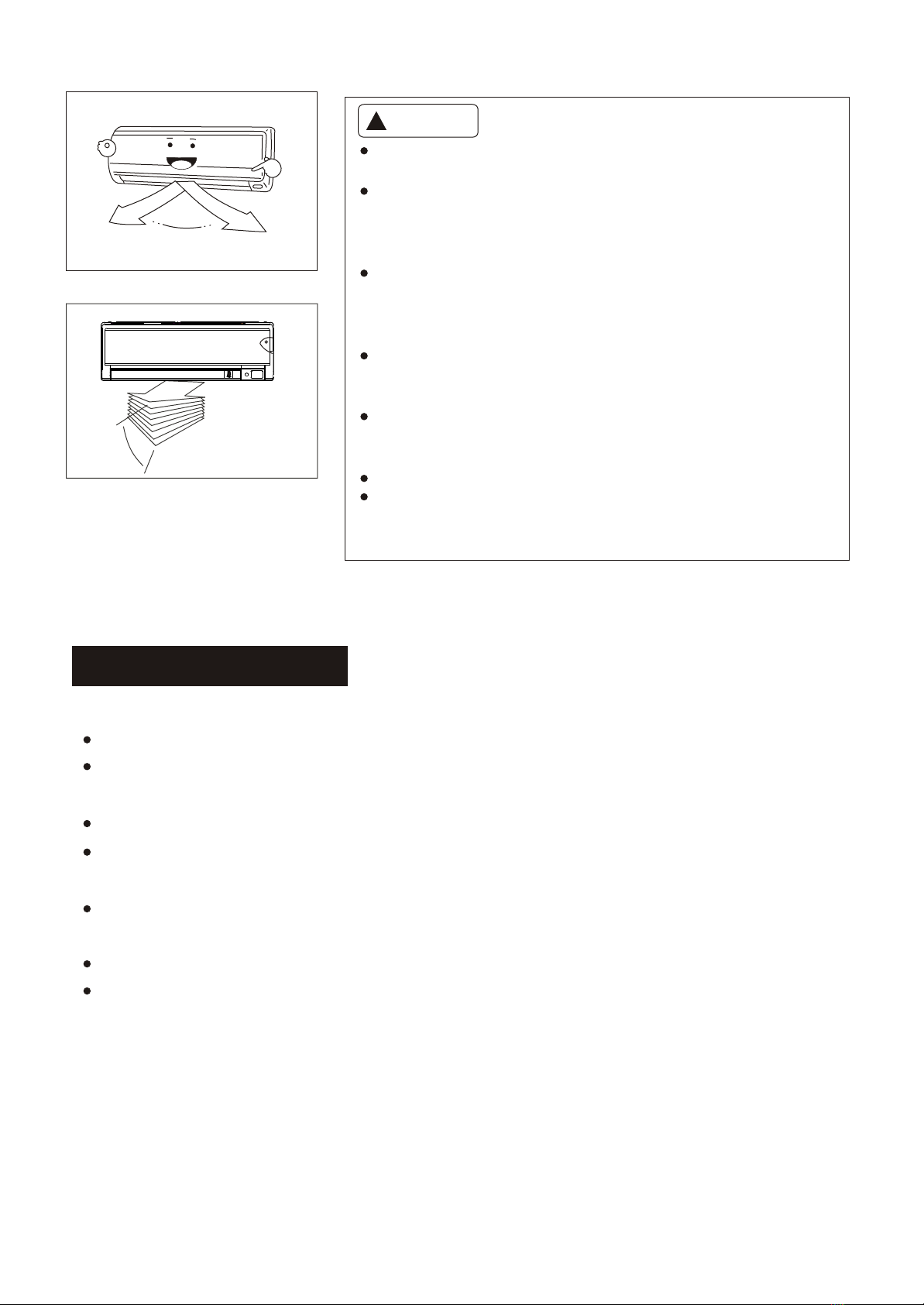

The SWING buttons will be disabled when the air

conditioner is not in operation.

Do not operate the air conditioner for long periods with the air

flow direction set downward in cooling or dry mode. Otherwise,

condensation may occur on the surface of the horizontal louvre

causing moisture to drop on to the floor or furnishing.

Do not move the horizontal louvre manually. Always use the

SWING button. If you move this louvre manually, it may

malfunction during operation. If the louvre malfunctions, stop

the air conditioner once and restart it.

When the air conditioner is started immediately after it is

stopped, the horizontal louver might not move for approximately

10 seconds.

Open angle of the horizontal louvre should not be set too small,

as Cooling or Heating performance may be impaired due to too

restricted air flow area.

Do not operate unit with horizontal louvre in closed position.

When the air conditioner is connected to power (initial power),

the horizontal louvre may generate a sound for 10 seconds,

this is a normal operation.

CAUTION

Range

To achieve Optimal performance, please note the following:

Adjust the air flow direction correctly so that it is not directed on people.

Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to

excessive temperature levels.

Close doors and windows on COOL or HEAT modes, otherwise performance may be reduced.

Use Timer ON button on the remote control to select a time you want to start your air

conditioner.

Do not put any object near air inlet or air outlet, as the efficiency of the air conditioner may be

reduced and the air conditioner may stop running.

Clean the air filter periodically, otherwise cooling or heating performance may be reduced.

Do not operate unit with horizontal louvre in closed position.

Optimal operation

HOW THE AIR CONDITIONER WORKS

The following events may occur during normal operation.

1. Protection of the air conditioner.

Compressor protection

The compressor can't restart for 3 minutes after it stops.

Anti-cold air (Reverse cycle models only)

The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger

is in one of the following three situations and the set temperature has not been reached.

A) When heating has just starting.

B) Defrosting.

C) Low temperature heating.

The indoor or outdoor fan stop running when defrosting (Reverse cycle models only).

Defrosting (Reverse cycle models only)

Frost may be generated on the outdoor unit during heat cycle when outdoor temperature

is low and humidity is high resulting in lower heating efficiency of the air conditioner.

Operation tips

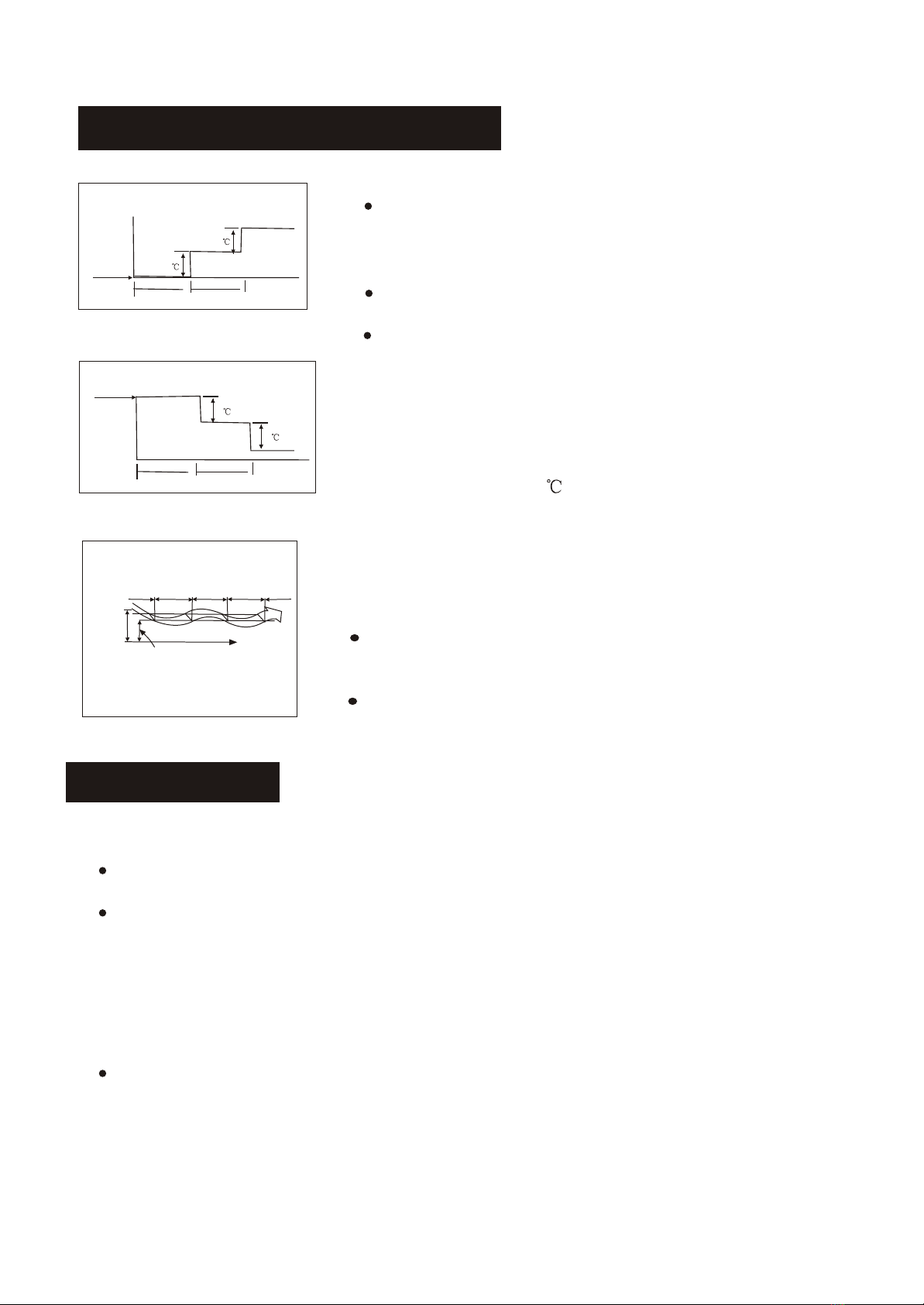

AUTOMATIC OPERATION

When you set the air conditioner in AUTO mode, it will

automatically select cooling, heating(cooling/heating

models only), or fan only operation depending on what

temperature you have selected and the room temperature.

The air conditioner will control room temperature

automatically round the temperature point set by you.

If the AUTO mode is uncomfortable, you can select

desired conditions manually.

SLEEP OPERATION

When you push SLEEP button during cooling, heating

(cooling only type without),or AUTO operation , the air

conditioner will automatically increase (cooling) or

decrease (heating) 1 per hour. The set temperature

will be steady 2 hours later. The fan speed will be

automatically controlled .

Note: The unit will be automatically turned off after 7

hours when on SLEEP operation.

DRYING OPERATION

The dry mode will automatically select the drying

operation based on the difference between the set

temperature and the actual room temperature.

The temperature is regulated while dehumidifying by

repeating turning on and off of the cooling operation or

fan only. The fan speed is LOW.

Cooling Cooling

Time

DRYING operation

Room

temperature

set temperature

Cooling

Fan only

Press Sleep button

1 hour

Set

Temperature

Cooling

Press Sleep button

1 hour 1 hour

Set

Temperature

Heating

This manual suits for next models

Table of contents

Other Midea Air Conditioner manuals

Midea

Midea AOUAMI AQS60X1o Operating instructions

Midea

Midea DLFSDA User manual

Midea

Midea MKA-V1500F User manual

Midea

Midea M2OC-18HFN1-M User manual

Midea

Midea Mini VRF C Series User manual

Midea

Midea ABSEU-A4-1511 User manual

Midea

Midea V4 Plus S Series User manual

Midea

Midea MCD-48HRFN1-Q User manual

Midea

Midea EWK+10CW5 User manual

Midea

Midea MOU-12FN1-QD0 User manual

Midea

Midea MFS2-24ARN1 User manual

Midea

Midea INVERTER SPLIT TYPE ROOM AIR CONDITIONER User manual

Midea

Midea MTB1T-96CWN1 Operating manual

Midea

Midea SUPER INVERTER MULTI MTBI-07HWFN1-Q User manual

Midea

Midea MPF10CR71 User manual

Midea

Midea 11MSFI-A2-1301 User manual

Midea

Midea MCH2U-18PHH2 User manual

Midea

Midea MVW22A-VA1 User manual

Midea

Midea MIV V4+ Mini User manual

Midea

Midea MUE-18HRFN1-QRDO User manual

Midea

Midea AC200-W Mounting instructions

Midea

Midea MPF08CR71 User manual

Midea

Midea MRC-24CWN1-M13L User manual

Midea

Midea MSE-07CR User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
