Microtek LS-3700 User manual

www.microtek.com

User's Manual

A1 Large-Format Scanner

2 LS-3700 User's Manual

Preface

be reproduced or copied in any way, stored electronically, or translated into any

language, without the permission of Microtek International, Inc.

Trademarks

Microtek, ScanMaker, ArtixScan, ScanWizard and ColoRescue are trademarks or

registered trademarks of Microtek International, Inc. All other trademarks or

registered trademarks are the property of their respective holders. Specifications,

software and hardware bundles are subject to change without notice. Not

responsible for typographical errors.

Disclaimer

The contents of this manual have been checked carefully for accuracy, and every

effort has been made to ensure that there are no errors. However, Microtek makes

no guarantee as to the accuracy of the contents of this document and reserves the

right to make changes to the contents without prior warning.

I49-005007 A

October 2014

Microtek International, Inc.

6, Industry East Road 3, Science Based Industrial Park, Hsinchu, Taiwan

Tel: 886-3-5772155, Fax: 886-3-5772598, http://www.microtek.com

LS-3700 User's Manual 3

Safety Precautions

Before using your scanner, read the following safety guides carefully, which detail

the proper operation of the scanner and its accessories to prevent injuries or

damage to users or equipment.

Meanings of Symbol Signs

This indicates hazardous situation which, if not payed

attention, could result injury or damage to users or

equipment.

This indicates hazardous situation which, if not payed

attention, could result serious injury or death to users.

Power Supply:

• Use a power source only with a power rating specified on the marking label.

• Ensure to turn off the power of each device before connecting or

disconnecting the cables.

• Insert the plug completely into the outlet, as a loose connection may cause

arcing and result in fire.

• Ensure to hold the plug or connector to disconnect the cable; otherwise, if

you pull the cable only, it may damage the core wire and result in fire or

electric shock.

• Place and route the power supply cord such that it is not likely to be walked

on or pinched by items placed upon or against them, paying particular

attention to the cord near the power plugs, convenience receptacles, and at

the point where it exits from the outlet.

• When the scanner is left unattended and unused for long periods of time,

unplug it from the wall outlet.

Moving and Storing the Scanner:

• Always ensure that the scanner is stored properly before shipping or moving

it. Quick stops, excessive force, and uneven surfaces may cause the product

to overturn when moving.

• Do not hit or drop the scanner. The scanner may be damaged if it receives a

strong jolt, which may result in fire or electric shock if the scanner is used

without being repaired.

• Do not place the scanner on any slippery, slanted, or unstable surface. The

product may slide or fall, causing serious injury to people as well as serious

damage to the product.

CAUTION

WARNING

4 LS-3700 User's Manual

• Do not use the scanner near water. Never spill liquid of any kinds on the

product, or it may result in electric shock or other hazards.

• This scanner should be situated away from heat sources such as radiators,

heat registers, stoves, or other products (including amplifiers) that produce

heat.

• Do not store the scanner in which it may be exposed to direct sunlight.

Using the Scanner

• When opening the upper cover of the scanner, make sure that it has been

lifted to a proper position. The quick and sudden drop of the upper cover

could result injury or damage to users or equipment.

• When opening or closing the upper cover of the scanner, please use it

carefully and watch out for pressing your hands.

Maintenance and Service:

• When the scanner is going to be cleaned, ensure to turn off the power of each

device and unplug the power cable from the AC outlet.

• When you need a repair service, unplug the scanner from the power outlet

and consult qualified service personnel.

• When replacement parts are required, use replacement parts that are specified

by the manufacturer or have the same characteristics as the original parts.

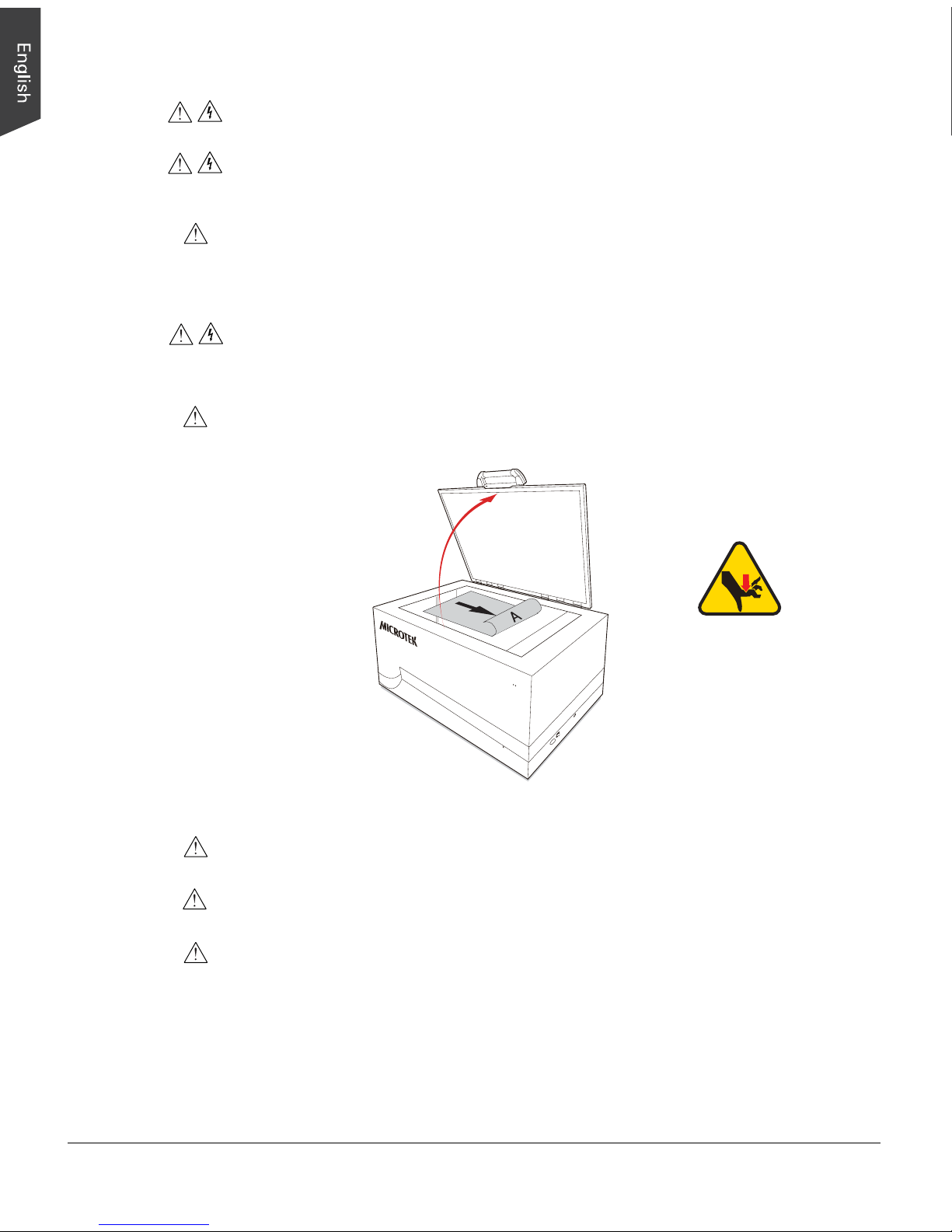

Lift the upper

cover of the

scanner to a

proper position to

avoid its sudden

drop.

Attention: When opening

or closing the upper cover

of the scanner, use it

carefully and watch out

for pressing your hands.

LS-3700 User's Manual 5

Table of Contents

Preface ............................................................................................... 2

Safety Precautions ............................................................................. 3

Knowing about Your Scanner............................................................. 7

Features of the LS-3700 ................................................................... 7

System Requirements ....................................................................... 7

Taking a Closer Look ........................................................................ 8

Initiate Setup ...................................................................................... 9

Step 1: Unpacking Package Contents ................................................. 9

Step 2: Installing the Software ........................................................ 10

Step 3: Keeping the Scanner in Place ............................................... 11

Step 4: Unlocking the Scanner ........................................................ 13

Step 5: Connecting the Scanner ...................................................... 14

Scanning the Materials .................................................................... 15

Positioning the Materials ................................................................. 15

Using ScanWizard LS (USB) Software .............................................. 16

Understanding ScanWizard LS (USB) Further .................................. 18

Launching ScanWizard LS (USB) ..................................................... 18

Exiting ScanWizard LS (USB) .......................................................... 18

Familiarizing with the Main Control Panel of ScanWizard LS (USB) ....... 19

Select Frame Button ....................................................................... 21

Magnify Button ............................................................................. 21

Rotate Counterclockwise/Clockwise Buttons ...................................... 22

Preview Button .............................................................................. 22

Scan to Save Button ...................................................................... 22

The Files Menu .............................................................................. 24

Save Scanning Settings ............................................................ 24

Load Scanning Settings ............................................................ 25

Restore the Default Settings ...................................................... 26

The Scanner Menu ......................................................................... 26

Scanner Info ............................................................................ 26

6 LS-3700 User's Manual

The Window Menu ........................................................................ 27

Open a Window ....................................................................... 27

Tools Window ......................................................................... 28

Advanced ToolBox Window ...................................................... 29

The About Menu ........................................................................... 31

User's Manual ......................................................................... 31

Cleaning the Glass Surface .............................................................. 32

Maintenance ..................................................................................... 32

Appendix .......................................................................................... 33

Troubleshooting ............................................................................ 33

Specifications ................................................................................ 34

LS-3700 User's Manual 7

Knowing aboutYour Scanner

The LS-3700 is a professional scanner exclusively designed for transferring large-

format originals into digital formats. The scanner can capture large-size graphs

quickly, such as maps and blueprints, providing the professionals a convenient

method to digitize the originals for the electric data storage.

Features of the LS-3700

The LS-3700 comes with several important features, including the following:

• Energy-saving two-way LED light source — Adopting two-way LEDs as the

light source, when the scanner is detected by the system, there are no

requirements for any warm-up time before carrying out the scan, which boots

your productivity and reduces energy costs amazingly. With its stable

performance, the image quality will remain consistent even after used for a

certain period of time.

• Elevating Knobs — There are four Elevating Knobs at the bottom of LS-3700,

which ensure that the scanner can be set on the ground stably and strengthen

the safety and convenience of using.

• Easy to operate, clean and maintain — The LS-3700 requires virtually no

routine maintenance and no daily cleaning, which is ideal for a busy working

environment.

• Microtek ScanWizard LS (USB) software — ScanWizard LS (USB) is software

exclusively designed for scanning and saving large-format graphs. The

friendly user interface of ScanWizard LS (USB) provides users an easy and

quick access to initiate.

System Requirements

• DVD-ROM/CD-ROM drive (for installing software)

• Color display with 24-bit color output capability

• 4 GB memory or above

• Intel Core i5 Processor at 3.0 GHz or above

• Microsoft Windows 7 or Windows 8

8 LS-3700 User's Manual

Taking a Closer Look

No. Names of Parts Functions of Parts

1 Handle Holds to open or close the upper cover of the scanner.

2 Upper Cover Covers the scanner bed.

3 Scan Bed The place where the scanned original is positioned.

4 Indicator (Green) Displays the status of the scanner.

5 Safety Locks (2) Locks the scanner cartridge.

6 Power Connector Connects the scanner to the power adapter.

7 Power Button Turns the scanner on or off.

8 Hi-Speed USB Port Connects the Hi-Speed USB (USB 2.0) cable to the computer.

9 Casters with Locks (4) Used to move or lock the scanner.

10 Ruler Used as a reference to position a scanned document in center.

LS-3700 User's Manual 9

Initiate Setup

Step 1: Unpacking Package Contents

After unpacking your scanner package, please check for the major components

listed below.

Scanner

Hi-Speed USB cable

Power cord Software CD/DVD

10 LS-3700 User's Manual

Step 2: Installing the Software

Important: You must install all software before connecting your scanner.

Always close any open programs and turn off Anti-virus utilities before installing

software.

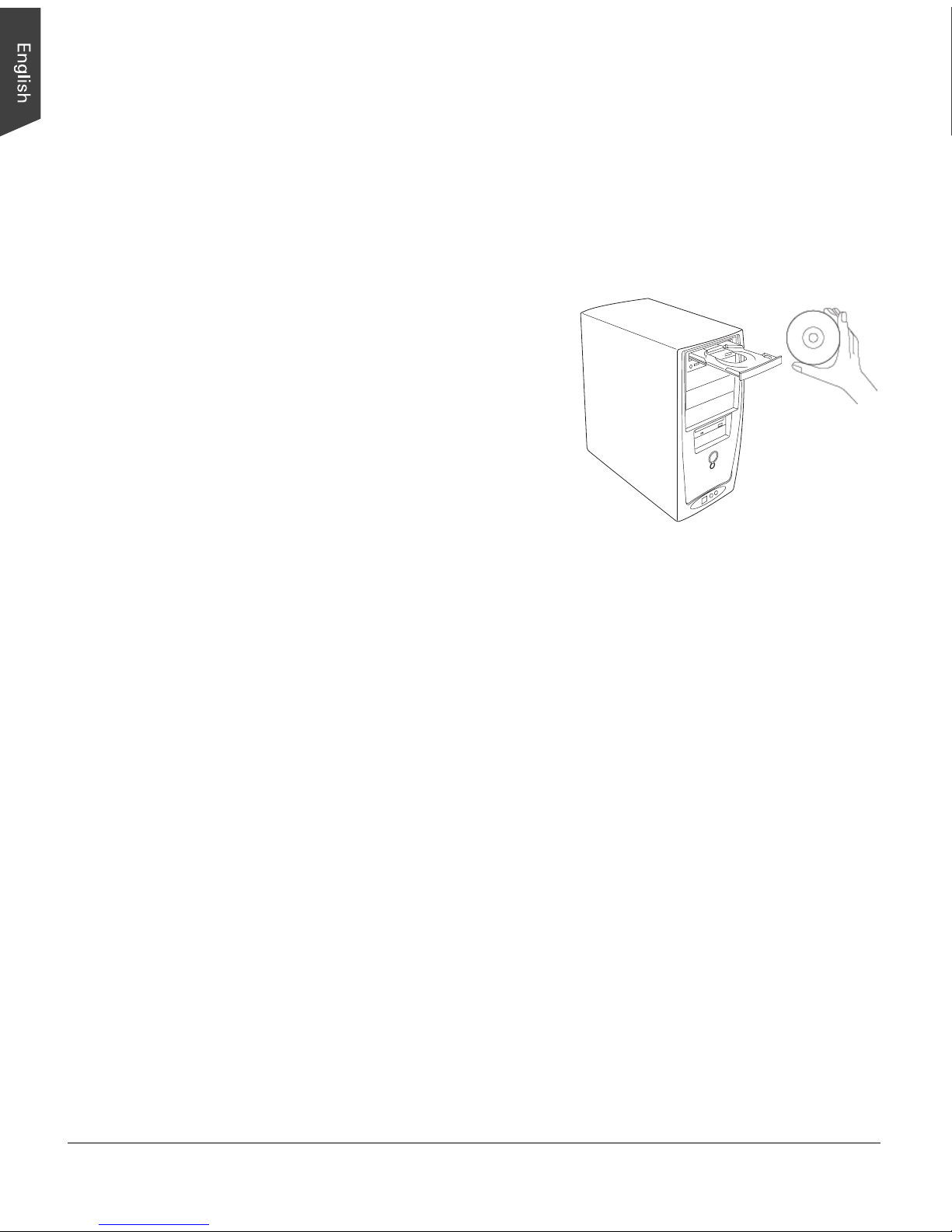

1. Turn on your computer.

2. Place the Microtek Software CD/DVD into a drive.

3. Follow the on-screen instructions to

install the driver and software.

Note: If the Microtek Software Installer

screen does not come up

automatically, double-click the

following in succession: “My

Computer”; the CD/DVD-ROM icon;

then Setup.exe to start the installer

program.

4. Click EXIT on the Microtek Software

Installer screen when all the software

has been installed.

5. Restart your computer.

Note: If the system displays a message “Found a new hardware” after the

computer is restarted, please select the installer program automatically.

Table of contents

Other Microtek Scanner manuals

Microtek

Microtek ArtixScan 3200XL Instruction Manual

Microtek

Microtek ScanMaker i4800 User manual

Microtek

Microtek ScanMaker i700 User manual

Microtek

Microtek ScanMaker i450 Instruction Manual

Microtek

Microtek ArtixScan DI 2125c User manual

Microtek

Microtek ScanMaker X12USL User manual

Microtek

Microtek ScanMaker 9800XL Plus User manual

Microtek

Microtek ScanMaker i280 Owner's manual

Microtek

Microtek ArtixScanDI 3130c User manual

Microtek

Microtek ArtixScanDI 5230 User manual

Microtek

Microtek ObjectScan 1600 User manual

Microtek

Microtek ArtixScan DI 2020 User manual

Microtek

Microtek ScanMaker s430 Instruction Manual

Microtek

Microtek XT3500 User manual

Microtek

Microtek ScanMaker i2400 Owner's manual

Microtek

Microtek ScanMaker 3800 User manual

Microtek

Microtek XT7000 HS User manual

Microtek

Microtek ScanMaker 3600 User manual

Microtek

Microtek ArtixScan DI 3130c Instruction Manual

Microtek

Microtek ArtixScan DI 2015c Instruction Manual

Microtek

Microtek ScanMaker 4850 User manual

Microtek

Microtek ScanMaker 3600 User manual

Microtek

Microtek LightLid EL User manual

Microtek

Microtek ScanMaker i280 Instruction Manual

Popular Scanner manuals by other brands

Plustek

Plustek Scanner user guide

Z/I Imaging

Z/I Imaging PhotoScan 2001 instructions

Renkforce

Renkforce DS100-5M operating instructions

Image Access

Image Access WideTEK A2 Operation manual

Canon

Canon imageFORMULA CR-120N user manual

Fujitsu

Fujitsu FI-4860C2 Specifications

GeoSlam

GeoSlam ZEB Horizon Hardware guide

Kodak

Kodak i5800 Scanner Brochure & specs

Kodak

Kodak i7300 user guide

Revopoint

Revopoint POP user manual

Fujitsu

Fujitsu fi-4860C installation guide

Eddyfi Technologies

Eddyfi Technologies Floormap X user manual

Faselase

Faselase F6 user manual

Fujitsu

Fujitsu CardMinder user guide

Uniden

Uniden BC340CRS owner's manual

Infinite Peripherals

Infinite Peripherals INFINEA TAB M user manual

Mustek

Mustek PageExpress 4800 Pro user guide

Optex

Optex 750830 owner's manual
