METHVEN KRSRCPAU User manual

www.methven.com

Technical Speciﬁcations:

Inlet Connections:

All ½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement at

www.methven.com

ROUND RAIL

Installation Guide

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

0800 804 222

Australia

1300 638 483

0800 195 1602

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

Periodically the ﬁlter washer should be removed from the end of the shower hose and cleaned.

Care and Cleaning:

439994 ISSUE A

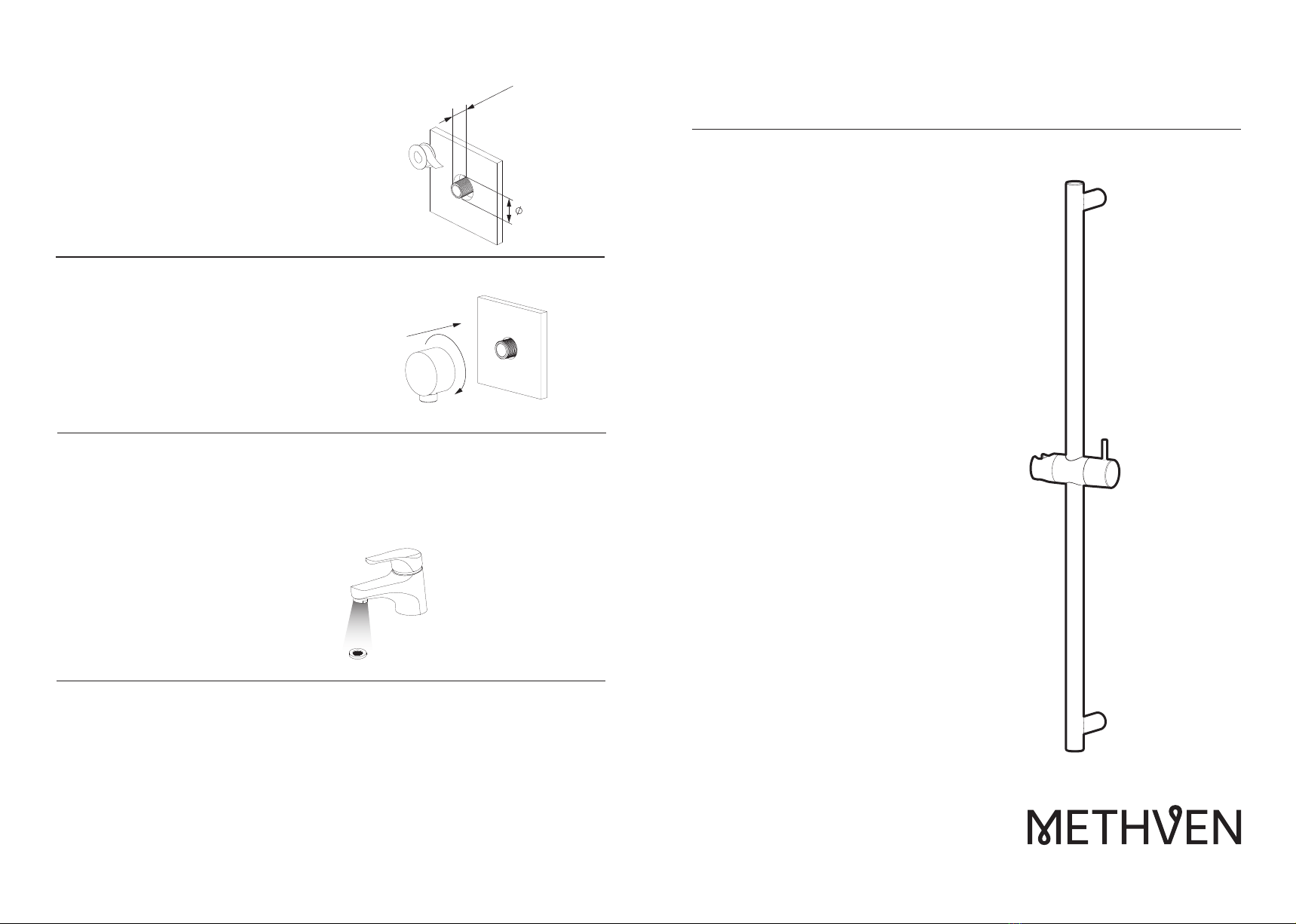

Elbow Installation (if supplied):

13±2mm

26mm max

Step 1

• Install ½” BSP nipple at the desired elbow position.

• Wall lining hole should be cut or ﬁnished as per the

dimension shown in the diagram on the right.

• Cut oﬀ the threaded nipple 13±2mm from the wall lining

and apply thread seal tape to ensure a good seal.

Step 2

• Screw the elbow onto the nipple ensuring that

the o-ring is suﬃciently compressed to create a

watertight seal.

• Ensure that the elbow is oriented vertically with

the outlet oriented downwards.

Step 1

• Mount the rail connectors in desired position with

the screws. Check the connectors are vertically

aligned

Step 3

• Check the grub screws in the rail

brackets are wound out.

• Match the rail brackets to the

connectors and push rail into place.

• Tighten grub screws top and bottom

624mm

Rail

Slider

Elbow

Grub Screw

Mounting

Screw

Mounting

Screw

Rail Connector

• This product must be installed in compliance with all relevant regional regulations.

• It is the responsibility of the installer to ensure a waterproof seal is achieved between the

product and mounting surface. If in doubt about the quality of the seal, remove the product

and reinstall using silicone to ensure a seal is achieved.

• All pipe work must be thoroughly ﬂushed prior to the installation of the hose.

• After installation all connections must be checked for leaks.

• All outlets used primarily for personal hygiene shall deliver water at a safe temperature as

per regional regulations.

IMPORTANT: Please read all of the instructions before installation.

General:
