METHVEN MINIMALIST MK2 User manual

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

0800 804 222

Australia

13 14 16

0800 195 1602

www.methven.com

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

Care and Cleaning:

IS  ISSUE A

MINIMALIST MK

SHOWER MIXER/DIVERTER TRIM KIT

Installation Guide

Technical Speciﬁcations:

Operating Pressure:

Min: 150kPa/1.5bar

Max: 1000kPa/10bar*

Optimum: 150kPa/1.5bar - 500kPa/5bar

Operating Temperature:

Hot: Max 80°C*

Cold: Min 5°C

Inlet Connections:

All ½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement at

www.methven.com

mm

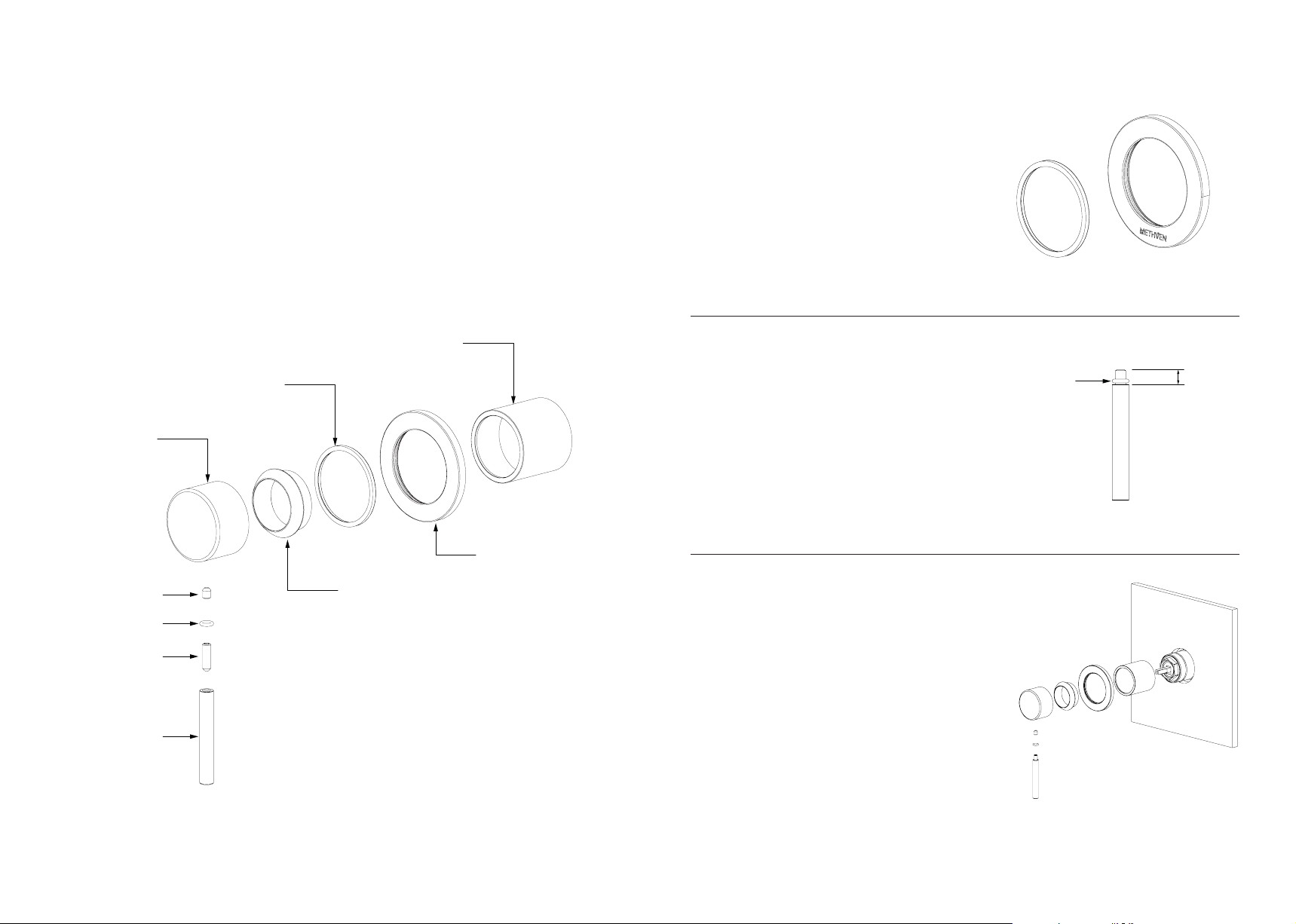

Step 1

Pre-assemble the faceplate seal to the internal

diameter of the faceplate.

IMPORTANT: Before you begin, turn oﬀ the water supply.

•

Step 3

Remove plastic cover from mixer/diverter body.

Lubricate O-ring on mixer/diverter body and ﬁt trim

kit sleeve.

Apply silicon to rear of faceplate sub-assembly to

create a seal with the ﬁnished wall surface. Press

faceplate onto sleeve and press up against wall

surface ensuring the logo is orientated correctly.

Fit the dome cover by screwing it onto the nut until

it contacts the sleeve.

Fit the handle body to the cartridge spindle and

secure with the short grub screw.

Fit handle pin sub-assembly to the handle body and

hand tighten.

•

Step 2

Pre-assemble the long grub screw to the handle

pin leaving 7mm of thread protruding.

Fit small O-ring to protruding grub screw.

•

Handle Body

Faceplate Seal

Sleeve

Short Grub Screw

O-ring

Long Grub Screw

Handle Pin

Faceplate

Dome Cover

•

IMPORTANT: Please read all of the instructions before installation.

General:

Methven recommends this product is installed by a licensed plumber in compliance with all

relevant regional regulations.

It is the responsibility of the installer to ensure a waterproof seal is achieved between the

product and mounting surface. If in doubt about the quality of the seal, remove the product and

reinstall using silicone to ensure a seal is achieved.
