Messoa LPR610 User manual
User Manual
2014-04 615 610 A1
(IR) Bullet LPR/ANPR Network
Camera
2 User Manual
Safety Notice
Before using the product, please carefully read through the safety information and operation
instructions.
Safely store the User Manual for future reference.
When operating the unit, please follow instructions on the User Manual.
Before cleaning the unit, please rst unplug the power.
Do not place the unit on an unstable cart, tripod, or on a tabletop as personal injury and damage
to the unit may occur due to a fall. Please use ofcially certied support, frames, and accessories
included with the product. Follow the instructions in this User Manual during installation to ensure
the quality and maintain safety.
Please follow the labeled specications on the unit and supply with the correct power. If unsure
of the actual power requirements, please contact the distributor and do not connect the power at
will.
The power cable must be properly secured as improper connections may cause a short circuit, re
hazards, or serious damage and hazards.
During prolonged inactivity, please unplug the power cable and the video cable to avoid damage
from lightning strike and power surges.
Please do not insert any objects into the unit or spill liquids to avoid short circuits.
High voltage circuitry contained within the unit. Do not disassemble to avoid electric shock. All
maintenance operations must be handled by qualied maintenance staff.
When the following occurs, please rst power off the unit and then perform maintenance by
qualied maintenance staff:
• Damaged power cable or socket
• Liquid spills or foreign objects in the unit
• Inoperable unit when proper instructions are followed
• Dropped unit or damaged shell
• Other anomalies
Replaced components by the maintenance staff must be ofcial certied parts of identical
specications. Using unauthorized components can cause re hazards and electric shock damage.
After the unit maintenance has been completed, the maintenance staff must perform safety
inspection to ensure proper operation.
User Manual 3
CE Compliance Statement
This equipment complies with the following requirements of the EMC Directive 2004/108/EC for CE
Marking: EN 55022: 2006 + A1: 2007 Class B, EN 61000 and EN 50130.
FCC Compliance Statement
If the declaration of conformity markings are present on the equipment, the following statements
apply:
Tested to comply with FCC standards for HOME OR OFFICE USE.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit other than the one to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
WEEE
Waste Electrical and Electronic Equipment
Correct disposal of this product (applicable in the European Union and other
European countries with separate collection systems). This product should
be disposed of, at the end of its useful life, as per applicalbe local lows,
regulations and procedures.
The specications or appearance of this product are subject to change without a prior notice.
4 User Manual
Table of Contents
Table of Contents
Safety Notice ....................................................................................................... 2
CE Compliance Statement ...................................................................................... 3
FCC Compliance Statement ..................................................................................... 3
WEEE .................................................................................................................. 3
1. Overview ................................................................................................ 6
Introduction ......................................................................................................... 6
Package Contents.................................................................................................. 6
Hardware Overview ............................................................................................... 7
Part Names ................................................................................................................. 7
Dimensions ................................................................................................................. 7
Specications ....................................................................................................... 8
2. Installation ........................................................................................... 10
Installation of the Camera and Bracket ................................................................... 10
Wiring Cables .............................................................................................................10
I/O Contacts ..............................................................................................................13
Recommended Installation Distance ...............................................................................14
Initial Conguration ............................................................................................. 15
Network Deployment ........................................................................................... 15
Type 1: Direct Connection to a PC ..................................................................................15
Type 2: Connection to LAN ...........................................................................................16
Type 3: Remote Connection via the Internet ....................................................................17
Accessing the Camera for the First Time ................................................................. 18
Using “IP Finder” to Manage Cameras..................................................................... 20
Installing IP Finder ......................................................................................................20
Using IP Finder ...........................................................................................................20
3. Web-based Interface ............................................................................. 23
3.1 Overview ...................................................................................................... 23
3.1.1 Main Screen .......................................................................................................23
3.1.2 Setup Menu........................................................................................................24
3.1.3 Applying Settings ................................................................................................24
3.2 ANPR/LPR Settings ......................................................................................... 24
3.2.1 ANPR/LPR ..........................................................................................................24
3.3 Image Settings ............................................................................................. 28
3.3.1 Codec ..............................................................................................................28
Table of Contents
User Manual 5
3.3.2 Exposure ...........................................................................................................31
3.3.3 White Balance ....................................................................................................32
3.3.4 Basic Setting ......................................................................................................33
3.3.5 Smart Encoding ..................................................................................................34
3.3.6 Smart Focus .......................................................................................................34
3.3.7 Privacy Zone ......................................................................................................35
3.4 Network ....................................................................................................... 36
3.4.1 Basic .................................................................................................................36
3.3.2 FTP ...................................................................................................................37
3.3.3 SMTP ................................................................................................................37
3.3.4 NTP ..................................................................................................................38
3.3.5 RTSP .................................................................................................................38
3.3.6 ONVIF ...............................................................................................................39
3.4 System ........................................................................................................ 40
3.4.1 Date and Time ....................................................................................................40
3.4.2 Time Stamp .......................................................................................................41
3.4.3 Firmware ...........................................................................................................41
3.4.4 User Management ...............................................................................................42
3.4.5 Language ..........................................................................................................43
3.4.6 Log ...................................................................................................................43
3.4.7 Audio ................................................................................................................45
3.5 Event ........................................................................................................... 46
3.5.1 Motion Detection .................................................................................................46
3.5.2 External Alarms ..................................................................................................47
3.5.3 Face Detection ....................................................................................................48
3.5.4 Blur Detection ....................................................................................................49
3.5.5 Audio Detection ..................................................................................................50
3.5.6 Ethernet Detection ..............................................................................................51
3.5.7 Event Management ..............................................................................................51
3.6 Recording ..................................................................................................... 52
3.6.1 Settings – Video File ............................................................................................52
3.6.2 Settings – FTP ....................................................................................................52
3.6.3 Settings – SMTP .................................................................................................53
3.6.4 SD Card Storage Format Selection .........................................................................54
3.6.5 Period Setting.....................................................................................................55
4. VLC Player for RTSP Streaming Access .................................................. 56
1. Overview
6 User Manual
1. Overview
Introduction
The LPR615 is a 2MP IP LPR camera engineered for detail-demanding trafc surveillance, ranging
from access control to high-speed monitoring up to 180km/h. And the LPR610 is a 2MP IR Bullet LPR
camera engineered for mid-range trafc surveillance, suitable for LPR applications up to 180km/h.
Featuring 1080p resolution, it is perfect for monitoring multi-lane trafc. This industry-leading trafc
network camera utilizes the proprietary CatchAll™ Technology to deliver clearer images of critical
trafc information in detail, regardless of the environment or lighting conditions. The advanced
Intelligent Trafc Mode allows full customization to optimize the identication results. The vandal-
resistant, die-cast aluminum alloy housing protects the camera from rough weather and vandalism.
Package Contents
Check the items supplied with your network trafc camera against the following list. If any of the
following items is missing, please contact your dealer.
Printed Quick Start Guide x1
Camera power adaptor x1
Hexagonal wrench x1
Bracket pack (with 4 screws) x1
1. Overview
User Manual 7

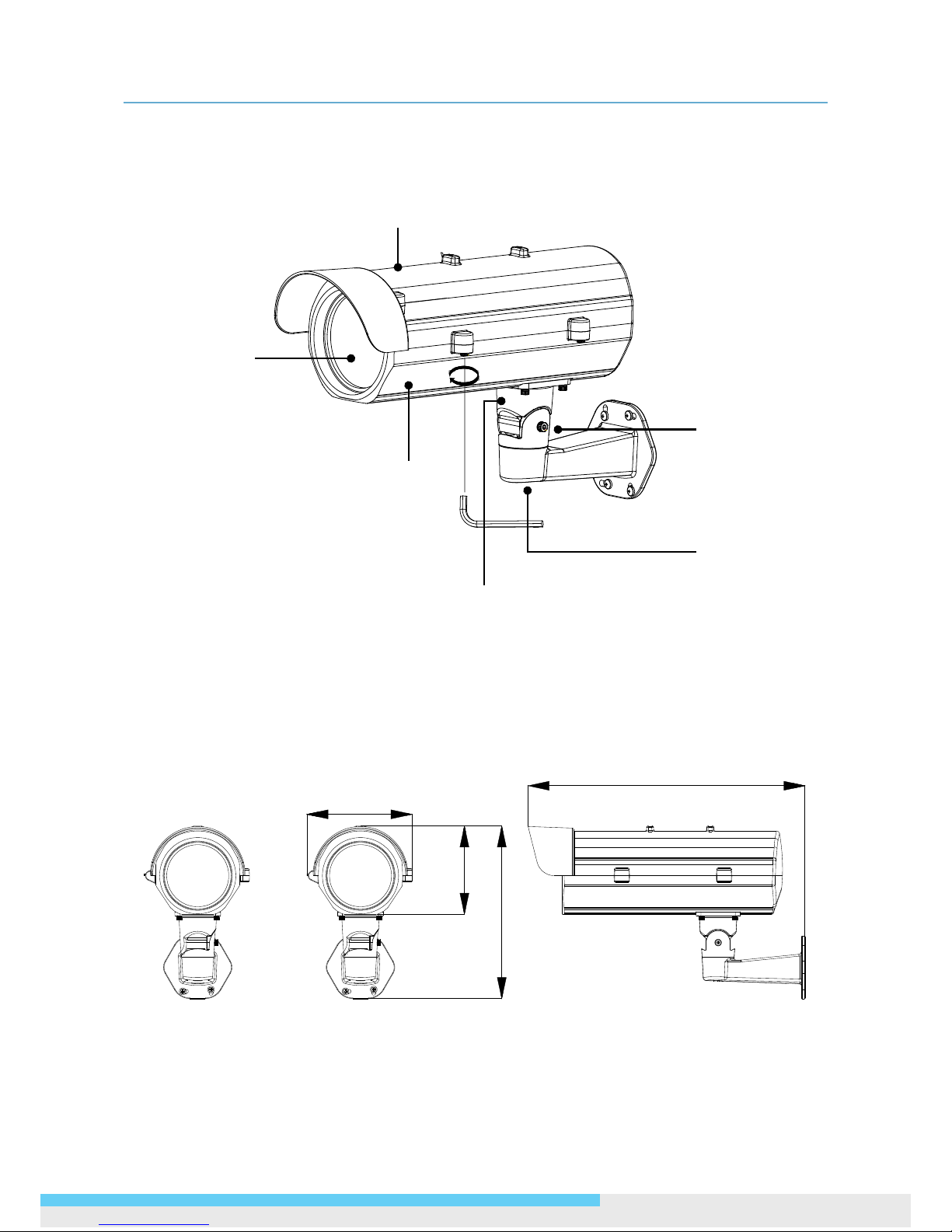

Hardware Overview
Part Names
The gure above is the illustration of the housing, which may be used with most of ICR real Day and
Night cameras.
Dimensions
Unit: mm
175
460
147
286
Tempered
Glass
Top Cover
Bottom
Cover
Tilt Adjustment
Screw
Pan Adjustment
Screw
Bracket
1. Overview
8 User Manual
Specications
LPR615
Video
Sensor Type 1/2.7" image sensor optimized for low-light performance
Active Pixels 1920x1080 (HxV)
Compression H.264 / MPEG4 / Motion JPEG
Streaming Triple simultaneous streams
Resolution 1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF
Max. Frame Rate 2MP 16:9 (1920x1080) at 30 fps (NTSC) and 25 fps (PAL)
Day/Night CBR/VBR
Day/Night Mode Mechanical (ICR) D/N Control
Shutter Time Auto/ Forced BW/ Forced Color/ External
Minimum Illumination 1/10000s to 1/3.75s selectable (60Hz);
1/10000s to 1/3.125s selectable (50Hz)
Video Output 0.08 Lux @30IRE; 0.20 Lux @50IRE
(Shutter Speed: 1/15 sec)
Bit Rate Control NTSC: 720 X 480 @30fps; PAL: 720 X 576 @25fps
Lens
Lens Type Built-in; Varifocal
Focal Length, F-
number f=8-80mm, F1.6
Focus / Zoom Manual
View Angle (FOV) H: 38.16°(Wide)~3.5°(Tele)/V:22.05°(Wide)~2.09°(Tele)
IRIS Control DC IRIS
Audio
Audio Communication Two-Way Mono Audio, Full-Duplex
Compression G.711, PCM, 8kHz
Audio In/Out External microphone and speaker
Image Enhancement
Image Settings
AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Congurable Brightness, Contrast, Hue, Saturation, and
Sharpness
Gamma Correction
Digital WDR Yes; 5 level sensitivity
Privacy Zone Yes; customized threshold privacy zone
Frequency Control 50Hz, 60Hz
Date & Time Stamp Yes
Intelligent Video & Event Management
Motion Detection 5 x 5 zones, 5 level sensitivity or customized threshold
Blur Detection Customized sensitivity in seconds
Ethernet Detection Network loss detection
Smart Encoding Congurable ROI for better picture quality
Others Snapshot, Smart Focus, e-PTZ, Optimized i-frame setting
Events Motion detection, face detection, audio detection, blur
detection, Ethernet detection, external alarm
Event Actions
File upload via FTP, SMTP and SD Card; Notication via
email, HTTP and TCP External output activation; Video
and audio recording to SD Card
Store Category Alarm / Motion / Schedule/ Un-interrupt recording
Stores video clips and snapshots
Intelligent Trafc Mode
Intelligent Trafc Mode 4 modes including City Surveillance, Highway, Entry/Toll
and Parking lot
Proles 4 customizable parameters options to meet various eld
conditions for best performance on 24/7 application
Local Storage
Memory Card Slot Micro SD / Micro SDHC Card up to 32 GB
Memory Card Over-
write Yes
Network
Protocol IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,
RTSP, RTCP, ICMP, UPnP
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN /
WAN, RJ-45
ONVIF Yes
Browser IE Browser 6.0 or Above
Security Two-level access with password protection
I/O & Controls
Power Screwless Terminal block
Power LED Indicator Yes
Alarm In/Out Terminal Block 2 in / 1 out
Network RJ-45 with LEDs
Audio In/Out 3.5mm Phone Jack 1 in / 1 out
RS-485 Reserved
Analog Video BNC X1, 1.0Vp-p, 75Ω
Reset Within 5 secs to reboot; More than 5 secs to load default
Power
Power Requirement AC 24V ± 10%
Power Consumption
(Max.) 35W (Max.)
Mechanism
Dimensions(WxDxH) 114 x 66 x 65 mm (4.5" x 2.6" x 2.6")
Weight 4400g (9.7lb)
Protection IP66
Battery Backed-up Real-
time Clock Yes; External RTC
Environment
Operating Temp. -40ºC ~ 50ºC (-40ºF ~ 122 ºF)
Operating Humidity 10~ 90% RH
Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F)
Regulatory
Approvals CE, FCC, RoHS
Ordering Information
Model No. NTSC: LPR615-N2-US-MES,
PAL: LPR615-P2-EU-MES
Accessories Easily adjustable 2-axis and cable-concealed bracket with
standard package
1. Overview
User Manual 9
LPR610
Video
Sensor Type 1/2.7" image sensor optimized for low-light performance
Active Pixels 1920x1080 (HxV)
Compression H.264 / MPEG4 / Motion JPEG
Streaming Triple simultaneous streams
Resolution 1080p, SXVGA, 720P, XGA, SVGA, D1, VGA, 2CIF, CIF
Max. Frame Rate 2MP 16:9 (1920x1080) at 30 fps (NTSC) and 25 fps (PAL)
Day/Night CBR/VBR
Day/Night Mode Mechanical (ICR) D/N Control
Shutter Time Auto/ Forced BW/ Forced Color/ External
Minimum Illumination 1/10000s to 1/3.75s selectable (60Hz);
1/10000s to 1/3.125s selectable (50Hz)
Video Output 0.08 Lux @30IRE; 0.20 Lux @50IRE
(Shutter Speed: 1/15 sec)
Bit Rate Control NTSC: 720 X 480 @30fps; PAL: 720 X 576 @25fps
Lens
Lens Type Built-in; Varifocal
Focal Length, F-
number f=15-50mm, F1.5
Focus / Zoom Manual
View Angle (FOV) H: 20.01°(Wide)~6.09°(Tele) / V: 23.6°(Wide)~3.8°(Tele)
IRIS Control DC IRIS
IR LEDs
LED Quantity 96 pcs (850nm)
IR Distance 15-30m (50-100ft)
IR turn on status Under 5 Lux by auto control
LED Life More than 10,000 hours (50°C)
Audio
Audio Communication Two-Way Mono Audio, Full-Duplex
Compression G.711, PCM, 8kHz
Audio In/Out External microphone and speaker
Image Enhancement
Image Settings
AES, AWB, AGC
Exposure Mode: AES / ALC / Flickerless / Manual;
White Balance: Auto / Manual;
Backlight Compensation
Congurable Brightness, Contrast, Hue, Saturation, and
Sharpness
Gamma Correction
Digital WDR Yes; 5 level sensitivity
Privacy Zone Yes; customized threshold privacy zone
Frequency Control 50Hz, 60Hz
Date & Time Stamp Yes
Image Enhancement
Image Settings
Exposure Mode: Auto Exp./Manual Exp./Auto IRIS;
White Balance: Auto/Manual;
Backlight Compensation: 5x5 zones selectable;
Gain, Sharpness, Saturation, Brightness, Contrast: 255
level sensitivity
WDR Digital WDR; 5 level sensitivity
DNR -
Privacy Zone Yes; customized threshold privacy zone
Image Orientation Mirror, Flip
Frequency Control NTSC(60Hz)/ PAL(50Hz)
Date & Time Stamp Yes
Intelligent Video & Event Management
Motion Detection Yes, 5-level sensitivity
Others Ethernet / Blur / Audio Detection, Snapshot, Smart Focus,
e-PTZ, Optimized i-frame setting
Event Actions
File upload via FTP, SMTP and SD Card; Notication via
email, HTTP and TCP External output activation; Video
and audio recording to SD Card
Store Category Event snapshot, Edge recording, Manual Snapshot,
Manual Recording
Intelligent Trafc Mode 4 modes including City Surveillance, Highway, Entry/Toll
and Parking lot
Prole 4 customizable parameters options to meet various eld
conditions for best performance on 24/7 application
Local Storage
Memory Card Slot Micro SD / Micro SDHC Card up to 32 GB
Memory Card Over-
write Yes
Network
Protocol IPv4, TCP/IP, UDP, HTTP, SMTP, DNS, DHCP, NTP, FTP, RTP,
RTSP, RTCP, ICMP, UPnP
Ethernet 10Base-T/100Base-TX Ethernet connection for LAN /
WAN, RJ-45
ONVIF Yes
Browser IE Browser 6.0 or Above
Security Two-level access with password protection
I/O & Controls
Power Screwless Terminal block
Power LED Indicator Yes
Alarm In/Out Terminal Block 2 in / 1 out
Network RJ-45 with LEDs
Audio In/Out 3.5mm Phone Jack 1 in / 1 out
Analog Video BNC X1, 1.0Vp-p, 75Ω
Reset Within 5 secs to reboot; More than 5 secs to load default
Power
Power Requirement AC 24V ± 10%
Power Consumption
(Max.) 45W (Max.)
Mechanism
Dimensions(WxDxH) 422 x 174 x 145mm (16.6" x 6.9" x 5.7")
Weight 6000g (13.22lb)
Protection IP66
Environment
Operating Temp. -40ºC ~ 50ºC (-40ºF ~ 122 ºF)
Operating Humidity 10~ 90% RH
Storage Temp. -20°C ~ 60°C (-4°F ~ 140°F)
Regulatory
Approvals CE, FCC, RoHS
Ordering Information
Model No. NTSC: LPR610-N2-US-MES;
PAL: LPR610-P2-EU-MES
Accessories Easily adjustable 2-axis and cable-concealed bracket with
standard package
2. Installation
10 User Manual
2. Installation
Installation of the Camera and Bracket
Wiring Cables
1. Take the bracket from the box and put the power cable and Ethernet cable through the bracket
and then x the bracket to the wall (Loose the screws of the bracket for easy assembly if
necessary).
2. Take out the housing and open the side cover with the hexagonal wrench.
Table of contents
Other Messoa Security Camera manuals
Messoa
Messoa PTZ900 User manual
Messoa
Messoa HCR176 User manual
Messoa
Messoa NCR870 User manual
Messoa
Messoa NCC800 User manual
Messoa
Messoa LPR606 User manual
Messoa
Messoa NCR875-HN5 User manual
Messoa
Messoa SCR368-HN5 User manual
Messoa
Messoa NID318 User manual
Messoa
Messoa ZEIM-4000604G A.1 User manual
Messoa
Messoa NCB355 User manual
Messoa
Messoa NDR891PRO User manual
Messoa
Messoa PTZ900 User manual
Messoa
Messoa NDR891 User manual
Messoa
Messoa NDR890 User manual
Messoa
Messoa NCB750 User manual
Messoa
Messoa NDF820 User manual
Messoa
Messoa SPD982 User manual
Messoa
Messoa NOD316 User manual
Messoa
Messoa NDR891(H) User manual
Messoa
Messoa NCC700 User manual
