MB QUART NAUTIC NHT2-116 Instruction Manual

Quick Start

Installation Guide

NHT2-116

NHT2-120

NAUTIC

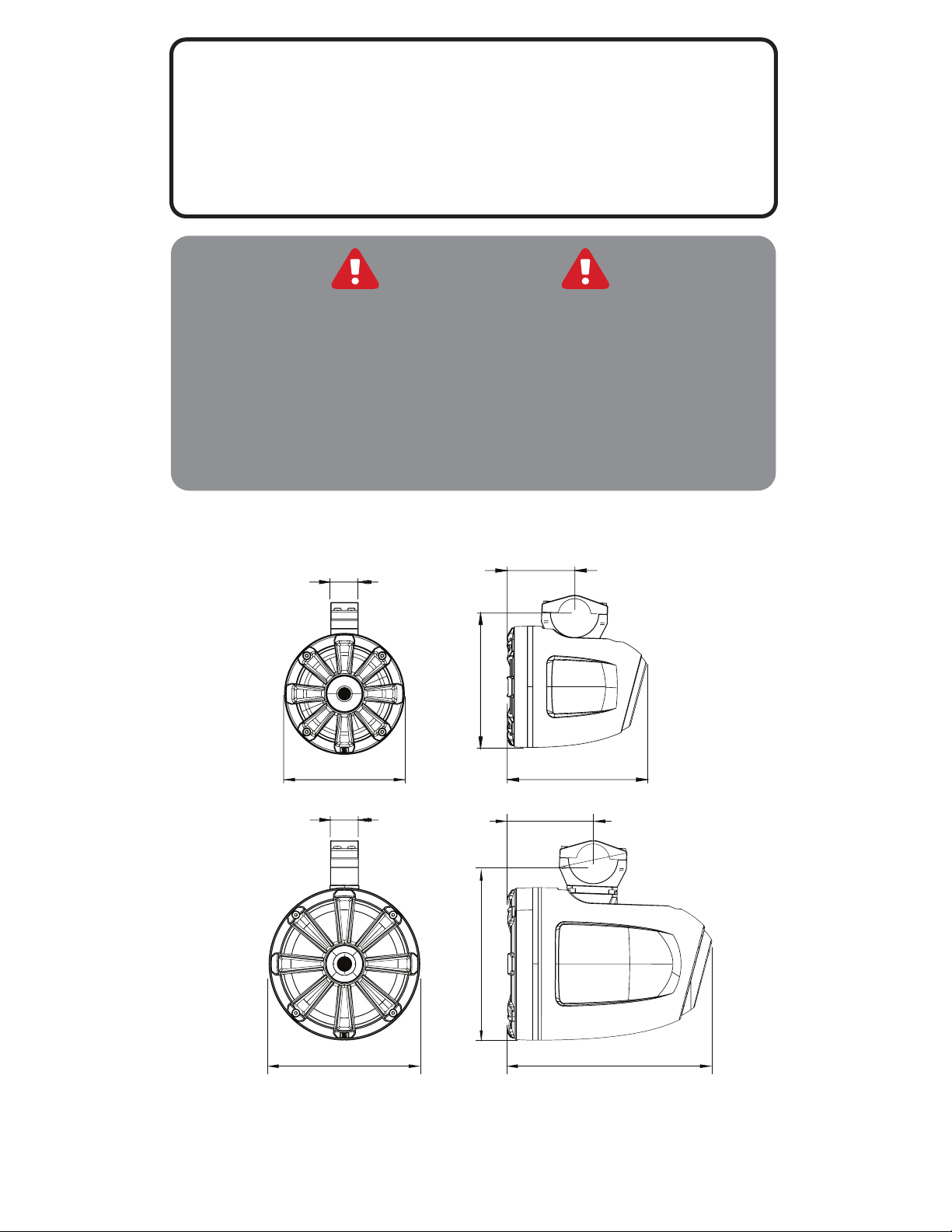

Dimensions

CAUTION

Always consider consulting a professional audio installer

before installing new speakers. Many manufacturers locate

speakers behind interior panels that require special tools to

remove. Be careful and take your time.

If you are using the speaker wire supplied with your new

speakers make sure that you run the speaker wires only

through safe areas. Do not let speaker wire make contact with

metal edges or hot engine components.

Congratulations on your choice of a MBQuart speaker.

This “Quick Start” Installation guide is meant to help

you complete a basic installation. For more detailed

information on system setting, speaker and subwoofer

FRQ¿JXUDWLRQDQGIXOOVSHFL¿FDWLRQVE\PRGHOYLVLWRXU

website at mbquart.com

,W¶VDJRRGLGHDWRFRQ¿UPWKDW\RXKDYHSXUFKDVHGWKHFRUUHFWVL]H

VSHDNHUVWR¿W\RXUDSSOLFDWLRQ,I\RXKDYHDQ\UHVHUYDWLRQVDERXWEHLQJ

able to complete the installation yourself, we recommend contacting a

professional.

Before you start

230mm

9.04”

120.65mm

4.75”

41.4mm

1.63”

292.1mm

11.5”

215mm

8.47”

203.2mm

8”

101.6mm

4”

174.5mm

6.87”

201.5mm

7.94”

41.4mm

1.63”

The NHT2 clamping system is designed for

towers and support structures that utilize ROUND

WXELQJ2YDOWXELQJDQGÀDWVWUXFWXUHVZLOOQRW

work with this clamp. The NHT2 clamp can be

used with tube diameters from 1.5” up to 2.75”.

Included are separate bushing sets for all tube

sizes at 1/8” increments. Refer to the table below

WRGHWHUPLQH\RXUFRQ¿JXUDWLRQ

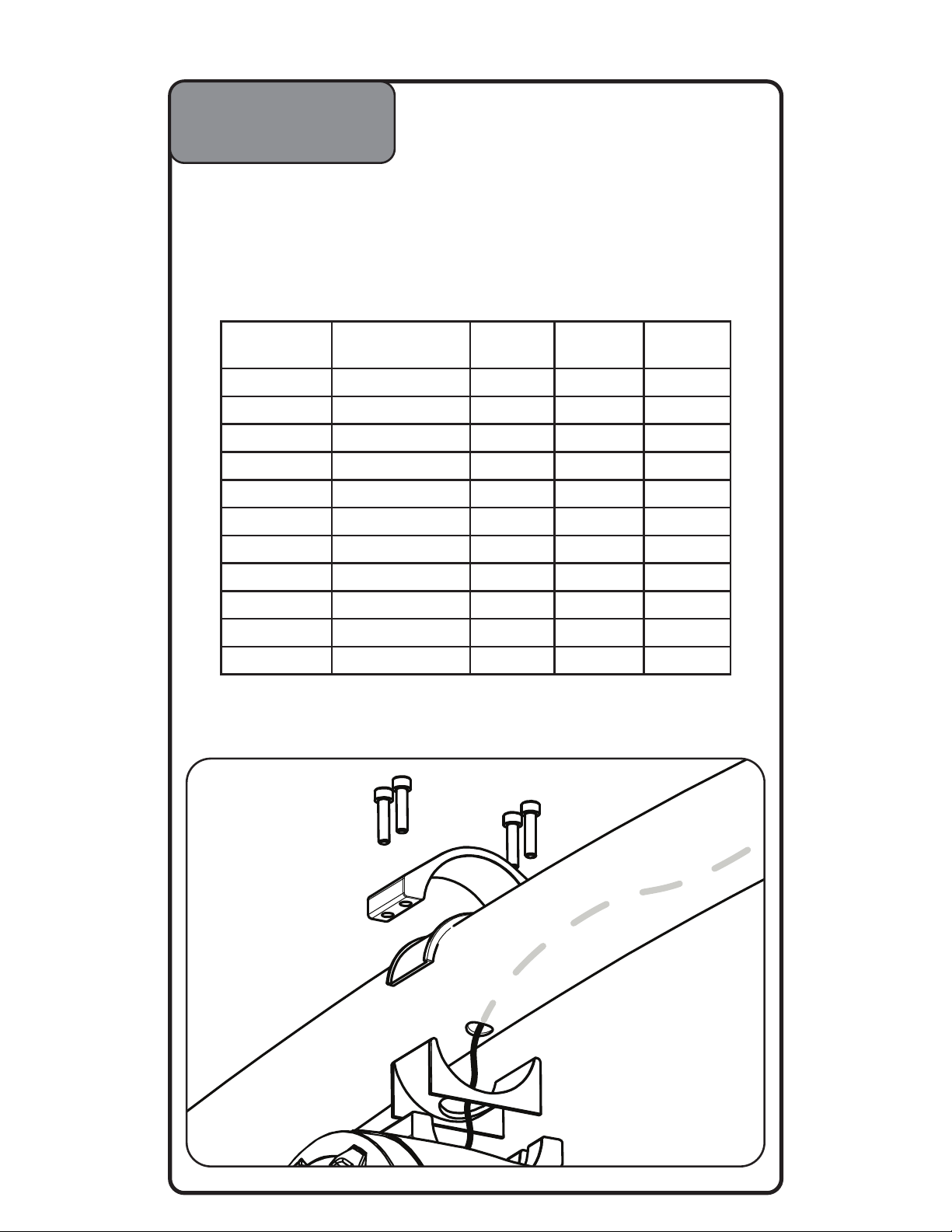

Choose a suitable

mounting location

Mounting Location

Tube

Diameter

Tube

Circumference

Clamp Top

Bushing

Bottom

Bushing

1.5 4.71 A 1.50 1.50

1.625 5.10 A 1.63 1.63

1.75 5.50 A 1.75 1.75

1.875 5.89 A none 1.88

2 6.28 B 2.00 2.00

2.125 6.68 B 2.13 2.13

2.25 7.07 B 2.25 2.25

2.375 7.46 B 2.38 2.38

2.5 7.85 B 2.50 2.50

2.625 8.25 B 2.68 2.68

2.75 8.64 B none none

Carefully select a route for the audio signal

ZLUHV,IXVLQJH[LVWLQJVSHDNHUZLUHVFRQ¿UP

that the wire is in good shape and not

shorted. In the case of an illuminated model,

route a positive and negative wire from a

switched +12V source. Avoid routing wires

through dangerous areas.

Route signal and

illumination wires

Wiring

Black ...................................... Audio signal negative

Black w/white stripe ................ Audio signal positive

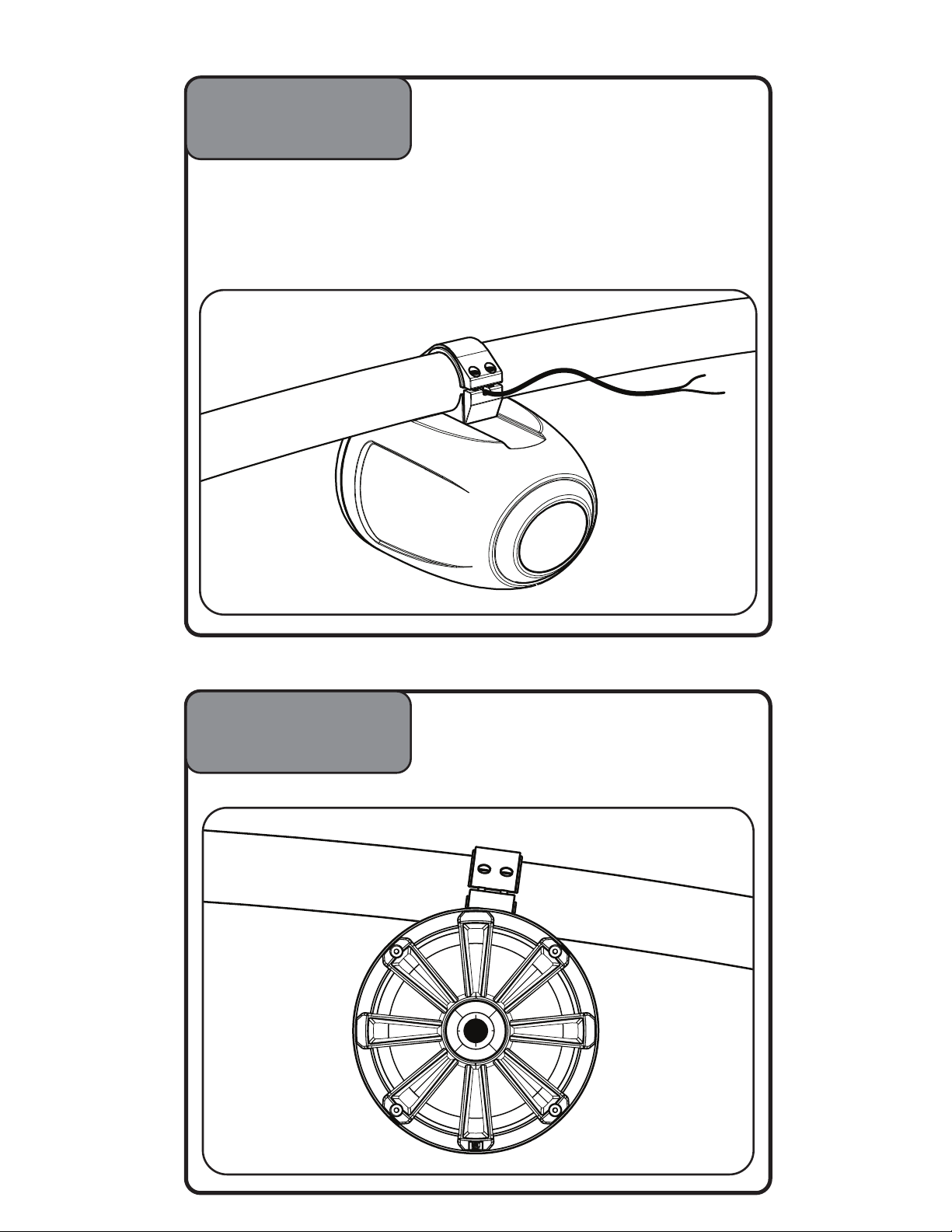

Your NHT2 speakers can be aligned to “hang

straight” on an angled tube by loosening, rotating

and re-mounting the speaker. Just behind the

speaker mounting holes is a series mounting holes

that can be used to align the speaker in the pod.

Adjust the speaker

alignment

Grill alignment

MB Quart products are designed and engineered in the USA by

www.maxxsonics.com

WARRANTY

Maxxsonics, LLC. warrants this product, to the original consumer purchaser, to be free from

defects in material and workmanship for a period of one (1) year from the date of purchase.

Maxxsonics, LLC. will, at it’s discretion, repair or replace defective products during the warranty

period. Components that prove to be defective in materials and workmanship under proper

installation and use must be returned to the original authorized Maxxsonics, LLC. retailer from

where it was purchased. A photocopy of the original receipt must accompany the product being

returned. The costs associated with removal, re-installation and freight are not the responsibility of

0D[[VRQLFV //&7KLVZDUUDQW\LVOLPLWHGWRGHIHFWLYHSDUWVDQGVSHFL¿FDOO\H[FOXGHVDQ\LQFLGHQWDO

or consequential damages connected therewith. To view the full warranty, please visit the website.

NHT2-116

NHT2-120

NAUTIC

MBQ NHT2-116/NHT2-120 QSG 01 - rev1
