Maytag MAV7357AWQ Manual
Repair
Parts
List
MODEL NUMBER
MAV7357AWQ
When requesting service or ordering parts, always
provide the following information:
- Product Type - Part Number
- Model Number - Part Description
WASHER
©2005 Maytag Services
Section: CONTROL PANEL
LW11-131
Model: MAV7357AWQ
1
CONTROL PANEL
No. Part No. Description
Section:
Series Qty
1 33002347 TIMER KNOB INSERT/CAP 10 1
2 22002997 PIN, LOCKING 10 1
3 22002996 KNOB, TIMER (GRY) 10 1
4 22003005 SKIRT, TIMER KNOB (BSQ) 10 1
5 22003006 SWITCH, (4 BUTTON TEMP) (BSQ) Note: BUTTONS 1&4 USE 22003875 BUTTONS 2&3 USE
22003876 10 1
6 22003860 SWITCH, PUSH BUTTON / BISQUE Note: BUTTONS 1&4 USE 22003876 BUTTONS 2&3 USE
22003875 10 1
7 22003865 CONTROL PANEL, FACIA - BSQ 10 1
8 33002327 CONSOLE (BSQ) Note: CONSOLE (BSQ) 10 1
- 22002925 SCREW Note: SCREW, CONSOLE BACK TO TOP 10 2
9 22002745 SWITCH, PRESSURE (BSQ) 10 1
- 22003461 PAD, PRESSURE SWITCH 10 1
10 22002711 SWITCH, 4 BUTTON OPTION / WHT Note: BUTTONS 1&4 USE 22001788 BUTTONS 2&3 USE
22001789 10 1
11 22003237 AIR DOME HOSE 10 1
- 903115 LOCK LIGHT 10 1
12 22001948 LENS, INDICATOR LIGHT 10 1
13 22003561 TIMER 10 1
14 22002529 CONSOLE BACK PANEL 10 1
- Y22002339 SCREW 10 1
15 22003003 BRACKET, ATC / TIMER 10 1
16 22002857 BOARD, CONTROL 10 1
2
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
Section: TOP
LW16-30
Model: MAV7357AWQ
3
TOP
No. Part No. Description
Section:
Series Qty
1 22003469 COVER, TOP (BSQ-ASPKD) 10 1
2 22002802 CUP, BLEACH (BSQ) 10 1
3 22003804 LID SWITCH 10 1
4 22002752 HINGE PIN (BSQ) 10 1
5 22002871 LID, WASHER (BSQ) 10 1
6 22002753 BUSHING, HINGE 10 2
7 22002754 PLUNGER 10 1
8 22002756 CAM, LID (BSQ) Note: CAM, LID (BSQ) 10 1
9 22002757 GUIDE TUBE 10 1
10 2016090 SCREW, LID SWITCH TO BRACKET Note: SCREW/WASHER (GUIDE TUBE) 10 2
11 Y705026 SCREW Note: SCREW, GROUNDING 10 2
12 22002766 CONDENSATE SEAL (BSQ) 10 1
4
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
Section: CABINET
LW12-24
Model: MAV7357AWQ
5
CABINET
No. Part No. Description
Section:
Series Qty
- 33002190 SCREW (#10-3/8") Note: SCREW, CABINET BACK TO BASE 10 3
1 N 22003554 CABINET ASSY. (BSQ-AS PKD) 10 1
- 22002840 BRACE, CABINET (LT) 10 1
- 22002839 BRACE, CABINET (RT) 10 1
2 22003372 VALVE, WATER W/THERMISTER 10 1
3 22002852 RETAINER, WIRE 10 1
4 22002838 CLAMP, SPRING----S 10 1
- 22003596 CLAMP, HOSE Note: CLAMP, DRAIN HOSE 10 1
5 22003410 HOSE, DRAIN 10 1
6 22002761 HOSE, INJECTOR 10 1
7 216169 CLAMP,HOSE-INJEC.HOSE TO VALVE Note: CLAMP, INJECTOR HOSE 10 1
8 22002765 CLIP, HOSE 10 1
9 33002190 SCREW (#10-3/8") Note: SCREW, BRACKET TO CABINET 10 1
10 22002701 RETAINER, DRAIN HOSE 10 1
11 22003409 SCREW----NA Note: SCREW, CABINET MTG. 10 6
12 22003429 RETAINER, FILL HOSE 10 1
13 22003367 HINGE, PLASTIC 10 2
14 200961 SCREEN WASHER, INLET HOSE 10 2
- 33002190 SCREW (#10-3/8") Note: SCREW, PANEL TO BRACE 10 2
- 22002854 PAD, SOUND BARRIER 10 1
- 22002293 INSULATION, CABINET 10 1
15 Y22002738 PANEL, FRONT (BSQ) Note: PANEL, FRONT (BSQ) 10 1
- 22002960 STRAINER, WASHER INLET Note: STRAINER, WASHER INLET 10 2
16 22002764 INLET HOSE ASSY. (COLD) Note: INLET HOSE ASSY. (COLD) 10 1
16 22002763 INLET HOSE ASSY. (HOT) Note: INLET HOSE ASSY. (HOT) 10 1
17 Y013783 GASKET, INLET HOSE Note: WASHER, INLET HOSE 10 4
18 22002704 COVER, DRAIN HOSE 10 1
- 33002190 SCREW (#10-3/8") Note: SCREW, DRAIN HOSE COVER 10 1
19 22003376 BRACKET, WATER VALVE 10 1
20 22002748 FRONT PANEL BRACKET Note: FASTENER, FRONT PANEL 10 2
21 22003374 UPPER WATER INJECTOR, FLUME 10 1
- 22004053 LOWER INJECTOR, FLUME 1
22 22003375 LOWER WATER INJECTOR, FLUME 10 1
23 22002013 STOP, SHIPPING 10 3
24 22002965 HOLE PLUG 10 2
25 22001995 SCREW Note: SCREW, HINGE 10 2
- 22003086 CLIP, AIR DOME HOSE 10 1
26 25-7220 CLIP, CABINET TOP 10 2
6
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
Section: TUB
LW13-38
Model: MAV7357AWQ
7
TUB
No. Part No. Description
Section:
Series Qty
- 22004042 AGITATOR/AUGER ASSY (AS PK) 12 1
1 22003885 AUGER/AGITATOR ASSY (AS PACK) 10 1
2 21001510 SCREW Note: SCREW, TUB/BEARING/SEAL HSG 10 4
3 22002933 SCREW Note: SCREW, TUB/TUB SUPPORT 10 6
4 25-7948 SCREW, AGITATOR RETENTION Note: BOLT, AGITATOR 10 1
5 35-3685 GASKET, BASKET TO CENTERPOST Note: GASKET, BASKET 10 1
6 35-3686 GASKET, TUB TO HOUSING Note: GASKET, TUB 10 1
7 25-7967 SCREW, SHOULDER Note: SCREW, BASKET 10 4
8 35-2328 SEAL, TUB TOP Note: SEAL, TUB TOP 10 1
9 21001599 DISPENSER, FABRIC SOFTENER 10 1
10 22002741 SPINNER ASSEMBLY, PLASTIC Note: BASKET, SPIN 10 1
11 35-2978 SEAL, TUB/HOUSING 10 1
12 22002742 TUB, OUTER Note: TUB ASSEMBLY 10 1
13 22002736 TUB COVER ASSY. (TUB TOP) Note: TOP, TUB 10 1
14 21001599 DISPENSER, FABRIC SOFTENER Note: (INCL. DISPENSER CUP) 10 1
15 22003285 HOSE, TUB TO PUMP 10 1
- 22003458 BLOCK, TUB (ATL) 10 1
8
*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

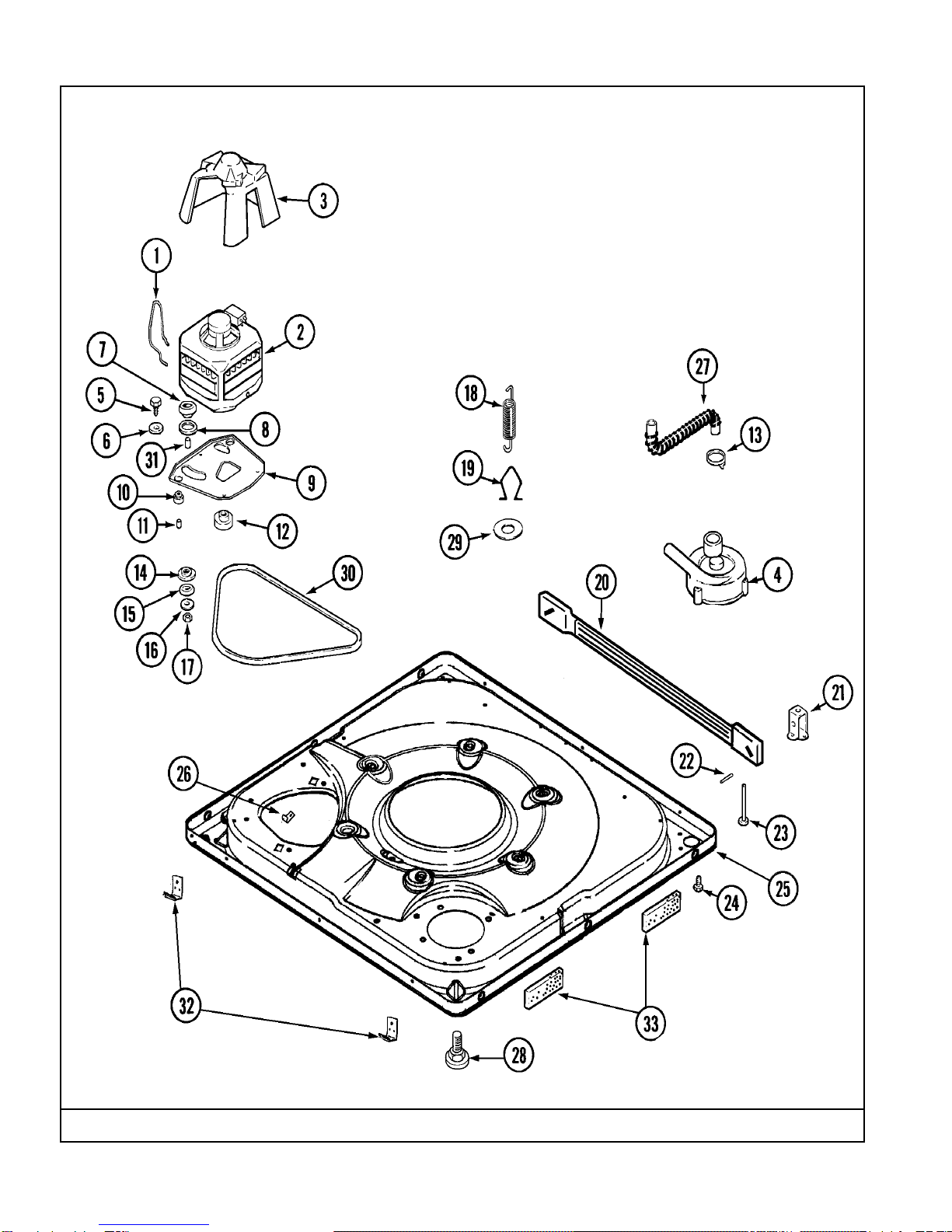

Section: BASE
LW10-22
Model: MAV7357AWQ
9
