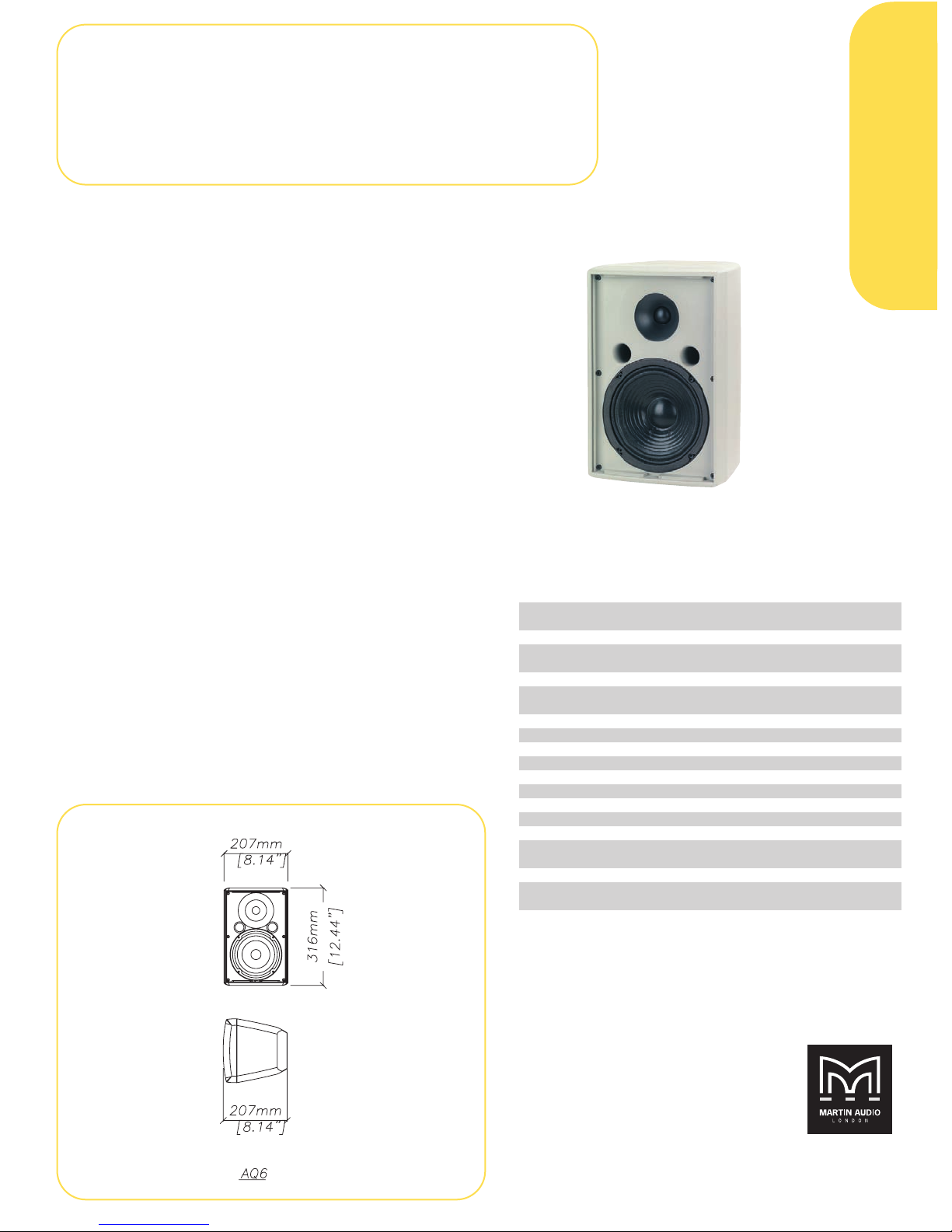

Martin Audio AQ6 User manual

AQ6

Ultra-compact, full-range system

features

Wide 90° x 90˚ dispersion

6.5" (165mm) direct radiating LF driver &

1" (25mm) horn-loaded dome tweeter

Light weight structural foam enclosure

1st & 2nd fix wall and ceiling brackets available

Five year limited warranty

applications

Clubs, bars and restaurants

Theatres

Places of worship

Century Point, Halifax Road, Cressex Business Park,

High Wycombe, Buckinghamshire HP12 3SL, England.

Telephone: +44 (0)1494 535312 Facsimile: +44 (0)1494 438669

E-mail: [email protected]

All information is Copyright © 2003 Martin Audio Ltd.

The AQ6 is a two-way passive loudspeaker designed to fulfill the

requirement for dynamic performance from a very small,

architecturally friendly, vented enclosure. It features a 6.5"

(165mm) direct radiating, long-throw bass driver and a 1"

(25mm) doped fabric dome tweeter coupled to a 90° x 90˚

HF horn.

architectual

www.martin-audio.com

overall dimensions

technical specifications

TYPE Ultra-compact, two-way passive,

vented trapezoid

FREQUENCY RESPONSE (5) 80Hz-20kHz ± 3dB

DRIVERS 6.5" (165mm) bass driver

1" (25mm) horn loaded dome tweeter

RATED POWER (2) 100W AES, 400W peak

RECOMMENDED 100-200W into 4 ohms

AMPLIFIER

SENSITIVITY (6) 90dB

MAXIMUM SPL (7) 108dB continuous, 114dB peak

NOMINAL IMPEDANCE 8 ohms

DISPERSION (-6dB) 90º horizontal, 90º vertical

CROSSOVER 3.5kHz passive

ENCLOSURE 9 litre, structural foamed ABS

FINISH Textured light grey paint

PROTECTIVE GRILLE Light grey perforated steel

CONNECTORS Low profile 12 amp push-lock

FITTINGS 4 x M6 inserts for bracket

1 x M6 insert for safety point

OPTIONS 30W 100/70V line transformer

DIMENSIONS (W) 207mm x (H) 316mm x (D) 207mm

(W) 8.2ins x (H) 12.5ins x (D) 8.2ins

WEIGHT 6kg (13.2lbs)
