Lorex L19LD800 Series User manual

BUSINESS & HOME SECURITY

INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. AS OUR PRODUCTS ARE SUBJECT TO CONTINUOUS IMPROVEMENT,

LOREX TECHNOLOGY INC. AND OUR SUBSIDIARIES RESERVE THE RIGHT TO MODIFY PRODUCT DESIGN, SPECIFICATIONS AND PRICES, WITHOUT

L19LD800Series

WWW.LOREXCCTV.COM

QUICK START GUIDE R2

Page: 2

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

Page: 2

PACKAGE CONTENTS AND

INSTALLATION GUIDE:

ATTENTION:

Broadband Router

and Computers are

required for local and

remote monitoring

(not included).

INSTRUCTIONS:

For detailed setup

information, please

refer to your User’s

manual.

SOFTWARE

REQUIREMENTS:

For Lorex Client 3.0

Software requirements,

please refer to the

Software User’s manual.

System Contents:

1 - 19” 8 Channel LCD Monitor with pre-installed HDD*

4 - High Res. Color Cameras*

4 - 100 ft (30M) Extension Cables*

4 - Camera Stands with Mounting Screws*

1 - 10 ft Ethernet Cable

1 - Remote Control

2 - AAA Batteries

1 - Power Adaptor (for monitor)

1 - Lorex Client Software CD

1 - User’s Manual

1 - Software Manual

1 - Quick Start Guide

* Camera conﬁguration and HDD (hard disk drive) capacity may vary

by model. BNC Cameras require individual power adaptors. Check

your package for speciﬁc content information.

INSTALLATION GUIDE

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Tools Skills - Easy

Under 20 Minutes* Hand Tools Plug & Play connectors,

On screen set up

* Installation time may vary based on

application and camera cabling

STEP 1 STEP 2

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Skills - Intermediate

Plug & Play connectors,

On screen set up

Under 30 Minutes*

* Installation time may

vary based on application

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Hardware

Computer &

Router*

STEP 3

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

Time Hardware Skills - Advanced

60 Minutes Computer &

Router*

Basic Computer

Skills, Router Port

Forwarding

* Installation time may vary

based on application

Skill Level

Intermediate

easy advanced

Time

under 30 minutesunder 15 minutes under 60 minutes

Hand Tools Hardware

Router

Hi Speed

over 60 minutes

* Minimum System Requirement: Windows XP, Pentium IV,

256MB Ram (512MB Recommended), 200MB Storage, High

Speed Internet, DSL or Cable Modem



Check Pages

14 - 15

Page: 2

Page: 2Page: 3

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

DEVICE CONNECTIONS (Stand Removed)

Screws

Lay the monitor facing down on a soft surface. Make sure

to protect the screen from sharp objects.

OPTIONAL - LOCATE MONITOR CONNECTIONS

STEP 1 - SET UP YOUR MONITOR FIRST

The system has an efﬁcient back panel control that

provides a cable management solution.

By design the connectors are not easily accessible, in

order to secure the connections.

It is recommended to remove the stand for initial set-up

by simpy unscrewing four screws with a standard screw

driver.

OPTIONAL - REMOVE MONITOR STAND

The stand comes with a built in cable channel to easily organize

and conceal wiring. Connect the Power Cable, Cameras, Ethernet

Cable and any Alarm Devices to the System by running the cables

through the hole in the stand before connecting to the

Observation System.

NOTE: Your system can be mounted on a wall using a VESA

standard mounting bracket (not included).

DEVICE CONNECTIONS

Tilt the monitor (40˚) to allow for easier access to the

connectors.

TILT MONITOR

Efﬁcient back

panel provides

a solution for

neat cable

management.

Page: 4

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

Page: 4

STEP 1 - SET UP YOUR MONITOR FIRST

Your system includes 4 high resolution 6 PIN DIN cameras.

CONNECT CAMERAS TO THE MONITOR

Connect one end of the ethernet cable to one of the router’s (not

included) LAN PORTS and the other end to the Monitor’s Network Port

located at the bottom of the monitor. See picture below showing a

generic LAN/WAN connection.

CONNECT ETHERNET CABLE

Connect one end of the Power adaptor to the monitor, the other end

to an electrical outlet. This unit powers ON once it is plugged in to the

power outlet.

TIP: Once you are done with the connections, remember to screw the

stand back on.

CONNECT POWER CABLE

WAN (WIDE

AREA NETWORK)

LAN (LOCAL AREA NETWORK)

TO YOUR COMPUTER

TO YOUR MONITOR

BACK OF THE ROUTER SHOWN

CONTINUED

TIP: Test the cameras prior to selecting

a permanent mounting location by

temporarily connecting the Cameras

and Cables to your System.

* Connect cameras to extension cables

by aligning the arrows. Plug in cameras

and cables before mounting the cameras.

NOTE: The arrow mark on top of the ﬂat side of

the camera and cable connectors should face

UP while inserting to the Monitor.

Connect the ﬁrst camera to the CH1 input. Follow the same steps to

connect the additional cameras.

You can connect 4 additional (BNC) Cameras using the BNC ports.

With the use of a Universal DIN to BNC Cable you can connect 4 additional 6

PIN DIN Cameras to your monitor.

Note: BNC cameras require separate power adaptors. The SG7610B Camera

Kit includes an individual Power Adaptor and an Universal DIN to BNC Cable.

UNIvERSAL DIN TO BNC CABLE

OPTIONAL

Page: 4

Page: 4Page: 5

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

DATE / TIME SETUP

SETUP

FORMAT

DATE 2007/09/16

TIME 19:08:13

TIME ZONE (GMT-05:00) Eastern Time

DST OFF

DATE YYYY/MM/DD

TIME 24H

INTERVAL OFF

SERVER

TIME SYNC

SYNC

STEP 1 - SET UP YOUR MONITOR FIRST

CONTINUED

The unit will automatically begin loading when power is connected to

the system.

INITIAL LOADING SEQUENCE

Click the MENU button on the front panel of the Monitor (or the

Remote Controller) to enter the Main Menu. From the Main Menu

move to SYSTEM and press the ENTER button to go to the DATE/TIME

menu to activate menu options.

SET THE DATE & TIME

Congratulations! You have completed Step 1

successfully. You can now view, record and

playback images on your monitor.

Make sure that

the Date and Time

are set prior to

recording.

• MENU Button – Accesses the setup menu, and returns to previous

menu options.

• Navigation Controls - Move Up/Down/Left/Right.

• Enter Button - Press this button to select and change the values in a

menu option.

NOTE: After you see all four (4) camera images

on your monitor screen, remove the protective

ﬁlm from camera(s) and monitor screen.

a. During the loading sequence, the System will perform a Hard Drive and

Firmware check and the screen will display the text message “SYSTEM

CHECK”.

b. Once the system checks are completed, the screen will display the text

message “INITIALIZING SYSTEM” before completing the loading process.

c. The unit will initially load to a split screen view, displaying all 8 cameras

(if available) and a system legend in a 3x3 Screen View.

MENU NAVIGATION CONTROLS

MENU NAVIGATION &

ENTER

NOTE: This may take up to 60

seconds. Please wait until the

system completes loading.

Page: 6

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

Page: 6

SYSTEM INFORMATION

SYSTEM NAME MYSYSTEM

SYSTEM ID 01

S/W VERSION 1.1.0.8

VIDEO TYPE NTSC

DDNS NAME

NETWORK PORT 3000

WEB PORT 80

IP ADDRESS 192.168.0.104

MAC ADDRESS 01:23:45:67:89:AB

DISK CAPACITY 120GB / 320GB

DISK TEMPERA TURE 100F (GOOD )

STEP 2 - SET UP LOCAL VIEWING ON YOUR PC

*YOUR OBSERVATION SYSTEM MUST BE CONNECTED TO A ROUTER PRIOR TO POWERING IT ON.

RECORD THE IP AND MAC ADDRESSES IN THE SECTION BELOW

NOTE: The system will lease

networking information from

your Router. If you wish to set

your information manually,

then set the DHCP MODE to

MANUAL. Please consult your

Hardware Manual for further

Menu options.

IP ADDRESS: . . .

MAC ADDRESS:

(Required for DDNS registration)

RETRIEVE SYSTEM INFORMATION

To retrieve the System Information, press the ENTER button on the front

panel of the Monitor or the Remote Control.

Insert the Lorex Client 3.0 Software CD into your local computer’s CD ROM

drive and proceed with the installation.

INSTALL SOFTWARE

(on your local computer)

Computer - not included

THIS STEP RELATES TO REMOTE VIEWING OVER THE LAN (LOCAL AREA NETWORK) BY USING A

PC LOCATED ON THE SAME NETWORK AS THAT OF THE SYSTEM.

Page: 6

Page: 6Page: 7

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

STEP 2 - SET UP LOCAL VIEWING ON YOUR PC

CONTINUED

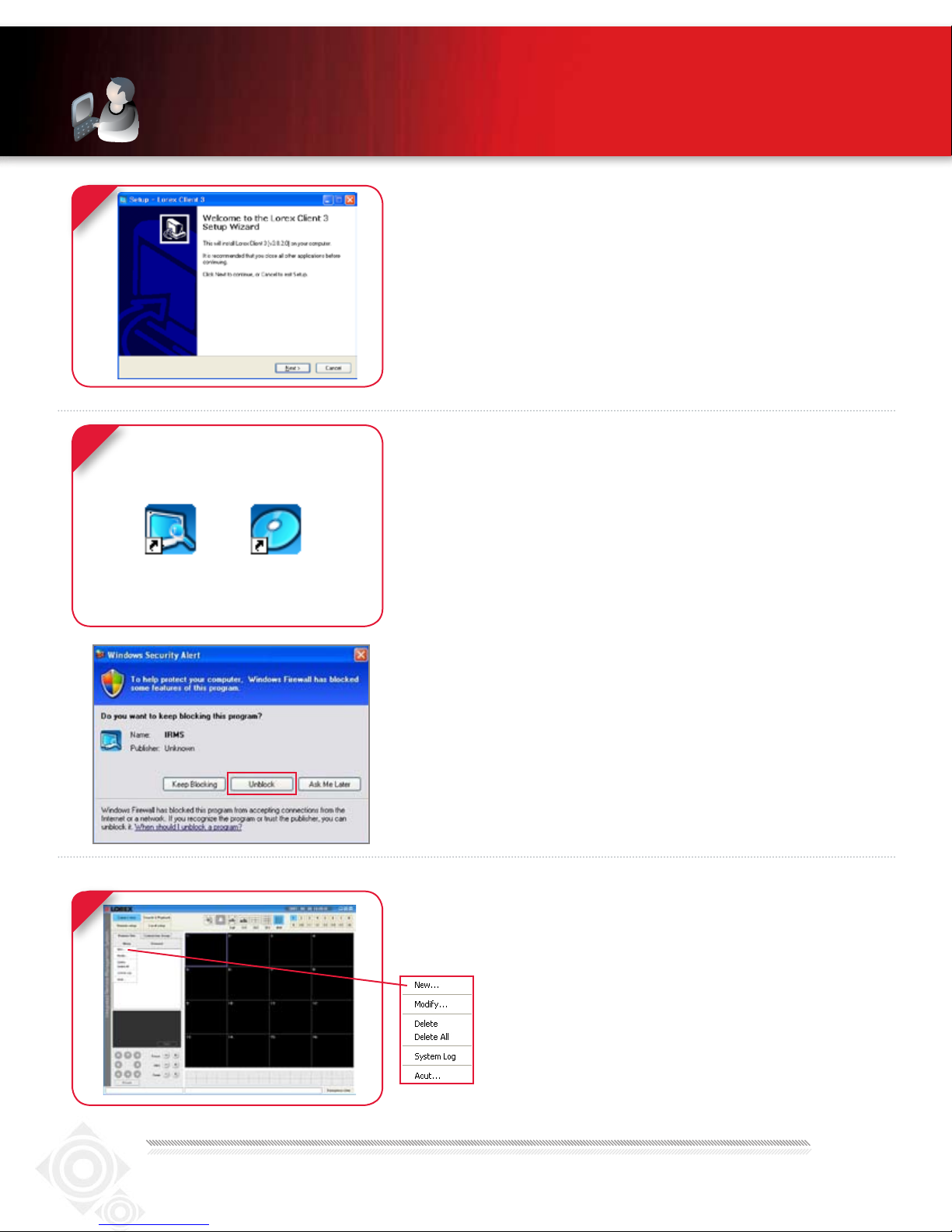

Follow the installation screens to complete Lorex Client 3.0

Software installation.

LOREX CLIENT 3.0 SOFTWARE

RUN LOREX CLIENT 3.0 SOFTWARE

(on your local computer)

LorexClient LorexPlayer

Lorex Client and LorexPlayer icons will appear on your desktop.

Double-click the Lorex Client icon on your desktop to run the program.

The log-in window may appear before the main program window loads.

Enter your password to start the program.

NOTE: Initial password is blank

Click the Menu button and select the NEW item.

ADD A LOCAL SITE:

(on your local computer)

TIP: When you run LorexClient on Windows XP operating system, you

will see the Windows Security Alert. Please click unblock to run the

application.

Please refer to your Lorex Client 3.0 Software Manual for instructions

about using Lorex Backup Player and Storage Calculator.

Page: 8

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

Page: 8

STEP 2 - SET UP LOCAL VIEWING ON YOUR PC

CONTINUED

Enter a name and site information for the remote site.

1. Enter a Name of the site (e.g. Ofﬁce)

2. Enter the User ID (admin by default)

3. Enter the User Password (blank by default)

4. Enter the DVR/Monitor TCP/IP port (3000 by default)

5. Enter the IP Address recorded in Step 2-1

6. Click Add to add the remote site

7. Click EXIT

ENTER SETUP INFORMATION

(on your local computer)

LOCAL LIVE SCREEN

(on your local computer)

Highlight the site you set-up in Step 2-6. Click the Connect

button and select the Connect item to connect the remote

site.

CONNECTION

(on your local computer)

Congratulations! You have completed Step 2 successfully.

You can now view, playback images and remotely control

your system on your local computer over the Local Area

Network (LAN).

Ofce

Page: 8

Page: 8Page: 9

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

STEP 3 - SET UP INTERNET REMOTE

MONITORING

PORT FORWARD YOUR ROUTER

Port forward your router ﬁrst before proceeding with the set-up

(ports 80, 3000, 3001, 3002, 3003).

All routers are different. To port forward your router, please refer to

your router’s user manual.

A router conﬁguration guide is available on your Lorex Client Software

CD and also on www.lorexcctv.com/support in the Consumer’s

Guide Section.

DDNS SET-UP

Open your web browser (Internet Explorer by default)

and enter

http://ddns.strategicvista.net

in the address bar.

CREATE ACCOUNT

From the http://ddns.strategicvista.net website, click the

CREATE ACCOUNT option.

Router - not included

http://ddns.strategicvista.net

Page: 10

L19LD800 SERIES QSG_EN_R2

www.lorexcctv.com

Page: 10

STEP 3 - SET UP INTERNET REMOTE

MONITORING CONTINUED

COMPLETE NEW ACCOUNT INFORMATION

1. FOR PRODUCT LICENSE select the L19LD800 Series option

from the drop down menu.

2. FOR PRODUCT CODE enter the Monitor’s MAC address

(recorded in step 2-1).

3. FOR URL REQUEST enter a unique URL name

(e.g. myurl). NOTE: URL name should not be more than

15 characters.

REGISTRATION EMAIL

An automated REGISTRATION CONFIRMATION EMAIL will

be sent to your email. Print and Save this conﬁrmation. You

will need this information to access your System remotely.

Service Provider: dns1.strategicvista.net

Domain Name: myurl.strategicvista.net

User ID: tomsmith1

Password: (your password)

ENTER DDNS SET-UP ON YOUR MONITOR

Once the DDNS settings have been conﬁgured online,

the information must be entered on the System to

allow for remote connection via the Lorex Software (or

through Internet Explorer).

Access the Main Menu Setup screens by pressing the

MENU key on the front panel of your monitor (or Remote

control) and navigate to the NETWORK option and press

ENTER. On the NETWORK SETUP screen scroll down

and select DDNS. Press the ENTER button to access the

DDNS network settings.

ENABLE DDNS SETTINGS

On the DDNS SETUP menu, enable DDNS by setting

ON/OFF to ON.

Other manuals for L19LD800 Series

Table of contents

Other Lorex Security System manuals

Lorex

Lorex D881 Series User manual

Lorex

Lorex L224V161C4 User manual

Lorex

Lorex SG14Q2144C-A User manual

Lorex

Lorex SG21CD7484UQ-A80 User manual

Lorex

Lorex SG6333 User manual

Lorex

Lorex HD14S1042-A User manual

Lorex

Lorex SG19LD804-161 Installation guide

Lorex

Lorex mCAM DMC2030 User manual

Lorex

Lorex SG6876 Manual

Lorex

Lorex WIRELESS HOME MONITORING SYSTEM User manual

Lorex

Lorex SG6350 User manual

Lorex

Lorex LW2710 Series User manual

Lorex

Lorex VANTAGE LH110 ECO SERIES User manual

Lorex

Lorex SG21CD7444UQ-A80 User manual

Lorex

Lorex L15LD400 series User manual

Lorex

Lorex SHS-4QM2 User manual

Lorex

Lorex SHS-2SA series User manual

Lorex

Lorex LH314321 Guide

Lorex

Lorex LHB926 Series User manual

Lorex

Lorex LW2201 Series User manual

Lorex

Lorex SG19LD804-161 Installation guide

Lorex

Lorex D861 Series User manual

Lorex

Lorex VANTAGE LH110 ECO SERIES User manual

Lorex

Lorex HC64A Series User manual

Popular Security System manuals by other brands

Inner Range

Inner Range Concept 2000 user manual

Climax

Climax Mobile Lite R32 Installer's guide

CADDX

CADDX NX-6 user manual

FBII

FBII XL-31 Series installation instructions

Johnson Controls

Johnson Controls PENN Connected PC10 Install and Commissioning Guide

Aeotec

Aeotec Siren Gen5 quick start guide

Blaupunkt

Blaupunkt SA 2700 quick start guide

IDEAL

IDEAL Accenta Engineering information

AJAX

AJAX DoubleButton user manual

Swann

Swann SW-P-MC2 Specifications

Ecolink

Ecolink Siren+Chime user manual

Digital Monitoring Products

Digital Monitoring Products XR150 user guide

EDM

EDM Solution 6+6 Wireless-AE installation manual

Highway Safety Group

Highway Safety Group EA401 user manual

Siren

Siren LED GSM operating manual

Detection Systems

Detection Systems 7090i Installation and programming manual

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 instructions

Siemens

Siemens FDM273 manual
