1. TESTING FOR EXCESSIVE WEAR
Option 1: Connect an API-LI to the LYNX series coupler. Please consult Liquip for more info on the API-LI.
Option 2: Connect the coupler to a new API vehicle adaptor. With the vehicle adaptor clamped securely in a vice try to
rock the coupling in relation to the vehicle adaptor. Be sure to rock the coupler about the axis which it would normally
receive the most wear and tear. If there is any more than 5mm lateral movement at the back end of the coupler it is
worn out and unserviceable.
2. SUGGESTED MAINTENANCE SCHEDULE

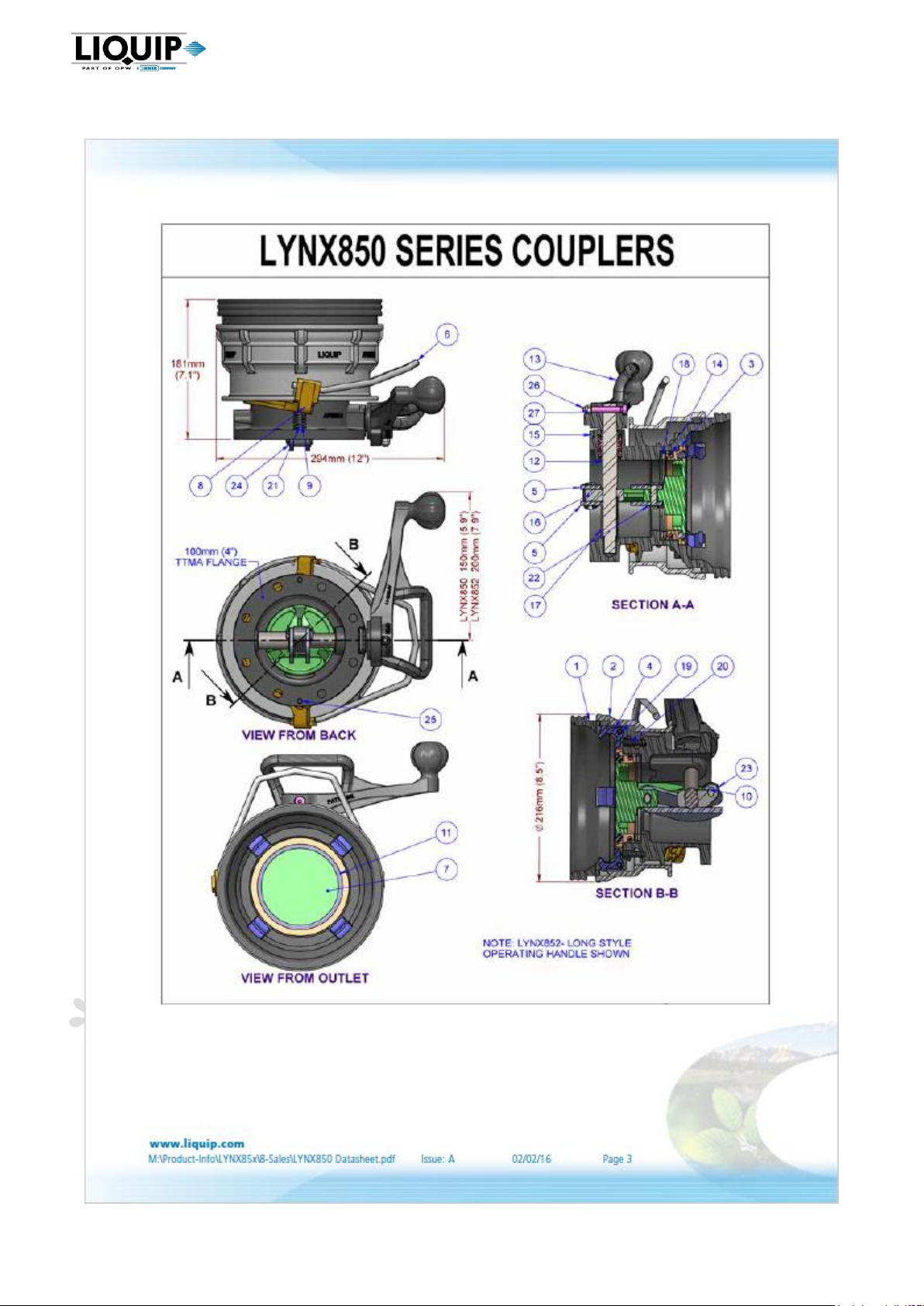

Recommended Service Schedule for Liquip LYNX Series Couplers.
Because loading gantries vary in usage the following schedule is calculated on the number of connections.
1. DETERMINE THE LOADING GANTRY CATEGORY
Note: All Chemical Couplers should be treated and maintained as per the HIGH USE schedule.
a. LOW USE: 1 to 10 Connections per day.
b. MEDIUM USE: 11 to 20 Connections per day.
c. HIGH USE: 21 to 50 Connections per day.
Choose a category that best suits your loading gantry.
2. SERVICE NUMBER
a. SN 1
i. Visually inspect the product seal for damage, replace if required.
ii. Visually inspect latches for dirt build up and clean if required.
iii. Inspect handle interlock for damage, report and locate cause if evident.
iv. Visually inspect for leaks on all sealing areas while the coupler is on the loading arm.
b. SN 2
As SN1 with the addition of:
i. Check the operation of the self-latching mechanism for smooth and free operation.
ii. Visually inspect the latches for excessive wear.
iii. Visually inspect poppet adaptor ring for damage.
iv. Visually inspect the body adjacent to the poppet adaptor ring for mushrooming and/or burrs.
v. Visually inspect the poppet face for damage.
c. SN 3
As SN1 and SN2 with the addition of:

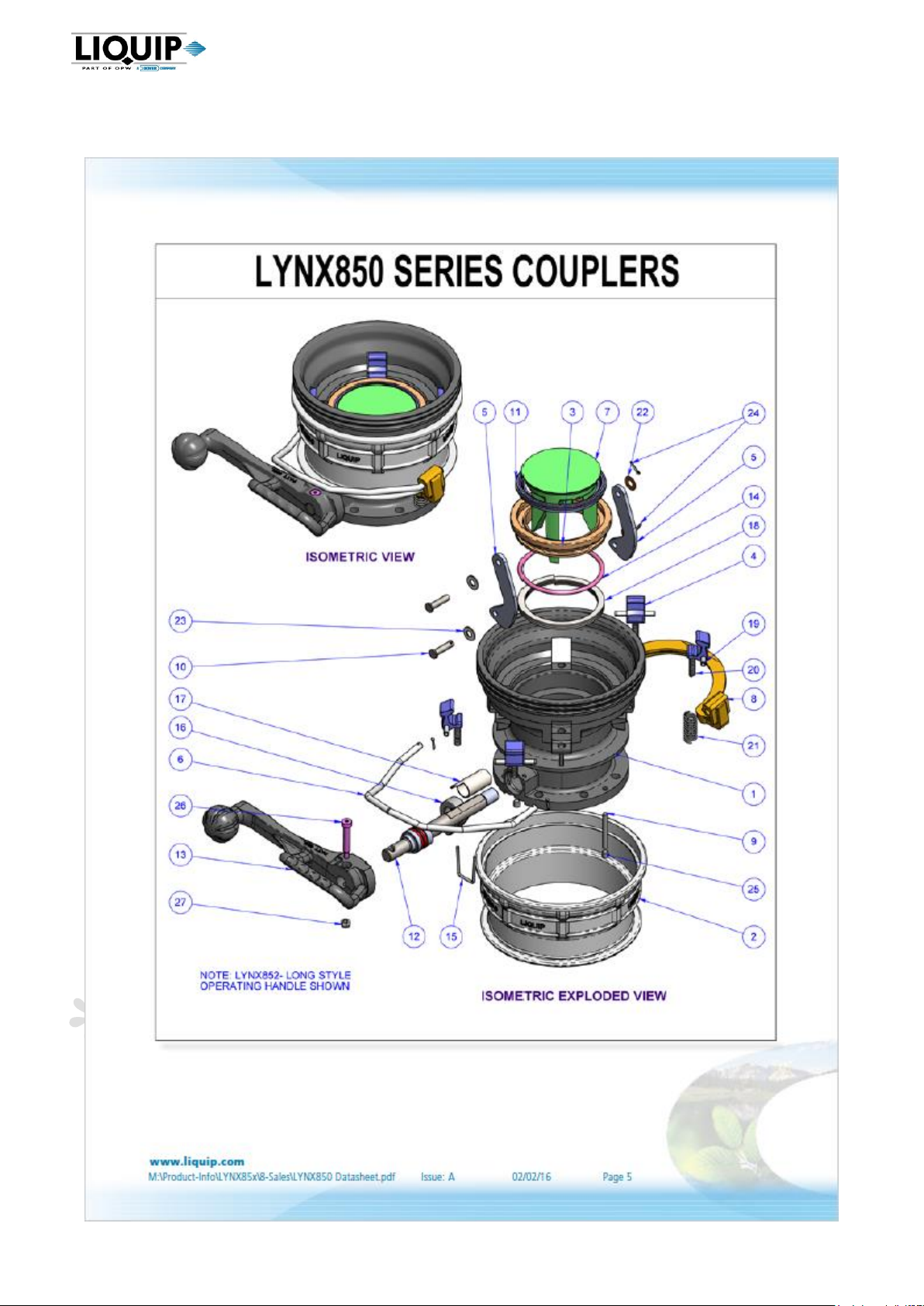

i. Strip and remove shaft and bush assembly and replace o-ring and bush assembly.
ii. Check the hinge casting and wire handle are in good condition and do not show significant
signs of wear. Check springs are not broken.
iii. Visually inspect the wave spring for damage, replace if required.
iv. Visually inspect the latches for excessive wear when stripped inspect the roll pin axles are tight
and not worn, replace if required.

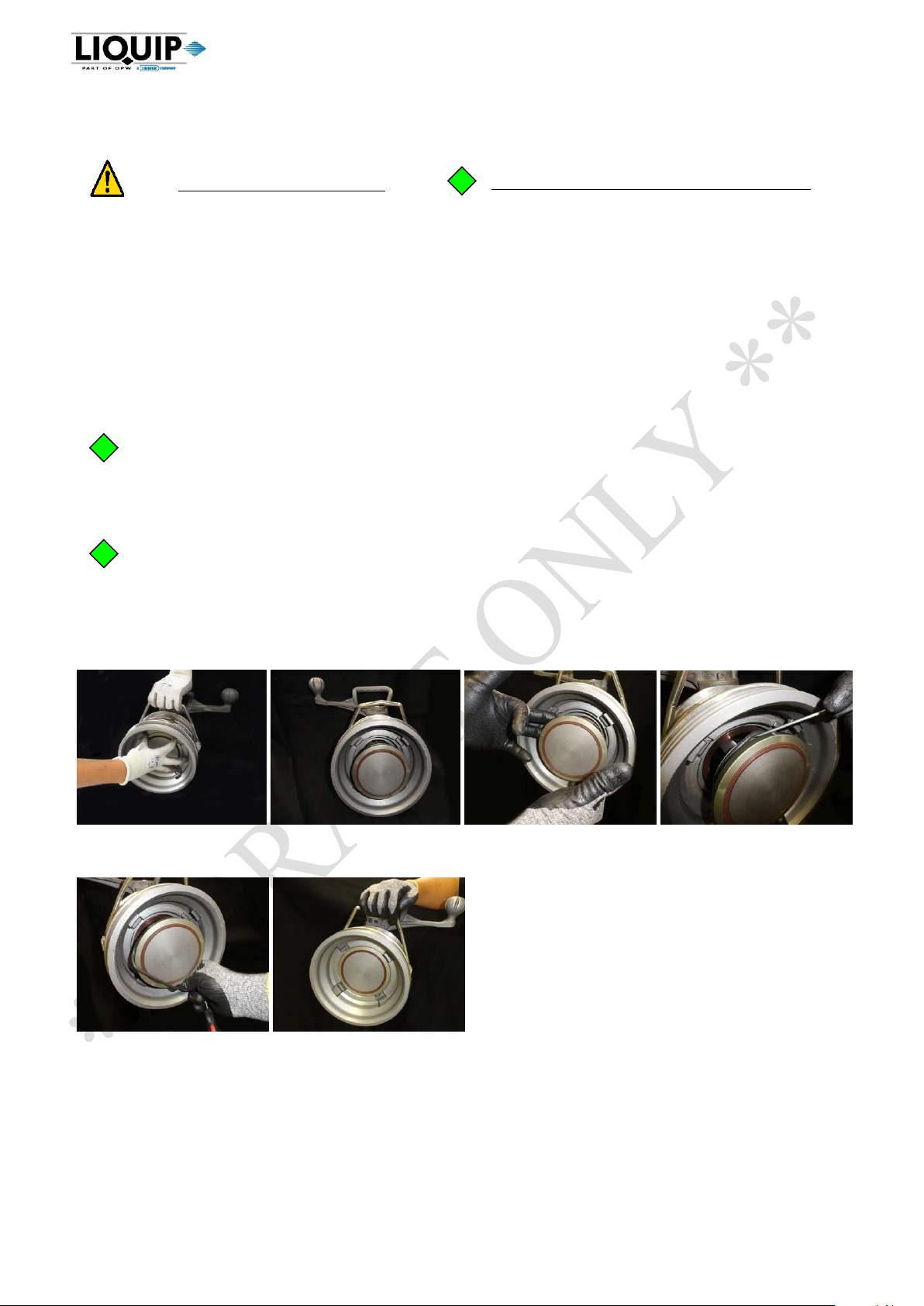

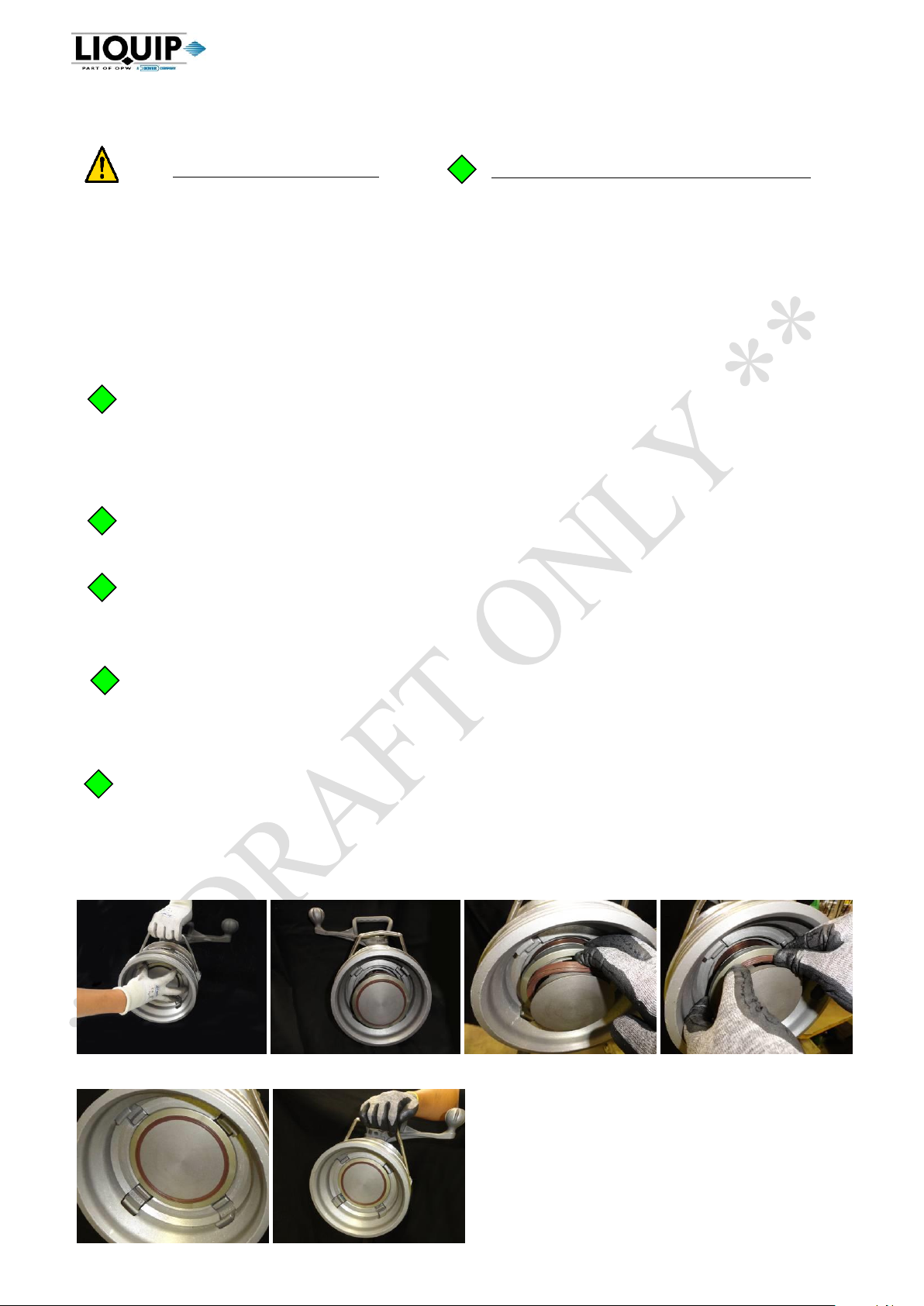

v. Replace all product seal and outer o-ring.
vi. Visually inspect the sealing surface for the poppet adaptor ring, any wear or damage shown in
this area, replace the body.
vii. Check valve mouth for excessive wear or damage and replace body if required.
Carry out service number listed at each time interval, when service No 3 is reached, return back to the start of the
operating period.
