Lionel 6-31947 User manual

73-1947-250

5/03

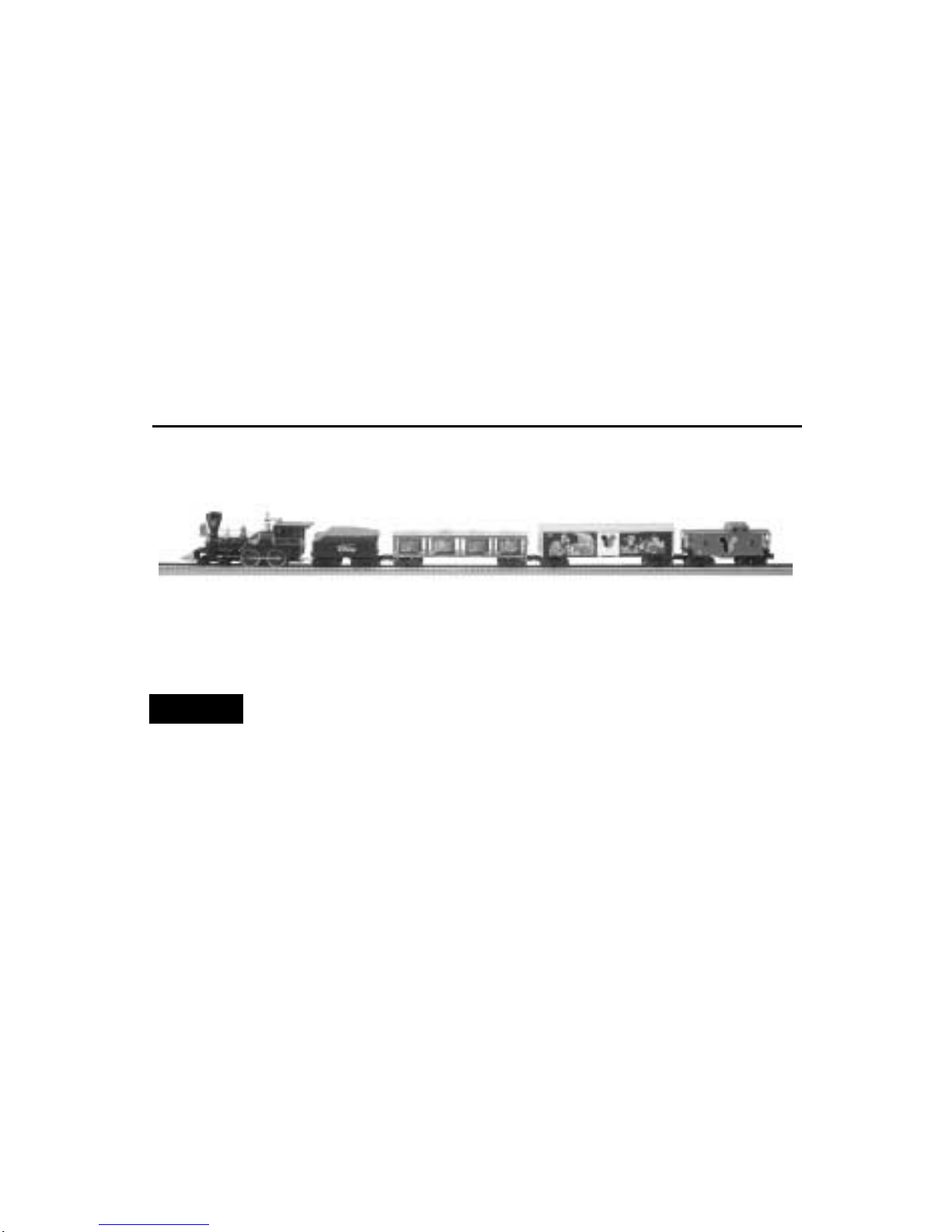

World of Disney

Ready-to-Run Train Set

Owner’s Manual

CAUTION—ELECTRICTOY

NOT RECOMMENDED FOR CHILDREN UNDER EIGHT YEARS OF AGE. AS WITH

ALL ELECTRIC PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING

HANDLINGAND USETO REDUCETHE RISK OF ELECTRIC SHOCK.

TRANSFORMER RATINGS—INPUT:120VAC; 60 HZ ONLY.

AC OUTPUT:18V; 80VA

©Disney

Congratulations!

Congratulations on your purchase of the

ready-to-run World of Disney Train Set!

This set features everything you need to get

started—a mighty CW-80 Transformer, a

huge loop of easy-to-assemble FasTrack

track, a string of detailed cars, and a power-

ful Lionel locomotive.

Have fun growing with this complete train

set! Start with the set components, then fol-

low your imagination into your own minia-

ture world. Expand your railroad empire

with additional FasTrack track sections,

enhance your layout with accessories,

lengthen your consist with extra cars, or

operate a new locomotive at the head end of

your train! Explore the possibilities at your

authorized Lionel dealer.

Use this Owner’s Manual to learn how to

set up, operate, and maintain your train set

for years of reliable operation.

The transformer included with this set should be periodically

examined for conditions that may result in the risk of fire,

electric shock, or injury to persons (such as damage to the

output cord, blades, housing, or other parts). In the event that

such conditions exist, the transformer should not be used until

properly repaired.

Parents!

World of Disney Train Set Features

Bright

headlight

Operating

couplers

Opening reefer

doors

Pufﬁng smoke Lighted caboose

interior

Forward-Neutral-Reverse

operation

The following Lionel marks may be used throughout this instruction manual and are protected under

Lionel®, TrainMaster®, Odyssey®, RailSounds™, CrewTalk™, TowerCom™, DynaChuff™,

StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1 Remote Controller®,

PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®

The name FasTrack®is used with permission from Pitsco, Inc.

Table of contents

Track layout

Building your Lionel layout 4

Joining the FasTrack track sections 4

Controller operations

Operating your CW-80 Transformer safely 5

Installing your CW-80 Transformer 5

Wiring your CW-80 Transformer 6-7

Advanced connections: powering two isolated blocks with two transformers 8

Experiencing the features of the CW-80 Transformer 9-10

Setting the accessory output 11

Powering your layout with the CW-80 Transformer 11

Train operations

Running your train set 12

Reverse unit procedure 13

Tire-Traction 14

Coupling 14

Maintaining and servicing your set

Lubricating your 4-4-0 locomotive 15

Adding smoke fluid to your locomotive 16

Replacing your locomotive’s lamps 17

Replacing your Square Window Caboose lamp 18

Troubleshooting 19

Limited Warranty/Lionel Service 20

World of Disney Train Set Inventory

• 4-4-0 General Locomotive

• Tender

• Vat car

• Reefer

• Square window caboose

• CW-80 Transformer with

accessory wire

• Three straight FasTrack track

sections

• Eight curved FasTrack track

sections

• One straight FasTrack terminal

track section

• Smoke fluid

• Owner’s Manual

• Service Center list

• Instruction video

• Lionel RailRoader Club flyer

• Catalog

Track layout

Joining the FasTrack track sections

FasTrack track sections join together easily. With interlocking roadbed sections and large

rail tabs, the track fits together securely so you always get good electrical contact. Take a

look at Figure 2 to see how to join the track sections.

1. Line up your two sections of track.

2. Insert the rail tabs into the openings at the ends of the corresponding

rails.

3. Press the sections together until the interlocking roadbed snaps into

place.

Figure 2. Joining the track sections

Building your Lionel layout

Your set comes with eight curved, three straight, and one terminal section of track. Figure 1

provides some examples of layouts that you can build with these track sections.

By adding more FasTrack track sections, you can create an endless number of exciting

track arrangements for more fun, action, and variety. The railroad empire of your dreams can

quickly become a reality!

Figure 1. Track layout ideas

Rail tab

Operating your CW-80 Transformer safely

Your Lionel CW-80 Transformer is listed by Underwriter’s Laboratory Inc. and has been

carefully designed to ensure peak performance. When using electrical products, basic

safety precautions should be maintained.

Be sure to observe the following guidelines:

• Read the manual thoroughly before using this device.

• This device is not recommended for children under eight years of age.

• Parents should periodically inspect this product for potential hazards and, if necessary,

have them repaired by an authorized Lionel Service Center. In the event that such a condi-

tion exists, the transformer should not be used until it has been properly repaired.

• The CW-80 Transformer is intended to be used indoors. Do not use this device if water is

present. Serious or fatal injuries may result.

• Use the CW-80 Transformer only for its intended purpose.

• The CW-80 Transformer was meant to operate on 120-volt, 60-Hertz power. Do not connect

this product to any other power supply.

• Do not operate the CW-80 Transformer with a damaged cord, plug, or case.

• To avoid the risk of electrical shock, do not disassemble the unit. There are no user service-

able parts inside. If damaged, take this product to an authorized Lionel Service Center. A

list of authorized Service Centers is packed with this unit.

• Do not operate the CW-80 Transformer on your layout unattended. Obstructed accessories

or stalled trains may overheat, resulting in damage to your layout.

• Always unplug the CW-80 Transformer from the power source when not in use.

• Never insert objects into the ventilation slots on this product. Damage to sensitive

electronic components can result.

Installing your CW-80 Transformer

To mount your CW-80 Transformer to your layout or control panel, drive a screw (not

included) through each of the four mounting holes located at the corners of the base.

Controller operations

Wiring your CW-80 Transformer

Connect your FasTrack terminal section to the CW-80 Transformer. Use the wires that are

already attached to the terminal section. Make sure that all connections are secure. Loose

connections can produce extremely high temperatures. For this reason, do not touch the

terminals or track connections during use. Also, do not locate scenery materials such as

lichen or ground foam near the terminals.

1. Feed the wires through the notch in the FasTrack terminal section. Refer to

Figure 3 on page 7.

2. Loosen the red TRACK thumbscrew terminal, then slide the red

spade-shaped connector into position. The thumbscrew post should be positioned

between the “blades” of the spade connector. Tighten the thumbscrew to secure the

connection.

3. Loosen the black TRACK thumbscrew terminal, then slide the black

spade-shaped connector into position. Tighten the thumbscrew to secure the

connection.

4. If you need to power an accessory (available separately at your

authorized Lionel dealer), connect the accessory to the ACCESSORY

thumbscrew terminals. Use the accessory wire included with the CW-80 Transformer.

5. Plug the CW-80 Transformer into your wall outlet (120 volts).

As your layout expands, you may also make power connections with the stripped ends of

wires, placing no more than two wires on each terminal. For best performance on large

layouts, it is recommended that you use 16-gauge wire to connect your CW-80 Transformer to

the track. On larger layouts where several track connections are required, the use of separate

junctions/terminal strips (available at your local electronics store) is recommended to

prevent voltage drops.

To prevent the excessive build up of heat, be sure to select the proper wire gauge

for your layout. Follow these guidelines:

• Track connections must be made with 18-gauge wire or heavier. Larger

layouts require a minimum of 16-gauge wire.

• Use 24-gauge wire only when connecting single accessories that require lower

current.

• When wiring multiple accessories (two or more) or accessories that require

higher current, be sure to use 18- to 16-gauge wire.

Caution!

Controller operations

Wiring your CW-80 Transformer (continued)

U120/60z

0~18VAC

TRACK ACCESSORY

Figure 3. Controller connections

FasTrack terminal section

Notch

Spade-shaped

connector

Controller operations

Advanced connections: powering two isolated blocks with two

transformers

As you expand your layout, you may decide to create

two isolated blocks of track. Trains in each block

are controlled by separate transformers.

Before you operate your trains on this type of layout,

be sure that your transformers are in phase. Operating

your trains on a layout with two transformers that are

out of phase may cause damage to the locomotive’s sen-

sitive electronic components.

To be certain that your transformers are in phase, use

a small 18-volt lamp with leads (available at your local

electronics supply store) to perform a quick test. Refer to

Figure 4.

1. Attach one lamp wire to the center rail in one block.

2. Attach the second lamp wire to the center rail in the other block.

3. Power up both blocks of track. Both transformers should be set to full power.

4. See if the lamp illuminates.

If the lamp illuminates brightly, your transformers are not in phase. Do not operate your

trains on the layout until you change the wiring. If the lamp does not illuminate, your trans-

formers are in phase and should not cause problems.

To bring your transformers into phase, simply swap the track wires at the A and U terminals

on one of the transformers. If you are using an older transformer that lacks a polarized plug,

you may reverse the plug at the outlet so that the prongs are inserted into the opposite

openings. Repeat the procedure described above, and you should find that the lamp does not

illuminate.

This will also reverse the operation of the BELL and WHISTLE buttons on the

transformer with the switched wires.

Figure 4. Testing for proper phasing

Note!

Refer to Figure 5 on page 10 for the location of the Transformer features listed in this section.

THROTTLE

Push the throttle forward to increase track power. The markings on the throttle approxi-

mate the percentage of full power. For more realism, push the throttle slowly to gradually

increase or decrease the speed of the locomotive. Slowing or stopping the locomotive with the

throttle instead of the DIRECTION button will allow you to continue in the same direction

when you increase the throttle again. To achieve this effect, reduce the throttle to the point

that the locomotive stops moving, but don’t completely turn off the throttle. That way, your

train won’t sequence into neutral.

POWER-ON INDICATOR

The green light will remain on during normal operation. The green light will begin to

flash if you exceed the power limit of the Transformer. The unit will allow you to momentarily

exceed the power limit, but power will be gradually reduced until the problem is corrected.

The benefit is that the Transformer will not instantly turn off.

DIRECTION

The DIRECTION control button interrupts track power to activate the reverse unit in your

locomotive. Your locomotive will not respond to this button when the reverse unit switch is in

the OFF position.

WHISTLE

The WHISTLE button will activate your locomotive’s whistle or horn. The sound will con-

tinue until the button is released. No external sound activation buttons are needed.

Your locomotive is not equipped with whistle sounds.

BELL

The BELL button will activate the bell sounds on locomotives equipped with this feature. Press

and hold the BELL button for two to three seconds to begin the sounds; press and hold the button

again to turn off the ringing.

Your locomotive is not equipped with bell sounds.

Do not activate horns, whistles, or bells on RailSounds-equipped locomotives until

track power has been turned on for a few moments, or a continuous horn/whistle or

bell sound may occur. To correct this problem, simply turn off the CW-80

Transformer, then turn it back on.

Controller operations

Experiencing the features of the CW-80 Transformer

Note!

Experiencing the features of the CW-80 Transformer

(continued)

Whistle

Activates the whistle or horn sound

effect in Lionel locomotives. Press

WHISTLE to begin the sound; release

the button to end it.

Bell

Starts or stops the tolling bell in any

RailSounds-equipped locomotive.

Press BELL to begin the sound,

again to stop it.

Direction

Press the DIRECTION button to go forward

or reverse,or to place the locomotive in

neutral (no movement,headlight is on).

Throttle

Controls your locomotive’s speed. Throw the throttle for-

ward to increase locomotive speed,backward to slow it

down.

Power-on indicator

The green light

illuminates when the

CW-80 is on.

Figure 5. Transformer features

Controller operations

Table of contents

Other Lionel Toy manuals

Lionel

Lionel K-LINE EP-5 User manual

Lionel

Lionel Halloween Witch Pylon User manual

Lionel

Lionel Ready-to-Run Riding the Rails Hobo Train User manual

Lionel

Lionel Lirr Passenger User manual

Lionel

Lionel Fastrack User manual

Lionel

Lionel LionChief Plus 2.0 0-6-0T User manual

Lionel

Lionel AC6000 User manual

Lionel

Lionel 255E User manual

Lionel

Lionel 59 Minuteman User manual

Lionel

Lionel Illuminated Station Platform User manual

Lionel

Lionel Animated Caboose 73-6729-250 User manual

Lionel

Lionel Pennsylvania Limited User manual

Lionel

Lionel 1563W Wabash Freight Set User manual

Lionel

Lionel GP-7 diesel locomotive User manual

Lionel

Lionel Norfolk Southern Ready-to-Run Freight Set User manual

Lionel

Lionel AMERICAN FLYER EP-5 User manual

Lionel

Lionel 6-29366 User manual

Lionel

Lionel Freedom User manual

Lionel

Lionel Wild West Set User manual

Lionel

Lionel Inspection Vehicle User manual

Lionel

Lionel Searchlight Car User manual

Lionel

Lionel Coal Loader to an SC-2 User manual

Lionel

Lionel Railroad Speeder User manual

Lionel

Lionel Heisler User manual

Popular Toy manuals by other brands

marklin

marklin 37321 instruction manual

Canon

Canon PAPER CRAFT Assembly instructions

GREAT PLANES

GREAT PLANES Pitts M-12S instruction manual

NOCH

NOCH 14261 manual

Hausler

Hausler 450 SE V2 quick start

Dynaflite

Dynaflite Daydream instruction manual

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Build instructions

Kenner

Kenner Batman 63651 instructions

LEGO

LEGO 8527 instructions

iKarus

iKarus ECO 8 Assembly instruction

Multiplex

Multiplex EasyStar II Building instructions

Walkera

Walkera 38 User handbook

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE manual

MD MXION SWD user manual

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway instructions

marklin

marklin 39671 user manual

Meccano

Meccano 15103 instructions

LEGO

LEGO TECHNIC 8735 instructions
