Linear Technology DC2195A Quick setup guide

dc2195afb

DEMO MANUAL DC2195A

Description

LT8609

42V, 2A Micropower Synchronous

Step-Down Regulator

Demonstration circuit 2195A is a 42V, 2A micropower

synchronous step-down regulator featuring the LT8609.

The demo board is designed for 5V output from a 5.5V to

42V input. The wide input range allows a variety of input

sources, such as automotive batteries and industrial sup-

plies. The LT8609 is a compact, high efficiency, high speed

synchronous monolithic step-down switching regulator

that consumes only 2.5μA of quiescent current when

output is regulated at 5V. Top and bottom power switches,

compensation components and other necessary circuits

are inside of the LT8609 to minimize external components

and simplify design.

The SYNC pin on the demo board is grounded by default

for low ripple burst mode operation. Move JP1 to PULSE

SKIPPINGpositioncanchangetheoperationmodetopulse-

skipping operation. Once JP1 is on SPREAD SPECTRUM

position, VCC is applied to the SYNC pin for low EMI spread

spectrum operation. To synchronize to an external clock, L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

performance summary

move JP1 to SYNC and apply the external clock to the

SYNC turret. Figure 1 shows the efficiency of the circuit.

The demo board has an EMI filter installed. Under spread

spectrum operation, the radiated EMI performances of the

board (with EMI filter) are shown in Figures 2 and 3. The red

lines in Figures 2 and 3 are CISPR25 Class 5 peak limit. To

use the EMI filter, the input should be tied to VEMI, not VIN.

This board is suitable for a wide range of automotive,

telecom, industrial, and other applications.

The LT8609 data sheet gives a complete description of

the part, operation and application information. The data

sheet must be read in conjunction with this demo manual

for DC2195A.

Design files for this circuit board are available at

http://www.linear.com/demo/DC2195A

Specifications are at TA= 25°C

SYMBOL PARAMETER CONDITIONS MIN TYP MAX UNITS

VIN Input Voltage Range 5.5 42 V

VOUT Output Voltage 4.8 5 5.2 V

IOUT Maximum Output Current 2 A

fSW Switching Frequency 1.85 2 2.15 MHz

EFE Efficiency at DC VIN = 12V, IOUT = 1A 93 %

Downloaded from Arrow.com.

dc2195afb

DEMO MANUAL DC2195A

Quick start proceDure

DC2195A is easy to set up to evaluate the performance

of the LT8609. Refer to Figure 4 for proper measurement

equipment setup and follow the procedure below:

NOTE: When measuring the input or output voltage ripple,

care must be taken to avoid a long ground lead on the

oscilloscope probe. See Figure 5 for the proper scope

technique.

1. Set an input power supply that is capable of 42V/2A.

Then turn off the supply.

2. Withpower off, connect the supplyto the inputterminals

VEMI and GND.

3. Turn on the power at the input.

NOTE: Make sure that the input voltage never exceeds 42V.

4. Check for the proper output voltage of 5V. Turn off the

power at the input.

5. Once the proper output voltage is established, connect

a variable load capable of sinking 2A at 5V to the output

terminals VOUT and GND. Set the current for 0A.

a. If efficiency measurements are desired, an ammeter

can be put in series with the output load in order to

measure the DC2195A’s output current.

b. A voltmeter can be placed across the output terminals

in order to get an accurate output voltage measurement.

6. Turn on the power at the input.

NOTE: If there is no output, temporarily disconnect the

load to make sure that the load is not set too high.

7. Once the proper output voltage is again established,

adjust the load and/or input within the operating range

and observe the output voltage regulation, ripple volt-

age, efficiency and other desired parameters.

8. An external clock can be added to the SYNC ter-

minal when SYNC function is used (JP1 on the

SYNC position). Please ensure that the chosen RT

sets the LT8609 switching frequency to equal or

below the lowest SYNC frequency. See the data

sheet section, “Synchronization.”

Figure 1. Efficiency vs Load Current at 2MHz Switching Frequency

IOUT (A)

EFFICIENCY (%)

100

50 1.5

DC2195 F01

210.5

12V INPUT

24V INPUT

Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2195afb

DEMO MANUAL DC2195A

Quick start proceDure

Figure 2. LT8609 Demo Circuit EMI Performance in CISPR25 Radiated Emission Test, Antenna Polarization:

Vertical (VIN = 14V, VOUT = 5V, IOUT = 2A, 2MHz Switching Frequency, Spread Spectrum Mode operation)

Figure 3. LT8609 Demo Circuit EMI Performance in CISPR25 Radiated Emission Test, Antenna Polarization:

Horizontal (VIN = 14V, VOUT = 5V, IOUT = 2A, 2MHz Switching Frequency, Spread Spectrum Mode Operation)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2195afb

DEMO MANUAL DC2195A

Quick start proceDure

–

POWER

SUPPLY

IIN

VIN

IOUT

–

LOAD

+–+–

–

Figure 4. Proper Measurement Equipment Setup

Figure 5. Measuring Output Ripple

OUT

GND

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2195afb

DEMO MANUAL DC2195A

Quick start proceDure

Figure 6. DC2195A 1A to 2A Load Transient

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2195afb

DEMO MANUAL DC2195A

parts List

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 1 C2 CAP., X7R, 4.7µF, 50V, 10%, 1206 MURATA, GRM31CR71H475K

2 1 C4 CAP., X7R, 0.22µF, 16V, 10%, 0603 AVX, 0603YC224KAT2A

3 1 C5 CAP., C0G, 10pF, 25V, 5%, 0603 AVX, 06033A100JAT2A

4 1 C6 CAP., X7R, 47µF, 10V, 10%, 1210 MURATA, GRM32ER71A476KE20L

5 1 C7 CAP., X7R, 1.0µF, 25V, 10%, 0603 MURATA, GRM188R71E105KA12D

6 1 C8 CAP., X7R, 0.01µF, 16V, 10%, 0603 AVX, 0603YC103KAT2A

7 1 L1 IND., 2.2µH COILCRAFT, XFL4020-222MEC

8 1 R2 RES., CHIP, 18.2k, 1/10W, 1%, 0603 VISHAY, CRCW060318K2FKEA

9 1 R3 RES., CHIP, 49.9k, 1/10W, 1%, 0603 VISHAY, CRCW060349K9FKEA

10 2 R1, R4 RES., CHIP, 1M, 1/10W, 1%, 0603 VISHAY, CRCW06031M00FKEA

11 1 R5 RES., CHIP, 187k, 1/10W, 1%, 0603 VISHAY, CRCW0603187KFKEA

12 1 U1 IC, REGULATOR, MSE10 LINEAR TECH., LT8609EMSE#PBF

Additional Demo Board Circuit Components

1 1 C1 CAP., ALUM 22µF, 63V SUN ELECT, 63CE22BS

2 2 C3, C10 CAP., X7R, 4.7µF, 50V, 10%, 1206 MURATA, GRM31CR71H475K

3 1 C9 CAP., X7R, 4.7µF, 16V, 10%, 0805 MURATA, GRM21BR71C475K73L

4 1 C11 CAP., X7R, 1µF, 50V, 10%, 0805 TDK, C2012X7R1H105K

5 2 C12, C13 CAP., X7R, 0.1µF, 50V, 10%, 0603 MURATA, GRM188R71H104KA93D

6 1 FB1 FERRITE BEAD 0805 TDK, MPZ2012S221A

7 1 L2 RES., CHIP, 0Ω, 3/4W, 2010 VISHAY, CRCW20100000Z0EF

8 0 R6 (OPT.) RES., 0603

Hardware: For Demo Board Only

1 9 E1-E9 TESTPOINT, TURRET, 0.094" MILL-MAX, 2501-2-00-80-00-00-07-0

2 1 E10 (OPT.) TESTPOINT, TURRET, 0.094"

3 1 JP1 DOUBLE ROW HEADER 2 ×4 0.079" SULLINS NRPN042PAEN-RC

4 1 XJP1 SHUNT, 0.079" CENTER SAMTEC 2SN-BK-G

5 4 MH1-MH4 STAND-OFF, NYLON 0.50" TALL KEYSTONE, 8833 (SNAP ON)

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2195afb

DEMO MANUAL DC2195A

Information furnished by Linear Technology Corporation is believed to be accurate and reliable.

However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa-

tion that the interconnection of its circuits as described herein will not infringe on existing patent rights.

schematic Diagram

C C

B B

A A

ALL CAPACITORS ARE 0603.

NOTES: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS ARE 0603.

SUNCON

63CE22BS

(2MHz)

SYNC

SPREAD SPECTRUM

PULSE SKIPPING

BURST

VOUT

VCC

EN/UV

18.2k

SYNC

1.00M

22µF

63V

2.2µH

XFL4020-222MEC

GND

TR/SS

47µF

10V

1210

C11

1µF

50V

0805

0.01µF

C10

4.7µF

50V

1206

0.22µF

(Opt)

1µF

E8 PG

49.9k

JP1

1 2

VOUT

5V / 2A

GND

10pF

187k

1.00M

0Ω 2010

C13

0.1µF

50V

4.7µF

50V

1206

VEMI

5.5V - 42V

FB1

4.7µF

50V

1206

C12

0.1µF

50V

LT8609EMSE

VIN

EN/UV

SYNC

VCC

TR/SS

FB 6

PG 8

SW 2

BST 1

GND

E10

VIN

5.5V - 42V

GND

4.7µF

16V

0805

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

dc2195afb

DEMO MANUAL DC2195A

Linear Technology Corporation

1630 McCarthy Blvd., Milpitas, CA 95035-7417

(408) 432-1900 ●FAX: (408) 434-0507 ●www.linear.com

 LINEAR TECHNOLOGY CORPORATION 2015

LT 0315 REV B • PRINTED IN USA

DEMONSTRATION BOARD IMPORTANT NOTICE

Linear Technology Corporation (LT C ) provides the enclosed product(s) under the following AS IS conditions:

This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT

OR EVALUATION PURPOSES ONLY and is not provided by LT C for commercial use. As such, the DEMO BOARD herein may not be complete

in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety

measures typically found in finished commercial goods. As a prototype, this product does not fall within the scope of the European Union

directive on electromagnetic compatibility and therefore may or may not meet the technical requirements of the directive, or other regulations.

If this evaluation kit does not meet the specifications recited in the DEMO BOARD manual the kit may be returned within 30 days from the date

of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY THE SELLER TO BUYER AND IS IN LIEU

OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS

FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THIS INDEMNITY, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR

ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user releases LT C from all claims

arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all

appropriate precautions with regard to electrostatic discharge. Also be aware that the products herein may not be regulatory compliant or

agency certified (FCC, UL, CE, etc.).

No License is granted under any patent right or other intellectual property whatsoever. LT C assumes no liability for applications assistance,

customer product design, software performance, or infringement of patents or any other intellectual property rights of any kind.

LT C currently services a variety of customers for products around the world, and therefore this transaction is not exclusive.

Please read the DEMO BOARD manual prior to handling the product. Persons handling this product must have electronics training and

observe good laboratory practice standards. Common sense is encouraged.

This notice contains important safety information about temperatures and voltages. For further safety concerns, please contact a LT C applica-

tion engineer.

Mailing Address:

Linear Technology

1630 McCarthy Blvd.

Milpitas, CA 95035

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

This manual suits for next models

Table of contents

Other Linear Technology Controllers manuals

Linear Technology

Linear Technology LTC3624 Quick setup guide

Linear Technology

Linear Technology DC1613A Quick setup guide

Linear Technology

Linear Technology LT8610 Quick setup guide

Linear Technology

Linear Technology LT1761 User manual

Linear Technology

Linear Technology LTC4260 User manual

Linear Technology

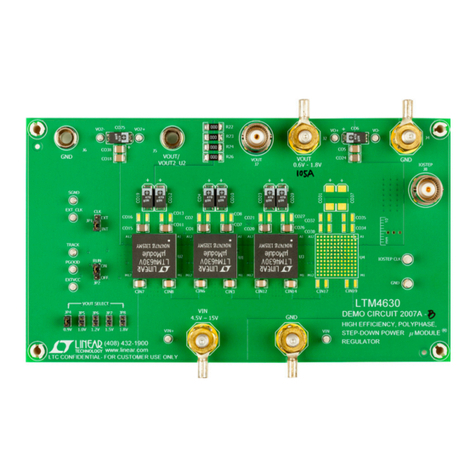

Linear Technology DC2007A-B Quick setup guide

Linear Technology

Linear Technology 813 Operating and maintenance instructions

Linear Technology

Linear Technology LTC2950-2 User manual

Linear Technology

Linear Technology LT3695 Series User manual

Linear Technology

Linear Technology LTC7103 Quick setup guide

Linear Technology

Linear Technology DC1900A Quick setup guide

Linear Technology

Linear Technology LTC1736 User manual

Linear Technology

Linear Technology LTC5100 User manual

Linear Technology

Linear Technology LTC3626EUDC Quick setup guide

Linear Technology

Linear Technology LTC4266A User manual

Linear Technology

Linear Technology LT1425 User manual

Linear Technology

Linear Technology LTM4650-1 Quick setup guide

Linear Technology

Linear Technology LTC4231 Quick setup guide

Linear Technology

Linear Technology DC1084A-B User manual

Linear Technology

Linear Technology DC1723A Quick setup guide

Linear Technology

Linear Technology LT3480 User manual

Linear Technology

Linear Technology DC2465A Quick setup guide

Linear Technology

Linear Technology LT1374CFE User manual

Linear Technology

Linear Technology DC1588A Quick setup guide

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual
