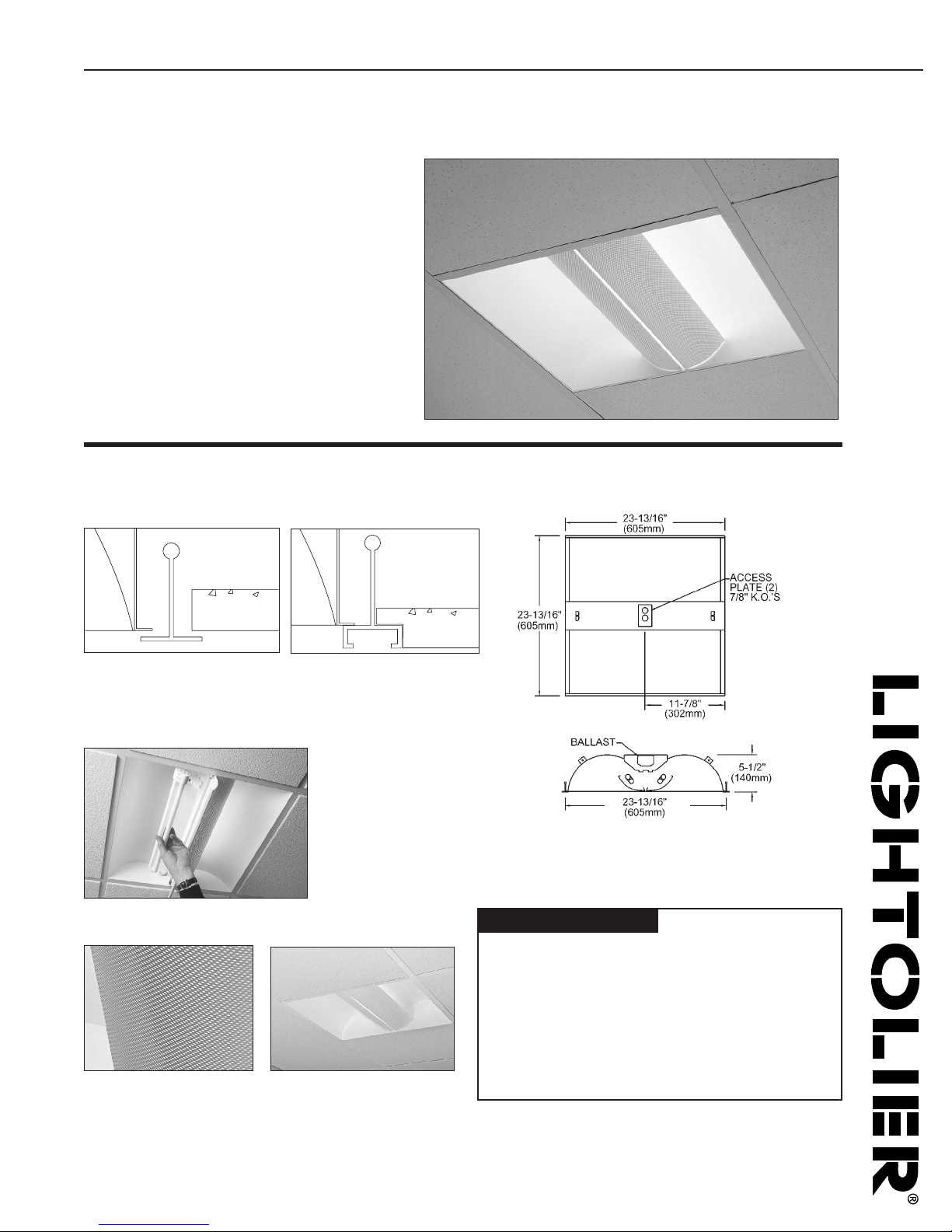

Lightolier QVS2GPFOS2FT User manual

Mounting Methods / Features Dimensions

Microperforated mesh

lamp shields

Also available with solid opaque swing-

down lamp shield

Ceiling compatibility

Suited to standard exposed

T-grid ceilings

Swing down optical system for

easy relamping and maintenance

Suited to standard exposed

Slot T-grid ceilings

ALTER SOFT LIGHTS QVS2GPFOS2FT 2X40W

Page 1 of 2 2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, TT5 BI-TUBE,

5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD, STATIC

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L10-25

Features

•Efficiency 58.5%.

•Dual swing down microperforated lamp shields

separated by luminous strip for easy relamping and

maintenance.

•Alter soft white film on inside of mesh conceals lamp

image providing balance between reflected and direct

light.

•Fully recessed luminaire and with two separate lamp

compartments.

•95% Reflective Alter soft white paint finish.

•Specular interior reflector.

•One piece body for easy installation.

•Exclusive socket locks lamp into place.

•Easy access to ballast through lamp compartment.

•Fits standard T-Grid ceilings.

•Optional acrylic drop-down visual element.

Ordering Information Explanation of Catalog Number Example: QVS2GPFOS2FT120BE

QUALITY

VISUAL

STATIC

Recessed direct

indirect soft

light

optical system

FIXTURE

WIDTH:

2’

CEILING TYPE:

Standard

exposed

T-grid ceilings

LAMP SHIELD:

PF = Microperforated

SD = Solid

LAMP QUANTITY

LAMP/FIXTURE

LENGTH:

(Nominal 24”)

FT = TT5

Bi-Tube

VOLTAGE:

120V

277V

347V

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold

rolled steel. Reflectors - 95% reflectance baked white acrylic matte paint finish.

Specular aluminum interior reflector. Soft white acrylic film on inside of lamp

shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

paint finish.

ELECTRICAL: Rapid start HPF, thermally protected class “P” ballast (Bi-tube

type). If K.Os are within 3” of ballast use wire suitable for at least 90C.

LABELS: Listed by

QVS 2 G 2 FT

BALLAST:

BE = 50W Electronic TT5 RS

BR =40W Electronic TT5 RS

BX =40W Magnetic TT5 RS

PB = 40W TT5 PowerSpec Dimming*

PC = 50/55W TT5 PowerSpec Dimming*

SB = 40W Generic Electronic TT5

*Not available in 347V.

OPTIONS:

R= Radio Interference Filter

O= Emergency Lighting System

(for Canada)

N= Emergency Lighting System

(for U.S.)

CLEAR POLISHED ACRYLIC DROP

DOWN VISUAL ELEMENT:

OS = Open slot (no acrylic)

OP = One Piece (no center slot)

GC = Clear acrylic

GG = Clear acrylic / Green pro

jected color face

GB = Clear acrylic / Blue pro-

jected color face

GR = Clear acrylic / Red pro-

jected color face

ALTER SOFT LIGHTS QVS2GPFOS2FT 2X40W

Page 2 of 2 2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT 2 LAMP, TT5 BI-TUBE,

5 1/2” DEEP MICROPERFORATED MESH LAMP SHIELD, STATIC

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Section 5 / Folio L10-25

Job Information Type:

Photometry
