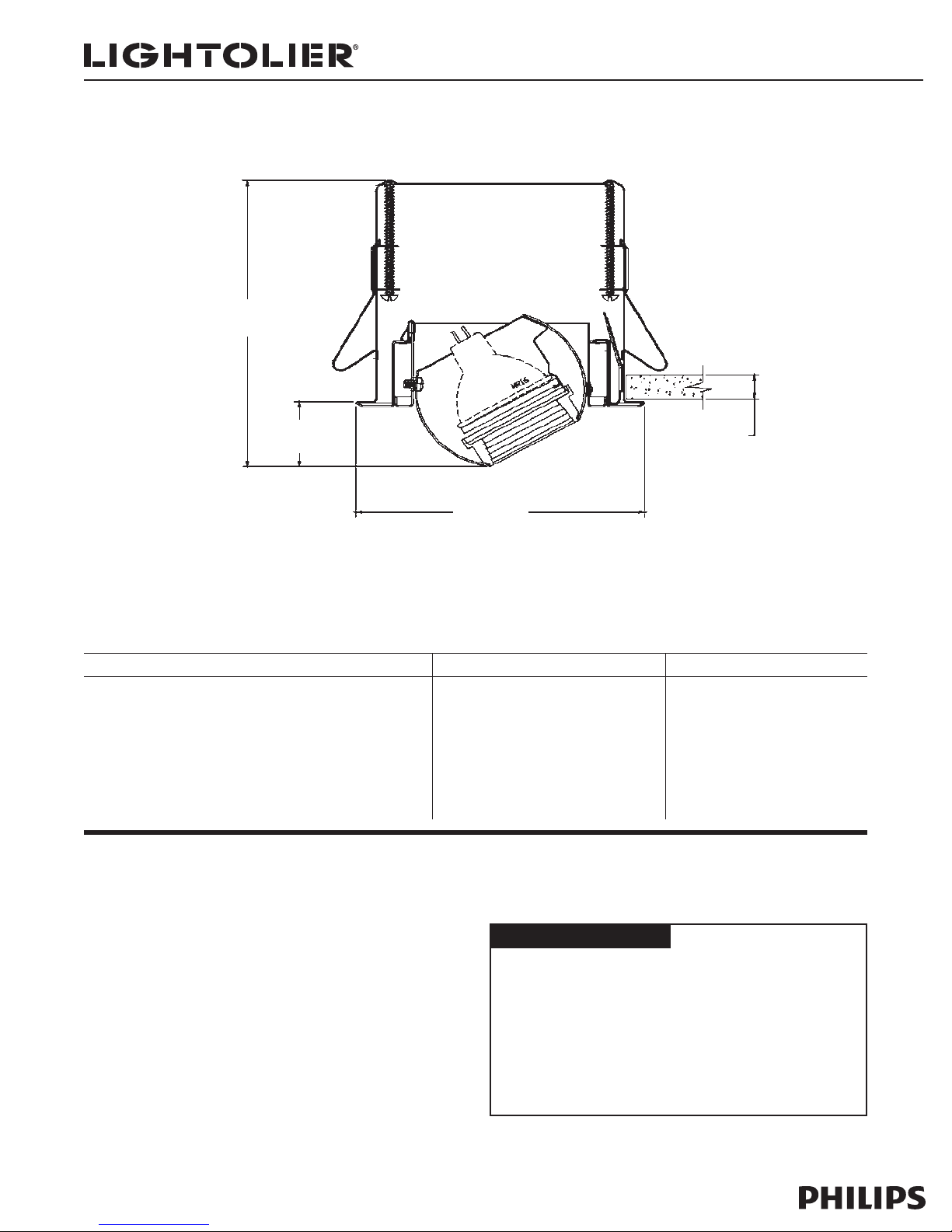

Lytecaster Recessed Downlighting 406X

Page 1 of 2 4 3/4" Aperture Adjustable Eyeball MR16

Labels

CSA, UL (Suitable for damp and wet locations.)

5 3/4"

1" MAX

1 1/4"

5 1/4"

Features

1. Flange Housing: Cold rolled steel 22 ga. White trim flange.

2. Eyeball Housing: Die-formed, one piece steel; provides 358° horizontal

rotation and 0° to 45· vertical adjustment.

3. Step Baffle: Die cast aluminum with stepped conical surface for low

brightness, black or white finish.

4. Mounting Clips (3): 24ga. spring steel, zinc plated. Provide easy snap-in/

snap-out action.

5. Lamp Guard: 2" (51mm) dia. borosilicate glass.

Frame-In Kit

Note: For complete Frame-In Kit specifications, see 400 frame specifica-

tion sheets.

Accessories

Square Face Plate

400SQWH White

400SQBK Black

Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately

Reflector Trim

Frame-In Kit Lamp

406WHX

406WWX

White Eyeball and Black Step Baffle

Stainless Steel Plated

Remodeler

Non-IC

400MRX

3401MREX

402MRX

402MREX

402MRIC9X

602MR

603MR

604MR

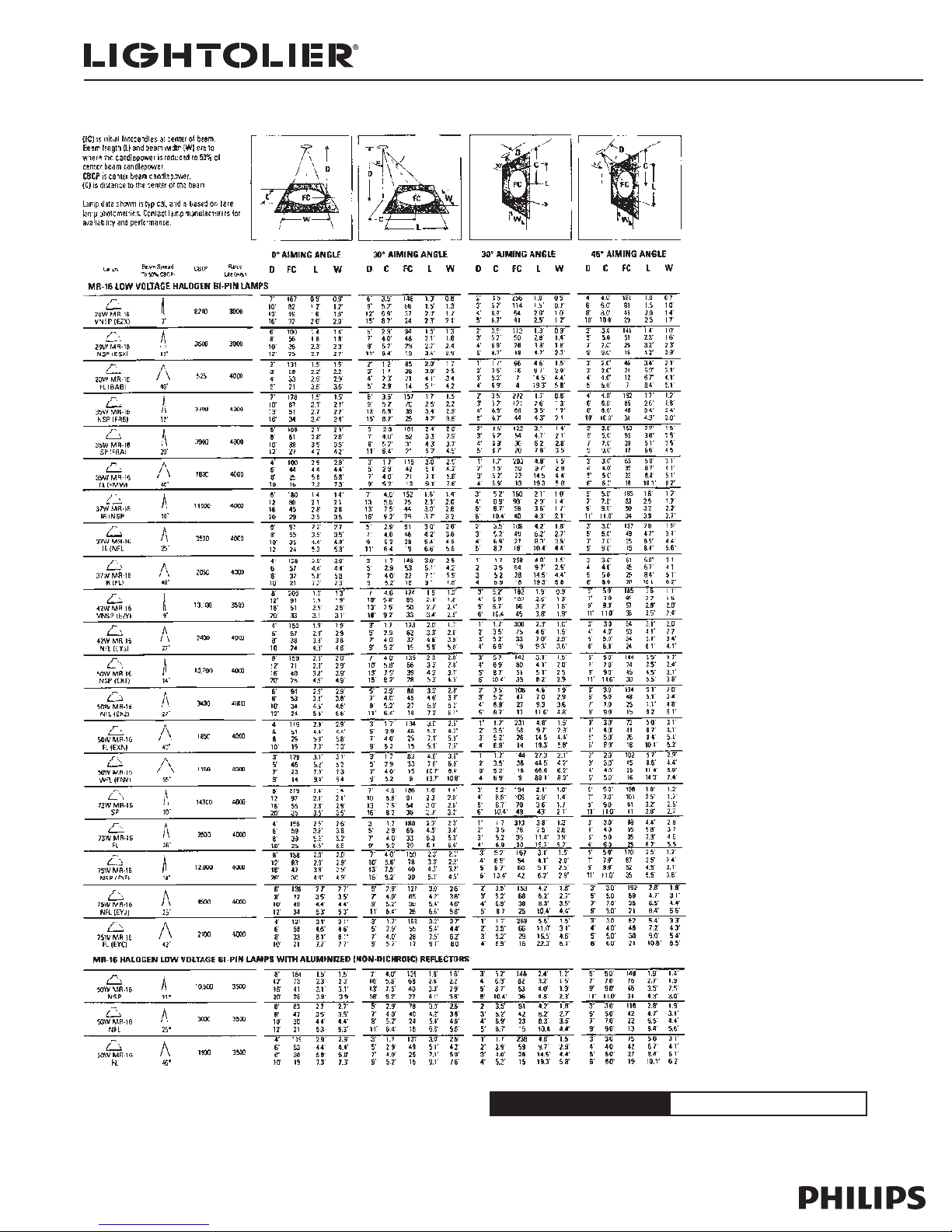

75W MR16

50W MR16

75W MR16

50W MR16

75W MR16

75W MR1
