ProSpec™120V/277V Track Lighting 37105

Page 1 of 2 Mini HID, Step Spot, 39W PAR20 CMH

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Locking Lever: Steel pin. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

5. Ballast: Electronic HID.

6. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

7. Lamp Housing: Die-cast aluminum with cool-grip® insulation band; a high

temperature silicone rubber which allows aiming adjustments while fixture is

on. Integral color.

8. Lampholder: Medium base 5kV pulse rated glazed porcelain body socket

with plated nickel screw shell and lamp contacts; 18AWG SEW-2 leads

encased in fiberglass sleeving.

9. Cowl: Painted steel; retaining ring included to hold accessory in place.

Accessories

Holder: Integral, holds one accessory

Diffusion/ Special Filters: AF25 series

Color Filters: ADF25 series

Louver (Hex Cell): AL25HC

Electrical

Electronic Ballast (Thermally Protected)

Input Voltage: 120V/277V Total Harmonic Distortion: <10%

Power Factor: >0.99 ANSI Code: M (C) 130

Input Power: 44W Do not use on dimming circuit

Max Input Current: 0.37A@120V/0.16A@277V

Finish

All painted finishes are baked powder or enamel.

Markings

UL, cUL

1 31/32"

[50 mm]

7 15/16"

[202 mm]

4 11/16"

[119 mm]

3 3/16"

[81 mm]

7 7/32"

[184 mm]

7 7/8"

[200 mm]

1 5/8"

[41 mm]

2 1/2"

[64 mm]

4 15/16"

[125 mm]

3 1/4"

[83 mm]

Catalog No. Finish Mounting Lamp

37105WH

37105BK

White

Black

ProSpec®120V/277V track systems only. 39W PAR20 CMH (M130) E26 medium base

Not included

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™120V/277V Track Lighting 37105

Page 2 of 2 Mini HID, Step Spot, 39W PAR20 CMH

22000 10000

GE CMH39PAR20/SP

10°

7500 10000

GE CMH39PAR20/FL

25°

22000 9000

Sylvania

CMH39PAR20/SP 10°

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

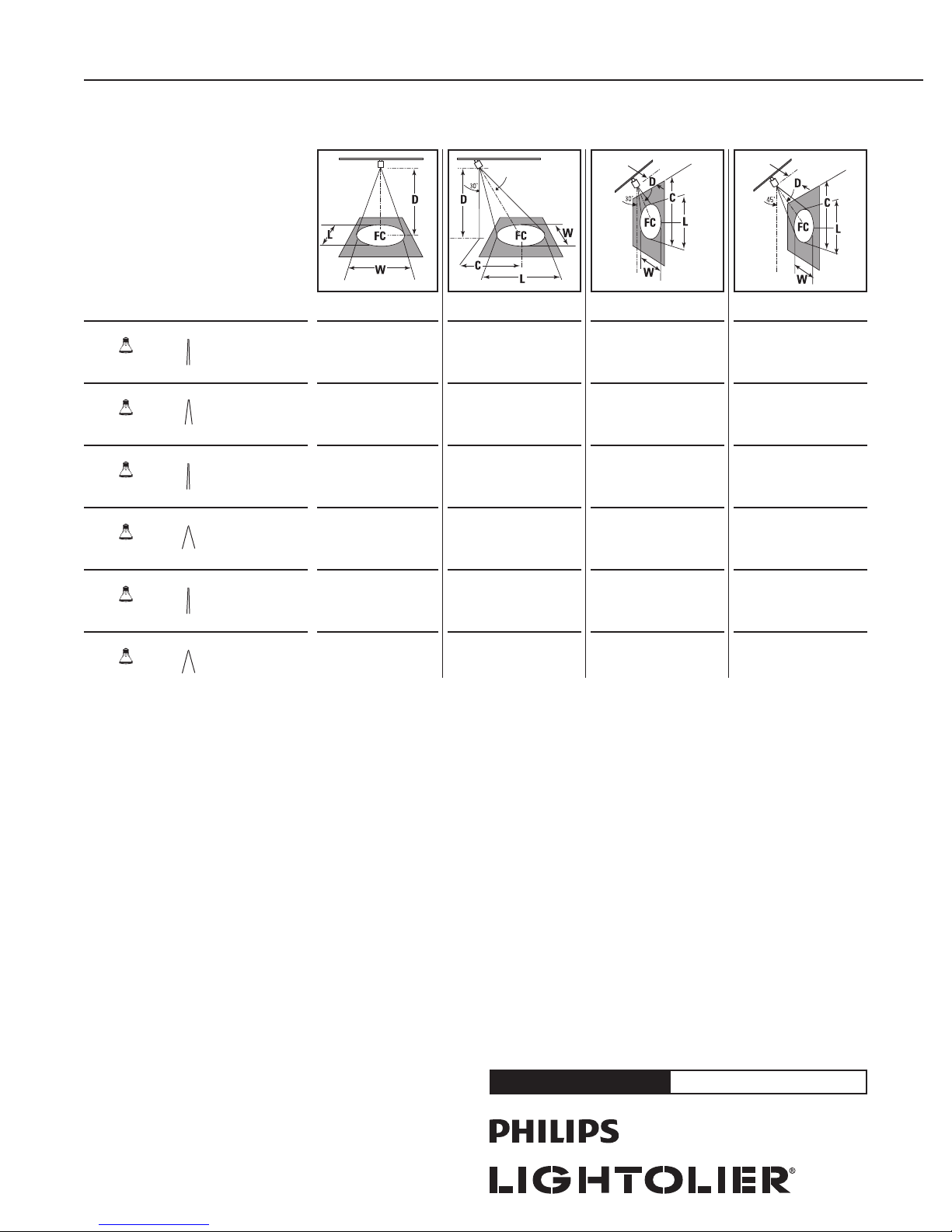

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length DDistance

W Beam Width AAiming Angle

CDistance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

8' 4.6' 223 1.9' 1.6'

10' 5.8' 143 2.3' 2.0'

12' 6.9' 99 2.8' 2.4'

14' 8.1' 73 3.3' 2.8'

3' 5.2' 306 2.1' 1.0'

4' 6.9' 172 2.9' 1.4'

5' 8.7' 110 3.6' 1.7'

6' 10.4' 76 4.3' 2.1'

4' 4.0' 486 1.4' 1.0'

5' 5.0' 311 1.8' 1.2'

6' 6.0' 216 2.1' 1.5'

7' 7.0' 159 2.5' 1.7'

8' 344 1.4' 1.4'

10' 220 1.7' 1.7'

12' 153 2.1' 2.1'

14' 112 2.4' 2.4'

6' 3.5' 135 3.6' 3.1'

8' 4.6' 76 4.8' 4.1'

10' 5.8' 49 6.0' 5.1'

12' 6.9' 34 7.2' 6.1'

2' 3.5' 234 4.2' 1.8'

3' 5.2' 104 6.2' 2.7'

4' 6.9' 59 8.3' 3.5'

5' 8.7' 38 10.4' 4.4'

3' 3.0' 295 2.8' 1.9'

4' 4.0' 166 3.7' 2.5'

5' 5.0' 106 4.7' 3.1'

6' 6.0' 74 5.6' 3.8'

6' 208 2.7' 2.7'

8' 117 3.5' 3.5'

10' 75 4.4' 4.4'

12' 52 5.3' 5.3'

8' 4.6' 223 1.9' 1.6'

10' 5.8' 143 2.3' 2.0'

12' 6.9' 99 2.8' 2.4'

14' 8.1' 73 3.3' 2.8'

3' 5.2' 306 2.1' 1.0'

4' 6.9' 172 2.9' 1.4'

5' 8.7' 110 3.6' 1.7'

6' 10.4' 76 4.3' 2.1'

4' 4.0' 486 1.4' 1.0'

5' 5.0' 311 1.8' 1.2'

6' 6.0' 216 2.1' 1.5'

7' 7.0' 159 2.5' 1.7'

8' 344 1.4' 1.4'

10' 220 1.7' 1.7'

12' 153 2.1' 2.1'

14' 112 2.4' 2.4'

5000 9000

Sylvania

CMH39PAR20/FL 30°

6' 3.5' 90 4.4' 3.7'

8' 4.6' 51 5.9' 5.0'

10' 5.8' 32 7.3' 6.2'

12' 6.9' 23 8.8' 7.4'

2' 3.5' 156 5.5' 2.1'

3' 5.2' 69 8.2' 3.2'

4' 6.9' 39 10.9' 4.3'

5' 8.7' 25 13.7' 5.4'

3' 3.0' 196 3.5' 2.3'

4' 4.0' 110 4.6' 3.0'

5' 5.0' 71 5.8' 3.8'

6' 6.0' 49 6.9' 4.5'

6' 139 3.2' 3.2'

8' 78 4.3' 4.3'

10' 50 5.4' 5.4'

12' 35 6.4' 6.4'

23000 9000

Philips

CMH35PAR20/SP 10°

8' 4.6' 233 1.9' 1.6'

10' 5.8' 149 2.3' 2.0'

12' 6.9' 104 2.8' 2.4'

14' 8.1' 76 3.3' 2.8'

3' 5.2' 319 2.1' 1.0'

4' 6.9' 180 2.9' 1.4'

5' 8.7' 115 3.6' 1.7'

6' 10.4' 80 4.3' 2.1'

4' 4.0' 508 1.4' 1.0'

5' 5.0' 325 1.8' 1.2'

6' 6.0' 226 2.1' 1.5'

7' 7.0' 166 2.5' 1.7'

8' 359 1.4' 1.4'

10' 230 1.7' 1.7'

12' 160 2.1' 2.1'

14' 117 2.4' 2.4'

5000 9000

Philips

CMH35PAR20/FL 30°

6' 3.5' 90 4.4' 3.7'

8' 4.6' 51 5.9' 5.0'

10' 5.8' 32 7.3' 6.2'

12' 6.9' 23 8.8' 7.4'

2' 3.5' 156 5.5' 2.1'

3' 5.2' 69 8.2' 3.2'

4' 6.9' 39 10.9' 4.3'

5' 8.7' 25 13.7' 5.4'

3' 3.0' 196 3.5' 2.3'

4' 4.0' 110 4.6' 3.0'

5' 5.0' 71 5.8' 3.8'

6' 6.0' 49 6.9' 4.5'

6' 139 3.2' 3.2'

8' 78 4.3' 4.3'

10' 50 5.4' 5.4'

12' 35 6.4' 6.4'
