Lightolier Calculite C4MRP User manual

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Calculite®HID Adjustable Pinhole C4MRP

Page 1 of 2 4 1/2" Aperture (1) 20W CMH MR16

15"

7" 8"

9.66"

7.41"

Frame-In Kit

Ceiling Cutout: 5 1/16" (129 mm) Dia. Ceiling Thickness: 1 1/8” Max

Trim Kit Frame-In Kit Lamp

C4MRP WH

C4MRP BK

Matte White Trim Plate, White Baffle, Flanged

Matte White Trim Plate, Black Baffle, Flanged

C420MREU – Electronic 120/277V Non-IC (1) 20W MR16 CMH GX10 Base

Features

1. Baffle: Die-cast aluminum. 1 ¼” diameter miniature baffle minimizes view

into fixtures. Permanently fastened to trim plate.

2. Trim Plate: Die-cast aluminum plate (matte white) overlaps ceiling cut-out

for clean look in finishing ceiling.

3. Lamp Support: Die-formed aluminum with knurled surface for easy gripping

during relamping. Spring tension clips hold lamp and lens, allow fast snap-in,

snap-out relamping. Matte black finish.

NOTE: HID lampholder ship with the frame. Discard the incandescent

lampholder that ships standard with the trims.

4. Trim Kit Vertical Adjustment Mechanism: Die-cast aluminum. Built in

aperture shield blocks view into fixture. Provides 0°-45° (35° max. with

remodel fik) vertical tilt up to 1” thick ceiling, less in thicker ceilings; lockable.

EZ-Aim Helical Drive System provides fast and accurate hot aiming with

Philips screwdriver. Matte black finish. Lamp shield keeps interior of fixture

dark.

5. Horizontal Adjustment Mechanism: Die-form steel ring, matte black

finish. Provides 360° horizontal stop, lockable.

6. Frame Vertical Adjustment Mechanism: Accommodates mounting to

virtually any ceiling system using pre-installed mounting bars, or ½” EMT

tubing (by others). Single locking feature secures all adjustments. Alignment

holes and markings allow fixture to be pre-set prior to installation. Final

adjustment can be made from below inside fixture. Attaches to steel or wood

joists without accessories.

7. Mounting Bars: Galvanized steel, 0.048”; pre-installed telescoping bars

extend from 30” long and lock securely into position. Built-in locking tabs

provide positive attachment to common T-bars systems. Self-centering

feature simplified installation in 24” O.C. grid systems.

Features (Continued)

8. Socket Harness: Twist and lock base. 5kV (600V) pulse rated PPS, black

T240 body socket with nickel-plated contacts. 18 AWG silicone leads with

fiberglass outer sleeve

Options and Accessories

Accepts one accessory

Labels

U.L (Suitable for Damp Locations)

Teflon®is a registered trademark of E.I. DuPont.

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

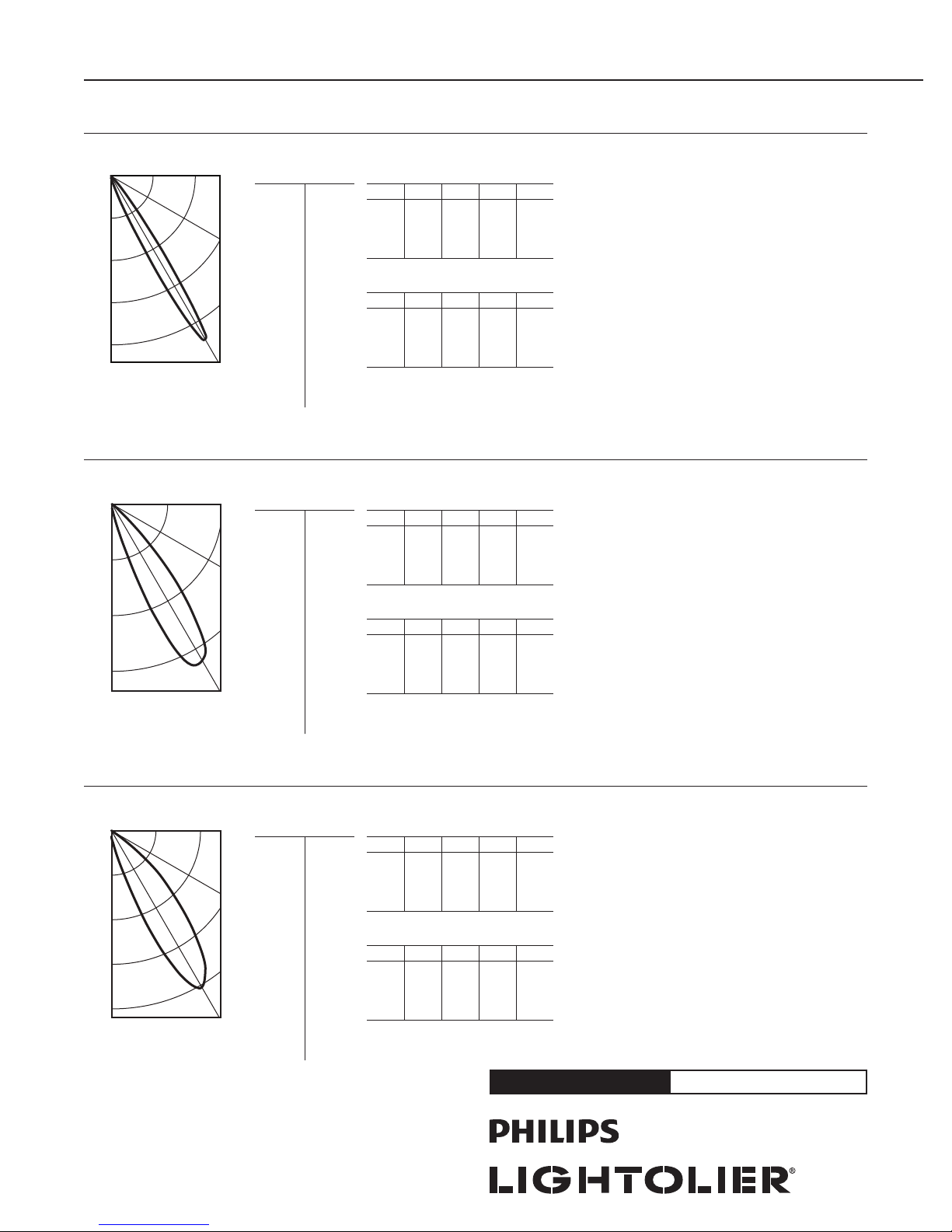

Calculite®HID Adjustable Pinhole C4MRP

Page 2 of 2 4 1/2" Aperture (1) 20W CMH MR16

Job Information Type:

200

400

600

800

0°

30°

60°

90°

500

1000

1500

0°

30°

60°

90°

20W G.E.HID MR16, 12° SPOT, GX10 BASE

1250

2500

3750

5000

0°

30°

60°

90°

20W G.E.HID MR16, 25° FLOOD,GX10 BASE

20W G.E.HID MR16, 40° WIDE FLOOD, GX10 BASE

LAMP @ 30 DEGREE VERTICAL TILT

LUMEN RATING = 1000 LMS.

CBCP = 5585 CD

BEAM ANGLE = 12°

TEST REPORT NO. 3400FR

LAMP @ 30 DEGREE VERTICAL TILT

LUMEN RATING = 1000 LMS.

CBCP = 1619 CD

BEAM ANGLE = 20°

TEST REPORT NO. 3397FR

CANDLEPOWER SUMMARY

Angle CP

0 57

5 59

10 75

15 185

20 733

25 2705

30 5585

35 2363

40 609

45 127

50 37

55 7

60 0

65 0

70 0

75 0

80 0

85 0

90 0

LAMP @ 30 DEGREE VERTICAL TILT

LUMEN RATING = 1000 LMS.

CBCP = 812 CD

BEAM ANGLE = 30°

TEST REPORT NO. 3387FR

CANDLEPOWER SUMMARY

Angle CP

0 36

5 53

10 112

15 324

20 945

25 1548

30 1619

35 1369

40 858

45 330

50 67

55 14

60 0

65 0

70 0

75 0

80 0

85 0

90 0

CANDLEPOWER SUMMARY

Angle CP

0 26

5 46

10 78

15 171

20 407

25 691

30 812

35 733

40 557

45 372

50 205

55 34

60 1

65 0

70 0

75 0

80 0

85 0

90 0

30° DEGREE AIMING ANGLE HORIZONTAL SURFACE

DC FC L W

6' 3.5' 101 1.7' 1.5'

8' 4.6' 57 2.3' 1.9'

10' 5.8' 36 2.8' 2.4'

12' 6.9' 25 3.4' 2.9'

14' 8.1' 19 3.9' 3.4'

30° DEGREE AIMING ANGLE VERTICAL SURFACE

DC FC L W

2' 3.5' 175 1.7' 0.8'

3' 5.2' 78 2.6' 1.3'

4' 6.9' 44 3.5' 1.7'

5' 8.7' 28 4.3' 2.1'

6' 10.4' 19 5.2' 2.5'

30° DEGREE AIMING ANGLE HORIZONTAL SURFACE

DC FC L W

6' 3.5' 29 2.9' 2.4'

8' 4.6' 16 3.8' 3.3'

10' 5.8' 11 4.8' 4.1'

12' 6.9' 7 5.7' 4.9'

14' 8.1' 5 6.7' 5.7'

30° DEGREE AIMING ANGLE VERTICAL SURFACE

DC FC L W

2' 3.5' 51 3.1' 1.4'

3' 5.2' 22 4.7' 2.1'

4' 6.9 13' 6.2' 2.8'

5' 8.7' 8 7.8' 3.5'

6' 10.4' 6 9.3' 4.2'

30° DEGREE AIMING ANGLE HORIZONTAL SURFACE

DC FC L W

6' 3.5' 15 4.4' 3.7'

8' 4.6' 8 5.9' 5.0'

10' 5.8' 5 7.3' 6.2'

12' 6.9' 4 8.5' 7.4'

14' 8.1' 3 10.2' 8.7'

30° DEGREE AIMING ANGLE VERTICAL SURFACE

DC FC L W

2' 3.5' 25 5.5' 2.1'

3' 5.2' 11 8.2' 3.2'

4' 6.9' 6 10.9' 4.3'

5' 8.7' 4 13.7' 5.4'

6' 10.4' 3 16.4' 6.4'
