Lighting Systems LP-24

1BHFPG -JOFBS1FSG-ZUFÜ4FNJ1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Complete ordering instructions below.

Features

1. Housing:

others.

2. Lamping: Two T8 32 watt fluorescent lamps per 4-foot section. Provided by

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of SINGLE

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

CABLE & CORD FEEDS.

Module Ordering Information

Style Series Type Lamps

2T8 = 2-F32T8

LP 3 B 2T8

Options

4= 4-Foot U= Universal Voltage Blank = No Options

8= 8-Foot

12 = 12-Foot

E= Emergency Pack DS = A-B Switch

D1 = Dimming 120v X4 = 4 Wire for Dimming &

Switched Emergency

D2 = Dimming 277v

Length Ballast

18 gauge perforated steel with 41% open hole pattern. Holes are

1/16” (0.16cm) diameter on 3/32” (0.24cm) centers. Die-formed steel end cap

with concealed access holes for through wiring. No exposed fasteners or

hardware.

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection

for joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory

installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Dimming: 120/277 VAC, 4 wire feed required.

Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

Mountings

Cable Suspension (not shown) - 4-1/2” (11.43cm) diameter flat canopy finished

white enamel, 1/16” (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36” (91.44cm) without cutting. Overlap connector to provided 46” (116.84cm) of

perforated and 2” (5.08cm) solid sections contiguously without the presence of

hairline connections (see BottomView drawing above).

3. Diffuser: Opal acrylic diffuser.

4 Wire: Order X4 modules for remainder of the run when using dimming and/or

switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed

End Sets (LP1EC36X4) when using 4 Wire Modules.

Emer

enc

Circuitin

ecial circuitin

- consult factor

Bottom View

9” (22.86cm)

2.5”

(6.35cm)

3.4” (8.64cm)

Perf

98” (248.92cm)

2” (5.08cm) 2” (5.08cm)2” (5.08cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

Lighting Systems LP-24

1BHFPG -JOFBS1FSG-ZUFÜ4FNJ1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

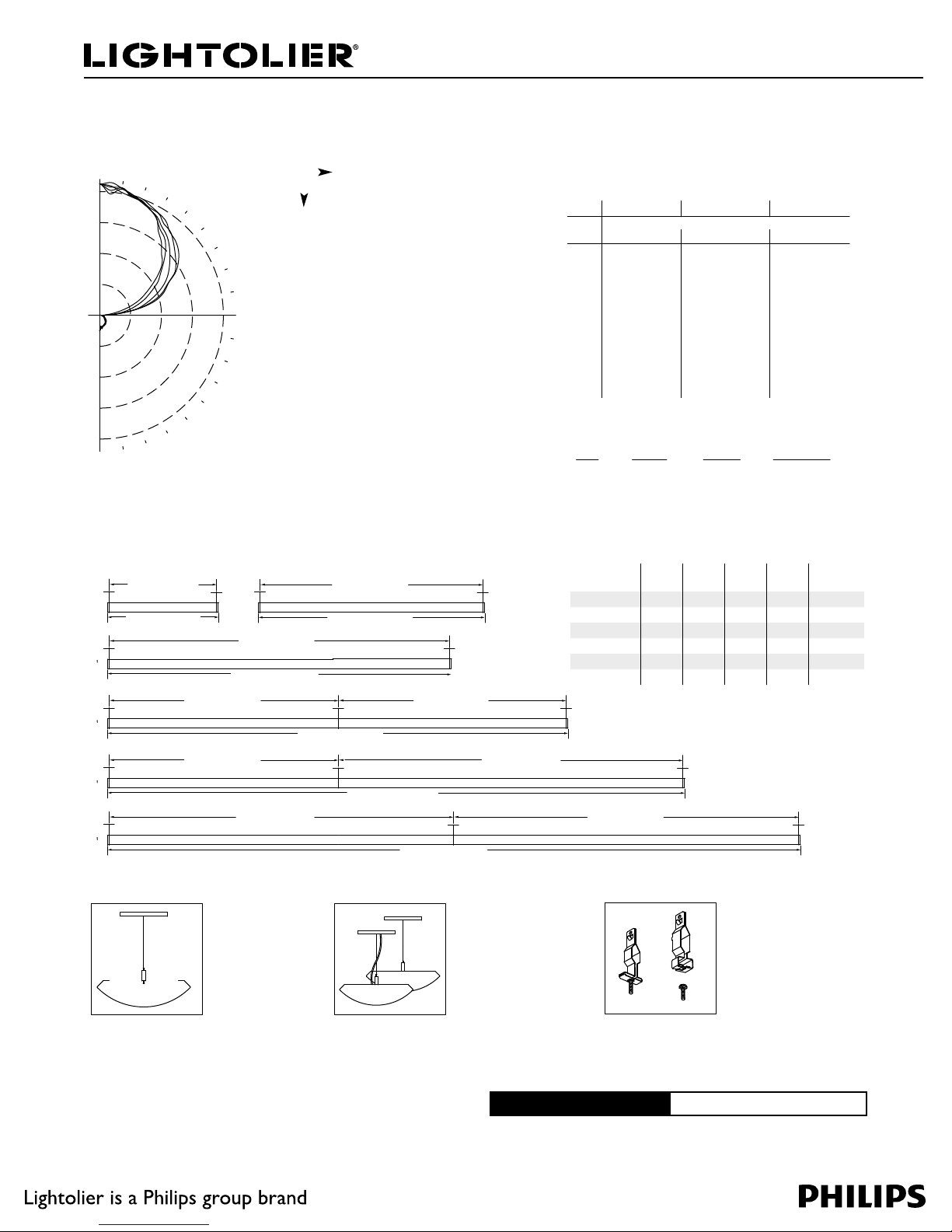

Mounting Accessories

Power Feed End Set

Standard Cable Length is 36” (91.44cm)

Straight Cord: LP3EC36

4 Wire Cord*: LP3EC36X4

Cable/Joiner Assembly

Standard Cable Length is 36” (91.44cm)

Single Cable: LP3C36

Single Cable & Cord: LP3CC36

Single Cable & 4 Wire Cord: LP3CC36X4

Fixture Lengths & Mounting Locations

Ceiling Grid Kit CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

* use for dimming and/or emergency battery packs

4’ 8’

48” (121.92cm)

4’ 2” (127.00cm)

96” (243.84cm)

8’ 2” (248.92cm)

12’

16’

20’

24’

144” (366.62cm)

12’ 2” (370.84cm)

96” (243.84cm)

16’ 2” (492.76cm)

96” (243.84cm)

144” (366.62cm)

96” (243.84cm)

20’ 2” (614.68cm)

144” (366.62cm) 144” (366.62cm)

24’ 2” (736.60cm)

Performance

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 1272 1272 1272 1272 1272

175 1292 1259 1217 1248 1181

165 1216 1190 1201 1193 1210

155 1139 1142 1138 1151 1170

145 993 1020 1050 1085 1119

135 848 905 955 1010 1034

125 695 724 826 902 935

115 485 555 680 729 735

105 276 373 475 541 569

95 69 156 175 183 180

90 14 30 32 40 36

85 15 16 26 31 34

75 30 27 32 45 46

65 44 53 50 53 56

55 52 59 68 73 73

45 76 77 85 87 91

35 96 95 95 98 103

25 97 108 105 109 105

15 113 114 109 109 117

5 118 124 127 104 115

0 148 148 148 148 148

1200

900

600

300

100

110

120

130

140

150

160

170

180

REPORT NO: LP3B2T8.ies

LAMPS: 2-F32T8

LUMENS: 2900

EFFICIENCY: 83.0%

CAT. NO.: LP3B2T84U

ROOM CAVITY RATIO

CANDLEPOWER CURVE

DISTRIBUTION

Zone Lumens % Lamp% Luminaire

0-90 396 7.0 8.0

90-180 4417 76.0 92.0

0-180 4813 83.0 100.0

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

50 30 10 50 30 10 50 30 10

080 808070 7070 505050

170 676460 5856 434240

261 565253 4945 383533

353 474346 4238 333028

447 413641 3632 262623

541 353136 3127 262220

637 312632 2723 232017

733 272329 2420 211715

830 242026 2117 191513

927 211723 1915 171411

10 24 19 15 21 17 13 15 12 10

20% FLOOR CAVITY REFLECTANCE

% WALL REFLECTANCE

4-Foot

Module

8-Foot

Module

12-Foot

Module End Set Cable/

Joiner

4-Foot Run 11

8-Foot Run 11

12-Foot Run 11

16-Foot Run 211

20'-Foot Run 111 1

24'-Foot Run 21 1
