Lightolier ProSpec 37100 User manual

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

ProSpec™120V/277V Track Lighting 37100

Page 1 of 2 Mini HID, Step Spot, 20W MR16 CMH

Features

1. Track Attachment Fitting: Molded polycarbonate, rotates into track.

2. Push Tab: Steel Pin. Locks and detaches unit.

3. Track Adaptor Housing: Die-cast aluminum.

4. Ballast Housing: Extruded aluminum housing with die-cast aluminum

end caps.

5. Ballast: Electronic HID.

6. Tension Pivot Mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

7. Lamp Housing: Die-cast aluminum with cool-grip® insulation band; a high

temperature silicone rubber which allows aiming adjustments while fixture

is on. Integral color.

8. Lampholder GX10: Twist and lock base. 5kV pulse rated heat resistant

thermo plastic body socket with nickel-plated contacts.

9. Cowl: Painted steel; steel springs hold lamp front and accessories;

secured to housing with springs.

Accessories

Holder: Integral, holds one accessory

Diffusion/Special Filters: AF2 series

Color Filters: ADF2 series

Louver (Hex Cell): AL2HC

Electrical

Electronic Ballast (Thermally Protected)

Input Voltage: 120V/277V Total Harmonic Distortion: <10%

Power Factor: >0.99 ANSI Code: M (C) 156

Input Power: 24W Do not use on dimming circuit

Max Input Current: 0.20A@120V/0.09A@277V

Finish

All painted ﬁnishes are baked powder or enamel.

Markings

U.L., c.U.L

Catalog No. Finish Mounting Lamp

37100WH

37100BK

White

Black

ProSpec®120V/277V track systems only. 20W MR16 CMH (M156) GX10 base

Not included

7 7/32

[184 mm]"

7 1/2

[190 mm]"

2 3/4

[70 mm]"

3 31/32

[101 mm]"

1 15/16

[50 mm]"

7 7/8

[200 mm]"

2 1/2

[64 mm]"

1 5/8

[41 mm]"

4 1/2

[114 mm]"

2 13/16

[ 72 mm]"

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

ProSpec™120V/277V Track Lighting 37100

Page 2 of 2 Mini HID, Step Spot, 20W MR16 CMH

9000 9000

GE CMH20MR16/SP

12°

2900 9000

GE CMH20MR16/FL

25°

1500 9000

GE CMH20MR16/WFL

40°

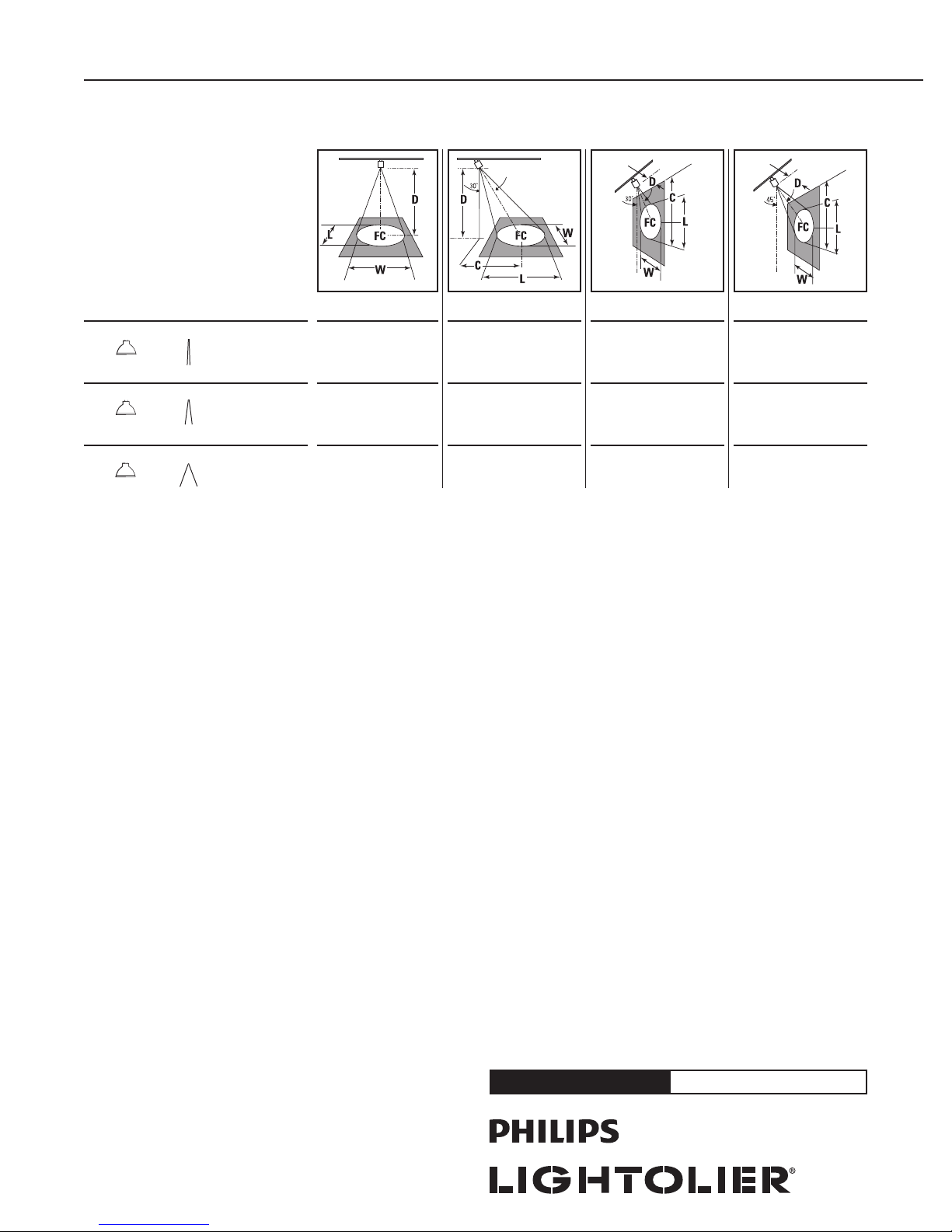

D FC L W D C FC L W D C FC L W D C FC L W

Lamp

Beam Spread CBCP Rated

(To 50% CBCP) Life (Hrs.)

Aiming Angle: 0° 30° Horizontal 30° Vertical 45° Vertical

L Beam length D Distance

W Beam Width AAiming Angle

C Distance to center beam FC Footcandles

Land W are the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.

Lamp data shown is typical. Consult lamp manu-

facturers for availability and performance.

CBCP = Center Beam Candle Power.

8' 4.6' 91 2.3' 1.9'

10' 5.8' 58 2.8' 2.4'

12' 6.9' 41 3.4' 2.9'

14' 8.1' 30 3.9' 3.4'

3' 5.2' 125 2.6' 1.3'

4' 6.9' 70 3.5' 1.7'

5' 8.7' 45 4.3' 2.1'

6' 10.4' 31 5.2' 2.5'

4' 4.0' 199 1.7' 1.2'

5' 5.0' 127 2.1' 1.5'

6' 6.0' 88 2.6' 1.8'

7' 7.0' 65 3.0' 2.1'

8' 141 1.7' 1.7'

10' 90 2.1' 2.1'

12' 63 2.5' 2.5'

14' 46 2.9' 2.9'

6' 3.5' 52 3.6' 3.1'

8' 4.6' 29 4.8' 4.1'

10' 5.8' 19 6.0' 5.1'

12' 6.9' 13 7.2' 6.1'

2' 3.5' 91 4.2' 1.8'

3' 5.2' 40 6.2' 2.7'

4' 6.9' 23 8.3' 3.5'

5' 8.7' 15 10.4' 4.4'

3' 3.0' 114 2.8' 1.9'

4' 4.0' 64 3.7' 2.5'

5' 5.0' 41 4.7' 3.1'

6' 6.0' 28 5.6' 3.8'

6' 81 2.7' 2.7'

8' 45 3.5' 3.5'

10' 29 4.4' 4.4'

12' 20 5.3' 5.3'

4' 2.3' 61 4.1' 3.4'

6' 3.5' 27 6.1' 5.0'

8' 4.6' 15 8.1' 6.7'

10' 5.8' 10 10.2' 8.4'

2' 3.5' 47 9.7' 2.9'

3' 5.2' 21 14.5' 4.4'

4' 6.9' 12 19.3' 5.8'

5' 8.7' 8 24.2' 7.3'

2' 2.0' 133 3.4' 2.1'

3' 3.0' 59 5.0' 3.1'

4' 4.0' 33 6.7' 4.1'

5' 5.0' 21 8.4' 5.1'

6' 42 4.4' 4.4'

8' 23 5.8' 5.8'

10' 15 7.3' 7.3'

12' 10 8.7' 8.7'
