Lytespan®Track Lighting 9530

Page 1 of 1 Classics Roundback PAR30

Features

1. Lytespan attachment fitting: Die-cast zinc alloy.

2. Housing: .40" aluminum

3. Step baffle: Compression-molded high heat phenolic with stepped conical

surface for low brightness. Integral black finish.

4. Lever: Locks attachment fitting electrically and mechanically anywhere

along the track.

5. Movable brass Contact: Extends for connection to 2nd circuit in Advent

Lytespan Track.

6. Swivel: Die-cast zinc alloy. 350° horizontal adjustment.

7. Pivot mounting: Tensioned with built-in stop, provides 90° vertical

adjustment.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1

leads.

Finish

All painted finishes baked enamel.

Labels

UL, I.B.E.W.

Ordering Information

Catalog No. Finishes Mounting Lamps

9530WH

9530BK

Matte White

Matte Black

All Lytespan Track Systems A19, 100W Max

PAR16, PAR30 75W Max

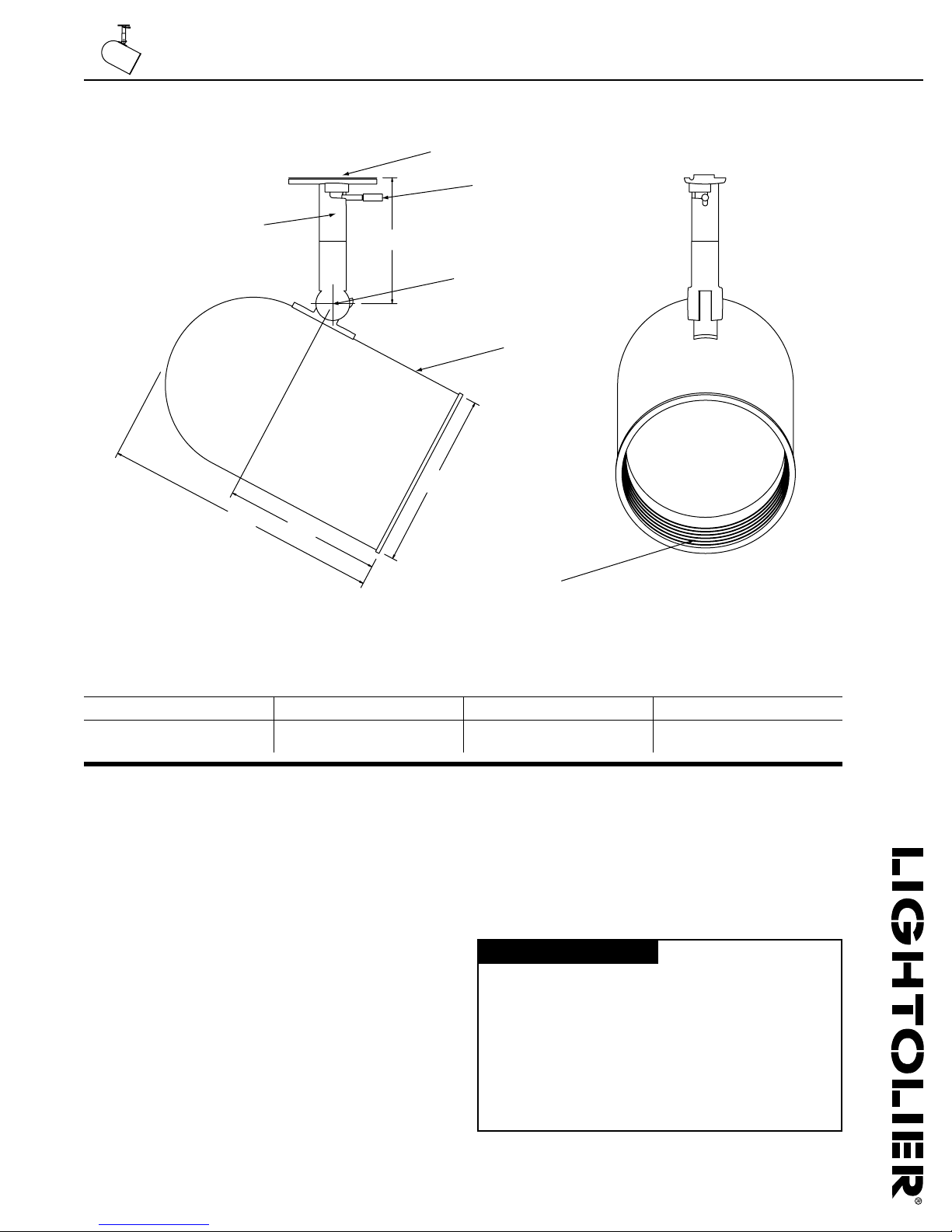

3 3/16"

4 1/16"

7 1/8"

4 1/2"

9530 SPEC SHEET

6

3

1

2

4

7

3 3/16"

4 1/16"

7 1/8"

4 1/2"

9530 SPEC SHEET

6

3

1

2

4

7
