Lightolier Arco 4531 series Guide

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

Read and understand these instructions before installing fixture.

This fixture is intended for installation in accordance with the National Electrical Code and local or Federal

code specifications. To prevent electric shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

IS:4531

0995Page 1 of 2

NOTE:

This instruction sheet covers both compact fluorescent and incandescent fixtures. Although illustration shows compact fluorescent, the

incandescent version assembles and installs in the same manner.

NOTE:

The Backplate is provided with (3) Auxiliary Mounting Knockout

Holes (4531, 4532, 4551, and 4552 series fixtures) for direct

mounting to wall surfaces. These can be used for added security or

where direct Outlet Box mounting is not available. To remove plug

in Knockout Holes, follow steps 1 through 3 below.

For 4533 series fixtures, (4) Auxiliary Mounting Knockout Holes

are provided for direct mounting to wall surfaces (no plugs to

remove). It is recommended that Auxiliary Mounting Holes be

used on 4532, 4533 and 4552 series fixtures.

The Backplate can be mounted horizontally of vertically. See Fig 1

below for proper orientation for type of Lens Assembly and desired

position.

1. Position blunt ended punch or awl in center of Knockout hole and

firmly hit with hammer to punch plug through. Repeat for remaining

Knockouts (Fig. 1).

Caution: Always wear eye protection (safety goggles) when

removing Auxiliary Mounting Knock-Outs.

2. Position Backplate in desired position over Outlet Box and mark

location of (4) Auxiliary Holes on wall surface.

3. Determine the appropriate mounting hardware required for type of

wall material fixture is being mounted to (i.e. toggle bolts or molly

screws for plaster or gysum board walls, wood screws, etc.)

4. Thread Crossbar Mounting Screws into Crossbar as shown in

Fig. 1.

5. Using appropriate slots in Crossbar, secure Crossbar to Outlet

Box using Outlet Box Screws (provided with Outlet Box).

6. While supporting Backplate make connections: black fixture lead

or fixture without tracer marks to hot (black) supply lead; white

fixture lead or fixture lead with tracer markers to neutral (white)

supply lead. Un-insulated wire is a ground wire and must be

connected to grounding terminals or ground lead inside Outlet Box.

Use Wire Nuts (local hardware item). Push connections back into

Outlet Box.

FIG.1

Instructions for Installation of Arco4531, 4532, 4533,

4551, and 4552 Series Fixtures.

Wire Nut

Outlet Box

Crossbar

Outlet Box Screws

Ground Wire

Backplate

Gasket

Mounting Hole

Safety Cable

Battery Nut

Loop

Mounting Screw

Lens Assembly

Crossbar Mounting

Screws

Auxiliary Mounting

Knock-out

Position this edge

of Backplate up

for mounting of this

Lens Assembly as shown

Position this edge

of Backplate

up for horizontal

mounting of this

Lens Assembly

LIGHTOLIER a GENLYTE company.

631 Airport Road, Fall River, MA 02720

7. Position Backplate over Crossbar allowing Crossbar Mounting

Screws to come through Holes in Backplate. Secure Backplate

in position by installing (2) Battery Nuts over Crossbar Mounting

Screws and tighten.

8. If using Auxiliary Mounting Knockout, install the appropriate

hardware determined in step 3.

9. Position Screw through Loop in Safety Cable and thread Screw

into Mounting Boss on inside of Lens Assembly (Fig. 2).

10. Install recommended lamp(s).

11. Position Lens Assembly over Backplate making certain the

Safety Cable does not interfere with the Gasket (fig. 1).

12. Secure Lens Assembly in place by tightening the (2) Mounting

Screws on the face of Lens Assembly.

CAUTION: Maximum wattage as marked on fixture must not

be exceeded.

WARNING(Risk of Fire) most dwellings built before 1985

have supply wire rated for 60° C. Consult a qualified

electrician before installing.

CAUTION: For wet locations, in accordance with

Underwriters Laboratories requirements, a line of caulking

compound such as acrylic latex or silicone must be placed

around the perimeter of Backplate to seal water away from

the outlet box and back openings.

IS:4531

0995 Page 2 of 2

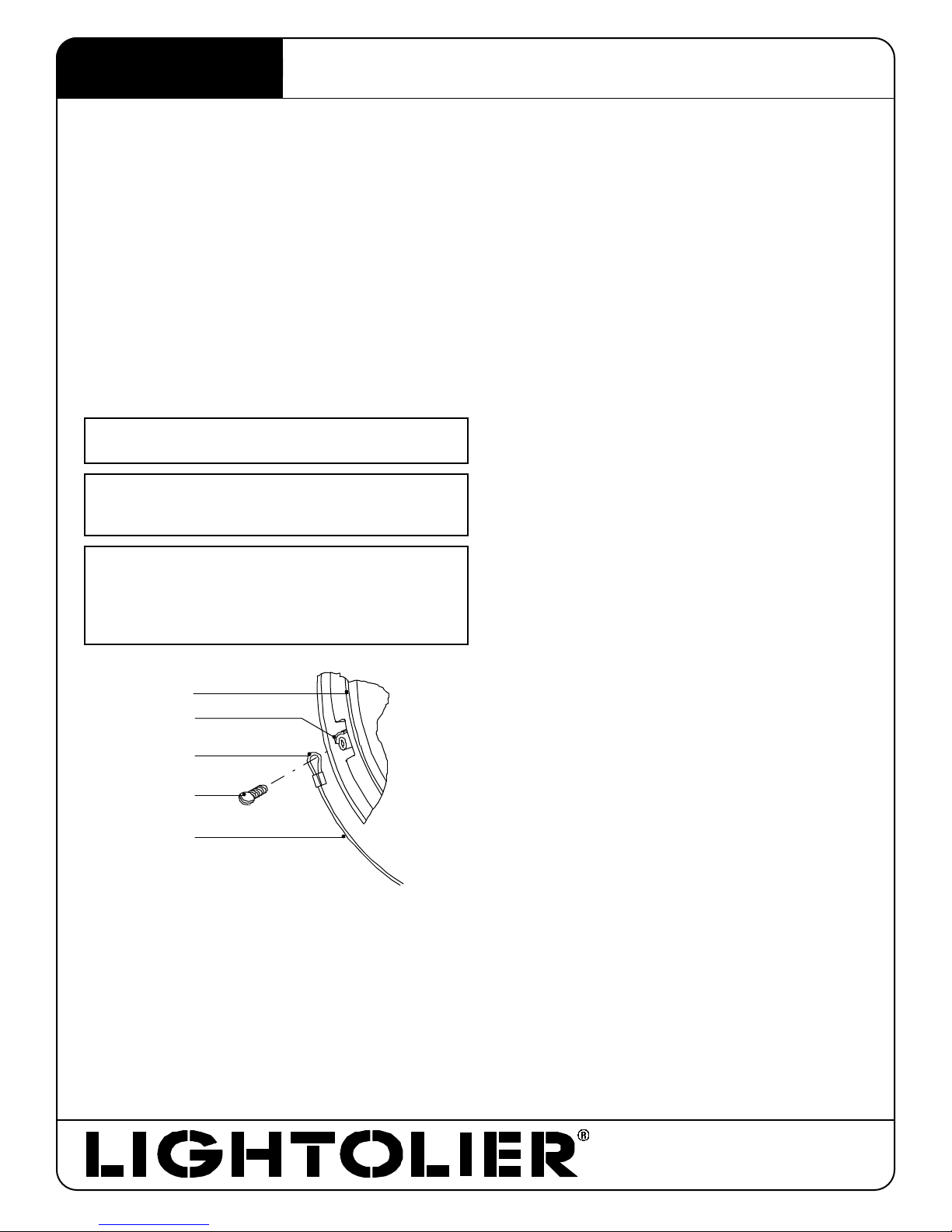

FIG. 2

Inside Lens Assembly

Instructions for Installation of Arco4531, 4532, 4533,

4551, and 4552 Series Fixtures.

Glass

Mounting Boss

Loop

Mounting Screw

Safety Cable
