Lightolier Lytespan 22WW4 User manual

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting System 22WW4

Page 1 of 2 Alcyon™ T4 120V Wall Washer

Lightolier is a Philips group brand

Ordering Information

Catalog No. Finish Mounting Lamps

22WW4WH Matte White All Lytespan Track Systems. 120V Incandescent T4 mini can. (Clear Only)

22WW4BK Matte Black Does not mount on ProSpec Track. 150W Max.

22WW4AL Metallic Aluminum CC-8 filament recommended

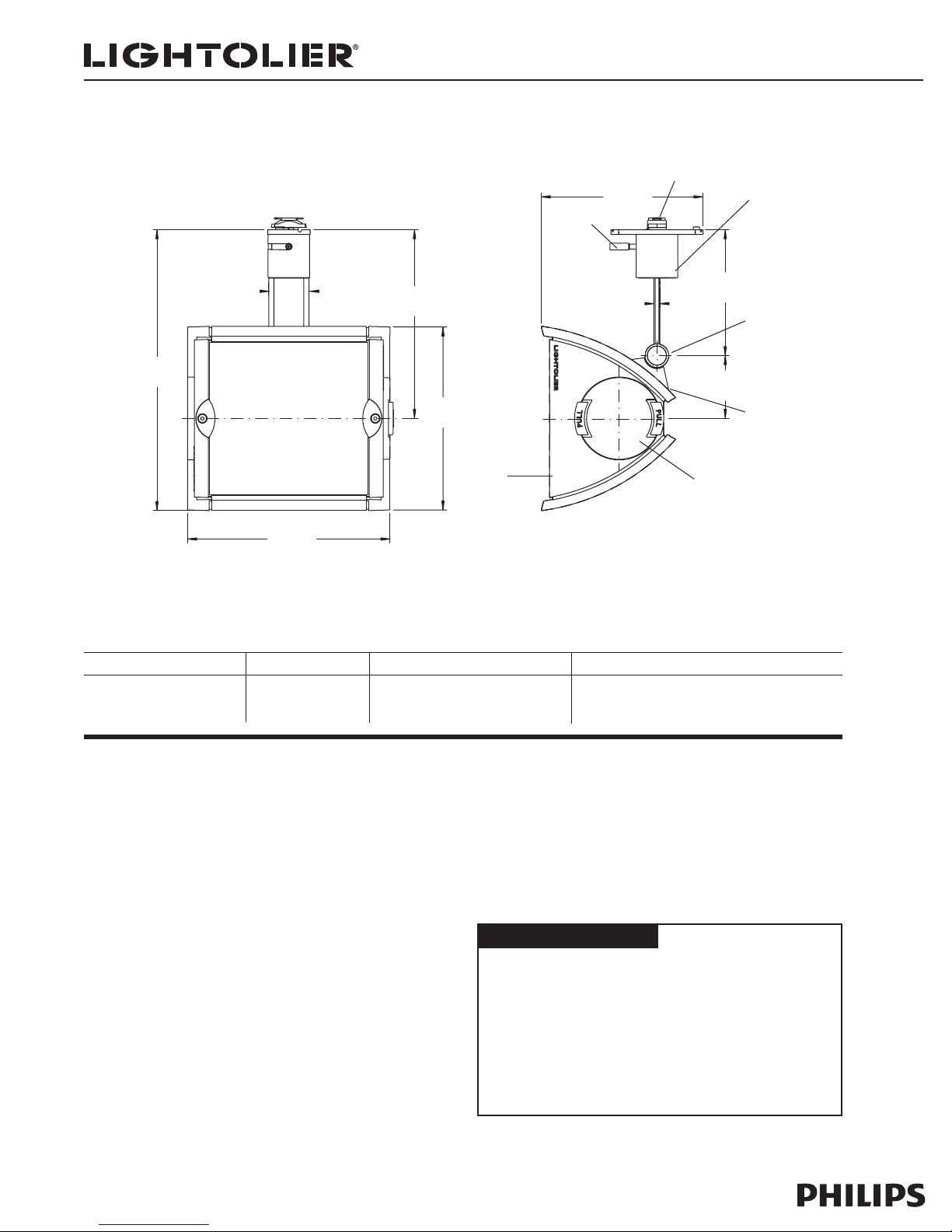

1 11/16"

(42mm)

3 3/8"

(85mm)

4 5/16"

(109mm)

3/16"

(4mm)

4 7/8"

(124mm)

7 7/16"

(189mm)

5 3/8"

(136mm)

(127mm)

1 1/16"

(27mm)

Features

1. Track Attachment Fitting: Locking lever for mechanical/electrical

connection

2. Brass Contact: Extends for connection to second circuit

(Advent Lytespan track only)

3. Horizontal Pivot: Wireless stem profile with 365° horizontal rotation

4. Vertical Pivot: 0-90° vertical adjustment

5. Housing: Extruded aluminum

6. Lamp Cartridge: Allows easy side relamping without removal of

glass shield

7. Glass Shield: Tempered 1/8” glass. Meets or exceeds UL requirements

8. Socket: Nickel plated minican screw base

Finish

All Painted finishes are baked enamel.

Dimming

Fixture may be used on a track with a dimmer.

Consult dimmer manufacturer for correct dimmer selection.

Accessories

Accessory Holder: None

Accessories: None

Lens: None

Vizor: 22VZ4

Labels

UL, cUL

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lightolier is a Philips group brand

Lytespan®Track Lighting System 22WW4

Page 2 of 2 Alcyon™T4 120V Wall Washer

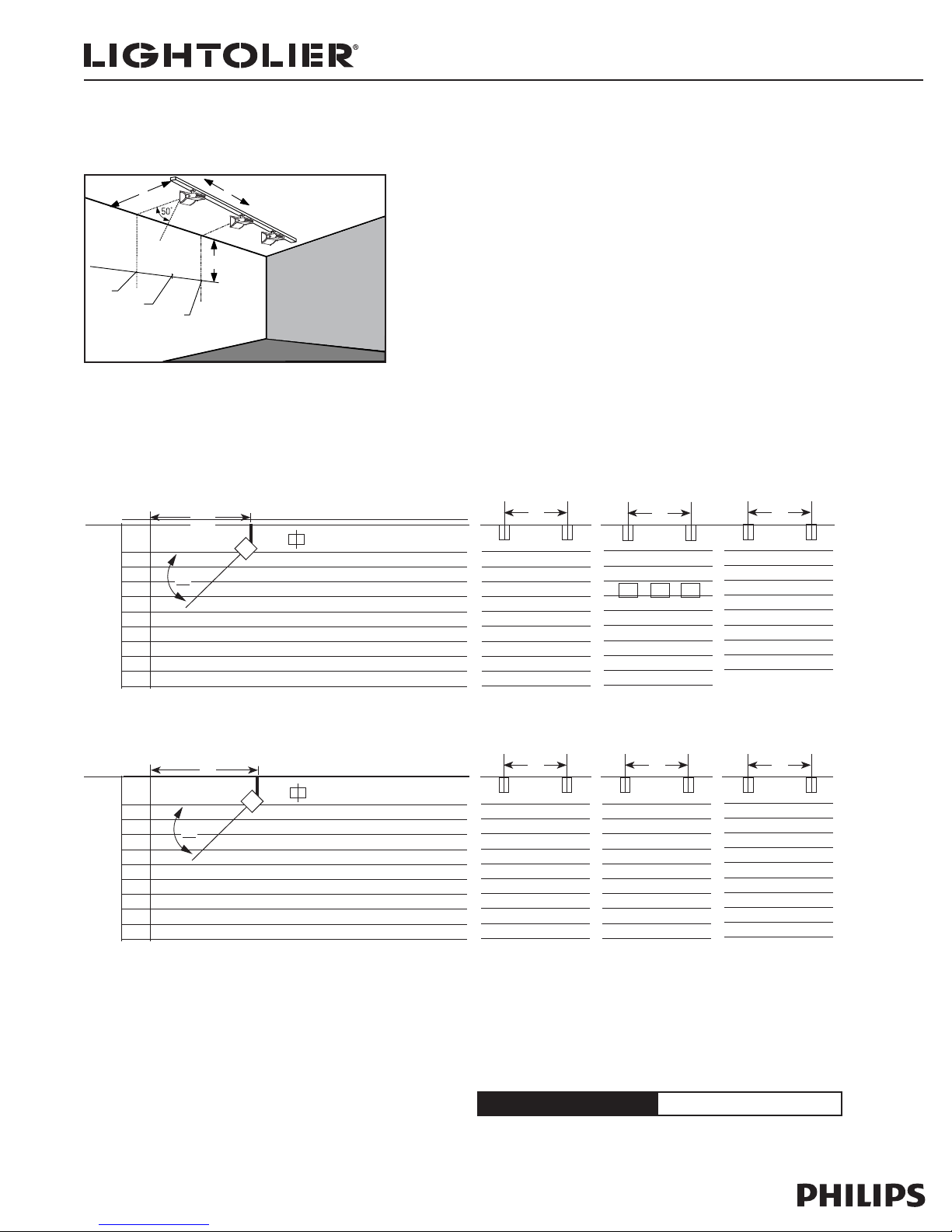

Lighting Data

1’ 55 46 25 9 2 1

2’ 43 37 24 11 4 1

3’ 26 23 17 10 4 2

4’ 16 14 11 7 4 2

5’ 10 9 7 5 3 2

6’ 7 6 5 4 3 2

7’ 5 4 4 3 2 1

8’ 3 3 3 2 2 1

9’ 2 2 2 2 1 1

59 53 59

52 51 52

36 36 36

25 24 25

18 17 18

13 13 13

10 9 10

7 7 7

6 6 6

55 19 55

44 24 44

28 20 28

18 16 18

12 11 12

9 8 9

7 6 7

5 5 5

4 4 4

Footcandles on Wall

Track 3 Feet From Wall Single Unit Multiple Units

4’ 6’

Distance From Ceiling

3’

50˚

EXAMPLE: With track located 3' from wall and multiple units

spaced 5' on center and aimed 50° from horizontal, the illumina-

tion on wall 3' from ceiling will be 30 f.c. beneath units and 28 f.c.

between units.

1’ 28 25 19 10 4 1

2’ 29 26 20 12 6 3

3’ 21 19 16 11 6 3

4’ 15 13 11 9 6 3

5’ 10 9 8 6 5 3

6’ 7 7 6 5 4 3

7’ 5 5 4 3 3 2

8’ 4 4 3 3 2 1

9’ 3 3 2 2 2 1

37 40 37

43 43 43

35 36 35

27 27 27

20 20 21

15 15 15

12 12 12

9 9 10

7 7 8

31 31 31

35 34 35

28 29 28

21 22 21

16 16 16

13 12 13

10 9 10

8 8 8

6 6 6

29 22 29

31 26 31

24 23 24

18 18 18

14 13 14

11 10 11

8 8 8

7 6 7

5 5 5

Track 4 Feet From Wall Single Unit Multiple Units

4’ 5’ 6’

4’

Distance From Ceiling

50˚

Footcandles on wall:

5'3'

30 f.c.

28 f.c.

0’ 1’ 2’ 3’ 4’ 5’

Beam Center

Lamp Information:

120V, 150W T4 Clear

Lumens: 2800

Rated Avg. life: 2,000 hrs.

56 35 56

46 38 46

30 28 30

20 19 20

15 14 15

11 10 11

8 8 8

6 6 6

5 5 5

5’
