Lightolier 6706S2UEM User manual

6706S2UEM

Decorative, Discus, CFL, 1 Lt. 22W

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Ordering Information

Catalog Number Finish Wattage Voltage Lamping

6706S2UEM matte silver 22W 120V/277V Philips Sylvania

FC9T5/* FPC22/*

*Designates manufacturers’ color temperature.

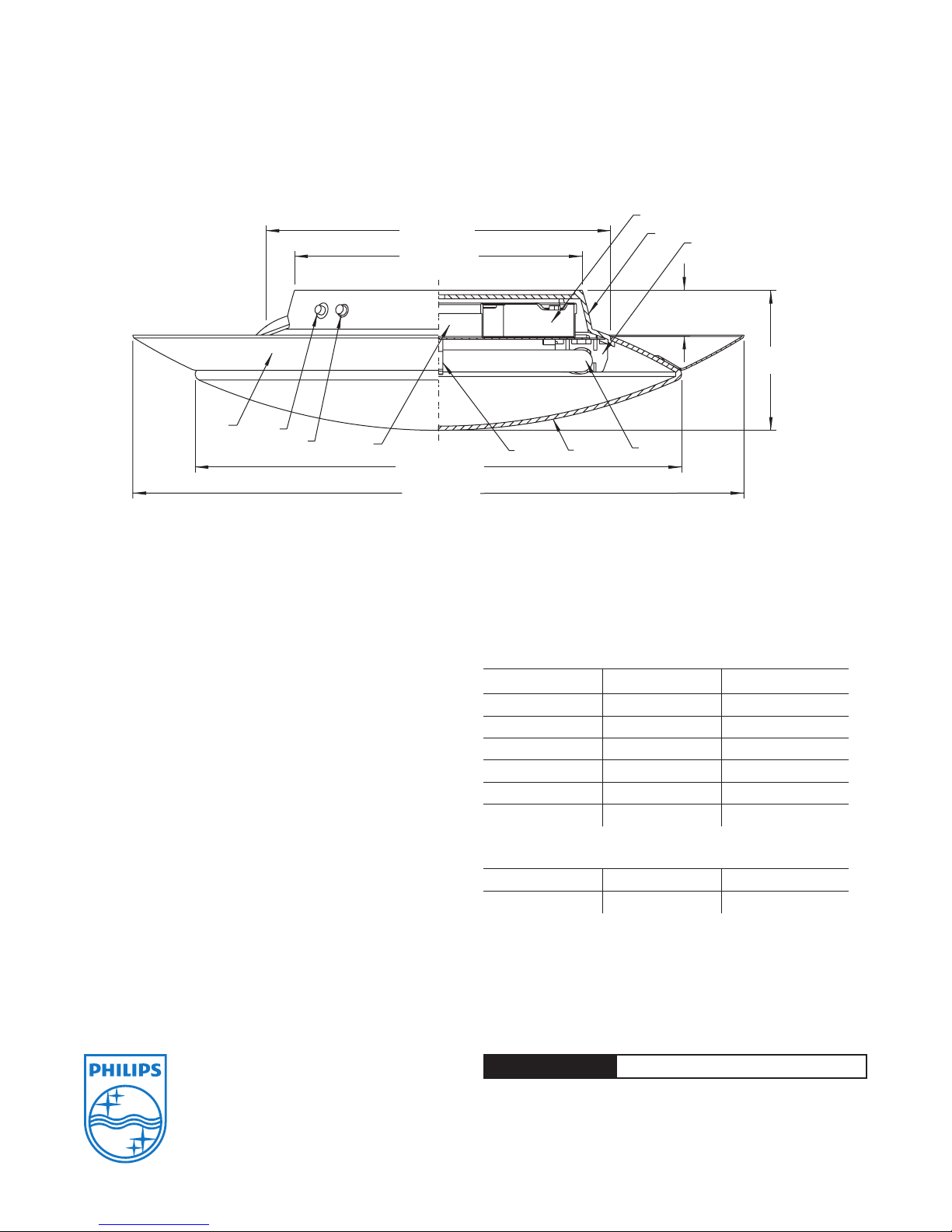

10 9

9 ⅞" (251mm) dia.

8 ¼" (210mm) dia.

1 516"

(33mm)

(102mm)

13 1516" (354mm) dia.

18" (457mm) dia.

ADA Compliant

w/Emergency

Battery Backup

6706S2UEM

Decorative, Discus, CFL, 1 Lt. 22W

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

6706S2UEM May 31, 2011

Specifications are subject to change without notice.

Job Information Type:

Features

1. Diffuser: Acrylic, injection molded and bonded into one

piece assembly; 0.12" minimum thickness; 70% light

transmission. Lights evenly without discernible hot spots.

Integral tabs provide “twist-lock” installation; no loose

hardware, no tools required.

2. Housing: Polycarbonate, injection molded. Shatter resistant.

Integral bosses retain diffuser without loose hardware.

Tamperproof fastener is optional.

3. Ballast: Electronic; High power factor; Class P.

See Electrical/Ballast.

4. Lamp: 22W, T5, Circline; 2GX13 base (by others).

5. Lamp Socket: Polycarbonate, 4-Pin, 2GX13 base.

6. Lamp Support Clip: .020" thick, spring steel.

7. Battery Pack: Provides 90-minute emergency lighting when

AC power fails. Long life nickel cadmium battery; charges

from 120 and 277VAC. Meets National Electric and Life

Safety Code.

8. Charge Indicator Light: LED

9. Test Switch: Single Pole.

10. Trim Ring: 16 gauge die formed aluminum.

Brushed aluminum finish.

Mounting

Ceiling or wall (ADA compliant). Mounts to standard

4" outlet box.

Options

• Shatter resistant polycarbonate diffuser with tamper proof set

screw. Add TPR to end of catalog number.

+ Designates made to order only. Consult factory for lead times.

Electrical/Ballast

22W Lamps

120V 277V

Total Input Watts: 25 25

Max Line Current: .22 .10

Power Factor: >.98 >.98

Ballast Factor: 1.00 1.00

THD: <10% <10%

Min. Starting Temp: 0ºF 0ºF

Emergency/Ballast

Recharge Time Charging Current Lumens

24 hours 280MA 600

Labels

UL Listed. Suitable for dry locations.

10 9

9 ⅞" (251mm) dia.

8 ¼" (210mm) dia.

1 516"

(33mm)

(102mm)

13 1516" (354mm) dia.

18" (457mm) dia.

ADA Compliant

w/Emergency

Battery Backup
