Lightolier Lytecaster 1129 User manual

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

30˚

Lytecaster®Recessed Downlighting 1129

Page 1 of 2 6 3/4" Aperture Recessed Adjustable Reflector Trim

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

Incandescent

Frame-In Kit Ceiling Type Lamping Height

1129* Black Step Baffle 1102P1 Non-IC 85W BR30, 90W PAR38 7 1/8”

1129WH White Step Baffle 1103R Non-IC Remodeler 7 1/8”

1129GD* Specular Gold 1100IC IC 85W BR30, 90W PAR38 7 5/16”

1129CL* Specular Clear 1100AICM AirSeal® IC 7 5/16”

1129BK* Specular Black 1100DICM Deep IC 9 1/4”

1129CD* Clear Diffuse 1100DAICM Deep AirSeal® IC 9 1/4”

1129BNM Natural Metal Baffle 1104ICX/N AirSeal® IC 65W BR30 7 1/4”

w/Natural Metal Flange 90W PAR38, BR40

* = Add “NM” to SKU for Natural Metal™ Flange

Features

1. Reflector: Hydroformed aluminum, .040” thick; white or Natural Metal™

trim flange.

2. Aperture: Aluminum step baffle or cone, painted or anodized finish.

3. Lampholder Assembly: Die-formed steel, .060" thick; permits adjustment;

358˚ horizontal and 0˚ to 30˚ vertical.

4. Frame-In Kit: (1100IC insulated ceiling frame shown). Other frames listed

above and shown on the right. See Frame-In Kit specification sheets for more

details.

Options & Accessories

Lytegems®: See 1500 Specification Sheets.

Retaining Clips: 1955 - For installing in existing ceiling

Extra Wide Flange Trim Ring: 1954 - 8 5/8" O.D.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

1129/1102P1

Standard Incandescent

1129/1103R

0™ Non-IC

Remodeler Ring

7 1/8”

1129/1104ICX/N

0™AirSeal® Insulated Ceiling

7 1/4”

1129/1100IC Series

Insulated Ceiling

9 1/4”

1129/1100 DEEP IC Series

Insulated Ceiling

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

30˚

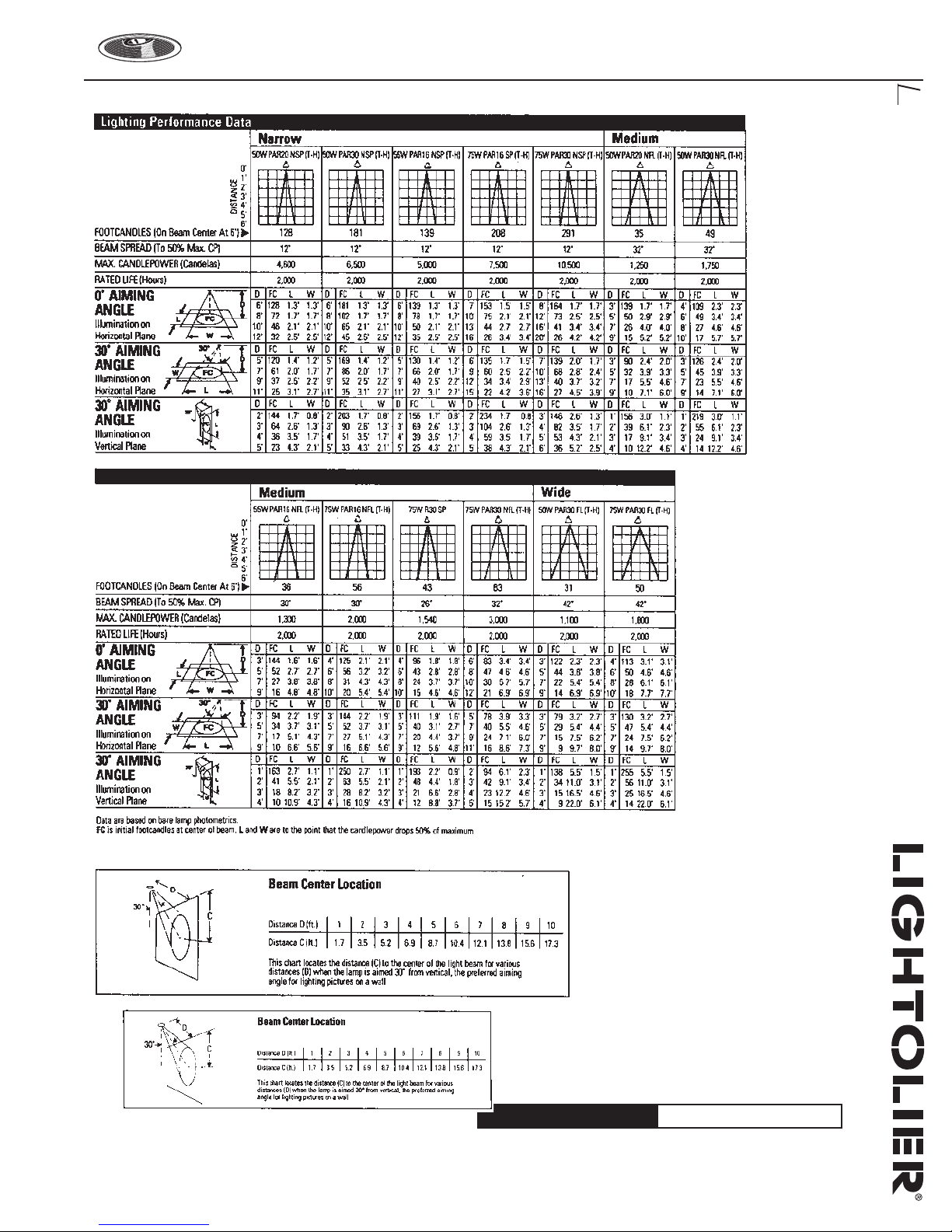

Lytecaster®Recessed Downlighting 1129

Page 2 of 2 6 3/4" Aperture Recessed Adjustable Reflector Trim

Job Information Type:
