Lightolier Lytespan 6276B User manual

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytespan®Track Lighting 6276B

Page 1 of 2 Sof-Tech®Low Voltage Enclosed Spot MR16

4 3/32"

4 5/8"

4 15/16"

2 5/8"

2 13/32"

3 5/8" Pivot

4 6 3

Features

1. Ring: Die-cast aluminum with cool grip insulation band, a high temperature

silicone rubber, which allows aiming adjustments while ﬁxture is on.

2. Socket: Bi-pin ceramic socket wired with 18 ga. stranded Teﬂon®leads,

with ﬁberglass outer sleeve.

3. Transformer: Class two electronic transformer for 12V halogen lamps,

housed in an aluminum extrusion.

4. Track Attachment Fitting: Molded polycarbonate, rotates into track and

locks on with push tab; integral polarity key guard.

5. Push Tab: Locks and detaches unit from track.

6. Brass Contact: Extends for connection to second circuit in Advent®

Lytespan track.

7. Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal

rotation and 180° vertical rotation.

8. Lamp Guard: Tempered glass.

9. Housing: Aluminum, fully encloses lamp back and socket. Vents dissipate

lamp heat. Die-Cast Aluminum.

Options & Accessories

Accessory Holder (7662) may be used with

One SNOOT (22SR6AL, BK, WH) plus one lens*or louver.

or One Lens (AF2 Series or ADF2 Series)

or One Louver (AL2 Series).

*Color Filters (ADF2 Series) may not be used with a SNOOT.

Electrical/Dimming

Dimming controls: Use only dimmers speciﬁcally designed for use with

electronic transformers, like Lightolier SunriseTM and Neptune Momentum QETM

series. Low voltage ﬁxtures may produce audible sound when used with

dimmers, which may be objectionable in acoustically critical areas.

Labels

UL, CUL

Ordering Information

Catalog No. Finishes Track Mountings Lamps

6276B WH Matte White All Lytespan Track MR16 50W Max.

6276B BK Matte Black Systems 37W IR Max.

6276B AL Metallic Aluminum

Teﬂon®is a registered trademark of E.I. DuPont.

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting 6276B

Page 2 of 2 Sof-Tech®Low Voltage Enclosed Spot MR16

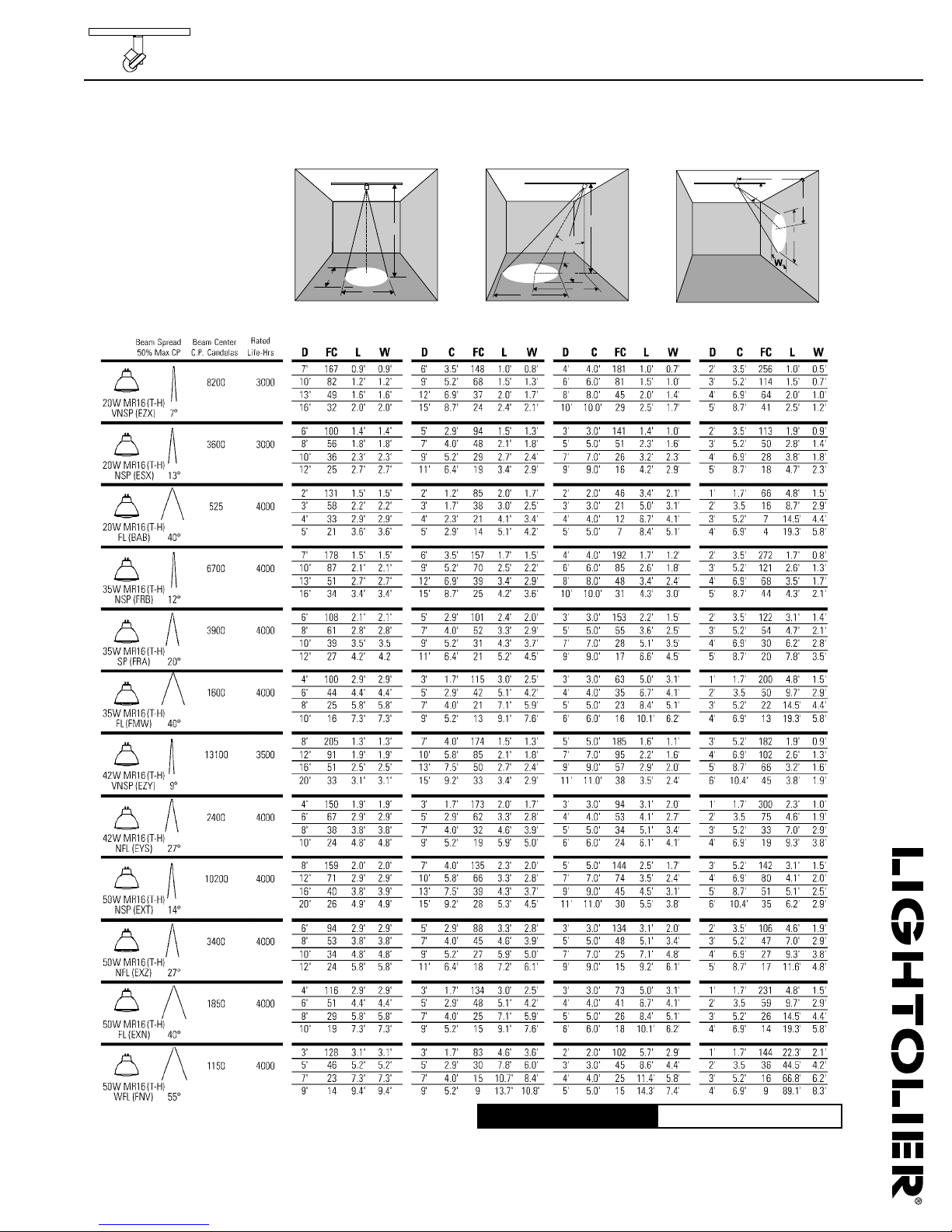

Lighting Data

FC L

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A=45˚ AIMING ANGLE A=60˚ AIMING ANGLE

Aiming Angle 0˚ 30˚, 45˚ or 60˚ Horizontal 30˚, 45˚ or 60˚ Vertical

L Beam Length

W Beam Width

CDistance to center beam

D Distance

A Aiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.
