Lightolier Calculite ProSpec PB3P3075 User manual

Flanged Trimless

Top View

13"

8 3/4" Depth

6" OC

30 1/2" L X 10" W

18" L X 6" W Opening

1 3/4"

6" OC

33 1/4"

11 3

PB3P3075BL = (Flanged) Black/White

PB3P3075WL = (Flanged) White

PB3P3075BTL = (Trimless) Black

PB3P3075WTL = (Trimless) White

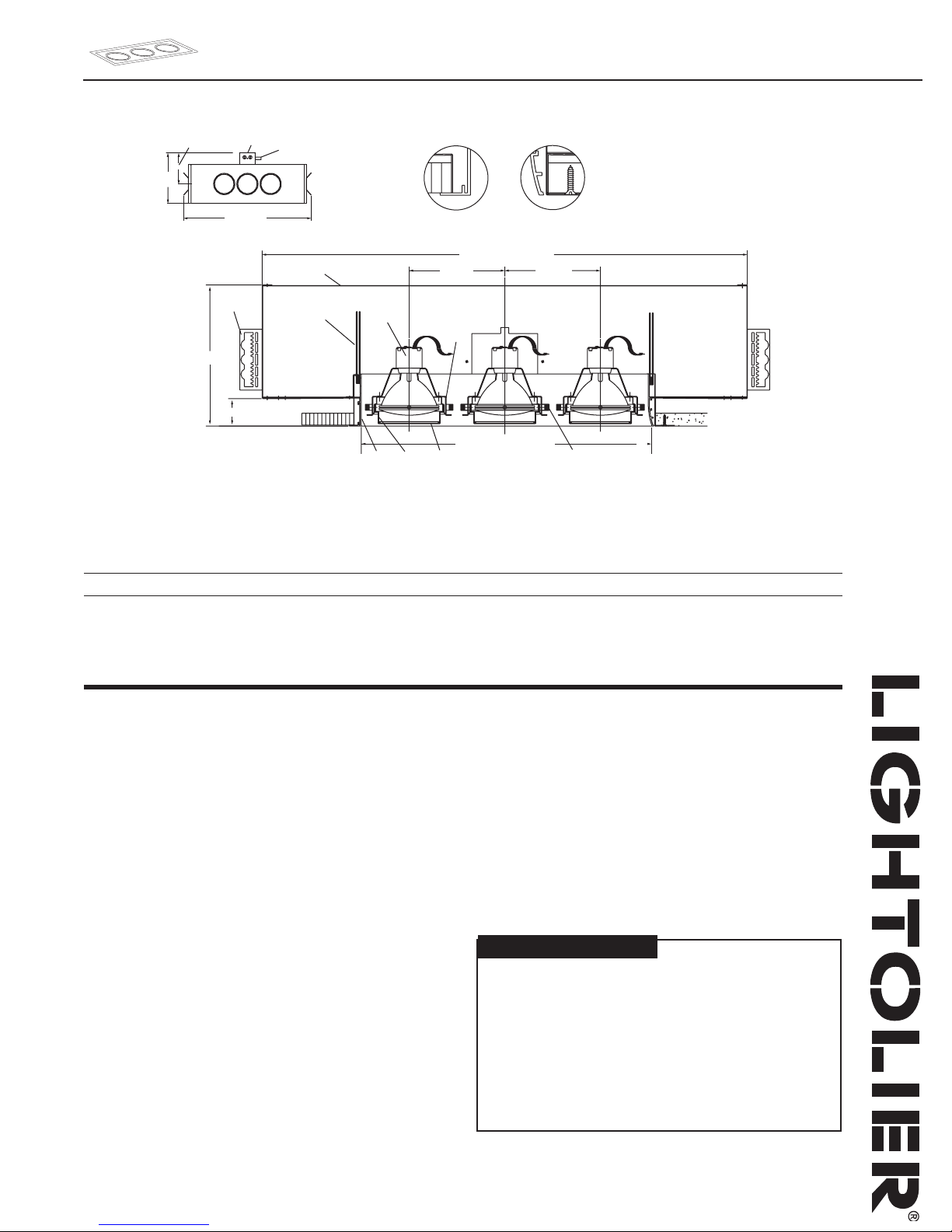

Calculite®ProSpec®Linear Downlight PB3P3075

Page 1 of 2 3 Light PAR 30 Series B

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of one accessory.

Easily installed and removed for lamping with a simple twisting motion.

Constructed of die formed aluminum.

3. Adjustable Ring: Allows 360° horizontal and min. 40°, max., 45° (on length);

40° (on width) vertical adjustment.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die formed 22 ga. steel. Finish: Black.

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC, UL, and CSA requirements.

8. Lampholder: Porcelain medium based; nickel plated screw shell. Prewired

with #18 SF-1 leads to junction box.

9. Junction Box: 14 ga. steel, 4 x 3 1/2 x 2" box. Allows inspection from below.

10. Lamp and Accessory Support: .032" steel, flared for easy entry of Media

Cartridge.

11. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

Electrical

UL/cUL listed for through branch circuit wiring with maximum of (8) no. 12 AWG,

90°C.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 3 3/4" dia. series, filters, lenses, screens, and louvers, (1) max.

Ceiling Cutout: 19 1/16" L X 7 3/16" W

Ordering Information: PAR 30 Series B

Cat. No. Lamp Ceiling Trim Aperture Finish

PB3P3075BL (3) 75W PAR 30* Overlap Black with White Flange

PB3P3075WL (3) 75W PAR 30* Overlap White with White Flange

PB3P3075BTL (3) 75W PAR 30* Trimless Black

PB3P3075WTL (3) 75W PAR 30* Trimless White

*Short neck only

Label

UL /cUL (Suitable for Damp Location), I.B.E.W.

Calculite®ProSpec®Linear Downlight PB3P3075

Page 2 of 2 3 Light PAR 30 Series B

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

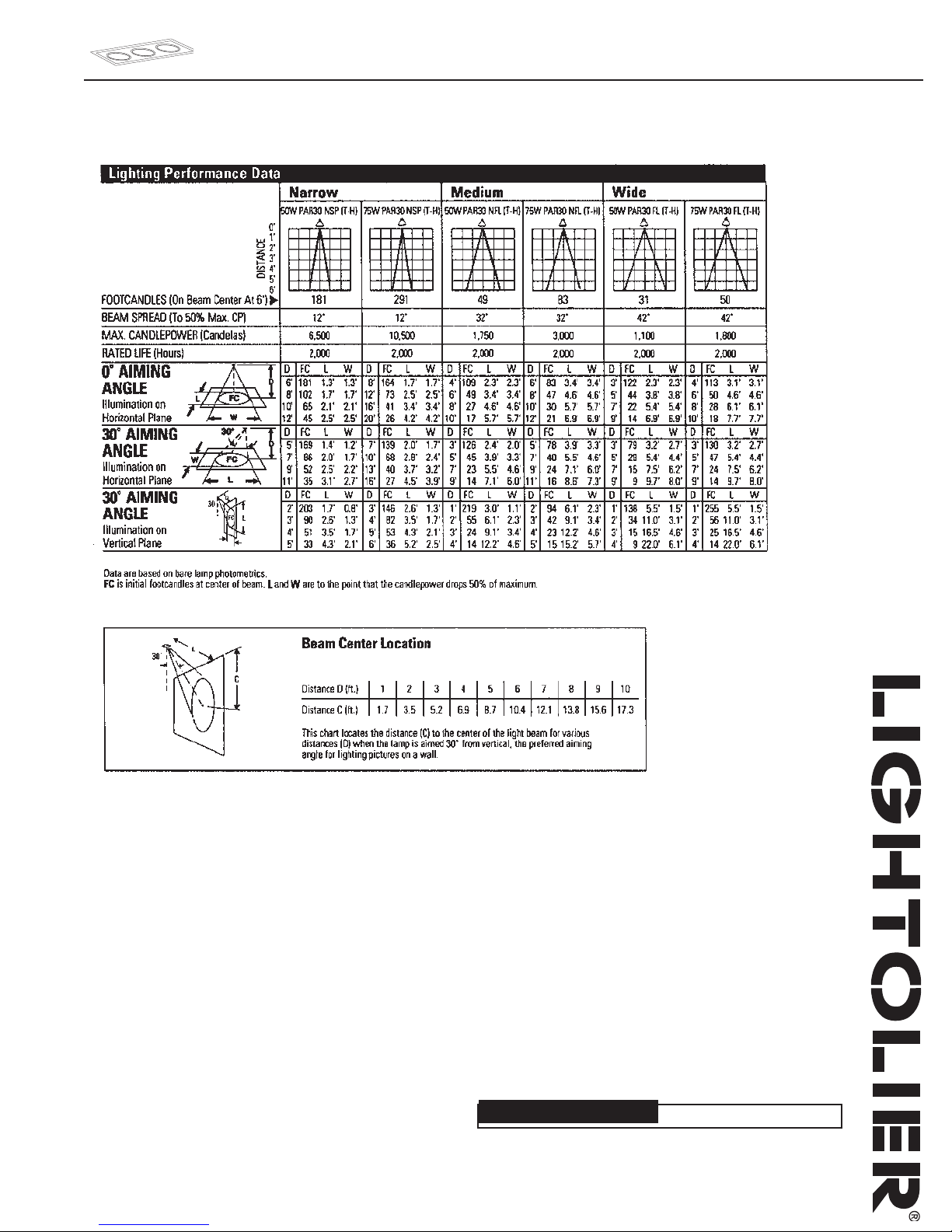

Lighting Performance Data
