Lytecaster®Recessed Downlighting 1128

Page 1 of 2 6 3/4" Aperture White Diffuser Reflector Trim

1128/1103R

0™Non-IC

Remodeler Ring

6 5/8”

1128/1100 DEEP IC Series

Incandescent Insulated Ceiling

9 1/4”

1128/1102P1

Standard Incandescent

6 1/2”

7 11/16”

1 1/4” Max.

Features

1. Reflector: Hydroformed aluminum, .040 minimum thickness; Anobrite®

(anodic-processed) semi-specular finish for permanent reflectivity; matte

white trim flange.

2. White Diffuser: Provides soft, widespread illumination with light bezel to

reduce brightness transition to ceiling.

3. Lens Bezel: Spun aluminum, .040” thick. Matte white finish.

4. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Options & Accessories

Retaining Clips: 1955 - For installing in existing ceiling.

Labels

U.L. (Suitable for Wet Locations - Covered Ceiling Only), I.B.E.W.

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1128

White

Diffuser

LED

Fluorescent

Frame-In Kit Installation Type Lamping Height

1101LED

1100LEDREM

L56LED

Non-IC

Non-IC Remodeler

Non-IC Retrofit

LED

6 5/8"

1104F13 Series IC (1) Triple 13W (GX24q-1) 7 1/2"

1104F18†Series IC (1) Triple 18W (GX24q-2) 7 1/2"

Incandescent

1100FTU Series Non-IC (1) Triple 26/32W (GX24q-3) 6 3/4"

Frame-In Kit Installation Type Lamping Height

1102P1

1103R

Non-IC

Remodeler

100W A19 6 5/8"

6 5/8"

1100AICMFT AirSeal®IC (1) Triple 26W (GX24q-3) 6 3/4"

1102P1

1103R

Non-IC

Remodeler

100W A19 6 5/8"

6 5/8"

1910XFH1 Conversion Kit (1) Quad 13W (GX23-2) 6 3/4"

1100IC

1100AICM

1100DICM

1100DAICM

AirSeal®IC

Deep IC

Deep AirSeal®IC

60W A19 7 5/16"

7 5/16"

9 1/4"

1910XDH1 Conversion Kit (2) Quad 13W (GX23-2) 6 3/4"

1104ICX/N AirSeal®IC 52W A19 7 1/4" †Use Upper Slot for 18W Triple Tube Lamp.

‡Use upper slot for 26W Triple Tube Lamp.

1104IC/N

1104ICR

Non-IC

Remodeler

60W A19 7 1/2"

7 1/2"

Lightolier is a Philips group brand

Job Information Type:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytecaster®Recessed Downlighting 1128

Page 2 of 2 6 3/4" Aperture White Diffuser Reflector Trim

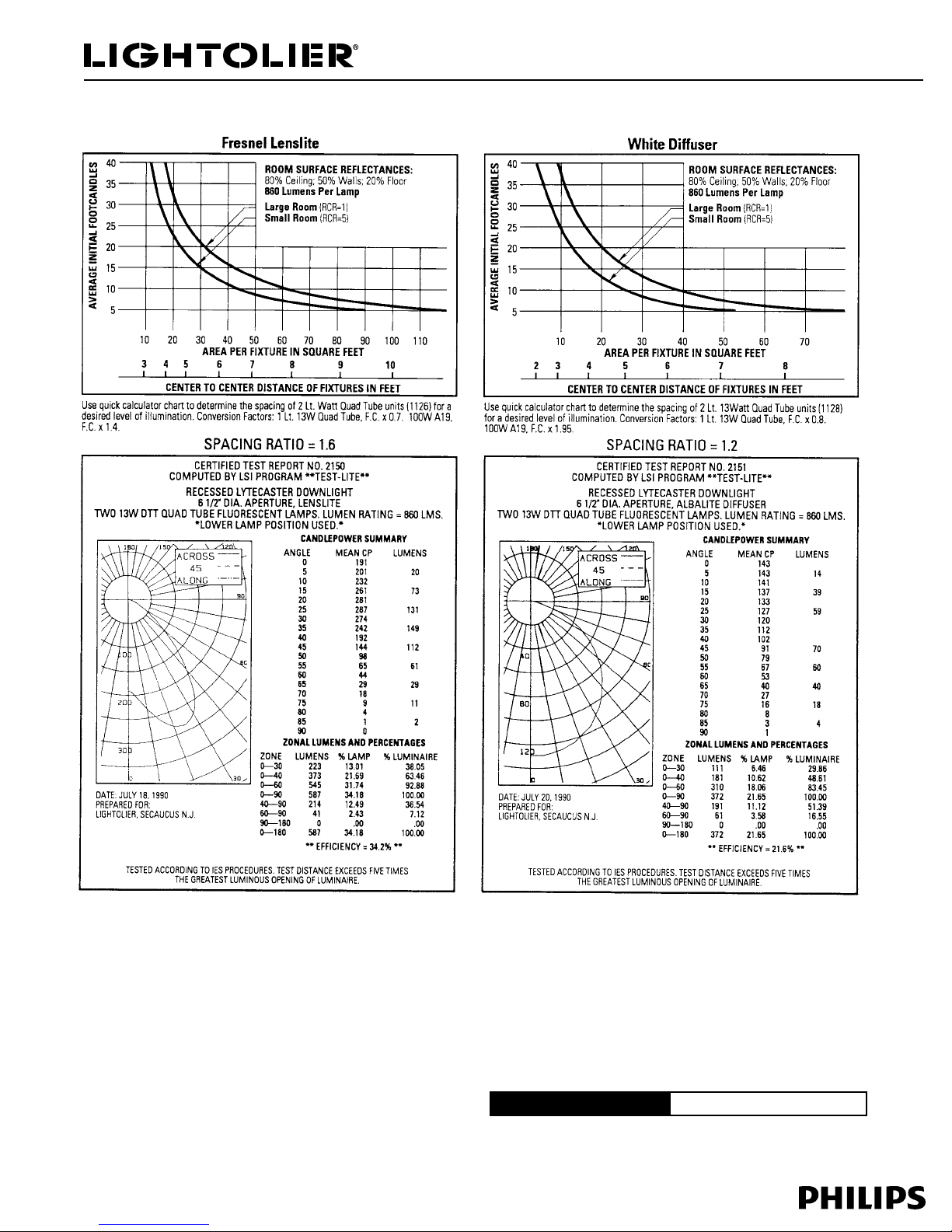

To convert lighting data for a lower wattage incandescent lamp of the same

type, multiply the footcandle (or candlepower) values by the ratio of the

lumens of the two lamps. The coefficients of utilization remain the same.
