Lightolier FIXTURE Instruction Manual

--?

-’!

INSTRUCTIONS FOR ASSEMBLING AND INSTALLING FIXTURE IS:3651

IEAD AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE.

‘his fixture is intended for installation in accordance with the National Electrical Code and local or

~deral code specifications. To prevant electrical shock, turn off electricity at fuse box before proceeding.

Ietahr these Inatructiona for raferenca.

CAUTION: For wet locations, in accordance with Underwriters Laboratories requirements, aline of caulking

compound such as acrylic latex or butyl must be placed around the back of the fixture to seal water away from

the outlet box and back openings.

Disassemble fixtura by removing two SCREWS and proceed as follows:

!, Thread NIPPLE into CROSSBAR.

LSecure CROSSBAR to OUTLET BOX with BOX SCREWS provided in OUTLET BOX.

LMake connections: Black fixture lead or fixture lead without tracer mark to bleck supply lead; white

fixture lead or fixture lead with tracer mark to white supply lead. Attach bare GROUND WIRE to

outlet box grounding screw (or otherwise attach to system ground). Use WIRE NUTS (local hardware

item). Place connections in OUTLET BOX.

j. Position fixture over NIPPLE against wall. Secure with KNOB (fixture must be mounted so SOCKET is

at bottom of fixture). If auxiliary mounting holes in back are required, they must be provided on site

to match fastener ueed.

). Fit recommended BULB into SOCKET.

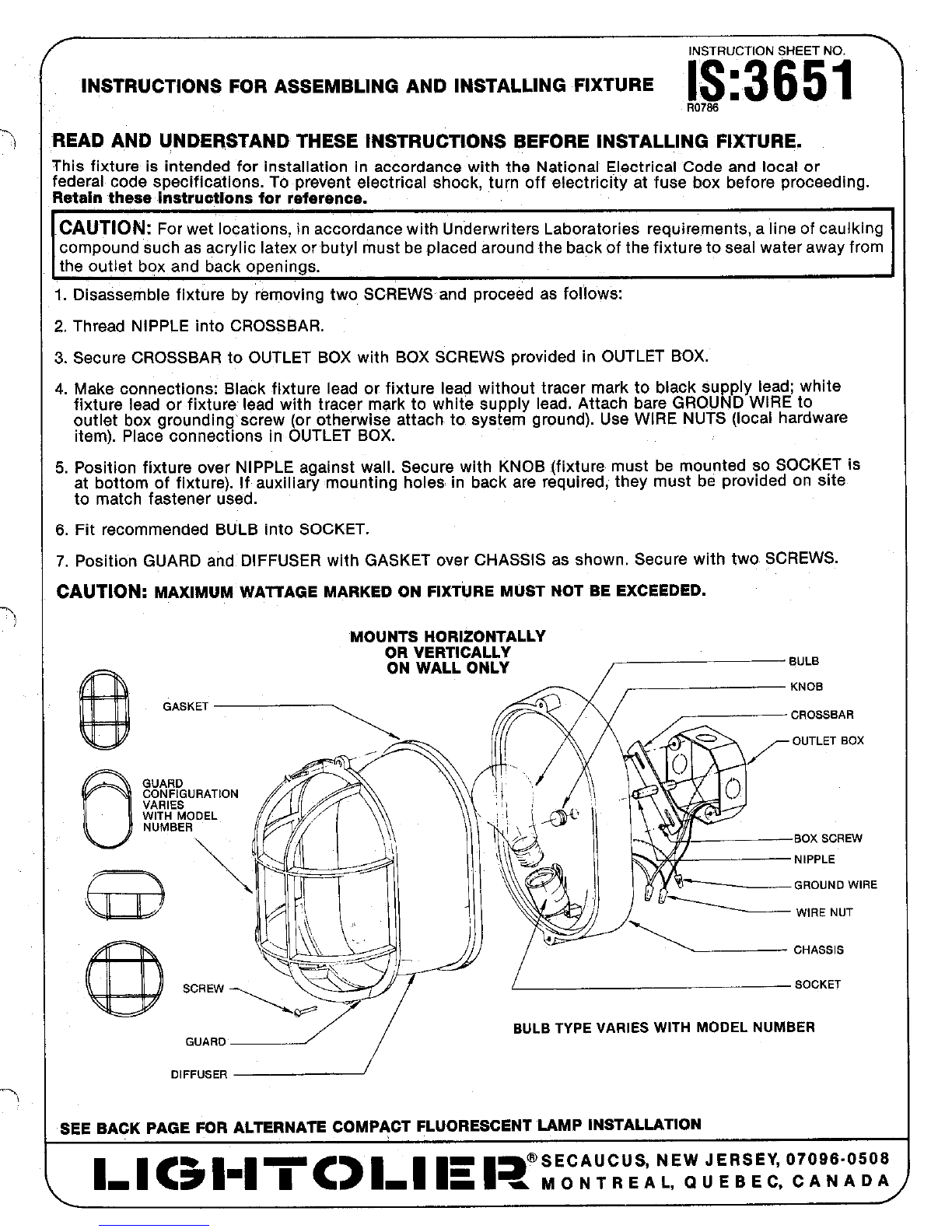

7. Position GUARD and DIFFUSER with GASKET over CHASSIS ae shown. Secure with two SCREWS.

2AUTION: MAXIMUM WAlTAGE MARKED ON FIXTiJRE MUST NOT BE EXCEEDED.

MOUNTS HORIZONTALLY

SEE BACK PAGE FOR ALTERNATE COMPACT FLUORESCENT LAMP INSTALLATION

lml C51-1~<>1-l l=lZMONTREAL, QUEBEC. CANAD>

‘S EC AU CUS, NEW JERSEY, 07096.0508

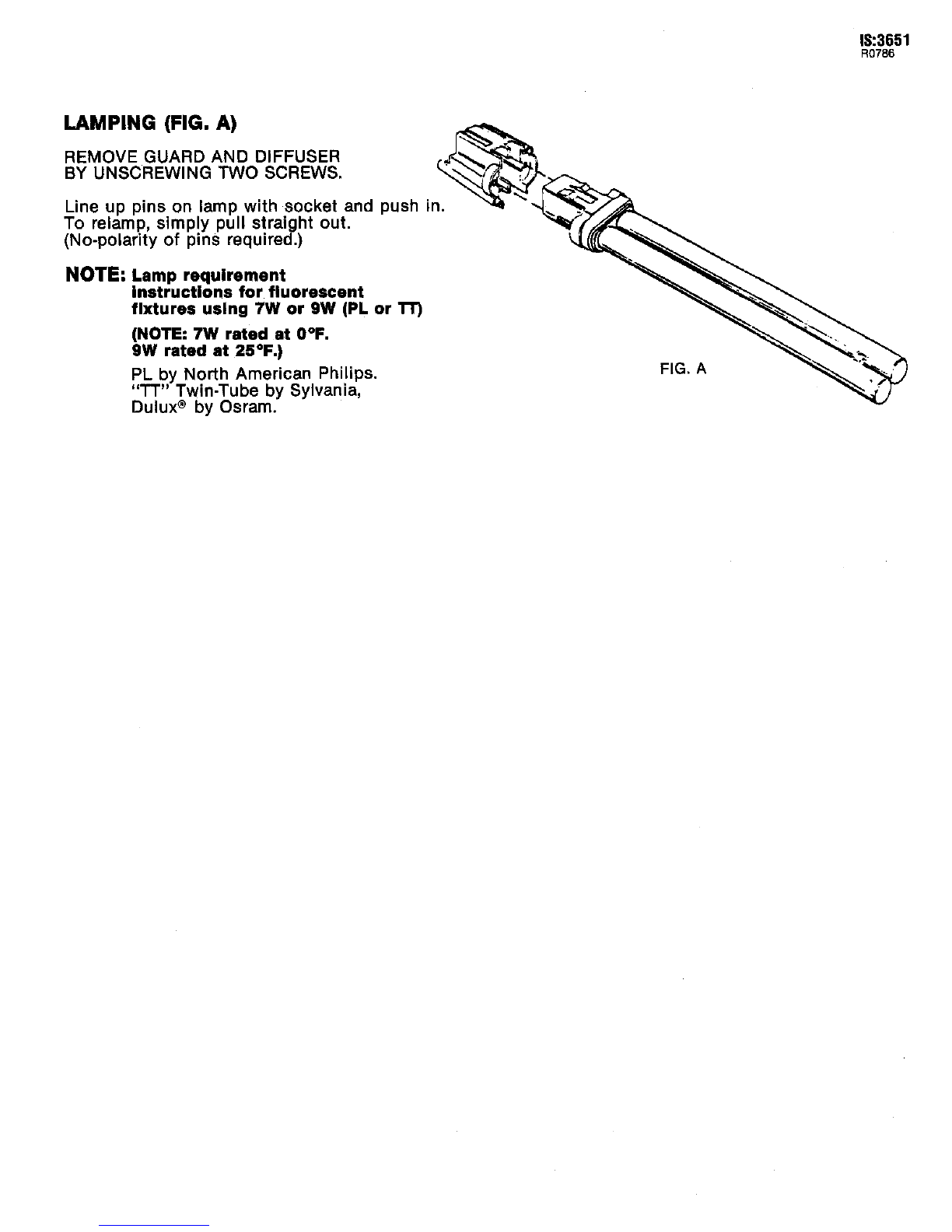

LAMPING (FIG. A)

Line UII Dins on lamp with socket and push in. y

REMOVE GUARD AND DIFFUSER

BY UNSCREWING TWO SCREWS.

Torelarnp, simply pull straight out.

(No-polarity of pins required.) *-

Lamp requirement

Instructions for fluorescent

flxturee uelng 7W or 9W (PL or lT) \\\

(NOTE 7W rated at O“F.

9W retad at 25”F.)

PLby North American Philips.

“TT” Twin-Tube bv Svlvania, ‘[GA F%

Dulux@ by Osram.- “w

——
