INSTRUCTIONSHEETNO. \

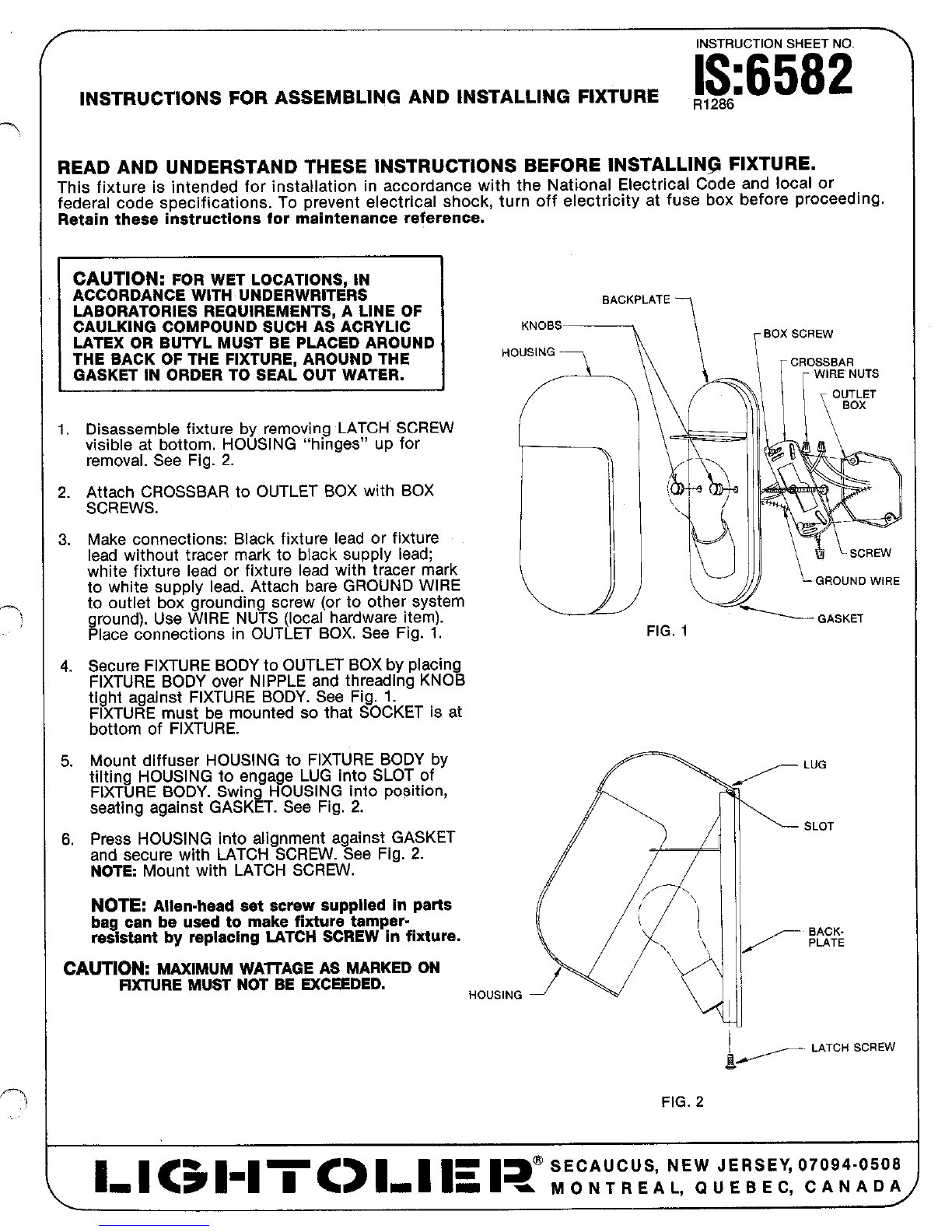

INSTRUCTIONS FOR ASSEMBLING AND INSTALLING FIXTURE IS:6582

R1286m

EAD AND UNDERSTAND THESE INSTRUCTIONS BEFORE lNSTALLIN~ FIXTURE.

his fixture is intended for installation in accordance with the National Electrical Code and local or

!deral code specifications. To prevent electrical shock, turn off electricity at fuse box before proceeding.

etain these instructions for maintenance reference.

=‘0

ACCORDANCE WITH UNDERWRITERS

LABORATORIES REQUIREMENTS, ALINE OF

CAULKING COMPOUND SUCH AS ACRYLIC

LATEX OR BUTYL MUST BE PLACED AROUND

THE BACK OF THE FIXTURE, AROUND THE

GASKET IN ORDER TO SEAL OUT WATER.

Disassemble fixture by removing LATCH” SCREW

visible at bottom, HOUSING “hinges” up for

removal. See Fig. 2.

Attach CROSSBAR to OUTLET BOX with BOX

SCREWS.

Make connections Black fixture lead or fixture

lead without tracer mark to black supply lead;

white fixture lead or fixture lead with tracer mark

towhite eupplylead. Attach bare GROUND WIRE

to outlet box grounding screw (ortoothersyetem

round). Use WIRE NUTS (local hardware item).

~lace connections in OUTLET BOX, See Fig. 1. FIG. 1

Secure FIXTURE BODY to OUTLET BOX by placing

FIXTURE BODY over NIPPLE and threading KNOB

tight againat FIXTURE BODY. See Fig. 1.

FIXTURE must be mounted eo that SOCKET is at

bottom of FIXTURE.

Mount diffuser HOUSING to FIXTURE BODY by

tilting HOUSING to engage LUG into SLOT of LUG

FIXTURE BODY. Swing HOUSING into position,

seating againet GASKET. See Fig. 2.

Preee HOUSING into alignment against GASKET SLOT

and secure with LATCH SCREW. See Fig, 2.

NOTE Mount with LATCH SCREW.

NOTE Allen-hesd set screw supplied in psrts

bsg csn be used to mskeffxturetsmper.

resistent by repleclng LATCH SCREW in fixture. BACK.

PLATE

;AUTION: MAXIMUM WAlTAGE AS MARKED ON

FIXIIJRE MUST N~ BE EXCEEDED. HOUSING

LATCH SCREW

~~

FIG. 2

lmlc31=lTc>lmBB [~BSECAUCfJS, NEW JERSEY,07094-0508

*MO NT REAL, QUEBEC, C AN ADA

—.-—
