Lightmybricks Ecto-1 & 2 LED Lighting Kit User manual

Light My Bricks : Ecto-1 & 2 LED Lighting Kit

Here is the instructions document for the Lego Ecto-1 & 2 LED lighting kit. Please read

and follow the steps carefully to ensure this lighting kit is installed properly.

Package contents:

 5x White 30cm Bit Lights

 2x White 15cm Bit Lights

 4x Flashing 15cm Bit Lights

 1x 12-port Expansion Board

 1x Flat Battery Pack (2x CR2032 batteries included)

Important things to note:

Laying cables in between and underneath bricks

Cables can fit in between and underneath LEGO® bricks, plates, and tiles providing they

are laid correctly between the LEGO® studs. Do NOT forcefully join LEGO® together

around cables; instead ensure they are laying comfortably in between each stud.

CAUTION: Forcing LEGO® to connect over a cable can result in damaging the cable

and light.

Connecting cable connectors to Expansion Boards

Take extra care when inserting connectors to ports of Expansion Boards. Connectors can

be inserted only one way. With the expansion board facing up, look for the soldered “=”

symbol on the left side of the port. The connector side with the wires exposed should be

facing toward the soldered “=” symbol as you insert into the port. If a plug won’t fit easily

into a port connector, do not force it.

WARNING: Incorrectly inserting the connector can result in bent pins inside the

port or possible overheating of the expansion board when connected.

Installing Bit Lights under LEGO® bricks and plates.

When installing Bit Lights under LEGO® pieces, ensure they are placed the correct way

up (Yellow LED component exposed). You can either place them directly on top of

LEGO® studs or in between.

OK, Let’s Begin!

Instructions for installing this kit

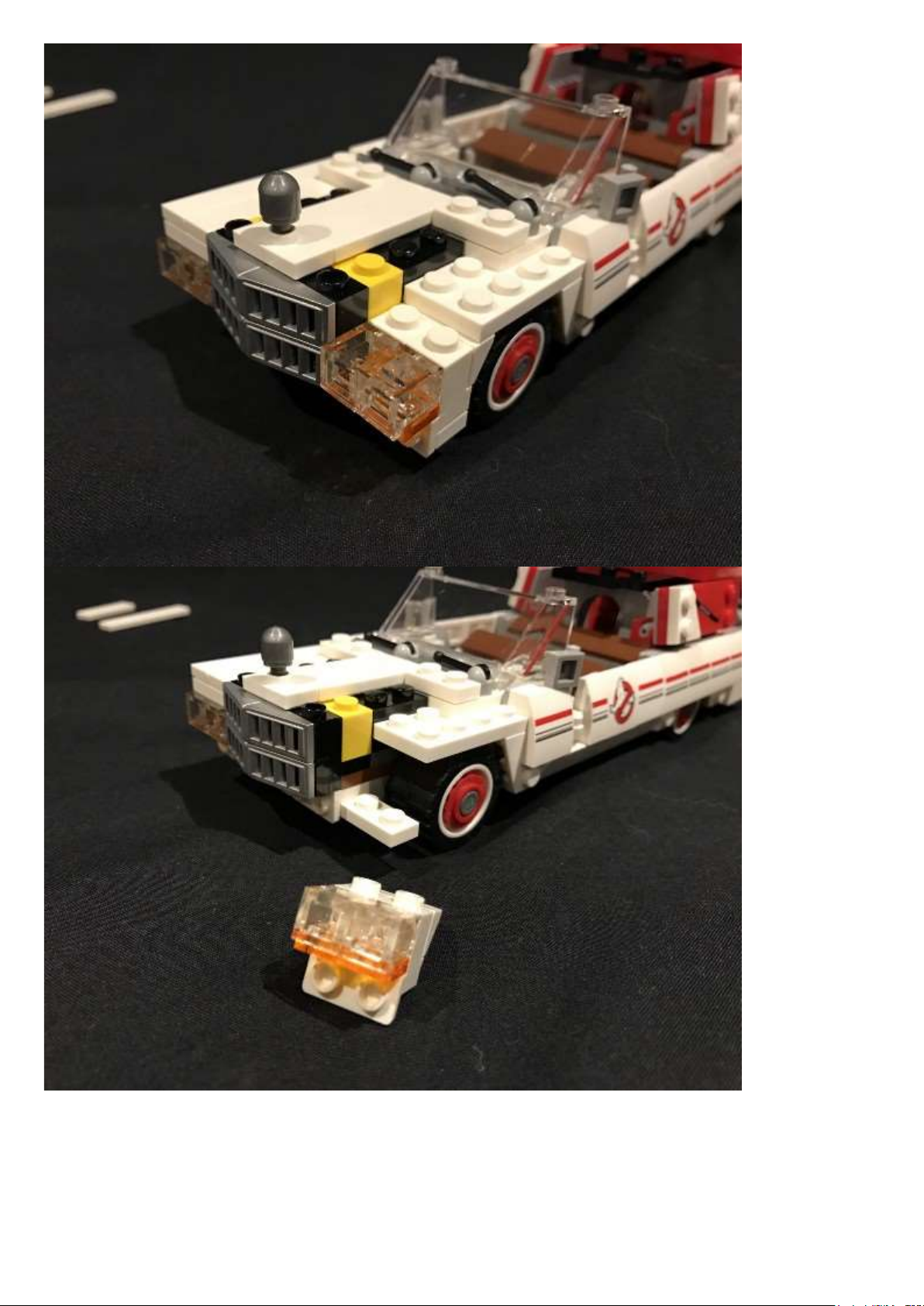

1.) We will start with installing headlights to Ecto-1. Start by removing the following pieces

to allow us to then remove one of the headlight sections as per below.

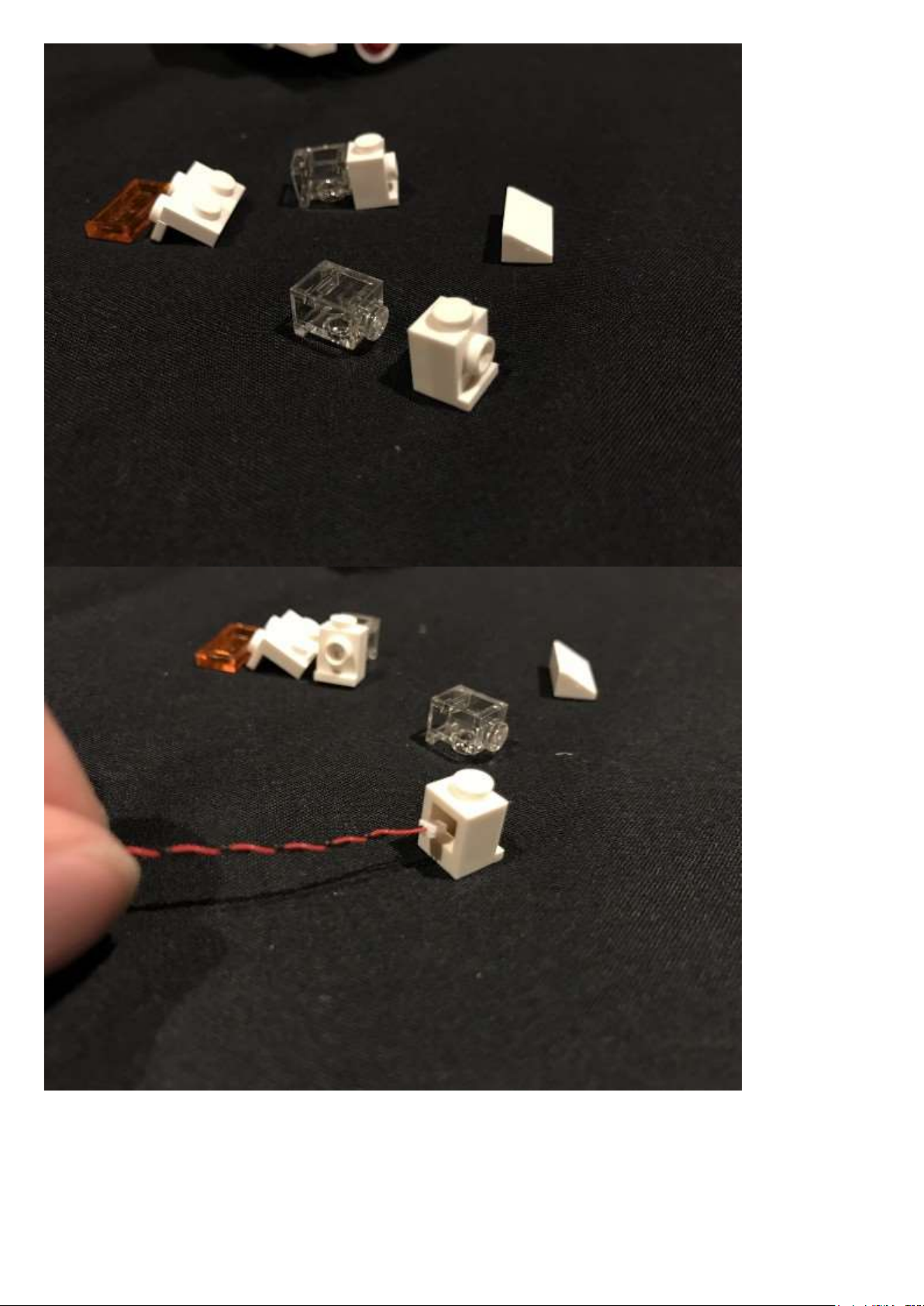

2.) Disassemble the headlight piece and then take one bit light with 30cm cable and

thread the connector side of the cable through the back of the white 1×1 brick with hole.

Pull it all the way through from the front side of the brick until the LED component is sitting

nicely in the inside of the brick. Ensure the LED component is facing the correct way.

You may need to bend the cable down on a 90 degree angle to ensure the LED

component will face forward correctly
