Lifetime 60231 User manual
TOOLS REQUIRED TABLE OF CONTENTS
Icon Legend................................2
Warnings & Notices.....................3
Platform Construction..................4
Truss Assembly...........................9
Gable Assembly........................13
Door Assembly..........................16
Floor Assembly..........................27
Wall Assembly...........................31
Window Installation...................41
Door & Gable Installation...........44
Parts Identifier..........................45
Roof Assembly..........................54
Door Alignment........................71
Shed Anchoring........................74
Latch Installation......................77
Cleaning & Care........................89
Registration...........................90
Warranty..............................91
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
Live Chat: www.lifetime.com
(click on “Ask An Expert” tab)
Video Instructions: www.youtube.com/lifetimeproducts
QUESTIONS?
MODEL# AND PRODUCT ID (you will need both when contacting us)
Model Number: 60231
Product ID:
BEFORE ASSEMBLY:
• Assemble on a level surface
• 3+ people recommended for setup
• Videos and help guides available
Scan the code below to see how it all comes
together.
http://go.lifetime.com/60231playlist
ASSEMBLY INSTRUCTIONS
7' x 7'
OUTDOOR STORAGE SHED
MODEL 60231
7/16" (11 mm)
3/8" (10 mm)
5/16" (8 mm) Wood Drill Bit
5/16" (8 mm) Masonry Drill Bit
1/2" x 4" x 7" Piece of Plastic
For Customer Service in mainland Europe:
E-mail: [email protected]
2

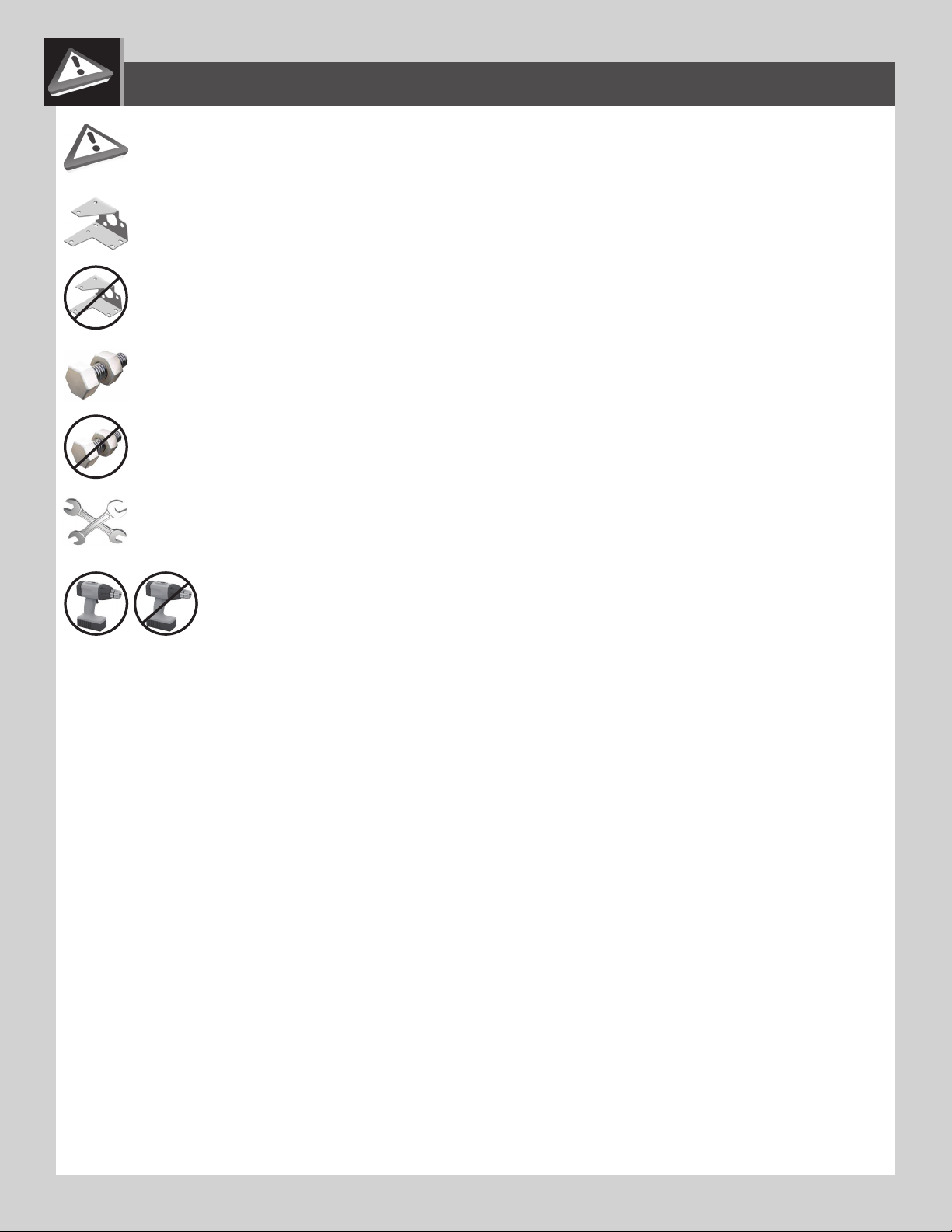

• Indicates the parts to be used for a section.
• Indicates special heed should be taken when reading.
• Indicates the hardware to be used for a section.
• Indicates the tools to be used for a section.
• Indicates no hardware required for a specific page.
• Indicates no parts required for a specific section.
• Indicates to use/not to use an electric drill for a specific step.
ICON LEGEND
1200539 4/02/2019
3
English:
•Failure to follow these warnings may result in serious injury or property damage and will void warranty.
• To ensure safety, do not attempt to assemble this product without following the instructions carefully.
• Consult all local building codes to verify if the shed requires a building permit.
• Verify the foundation is completely level before assembling the shed.
• Be aware that plastic pieces can be damaged by overtightening the screws. To avoid damage, we strongly recommend
the use of a drill with a low torque setting. A #2 Phillips screwdriver may also be used.
• Three capable adults are required for assembly.
• All who participate in the assembly process should wear safety glasses throughout the assembly.
• If using a ladder during assembly, use extreme caution.
• In heavy snowfall areas, we recommend removing snow from the roof.
• Do not use or store hot objects near the product.
• Proper and complete assembly are essential to reduce the risk of accident or injury.
• We strongly recommend anchoring your shed when it is finished. The last section, Shed Anchoring, in this manuel shows
the hardware you will need to complete the anchoring. You can find the hardware at your local hardware store.
• Most injuries are caused by misuse and/or not following instructions. Use caution when using this product.
WARNINGS & NOTICES
4
PLATFORM CONSTRUCTION
1
• You must provide a platform on which to assemble your shed. Proper building permit documentation may be
required in your neighborhood. Consult all local building codes prior to assembling the shed. Before beginning
assembly, you must pour or construct a platform. There are two types:
• Concrete
• Wood Frame
Select the type, but know the surface must be leveled and flat before installation. If the surface is not properly leveled and
flat, the shed will not assemble correctly. Proper surface leveling will save you time in the long run, so please do not ignore
this step. We recommend a Concrete platform. It will be the most durable and long-lasting choice. The platform you choose must be built above
ground in order to avoid water pooling inside the shed. All lumber must be rated for outdoor use!
5
XSECTION 1 (CONTINUED)
1 yd3(0,77 m3)
!
CONCRETE REQUIRED

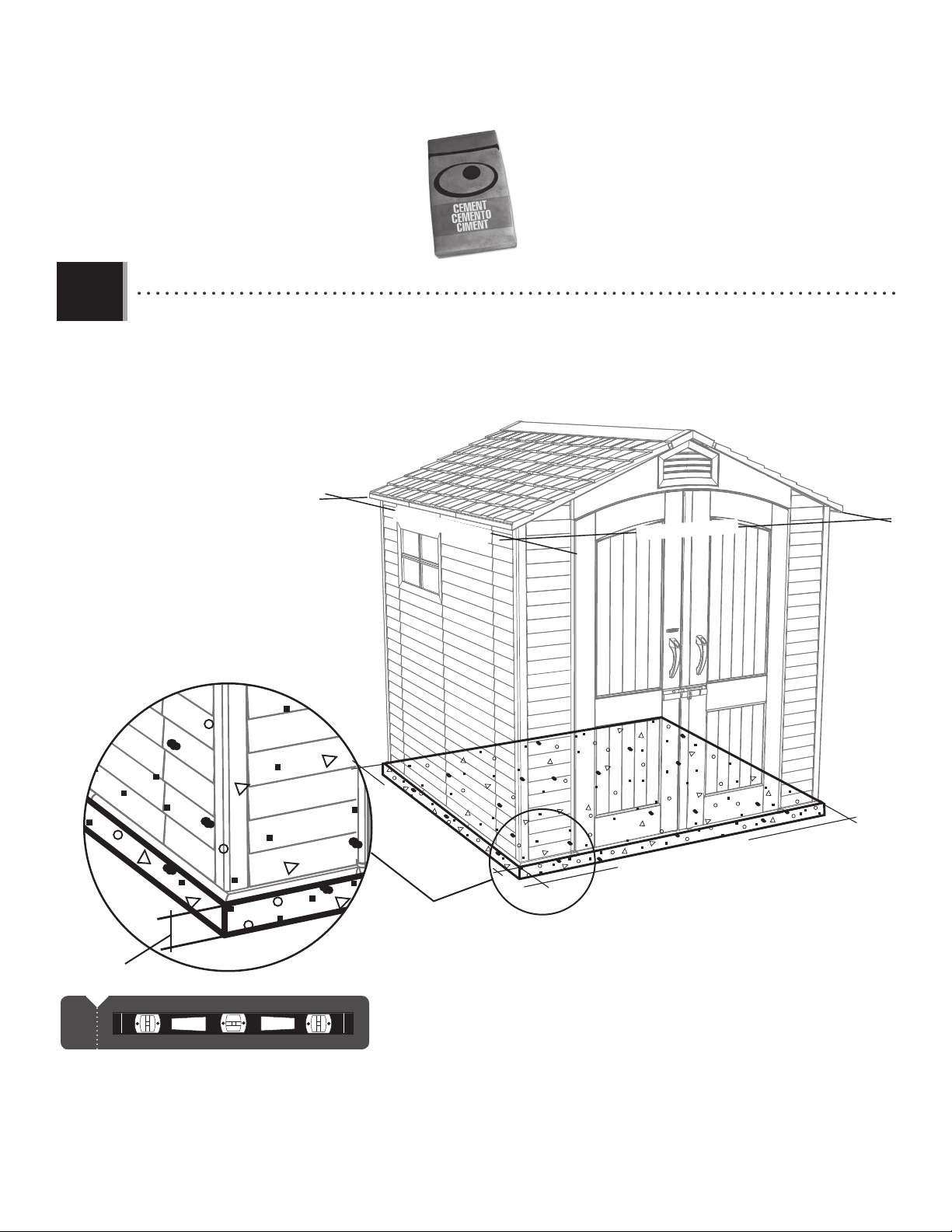

CONCRETE PLATFORM
1.1
• The concrete should be approximately 4" (10,2 cm) thick. The actual dimensions of the shed, at its widest
and longest points, are 84" x 84" (2,13 m x 2,13 m). Ensure you select a site that will accommodate these
measurements. The floor dimensions are a bit smaller than those of the roof; therefore, you will need to builld a level surface of 81
1/2" x 83 3/8" (2,07 m 2,12 m).
81 1/2" (2,07 m)
83 3/8" (2,12 m)
4" (10,2 cm)
84" (2,13 m)
84" (2,13 m)
6
XSECTION 1 (CONTINUED) 1
WOOD PLATFORM
1.2
WOOD REQUIRED
81 1/2" (2,07 m)
83 3/8" (2,12 m)
80 3/8" (2,04 m)
• The actual dimensions of the shed, at its widest and longest points, are 84" x 84" (2,13 m x 2,13 m). Ensure
you select a site that will accommodate these measurements. The floor dimensions are a bit smaller than those of the roof;
therefore, you will need to builld a level surface of 81 1/2" x 83 3/8" (2,07 m 2,12 m).
7
XSECTION 1 (CONTINUED)
x8
1
!
TOOLS, PARTS, AND HARDWARE REQUIRED
• To ensure studs are in the correct location for nailing plywood in the next step, start measuring from the corner 16"
(40,1 cm), and then measure from center to center.
WOOD PLATFORM
1.2.1
1.2.2
x20
Start Here
2" x 4" x 81 1/2" (5,1 cm x 10,2 cm x 2,12 m) (x2)
2" x 4" x 80 3/8" (5,1 cm x 10,2 cm x 2,04 m) (x7)
16d 3" (16d x 7,62 cm) (x28)
81 1/2" (2,07 m)
83 3/8" (2,12 m)
80 3/8" (2,04 m)
• Ensure all lumber is treated and approved for outdoor use. Build frame to 81 1/2" x 83 3/8" (2,07 m x 2,12 m)
(outside dimensions). You can also use the plywood as a flat surface when building this frame.
16" (40,1 cm) 16" (40,1 cm) 16" (40,1 cm) 16" (40,1 cm) 16" (40,1
cm)
81 1/2" (2,07 m)
83 3/8" (2,12 m)
80 3/8" (2,04 m)
8
XSECTION 1 (CONTINUED) 1
!
TOOLS, PARTS, AND HARDWARE REQUIRED
!
• Square the frame, measuring from corner to corner. Measurement A & B should be about the same length.
• Using nails, fasten the plywood to the frame. Then, drill 5/16" (8 mm) holes for drainage.
1.2.3
1.2.4
x32
x18!
• 5/16" (8 mm) Drainage Holes
8d 1 1/2" (8d 3,81 cm) (x32)
48" x 83 3/8" x 3/4"
(1,22 m x 2,12 m x 19,1 mm) (x1)
33 1/2" x 83 3/8" x 3/4"
(85,1 cm x 2,12 m x 19,1 mm) (x1)
48" x 83 3/8" x 3/4"
(1,22 m x 2,12 m x 19,1 mm)
A
B
(x9)
(x9)
33 1/2" x 83 3/8" x 3/4"
(85,1 cm x 2,12 m x 19,1 mm)
9
TRUSS ASSEMBLY
2
43 1/4”43 1/4" (1,10 m)
v
40" (1,02 m)
AFH (x4)
AFG (x2)
8 1/4”
8 1/4" (20,96 cm)
ADH (x2)
ADY (x8) CXK (x16)
ADJ (x4)
ETC (x8)
ETD (x2)
7/16" (11 mm) (x2) 3/8" (10 mm)
Metal Parts
Hardware Bag
TOOLS REQUIRED
PARTS REQUIRED / PIÈCES REQUISES / PIEZAS REQUERIDAS
HARDWARE REQUIRED
FRA
10
TOOLS AND HARDWARE REQUIRED
XSECTION 2 (CONTINUED)
AFH
AFH
ETD
• Align the holes in a Connector (ETD) with those in the ends of the Truss Channels (AFH).
2.1
• If you have trouble with this section, follow the code below to view a video on the assembly for this section.
http://go.lifetime.com/7truss
LIFETIME©
ETD (x2)
