Lifely Button Series User manual

Assembly Instructions

Button Series

Product Code

Dimensions(W x D x H)

BTN-BS-NAL Button Bedside Table

Important

Please read through instruction carefully

Before assembly and keep for future reference.

For our full catalogue of assembly instructions,

Visit: lifely.com.au/assembly.

500*400*500mm

Important Tips and Maintenance

Keep children and animals

away from working area as

smaller parts may cause chok-

ing if swallowed.

Never place liquids or anything

damp upon furniture as it

will mark. Ensure a coaster or

running is beneath.

Never use ammonia based

cleaning products as it will

damage the finish.

To avoid fading, keep furniture

out of direct sunlight.

Use a soft or damp cloth(dry

cloth)when wiping or cleaning

surfaces.

Two person are required.

Lay a soft matt down to protect

the furniture piece before and

during assembly.

BTN-BS 2

Designed for everyday

This 16-step assembly should take around 30 minutes

with an Allen key – or 20 minutes with an electric drill.

Godspeed.

So your relationship is strong. But is it flat-pack furniture

strong? Unless you're an aerospace engineer, assembling

furniture can be slightly stressful. We recommend

meditating quietly, pouring yourself a herbal tea (or

slightly less herbal wine) and tackling things one step at

a time. If you feel a passive aggressive remark coming

on, try a compliment instead. E.g."You're so good

looking".

BTN-BS 3

Dowel

Component Hardware

Please check you have all the fittings

part or tools are listed in below.

No. F No. G No.H

No. A No. C No. D

Quantity:18Pcs

8*30mm

Quantity:26Pcs Quantity:26Pcs

Quantity:8Pcs Quantity:4Pcs

No.B

Disc sticker

φ30

Screw

φ3.5*14

Quantity:16Pcs

Quantity:26Pcs

Cam Bolt

No.I

Quantity:4Pcs No. J

Canm Nut

φ15*11

Quantity:2Pcs

φ5*35

Screw

φ4*32

Plastic Corner Block

φ3*17

Screw

No. K

Screw

Ø3*12

Quantity:20Pcs

No. L

Quantity:2Pcs

Slider

No. M

Quantity:2Pcs

Screw

handle

Ø4x22mm

No. E

Quantity:4Pcs

Iron Sheet

BTN-BS 4

Component Panels &part List

Please check you have all the panels

are listed below.

Top panel x1

Bottom panel x1

Side panel

5. Black Panel x1

Legs x4

10. Left extraction side panel x2

Drawer Base Plate x2

Connection bar x1

Top drawer panel x1

6. Solid wood corners x4

11. Right extraction side panel x2

12. Drawer back panel x2

13. Lower draw panel x1

BTN-BS 5

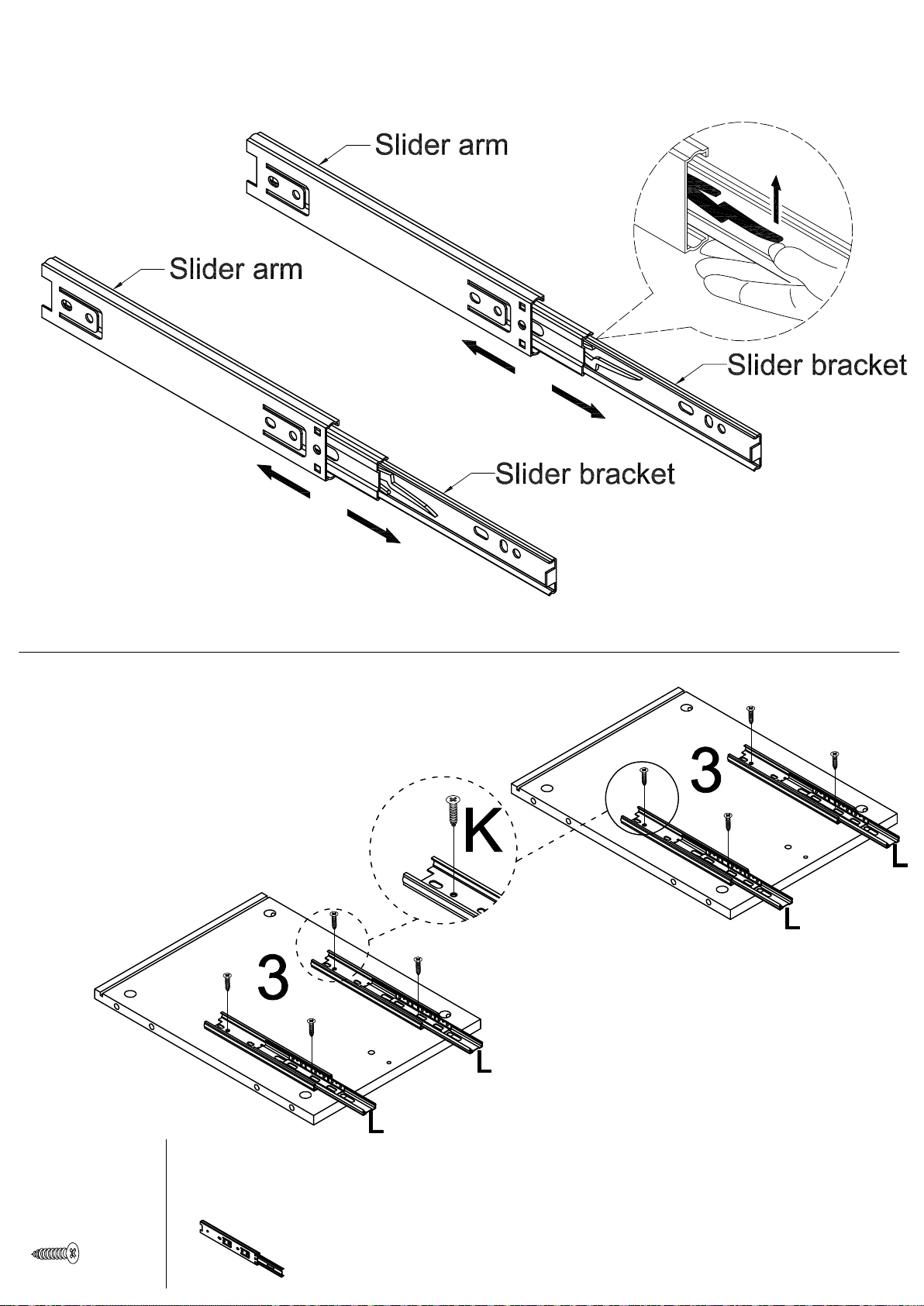

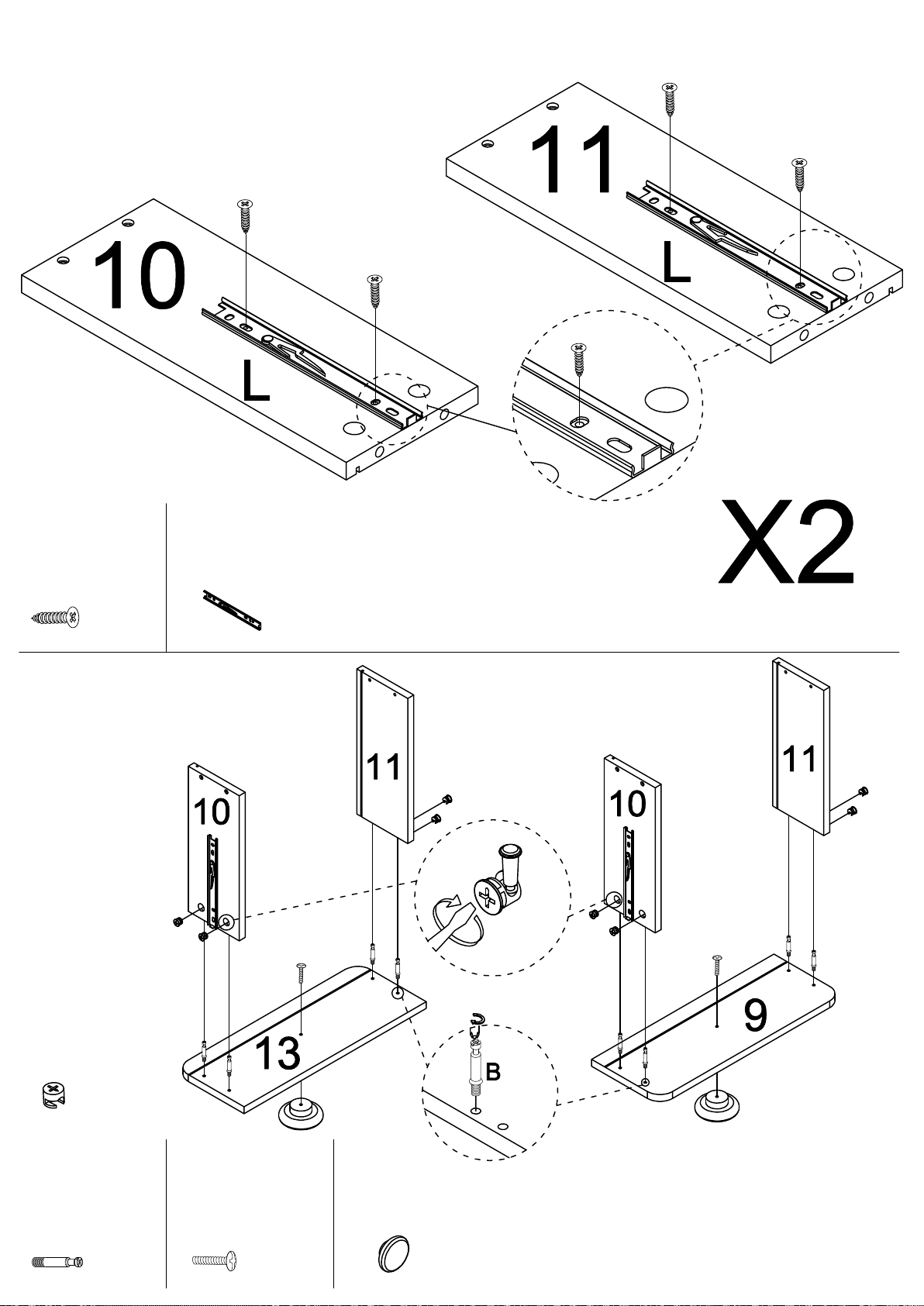

STEP 2

STEP 1

No.K

Quantity:12Pcs

Screw

∅3*12

No.L

Quantity:2Pcs

Slider

BTN-BS 6

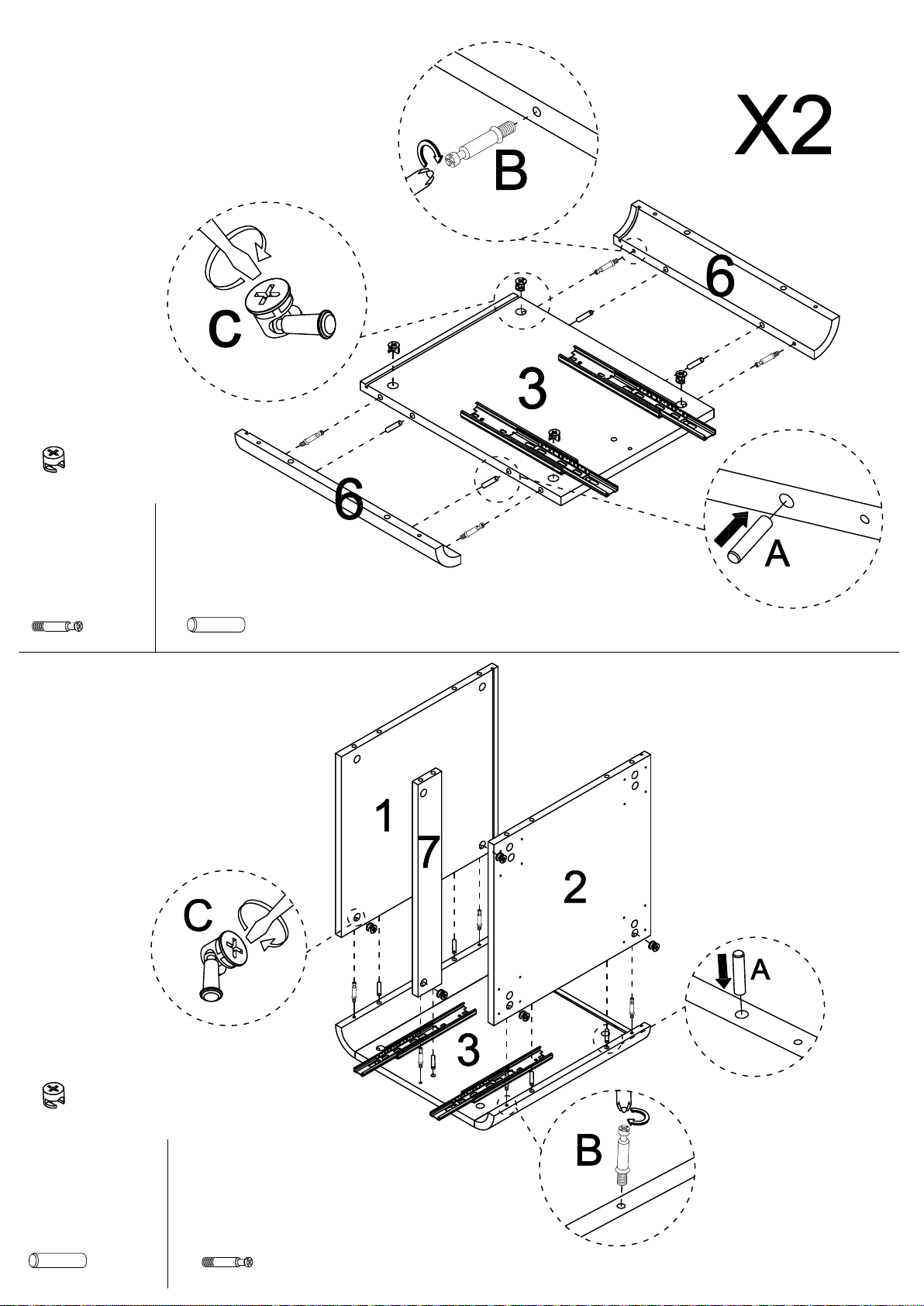

STEP 3

STEP 4

No.B

Quantity:8Pcs

Cam Bolt

No.C

Quantity:8Pcs

Cam Nut

No.A

Quantity:5Pcs

Dowel

8*30mm

No.B

Quantity:5Pcs

Cam Bolt

No.C

Quantity:5Pcs

Cam Nut

φ5*35

φ15*11

φ5*35

No.A

Quantity:8Pcs

Dowel

8*30mm

BTN-BS 7

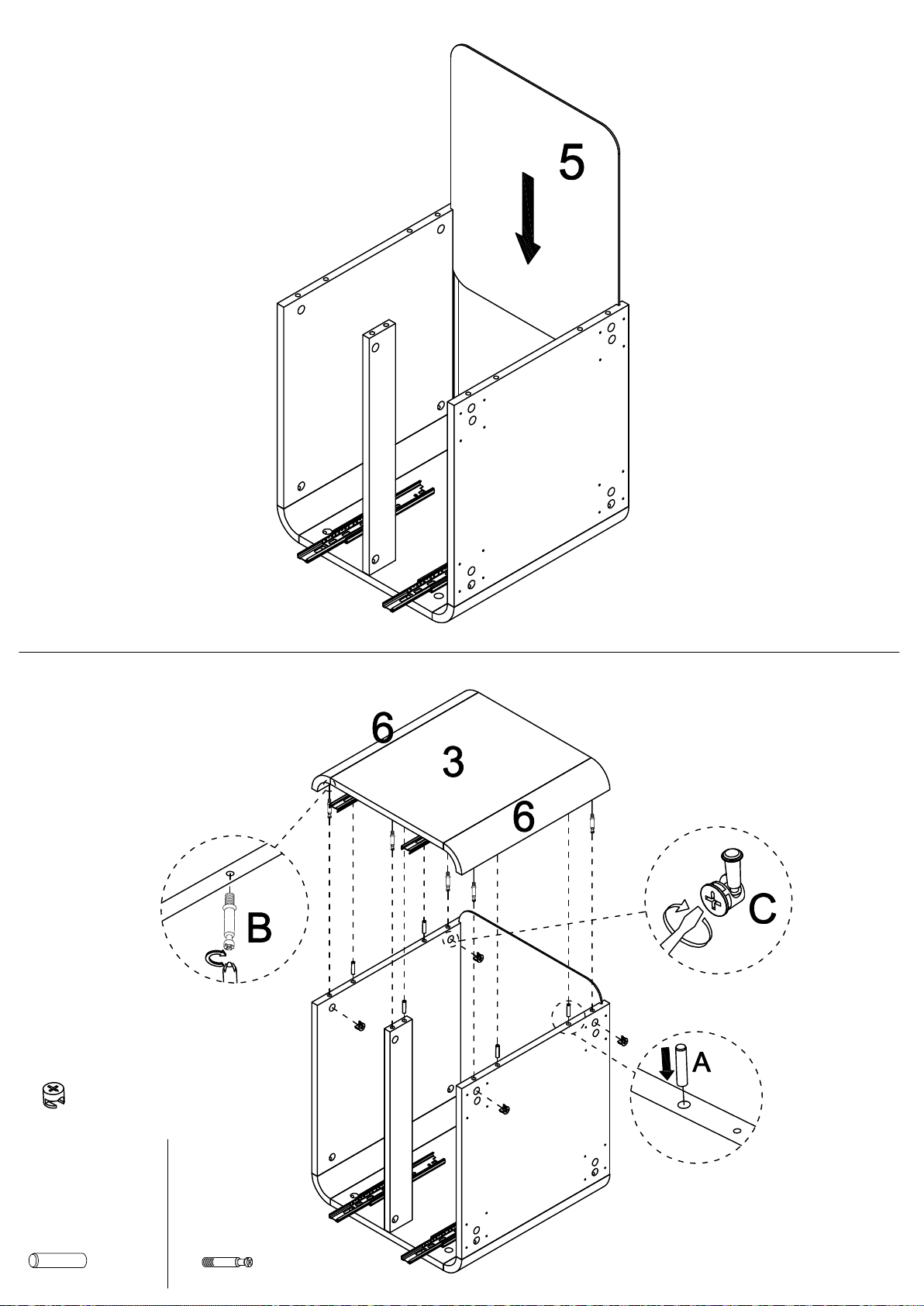

STEP 5

STEP 6

No.A

Quantity:5Pcs

Dowel

8*30mm

No.B

Quantity:5Pcs

Cam Bolt

No.C

Quantity:5Pcs

Cam Nut

φ5*35

φ15*11

BTN-BS 8

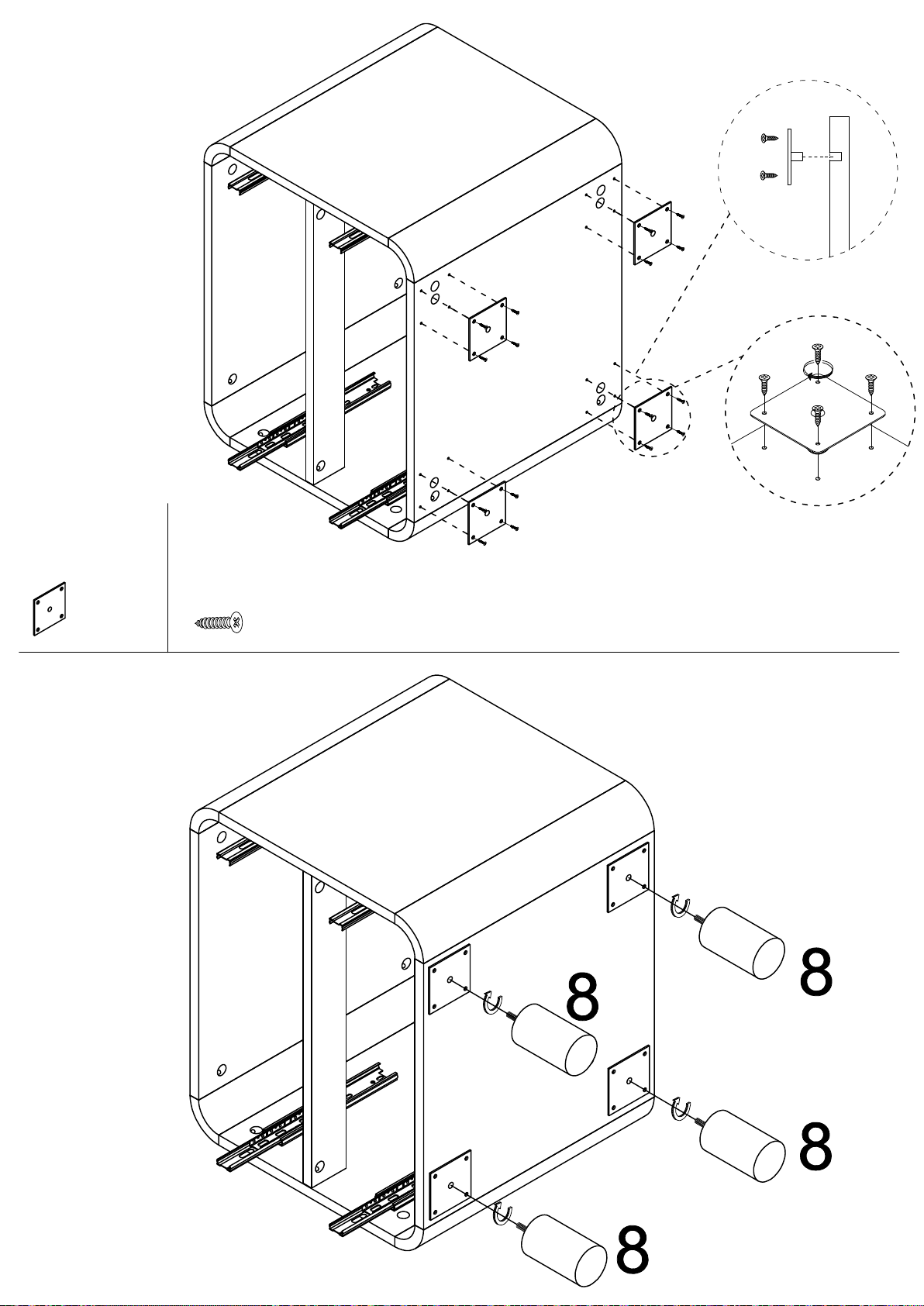

STEP 7

STEP 8

No.E

Quantity:4Pcs

Iron Sheet

No.F

Quantity:16Pcs

Screw

Ø3.5*14

BTN-BS 9

STEP 9

STEP 10

No.K

Quantity:8Pcs

Screw

∅3*12

No.L

Quantity:2Pcs

Slider

No.B

Quantity:8Pcs

Cam Bolt

No.C

Quantity:8Pcs

Cam Nut

φ15*11

φ5*35

No.M

Quantity:2Pcs

Screw

Ø4x22mm

No.J

Quantity:2Pcs

handle

BTN-BS 10
