LG PPWRDB000 Installation instructions

INSTALLATION/

OWNER'S MANUAL

PDI STANDARD

PPWRDB000

AIR

CONDITIONER

www.lg.com

Please read this installation manual completely before installing the product.

Installation work must be performed in accordance with the national wiring

standards by authorized personnel only.

Please retain this installation manual for future reference after reading it

thoroughly.

P/NO : MFL67982907

ENGLISH ITALIANO ESPAÑOL

FRANÇAIS

DEUTSCH

PORTUGUÊS

TÜRKÇE

РУССКИЙ ЯЗЫК

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 1

2TIPS FOR SAVING ENERGY

ENGLISH

TIPS FOR SAVING ENERGY

Here are some tips that will help you minimize the power consumption when you use the air

conditioner. You can use your air conditioner more efficiently by referring to the instructions

below:

• Do not cool excessively indoors. This may be harmful for your health and may consume more

electricity.

• Block sunlight with blinds or curtains while you are operating the air conditioner.

• Keep doors or windows closed tightly while you are operating the air conditioner.

• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.

• Speed up the fan to cool or warm indoor air quickly, in a short period of time.

• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air con-

ditioner is used for many hours.

• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block

the air flow or weaken the cooling / dehumidifying functions.

For your records

Staple your receipt to this page in case you need it to prove the date of purchase or for warranty

purposes. Write the model number and the serial number here:

Model number :

Serial number :

You can find them on a label on the side of each unit.

Dealer’s name :

Date of purchase :

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 2

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Always comply with the following precautions to avoid dangerous situations and

ensure peak performance of your product

WARNING

It can result in serious injury or death when the directions are ignored

CAUTION

It can result in minor injury or product damage when the directions are ignored

WARNING

• Installation or repairs made by unqualified persons can result in hazards to you

and others.

• Installation work must be performed in accordance with the National Electric

Code by qualified and authorized personnel only.

• The information contained in the manual is intended for use by a qualified

service technician familiar with safety procedures and equipped with the

proper tools and test instruments.

• Failure to carefully read and follow all instructions in this manual can result in

equipment malfunction, property damage, personal injury and/or death.

WARNING

Installation

• Be sure to request to the service center or installation specialty store when

installing products. It will cause fire or electric shock or explosion or injury.

• Request to the service center or installation specialty store when reinstalling

the installed product. It will cause fire or electric shock or explosion or injury.

• Do not disassemble, fix, and modify products randomly.

It will cause fire or electric shock.

In-use

• Do not place flammable stuffs close to the product. It will cause fire.

• Do not allow water to run into the product.

It will cause electric shock or breakdown.

• Do not give the shock to the product.

It will cause breakdown when giving the shock to the product.

ENGLISH

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 3

4IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

• Request to the service center or installation specialty store when the product

becomes wet. It will cause fire or electric shock.

• Do not give the shock using sharp and pointed objects.

It will cause breakdown by damaging parts.

CAUTION

In-use

• Do not clean using the powerful detergent like solvent but use soft cloths. It

will cause fire or product deformation.

• Do not press the screen using powerful pressure or select two buttons. It will

cause product breakdown or malfunction.

• Do not touch or pull the lead wire with wet hands.

It will cause product breakdown or electric shock.

According to IEC 60335-1

This appliance is not intended for use by person (including children) with reduced

physical, or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety. Children should be supervised to ensure that

they do not play with the appliance.

According to EN 60335-1

This appliance can be used by children aged from 8 years and above and person

with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of

the appliance in a safe way and understand the hazards involved. Children shall

not play with the appliance. Cleaning and user maintenance shall not be made by

children without supervision.

Disposal of your old appliance

1When this crossed-out wheeled bin symbol is attached to a product it means the product

is covered by the European Directive 2002/96/EC.

2All electrical and electronic products should be disposed of separately from the municipal

waste stream via designated collection facilities appointed by the government or the local

authorities.

3The correct disposal of your old appliance will help prevent potential negative conse-

quences for the environment and human health.

4For more detailed information about disposal of your old appliance, please contact your

city office, waste disposal service or the shop where you purchased the product.

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 4

TABLE OF CONTENTS 5

TABLE OF CONTENTS

2TIPS FOR SAVING EN-

ERGY

3IMPORTANT SAFETY IN-

STRUCTIONS

6NAME OF EACH PART

7COMPONENTS

8INSTALLATION METHOD

8Diagram of overall product conﬁgura-

tion

12 How to wire the product (when EHP

product is connected)

13 How to wire the product (when GHP

product is connected)

14 Wiring

17 SETTING AND USING

METHOD

17 Glossary

18 Setting

20 Setting up detailed functions (EHP

products)

26 Setting detailed functions (GHP prod-

ucts)

32 How to Use Power Indicator (EHP

products)

35 How to Use the Power Indicator (GHP

products)

39 Operating condition display

ENGLISH

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 5

6NAME OF EACH PART

ENGLISH

NAME OF EACH PART

①Front cover

②LED display Displays current status of power indicator

③Menu button Use for checking initial setting and electric power

④LCD display Displays setting information and power usage

⑤SELECT button Use for initial setting

⑥Navigation button Use for checking initial setting and electric power

⑦Power supply Supply power for power indicator

POWER WHM

PPWRDB000

ODU

SELECT

WHM

CHECK

⑦Power supply

①Front cover

②LED display

③Menu button

④LCD display

⑤SELECT button

②LED display

⑥Navigation button

POWER WHM

SELECT

ODU

WHM

CHECK

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 6

COMPONENTS 7

ENGLISH

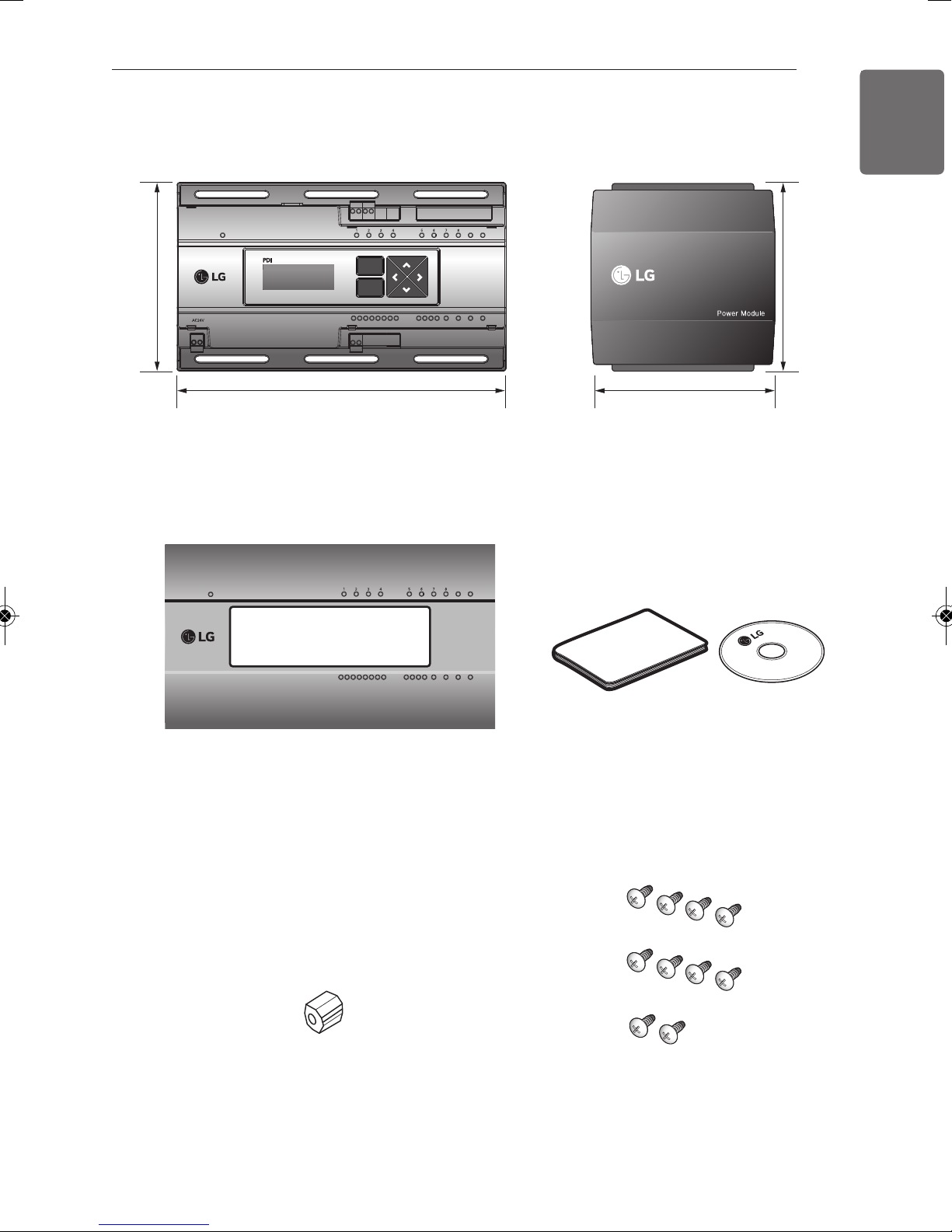

COMPONENTS

155 mm

270 mm 120 mm

155 mm

POWER WHM

PPWRDB000

ODU

SELECT

WHM

CHECK

Power distribution indicator Power supply

Front cover

1 core Screws

POWER WHM

ODU

WHM

CHECK

Manual

1,MFL67982907,영영 2017. 7. 13. 영영 1:16 Page 7

8INSTALLATION METHOD

ENGLISH

INSTALLATION METHOD

Diagram of overall product conﬁguration

When interlocked to pulse type wattmeter

• When interlocked to EHP product

- Independent Operation of Power Indicator (interlocked to EHP products)

Power cable for 3 phase 4 wire

Power cable for single phase

Communication cable (2 wire shielded cable): Between outdoor unit and central controller

Communication cable (2 wire shielded cable): Between indoor unit and outdoor unit

Pulse signal wire

Refrigerant pipe

Power In

single phase

220-240 V~,

50/60 Hz

Wattmeter

Power In 3

phase 4 wire

380-415 V 3N~,

50/60 Hz

Pulse signal

(00) (01) (02) (03)

Power cable of indoor unit

Pulse signal

POWER WHM

PPWRDB000

ODU

SELECT

WHM

CHECK

Power In

single phase

220-240 V~,

50/60 Hz

Wattmeter

Power In 3

phase 4 wire

380-415 V 3N~,

50/60 Hz

(00) (01) (02) (03)

(10) (11) (12) (13)

Power cable of indoor unit

RS-485

Pulse signal

POWER WHM

PPWRDB000

ODU

SELECT

WHM

CHECK

RS-485

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 8

INSTALLATION METHOD 9

ENGLISH

• Interlocked Operation with Central Controller (interlocked to EHP product)

(00) (01) (02) (03)

(10) (11) (12) (13)

Power cable of indoor unit

Power In

single phase

220-240 V~,

50/60 Hz

Wattmeter

Power In 3

phase 4 wire

380-415 V 3N~,

50/60 Hz

Pulse signal

RS-485

(LGAP)

Pulse signal

POWER WHM

PPWRDB000

ODU

SELECT

WHM

CHECK

Power cable for 3 phase 4 wire

Power cable for single phase

Communication cable (2 wire shielded cable): Between outdoor unit and central controller

Communication cable (2 wire shielded cable): Between indoor unit and outdoor unit

Pulse signal wire

Refrigerant pipe

CAUTION

• Depending on the electric power, use the wattmeter for remote reading by sending the

pulse signal.

• Use the wattmeter with the pulse width of 50 ms ~ 400 ms.

• The wattmeter pulse must be able to sink at least 3 mA or more of current in the power

indicator.

• Use the wattmeter of 1 W/Pulse, 2 W/Pulse, 4 W/Pulse, 6 W/Pulse, 8 W/Pulse, 10

W/Pulse, 100 W/Pulse, PT/CT (1 ~ 50 000).

• When setting the wattmeter, set it to Slave Mode.

• Maximum of 2 wattmeters can be installed.

• The distance between power indicator and wattmeter should be shorter than 10 m in

normal circumstance.

• When electrical or mechanical noise is expected, more shorter wiring is needed.

• For watt-hour meter setting, inquire to the corresponding vendor

hEHP (Electric Heat Pump): It is an electric air conditioner to drive the compressor by electric power.

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 9

10 INSTALLATION METHOD

ENGLISH

• When interlocked to GHP product

- Independent Operation of Power Indicator (interlocked to GHP product)

Wattmeter

Pulse signal(Power)

Pulse signal(Gas)

Power In 3

phase 4 wire

380-415 V 3N~,

50/60 Hz

Gas meter

(00) (01) (02) (03)

RS-485

POWER WHM

PPWRDB000

ODU

SELECT

WHM

CHECK

Power cable for 3 phase 4 wire

Power cable for single phase

Communication cable (2 wire shielded cable): Between outdoor unit and central controller

Communication cable (2 wire shielded cable): Between indoor unit and outdoor unit

Pulse signal wire

Refrigerant pipe

Gas pipe

Pulse signal wire(Gas)

CAUTION

• Use the wattmeter for remote reading to send pulse signal depending on wattage.

• Use the wattmeter with the pulse width of 50 ms ~ 400 ms.

•

The wattmeter pulse must be able to sink at least 3 mA or more of current in the power indicator.

•

Use the wattmeter of

1 W/Pulse, 2 W/Pulse, 4 W/Pulse, 6 W/Pulse, 8 W/Pulse, 10 W/Pulse,

100 W/Pulse, PT/CT(1 ~ 50 000).

• Use the gas meter for remote reading to send pulse signal depending on gas consumption.

• Use the gas meter with the pulse width of 50 ms or more.

• Use the gas meter containing the max. gas pressure of 0.2 m3/h ~ 10 m3/h.

•

Gas meter pulse must be able to sink at least 3 mA of current or more in the power indicator.

• Use the gas meters for 1

ℓ

/Pulse, 2

ℓ

/Pulse, 4

ℓ

/Pulse, 6

ℓ

/Pulse, 8

ℓ

/Pulse, 10

ℓ

/Pulse,

100

ℓ

/Pulse, VT&Pr(1 ~ 50 000).

• Set to Master Mode when setting the wattmeter or gas meter.

• Wattmeter or gas meter can be installed up to 1.

• Connection cable for the power indicator and wattmeter (gas meter) must not exceed 10 m

in normal circumstance.

•

Reduce the length of connection cable if there is any electrical or mechanical noise on the site.

•

For watt-hour meter and gas meter setting, inquire to the corresponding vendor

hGHP (Gas engine Heat Pump): It is a gas air-conditioner to drive the compressor with LNG or LPG as

a heat source and the gas engine electric power.

1,MFL67982907,영영 2017. 7. 13. 영영 1:13 Page 10

Other manuals for PPWRDB000

Table of contents

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
