Lexmark X543DN Manual

Print defects guide

Page 1 of 1

Replace the

photoconductor.

Note: If the defect appears on the printed

side of a single-sided print job, replace the

toner cartridge before replacing the fuser.

Replace the

fuser.

Match a set of repeating defects on a print job to the marks on one of the vertical lines. The line that best

matches the defects on the print job indicates which particular part may be causing the defect.

For example, the distance between these two

marks represents a repeating defect that

occurs every 34.6 mm (1.4 in.), which means

the photoconductor unit may need to be

replaced.

95 mm

(3.74 in.)

Replace the

developer.

43.9 mm

(1.7 in.)

55 mm

(2.2 in.)

Replace the

image unit kit.

34.6 mm

(1.4 in.)

Replace the

photoconductor.

94.2 mm

(3.71 in.)

37.7 mm

(1.5 in.)

78.5 mm

(3.1 in.)

Replace the

image unit kit.

Replace the

image unit kit.

Other manuals for X543DN

8

This manual suits for next models

9

Table of contents

Other Lexmark All In One Printer manuals

Lexmark

Lexmark Prestige Pro803 User manual

Lexmark

Lexmark C520 Series Manual

Lexmark

Lexmark MX810 Series User manual

Lexmark

Lexmark X463 User manual

Lexmark

Lexmark X748dte Owner's manual

Lexmark

Lexmark X73 4402-001 User manual

Lexmark

Lexmark XM3150 User manual

Lexmark

Lexmark Interpret S415 Installation instructions

Lexmark

Lexmark X950 Series Installation and maintenance instructions

Lexmark

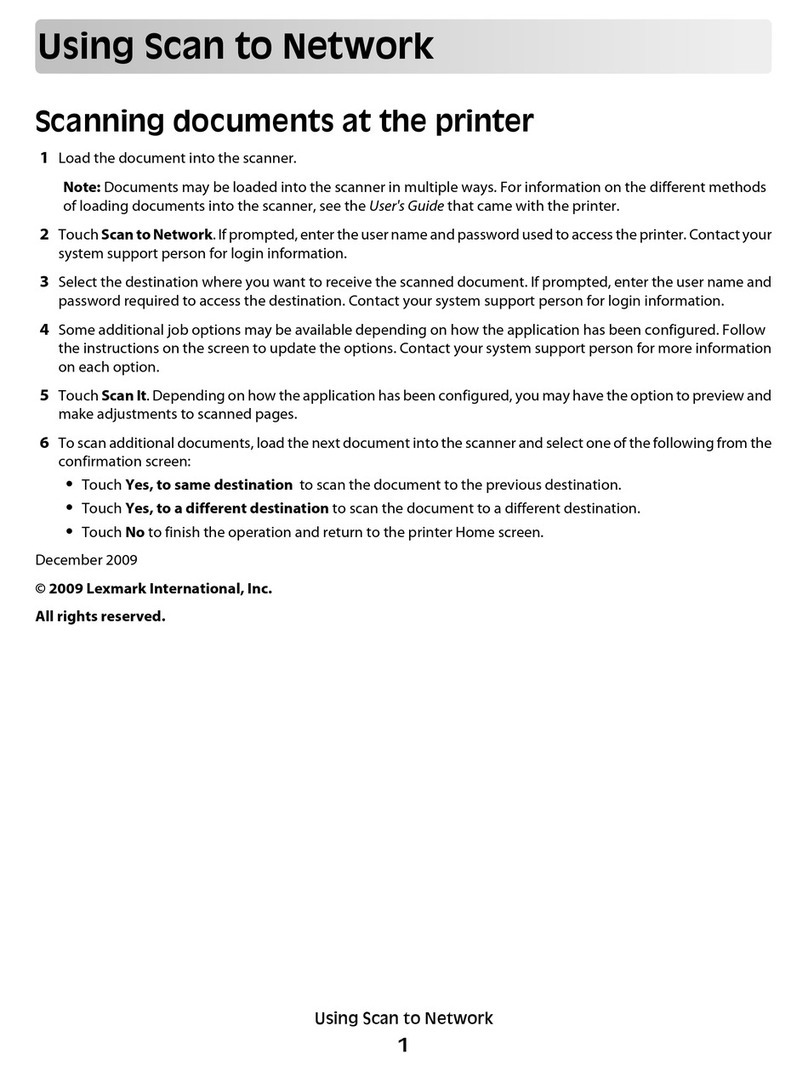

Lexmark X463 Installation instructions
