LevelOne FCS-3054 Instructions for use

Fixed Network Camera

Hardware User Manual

FCS-3054, FCS-3065, FCS-3092

Ver. 2014/01/09

Hardware Manual

Table of Contents

Precautions 3

Safety Instructions ...........................................................................5

Introduction 6

List of Models....................................................................................6

Package Contents.............................................................................7

Physical Description ........................................................................8

Installation Procedures 10

Installing the Camera on a Surface............................................... 11

Basic Connections .........................................................................14

Other Adjustments and Accessories 15

How to Adjust the Viewing Angle and Focus ...............................15

How to Replace the Dome Cover................................................... 17

How to Replace the Lens (for FCS-3065 only)..............................19

Accessing the Camera 22

Configure the IP Addresses...........................................................22

Using DHCP Server to Assign IPAddresses................................22

Using the Default Camera IPAddress..........................................24

Access the Camera.........................................................................25

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to

follow the safety instruction given may directly endanger people, cause damage to the system

or to other equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your

local office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

Hardware Manual

Federal Communications Commission Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modifications to the equipment that are not expressly approved by the

responsible party for compliance could void the user’s authority to operate the equipment.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class B

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may

cause hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink,

or laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may

expose you to dangerous voltage or other hazards. Refer all servicing to qualified service

personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to

qualified service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in

this manual. Adjust only those controls that are covered by the instruction manual, as an

improper adjustment of other controls may result in damage, and will often require

extensive work by a qualified technician to restore the video product to its normal

operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

FCS-3054

3MP Indoor Mini Dome with Fixed lens

FCS-3065

5MP Indoor Mini Dome with Basic WDR, Fixed lens

FCS-3092

5MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens

From the installation perspective, these camera models are very similar, therefore one manual

can be used for all of them.

Hardware Manual

Package Contents

Camera

FCS-3092 (Mini Fisheye Dome)

Screw Kit

Drill Template

Hexagon Screwdriver

Lens Focus Tuner

(Not available in E93, E96, and E97 models)

Quick Installation Guide

Drill Template

Hardware Manual

Physical Description

Mini Dome

Mini Fisheye Dome

Hardware Manual

1) Ethernet Port

The Ethernet port connects to a network using an Ethernet cable.

2) Reset Button

The Reset Button is used to restore the factory default settings of the camera, including

the administrator’s password.

How to reset the camera?

While the power is on, press and hold the Reset Button for 5 seconds or until the Blue

LED lights up.

3) LED Indicators

Blue LED: The Power LED lights blue when the camera is powered on, the light

goes off once the initial boot up process is complete.

Amber LED: The Ethernet Activity LED blinks amber when network activity is in

progress.

Green LED: The Ethernet Link LED lights green when a network connection is

established.

4) Memory Card Slot

Insert a memory card (not included) into this slot for local recording.

NOTE: Supports microSDHC and microSDXC cards.

How to install the memory card?

Insert the memory card into the slot with the metal contacts facing down, and then push

the card until it clicks into place.

How to remove the memory card?

Access the Web Configurator to “safely unmount” the card (see the camera Firmware

Manual for details). Once unmounted from the firmware, push the card to eject it from the

slot.

Hardware Manual

Installation Procedures

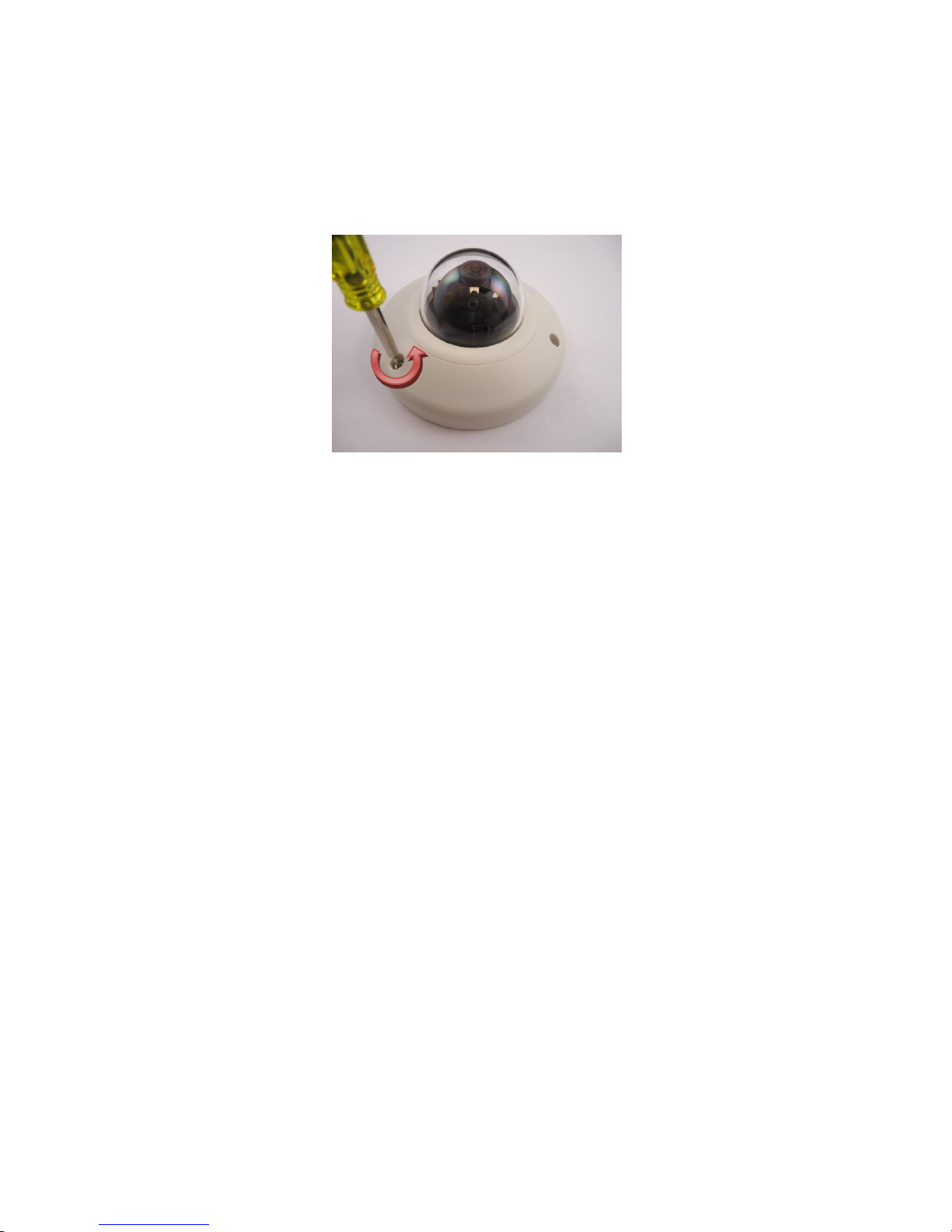

Before mounting the camera, remove the dome cover by loosening the three (3) screws.

There are two ways to mount the camera:

Surface mount: Use this method to mount the camera directly on the ceiling. See

Installing the Camera on a Surface on page 11.

Gang Box Mount: If the camera will be mounted on a gang box (applicable in some

areas in the US), a gang box converter (not included in the camera package)
