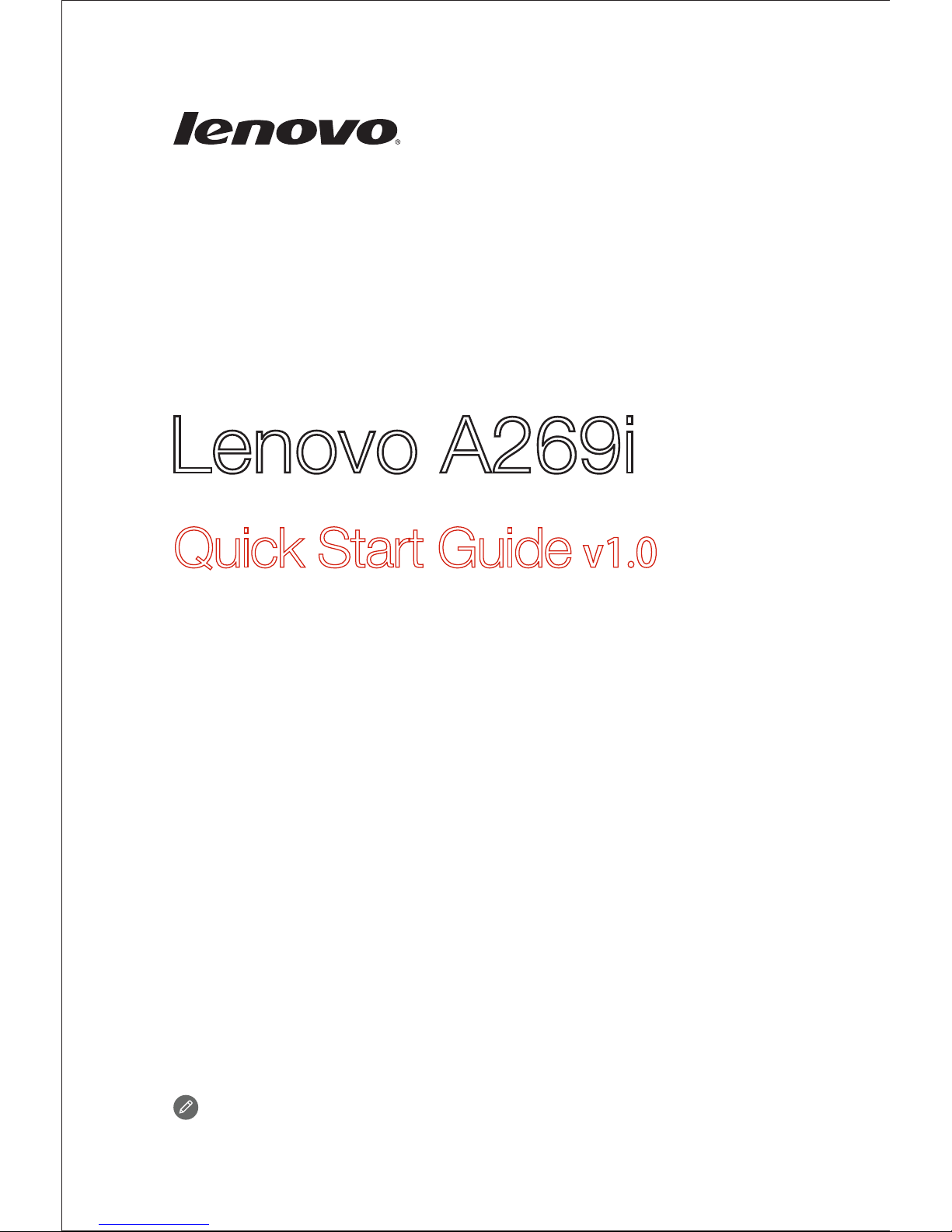

Lenovo A269i User manual
Lenovo A269i
Quick Start Guide v1.0
Read this guide carefully before using your phone.
81LV740001W
Printed in China
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the
United States, other countries, or both.
Other company, product, or service names may be trademarks
or service marks of others.
First Edition (September 2013)
© Copyright Lenovo 2013.
Learn More
For “Regulatory Notices” and other useful manuals, please go
to http://support.lenovo.com/.
Type: FF Rear Camera
Pixels: 2M
Height: 117mm Width: 62.5mm Depth: 12.8mm
Weight: 111g
CPU: MTK6572
Capacity: Dual core 1G
Size: 3.5” Screen: Multi-Touch display
Resolution: HVGA LCD type: IPS
Model: Lenovo A269i System: Android Ginger Bread
②Bluetooth 2.0 WLAN WCDMA, GSM
①Based on actual measurements.
②You must be within about 30 feet (10 meters) of a Bluetooth device
for it to be connected to the phone.
① Standby time: 450hrs
Battery: 1300mAh (Built-in rechargeable lithium-ion battery)
Wireless Communication
Display
Model and System
Power and Battery
CPU and Capacity
① Size and Weight
Camera
Technical specications
Rear camera
Volume up
Speaker
Receiver Power on/off
Volume down
Earphone jackMicro USB port 5
Microphone2
6
3
78
2
9
4
1
9
8
3 4 5
7
6
1
First glance
Step 1. Hook your ngertip under the back cover and then pry to open
the back cover.
Step 2. Remove the battery.
Step 3. Install the SIM card(s) and memory card as shown in the
illustration.
Step 4. Replace the battery and the back cover.
1
WCDMA/GSM
2
GSM
1
WCDMA/GSM
2
GSM
1
2
A SIM card provided by your carrier is required in order to use cellular
services. A microSD® card can be installed in the device to provide
additional storage space for photos, videos, or other les.
Keep the battery dry and away from any liquid since this may cause a
short circuit.
Keep the battery away from re since this may cause the battery to
explode.
Installing the SIM card(s) and Memory card
Method 1. Connect your phone to a power outlet using the included
cable and USB power adapter. or
Method 2. Charge the battery using a computer.
Low battery Fully charged Charging
For more information about battery safety, see the Important Product
Information Guide.
2
1
Charge the battery as shown.
Charging the battery
