LEGRAND DRD3 v2 User manual

ADVANCED OPERATION

Groups

Use a Miro Wireless DRD3 Switch in conjunction with one or more Miro Wireless

DRD8 Multilocation Controllers to control one non-dimmable lighting circuit

from multiple locations. Binding the DRD3 and DRD8 devices together in the

same Group enables them to work in exactly the same way, from any control

location.

You can include other Wireless Miro devices in the Group. Just remember that all

devices in the Group operate when one member operates.

Set the House ID (see Set House ID) before setting up Groups.

1. Go to any device that you want to include in the Group. Press . The device

LED flashes yellow, and all other devices in the House flash green.

You now have 5 minutes to complete this process.

2. To include or exclude a device in the Group press on the device until the

LED changes color. Yellow flashing LED = Included in the Group

Green flashing LED = NOT included in the Group

If you get to a device and it is NOT flashing, the 5 minute binding process timer

may have expired. Go back to step 1 and repeat.

3. Return to the device used in step 1 and press to terminate Group binding.

All LEDs turn solid green.

Adding a Switch to a Group in an Existing System

1. Go to a device that is in the existing Group where you want to add the switch.

Press . The device LED and all members of the Group flash yellow. The new

switch flashes green.

2. Press on the new switch until its LED flashes yellow.

3. Return to the device used in step 1 and press . All LEDs turn solid green.

Deleting a Switch from a Group in an Existing System

1. Go to a device other than the one you’re deleting that is in the existing Group.

Press until the LED flashes yellow on each member of the Group.

2. Press on the switch you want to remove, until its LED flashes green.

3. Return to the device used in step 1 and press . All LEDs turn solid green.

Scene Control

The Wireless Miro switch may be easily incorporated into room preset and whole

house preset scenes. The Miro Installation Guide provides more information

about configuring scenes and presets.

Instructions for installation and use are included with the relevant

Miro wireless room and whole house control devices. Application

support information and the Miro Installation Guide is available at www.legrand.

us for Legrand customers and www.vantagecontrols.com for Vantage customers.

CLEANING

Clean using a cloth dampened only with water and a little mild detergent.

Use of solvents or hydrocarbon-based cleaners may cause permanent damage.

TROUBLESHOOTING

During Set House ID, the LED is not flashing on some Miro wireless

devices.

• IfLEDissolidgreenbeforeinitiatinghouseIDbinding:

The device already has another house ID. Reset it to the factory default so

that it can be bound to the desired house ID. Resetting to factory defaults is

described in the “I need to start over” issue.

• IfLEDissolidyellowafterinitiatinghouseIDbinding:

The device may be out of range of the initiating device. Add a MRR2G Miro

Wireless Repeater to boost signal range.

I made a configuration mistake. I need to start over.

You can reset any Miro wireless device to factory default settings by press-

ing and holding until the LED changes to solid yellow (approximately 10

seconds). During the process, the LED flashes yellow and when complete,

it changes to solid yellow. The device can then be reconfigured, exactly like

any new device (see the Set House ID section).

The switch does not work and the status LED is flashing red at 2Hz

(10 times in 5 seconds):

The switch has detected an overload condition and has shut down.

To clear the fault condition, tap and wait for the LED to turn green.

Disconnect loads in excess of rated load and try again.

FCC Notice

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

thefollowingmeasures:

• Reorientorrelocatethereceivingantenna.

• Increasetheseparationbetweentheequipmentandreceiver.

• Connecttheequipmenttoanoutletonacircuitdifferentfromthattowhich

the receiver is connected.

• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Caution: Any changes or modifications to this device not explicitly approved by

manufacturer could void your authority to operate this equipment.

Warranty Information

Manufacturer warranties its products to be free of defects in materials and

workmanship for a period of five (5) years. There are no obligations or liabilities

on the part of manufacturer for consequential damages arising out of, or

in connection with, the use or performance of this product or other indirect

damages with respect to loss of property, revenue or profit, or cost of removal,

installation or reinstallation.

Please

Recycle

1061 South 800 East

Orem, UT 84097

Phone:800.555.9891

www.vantagecontrols.com

Legrand Customers contact: Vantage Customers contact:

07477r209/07

301 Fulling Mill Road Suite G

Middletown, PA 17057

Phone:800.321.2343

www.legrand.us/onq

Specifications

Voltages.............................120/277VAC,60Hz

Maximum Load Rating

@120VAC..............................1500W,1/4hp

@277VAC................................... 3000W

Load Type Compatibility

Non-dimmable fluorescent ballasts

Discharge lighting fixtures

Fixtures with integral dimmers

AC motors and pumps

U.S. Patent 5,804,991.

Other patents pending

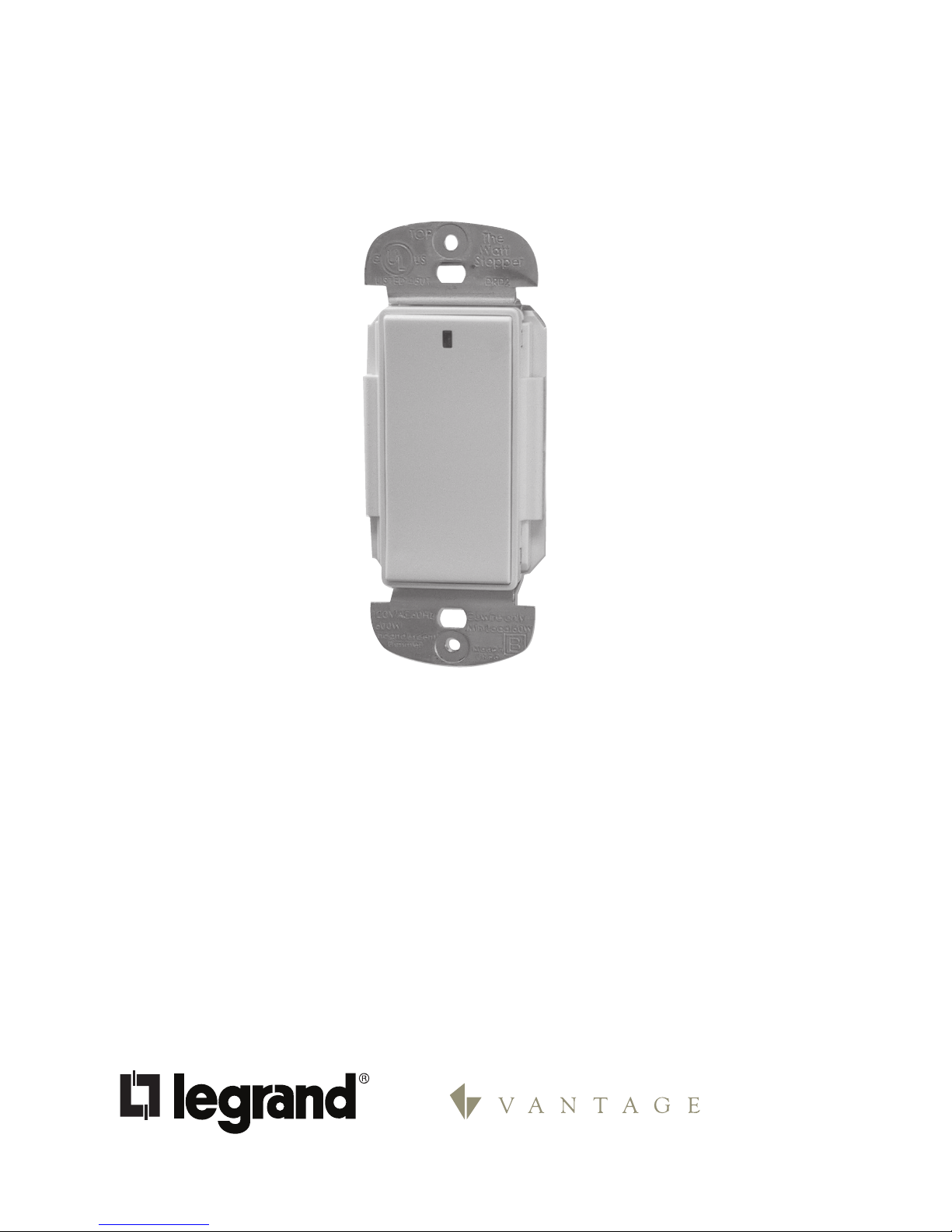

DRD3 v2

Wireless Switch

Installation Instructions

UNIT DESCRIPTION

The Miro Decorator Wireless DRD3 Switch incorporates an electro-mechanical

relaythatswitchestheloadsafelyusingpatentedzero-crossingtechnology.

Miro Wireless

Miro wireless devices use radio signals to communicate with each other

to control lighting and other types of electric loads in selected areas. Miro

wirelessdevicesusethe900MHzbandforhigh-speedcontrolcommunication.

Using the patented “frequency-agile” Top Dog™ technology, Miro wireless

devicesavoidinterferencewithother900MHzdevices,suchascordless

phones and baby monitors.

Load Types

Use the DRD3 for the following load types, up to the maximum load rating for

theinputvoltage:

• Conventional(non-dimmable)fluorescentballasts

• Dischargelightingfixtures

• Fixtureswithintegraldimmers

• ACmotorsandpumps(120VAConly)

CAUTION

To reduce the risk of

overheating and possible

damage to other equipment, do not

install to control a receptacle.

CAUTION

Afin de réduire le risque de

surchauffe et la possibilité

d’endommager d’autres

matériels, ne pas installer

pour commander une prise.

INSTALLATION

For ease of installation, manufacturer recommends use of a deep wall box.

The device is equipped with flying leads to simplify installation, however, if

desired, they may be removed by loosening the screw terminals.

1. Disconnect power to circuit by turning circuit breaker OFF before

installation.

2. Remove the existing wall plate and switch, if one is present.

3. Stripexistingwires1/2”.Iftwowireswillbeconnectedtothesameterminal

on a Miro device, both wires must be the same gauge (12AWG or 14AWG).

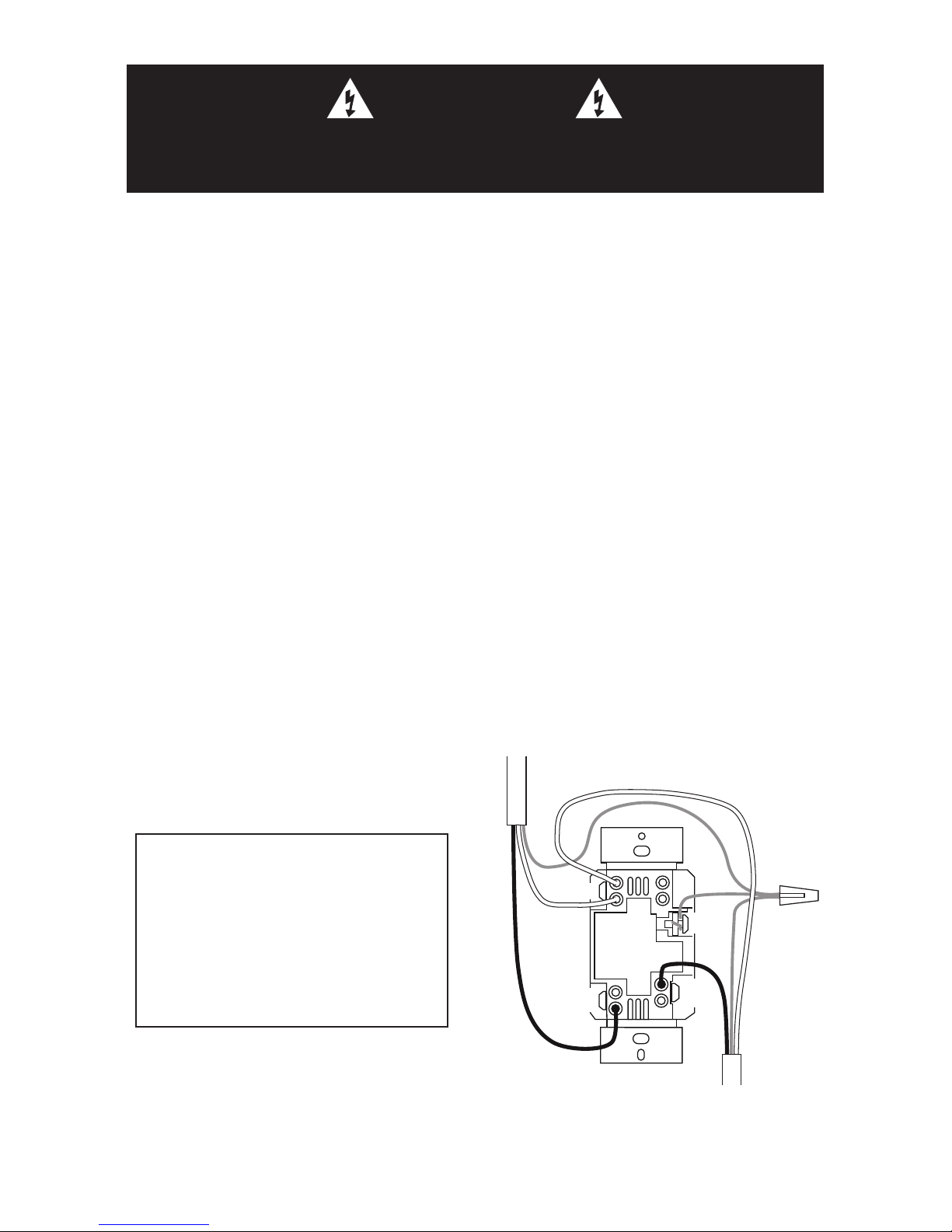

4. Wire the LINE (black), LOAD, NEUT (white) and GND (green or bare) supply

and load wires to the correspondingly marked screw terminals, according

to the wiring diagram below.

5. Attach the wall plate.

6. Switch the circuit breaker back ON.

LOAD LINE

GND

NEUT

SUPPLY

WIRE

LOAD

WIRE

CAUTION

TURN THE POWER OFF AT THE CIRCUIT BREAKER

BEFORE INSTALLING THE DEVICE.

INSTALL IN COMPLIANCE WITH

ALL APPLICABLE

CODES & STANDARDS.

Failure to follow these

instructions may cause

personal injury or equipment

damage.

SET HOUSE ID

New Installation

All Miro wireless devices installed in the same home must acquire the same

unique House ID before use. This process is known as house binding. Each

Miro wireless device is bound to all other Miro wireless devices in the

house.

New Installation

1. Withalldevicesinstalledandenergized,makesurethateveryMirowireless

device LED is yellow. If any LED is off, be sure the circuit breaker is on and

the device is correctly installed.

2. Press on any device paddle until

the LED flashes yellow (about 2

seconds). This indicates that it has

acquired a unique House ID.

3. Make sure that all other Miro

wireless device LEDs are flashing

green, indicating that they have

acquired the same House ID.

4. Return to the device used in step 2,

which is still flashing yellow. Press until the LED changes to solid green

(about 2 seconds). All device LEDs in the House change to solid green,

indicating house binding is complete.

Adding a Device to an Existing Installation

If you’re adding or replacing a device in a Miro wireless installation that is

already operating, the new device must acquire the same House ID as the

other Miro wireless devices in the house. After the new device is powered

up, the LED should be solid yellow. This indicates that it has not yet

acquiredaHouseID.ToacquiretheHouseIDfortheexistingsystem:

1. Press on any previously bound device until the LED flashes yellow

(about 2 seconds).

2. Verify that the newly added device LED is flashing green, indicating that it

has acquired the House ID.

3. Return to the same previously bound device used in step 1 and press

until the LED changes to solid green (about 2 seconds). All device LEDs

should now be solid green.

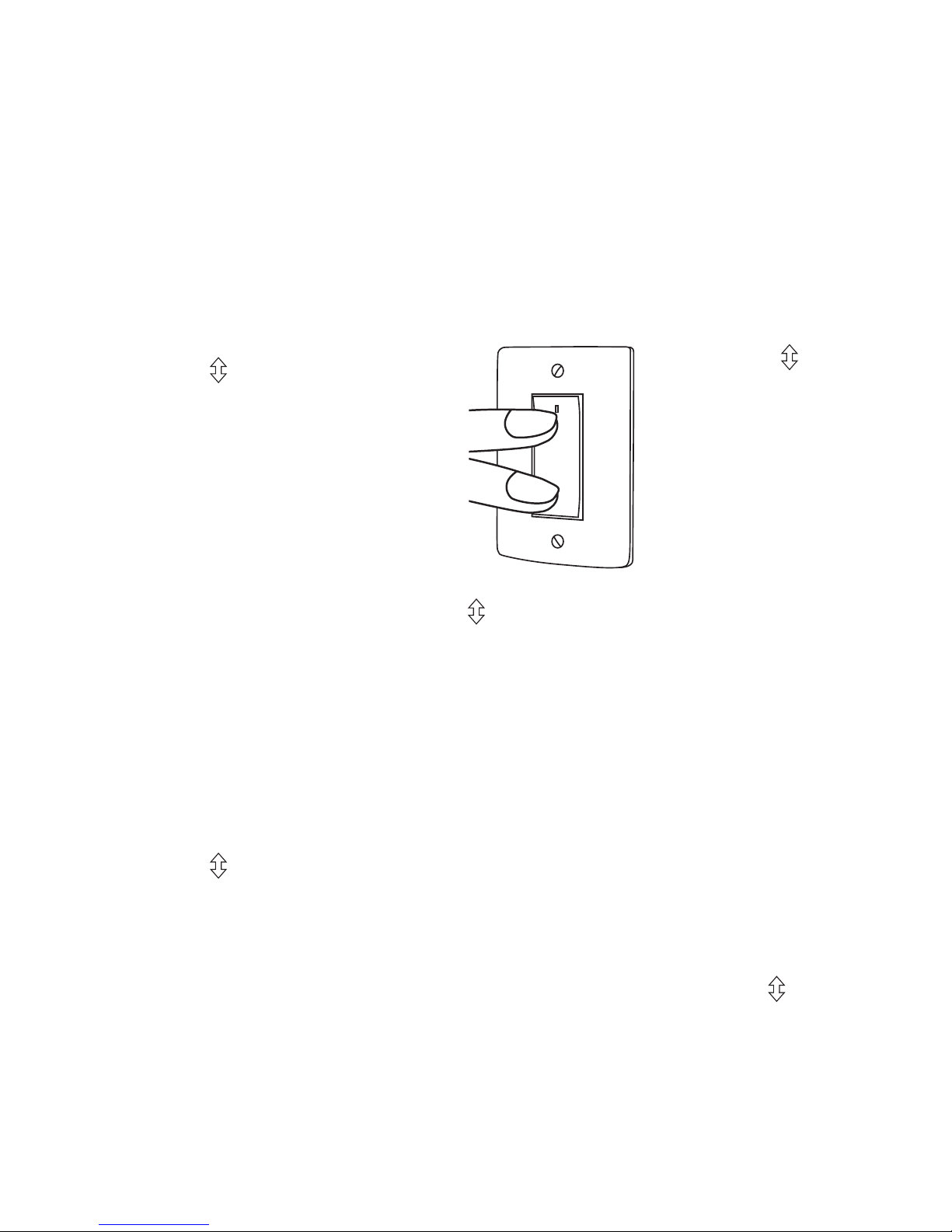

When you see

in the instructions,

firmly press and

hold both the top

and bottom of the

device paddle until

the LED changes

(about 2 seconds).

OPERATION

Replacing Lamps

When a lamp must be replaced, tap to turn off the circuit. If you are

conducting maintenance on the load, turn off the circuit at the circuit breaker.

Power Fail Memory

After a power failure, all Miro devices automatically return to the state that

they were in immediately prior to loss of power. All configuration and scene

control information is preserved.

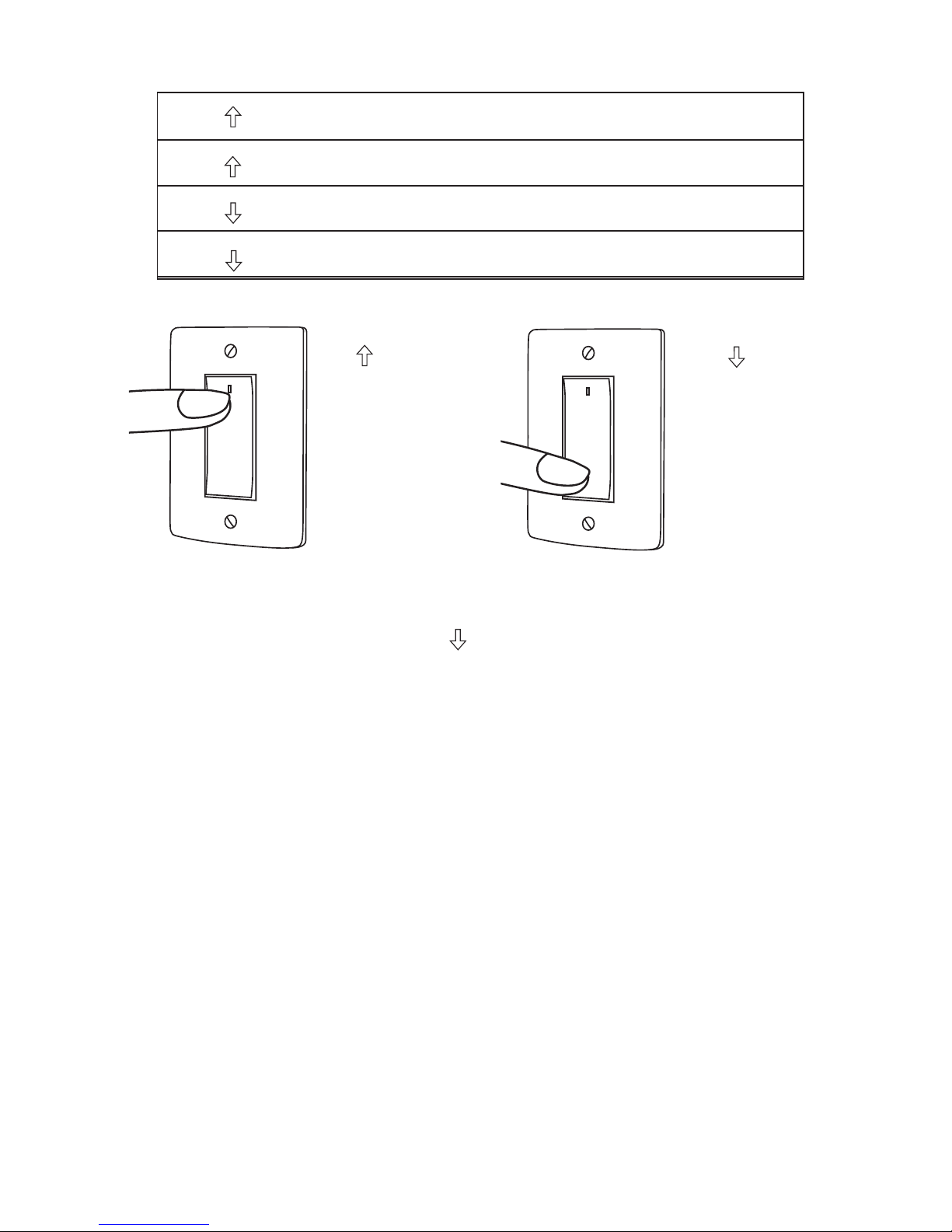

DCO DIMMER BOTTOM FINGER

When you

see in the

instructions,

touch the top

of the switch

as directed.

When you

see in the

instructions,

touch the

bottom of

the switch as

directed.

Tap once Turn circuit ON

— — Press and hold Turn circuit ON

Tap once Turn circuit OFF

— — Press and hold Turn circuit OFF

4-FOLD

•Print:2-sides

•InkColor:Black

•Paper:White16lb(60g/msq)

Uncoated, prefer recycled stock

•Finaltrimsize:16”(Wide)x6”(High).

•Four(4)fold.

•Finalfoldedsize:4”(Wide)x6”(High).

TITLE BOX PAGE ONLY.

DO NOT MAKE FILM • DO NOT PRINT

SANTA CLARA, CALIFORNIA

Title: DRD3 v2 Installation Instructions

IF YOU HAVE ANY QUESTIONS REGARDING SPECIFICATIONS OR REQUIRE

ADDITIONAL FILE FORMATTING, PLEASE CONTACT Mary Jo Sowinski.

Phone:408-486-7511

Email:[email protected]

Drawing #:

07477

Orig. Drawing Date: 16 MAR 07 Rev. #:

Revision Date: 24 SEP 07

SOWINSKI

Scale: 1:1

All information in this drawing is the property of Watt Stopper/Legrand and cannot be copied or

used without the written approval of Watt Stopper/Legrand.

Drawn by

PLM

MarCom

Engineering

TITLE BOX PG

REV DESCRIPTION INT: REV. DATE APPROVED

1 ECO# C01933 MJS 3/28/07 CG

2 EC0# C02411 MJS

This manual suits for next models

Table of contents

Other LEGRAND Switch manuals

LEGRAND

LEGRAND Niloe 7 64X 71 User manual

LEGRAND

LEGRAND 7 521 94 User manual

LEGRAND

LEGRAND Adorne sofTap WNAL10 User manual

LEGRAND

LEGRAND Galion K8/32/1/2B-HK User manual

LEGRAND

LEGRAND 779 20 User manual

LEGRAND

LEGRAND PRO 21 7756 29 User manual

LEGRAND

LEGRAND Celiane 0676 61 User manual

LEGRAND

LEGRAND Valena 7702 89 User manual

LEGRAND

LEGRAND Wattstopper LMDM-101 User manual

LEGRAND

LEGRAND Raritan RSS4-102 Service manual

LEGRAND

LEGRAND In One 495 05 User manual

LEGRAND

LEGRAND PRO 21 Galea Sistena NGS Solfa Smart Control 7759... User manual

LEGRAND

LEGRAND radiant WNRL33 User manual

LEGRAND

LEGRAND Soliroc 778 51 User manual

LEGRAND

LEGRAND Mosaic 0 770 30 User manual

LEGRAND

LEGRAND Excel Life EM970 Series User manual

LEGRAND

LEGRAND LUXUL SW-505-8P-F User manual

LEGRAND

LEGRAND Mallia 2811 80 User manual

LEGRAND

LEGRAND 7 521 83 User manual

LEGRAND

LEGRAND MyHome F524 User manual

LEGRAND

LEGRAND Pass & Seymour TM8LOCATOR-LA User manual

LEGRAND

LEGRAND PRO 21 7756 32 User manual

LEGRAND

LEGRAND Niloe 6 647 03 User manual

LEGRAND

LEGRAND radiant WNP10 User manual

Popular Switch manuals by other brands

URC

URC Total Control MFS-8 installation manual

Azbil

Azbil HPQ-D11 user manual

Sony

Sony DFS-900M operating instructions

SICK

SICK i17S operating instructions

F&F

F&F SZR-277 quick start guide

Shure

Shure UAMS/BK user guide

Dräger

Dräger X-zone Switch Off Instructions for use

Asco

Asco Joucomatic 349 Series manual

BT Mini Hub user guide

D-Link

D-Link DES-1226G manual

Johnson Controls

Johnson Controls FS80-C installation instructions

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Configuration guide

MicroNet

MicroNet SP1200A user manual

Ruijie

Ruijie RG-PF2920 Series Hardware installation and reference guide

Altinex

Altinex DA1914SX user guide

MiLAN

MiLAN MIL-SM2401M user guide

RJM

RJM MASTERMIND PBC/6X user manual

Atlas

Atlas MMK-KVM8 owner's manual
